1. Introduzzjoni
Merħba
Grazzi tax-xiriasing the ENDEAVOUR FIRES Castleton Electric Fireplace. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions thoroughly before installation and use, and retain them for future reference.
Informazzjoni Importanti dwar is-Sigurtà
- Aqra l-istruzzjonijiet kollha qabel tuża dan l-apparat.
- Tħaddemx fuklar b'korda jew plagg bil-ħsara, jew jekk il-heater ma jkunx ħadem sew, waqa', jew ġarrab ħsara b'xi mod.
- Tużax barra. Dan in-nar huwa maħsub għal użu ġewwa biss.
- Żomm materjali kombustibbli, bħal għamara, mħaded, friex, karti, ħwejjeġ, u purtieri mill-inqas 3 piedi (0.9 m) minn quddiem tan-nar.
- Dejjem aqla 'l-nar meta ma tkunx qed tuża.
- Tmexxix korda taħt it-twapet. Tgħattix il-korda b'twapet tat-twapet, runners, jew kisi simili. Irranġa l-korda 'l bogħod miż-żona tat-traffiku u fejn ma titfixkelx.
- Biex tiskonnettja n-nar, itfi l-kontrolli, imbagħad neħħi l-plagg mill-plagg.
- Dan il-nar huwa sħun meta jintuża. Biex tevita ħruq, tħallix ġilda mikxufa tmiss uċuħ sħan.
- Always use a grounded, fused electrical outlet.
- Tiżgura l-provvista tal-enerġija voltage jaqbel mat-tikketta tal-klassifikazzjoni fuq l-apparat.
- The heater outlet is located at the front. Do not obstruct the heater outlet.
- This appliance is equipped with a safety cut-off device to prevent overheating. If the heater stops working, unplug the unit, wait 10-15 minutes, and then plug it back in.
2. Kontenut tal-Pakkett
Carefully unpack all components and check against the list below. Ensure all items are present and undamaged before proceeding with assembly.
- Castleton Fireplace Surround (Off-White MDF)
- Electric Fire Unit with Log Effect Fuel Bed
- Kontroll mill-bogħod b'ħafna funzjonijiet
- Batteriji AAA (2) għall-Kontroll mill-Bogħod
- Ħardwer tal-Assemblaġġ (viti, kavilji, eċċ.)
- Manwal ta' Istruzzjoni
3. Assemblaġġ u Installazzjoni
Qabel Tibda
Ensure you have sufficient space for assembly and that the chosen location for the fireplace meets the safety requirements outlined in Section 1.
Għodod Meħtieġa
- Tornavit tar-ras Phillips
Passi tal-Assemblea
- Assemble the Fireplace Surround: The surround is supplied flat-packed. Follow the detailed diagrams provided in the separate assembly guide (if included) or the general instructions to connect the MDF panels using the provided hardware. Ensure all connections are secure.
- Insert the Electric Fire Unit: Once the surround is assembled, carefully slide the electric fire unit into the designated opening from the front. Ensure it sits flush and is properly aligned within the surround.
- Secure the Fire Unit: Use the provided screws to secure the electric fire unit to the fireplace surround from the inside or designated attachment points.
Figura 1: Wara view of the electric fire unit, illustrating its compact design for easy insertion into the surround.
Konsiderazzjonijiet ta' Pjazzament
- Place the assembled fireplace on a flat, stable surface.
- Ensure the power cable (1.7m length, right side) can reach a suitable grounded electrical outlet without being stretched or obstructed.
- Maintain adequate clearance from walls and other objects as specified in the safety information.
- The design allows for a television to be placed on top of the mantelpiece.

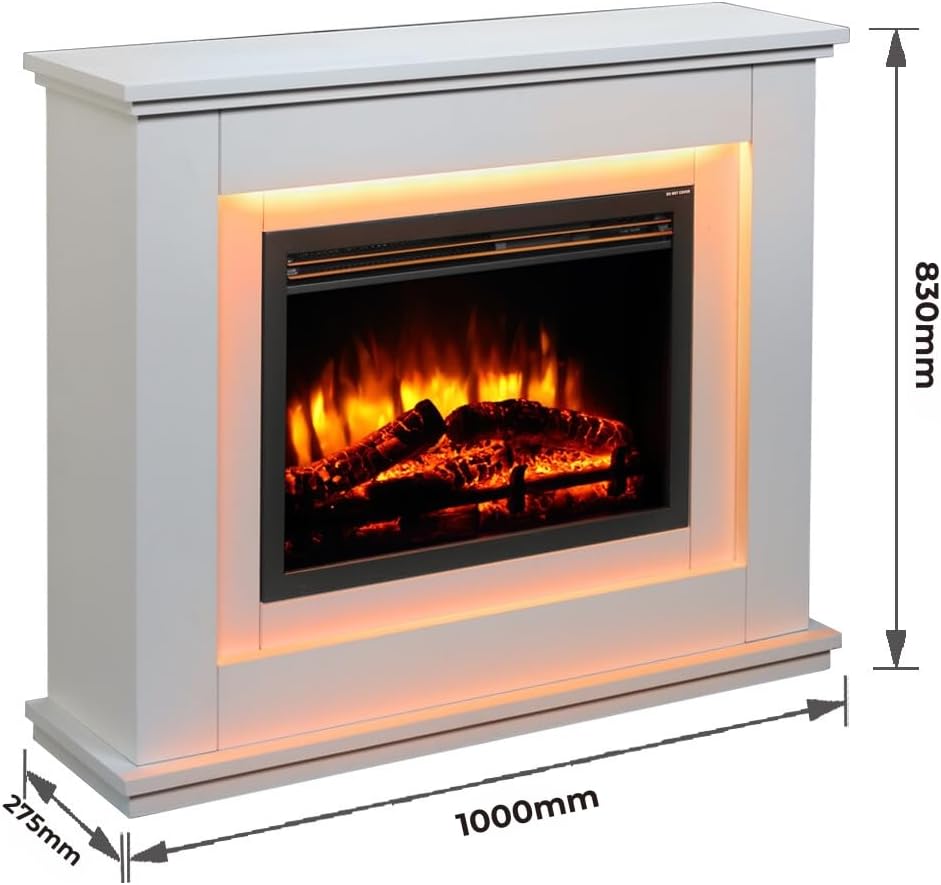

Figure 2: Dimensions of the Castleton fireplace surround (1000mm W x 830mm H x 275mm D).
Figure 3: The Castleton electric fireplace integrated into a modern living space.
4. Operazzjoni
The fireplace is operated using the supplied multi-function remote control.
Funzjonijiet ta 'Kontroll mill-bogħod
Figure 4: Multi-function remote control with LCD display.
- Buttuna tal-Enerġija (Mixgħula/Mitfija): Turns the fireplace unit on or off.
- Flame Effect Button: Activates or deactivates the flame effect. The intensity and brightness can be adjusted.
- Mood Lighting Select: Cycles through the 13 available ambient light colors or sets it to automatically transition between colors. Includes a dimming function.
- Heating/Advance (M): Activates the heater. Press to cycle between 1kW and 2kW heat settings.
- Sensur Termostatiku: The remote control includes a thermostatic sensor for accurate room temperature detection.
- Timer: Sets the operational timer from 30 minutes up to 9 hours.
- Scroll Left/Right Arrows: Used to navigate through flame and lighting options on the LCD display.
- Vleġeġ 'il fuq/'l isfel: Adjusts flame intensity, heat levels, or light brightness.
- Buttuna Lura: Returns to the previous menu or setting.
Using the Thermostat and Programmer
The remote control allows for thermostatic control and 7-day programmable heating. Refer to the remote control's specific instructions for detailed programming steps to set desired temperatures and operating times.
5. Karatteristiċi ewlenin
- Effett realistiku tal-fjamma: Features an incredibly vivid flame effect with a molded log fuel bed, enhancing the ambiance of any room.
- 13 Colour Mood Lighting: Offers 13 ambient light color options, which can be set to a fixed color or cycle automatically. Includes a dimming function for customizable atmosphere.
Figura 5: Eżamples of the 13 available mood lighting colors.
- Operazzjoni Indipendenti: The flame effect and ambient lighting can be operated independently of the heating function, allowing for year-round use.
- Quiet Heater: Features a quiet heating operation with forward-facing output, providing warmth without significant noise.
- Eco-Design Compliant: Designed and manufactured to meet Eco-design 2018 (Lot 20) requirements for optimal energy efficiency.
- Qtugħ tas-Sigurtà: Equipped with an automatic safety cut-off to prevent overheating.
6. Manutenzjoni
Tindif
- Always unplug the fireplace from the power outlet before cleaning.
- Wipe the exterior surfaces of the fireplace surround with a soft, damp drapp. Tużax tindif jew solventi li joborxu.
- Gently dust the electric fire unit's glass panel and log bed with a soft, dry cloth.
- Kun żgur li ma tidħol l-ebda umdità fil-komponenti elettriċi.
Ħażna
If storing the fireplace for an extended period, ensure it is clean, dry, and unplugged. Store in a cool, dry place, protected from dust and extreme temperatures.
7 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-gwida li ġejja għas-soluzzjoni tal-problemi għal kwistjonijiet komuni.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| In-nar ma jixgħelx. | Ebda enerġija għall-unità. | Check if the power cord is securely plugged into a working electrical outlet. Check the circuit breaker. |
| Heater stops working. | Overheating safety cut-off activated. | Unplug the unit, wait 10-15 minutes for it to cool down, then plug it back in. Ensure the heater outlet is not obstructed. |
| Il-kontroll remot mhux qed jirrispondi. | Batteriji mejta jew ostruzzjoni. | Replace the AAA batteries in the remote control. Ensure there is no obstruction between the remote and the fireplace sensor. |
| Flame effect not visible or flickering. | Flame effect turned off or brightness too low. | Press the Flame Effect button on the remote. Adjust the flame brightness using the Up/Down arrows. |
8. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | ENDEAVOUR FIRES |
| Numru tal-Mudell | E114R/115S |
| Isem tal-Prodott | Castleton Electric Fireplace |
| Kulur | Off White |
| Fireplace Surround Dimensions (W x H x D) | 1000mm x 830mm x 275mm (madwar 39.4" x 32.7" x 10.8") |
| Electric Fire Unit Dimensions (W x H x D) | 600mm x 434mm x 210mm (madwar 23.6" x 17.1" x 8.3") |
| Piż | 36 Kilogrammi |
| Voltage | 220-240Vac, 50Hz |
| Output tas-Sħana | 1kW and 2kW selectable |
| Materjal | Injam Inġinerizzat (MDF) |
| Tul tal-Kejbil tal-Enerġija | 1.7-il metru |
| Karatteristiċi Speċjali | Safety Cut-off, Realistic Flame Effect, LED Flame, 13 Multi-color Flame/Mood Lighting, Adjustable Flame Brightness, Thermostatic Control, 7-Day Programmable Remote |
9. Garanzija u Appoġġ
Informazzjoni dwar Garanzija
Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for any warranty claims.
Appoġġ għall-Klijent
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact the retailer or manufacturer's customer support. Contact details can typically be found on the product packaging or the retailer's websit.
