iBeam TE-CSC Chrome Push-in Camera Instruction Manual

1. Introduzzjoni

Thank you for choosing the iBeam TE-CSC Chrome Push-in Camera. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new vehicle backup camera. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

The iBeam TE-CSC is designed to enhance parking accuracy and help avoid obstacles when reversing, offering a wide 170-degree view. Its durable, water-resistant chrome housing ensures longevity and a sleek appearance.

2. Informazzjoni dwar is-Sigurtà

• Dejjem skonnettja l-batterija tal-vettura qabel ma tagħmel xi xogħol elettriku biex tevita short circuits u xokk elettriku.
• Ensure all wiring is properly insulated and secured to prevent damage from vibration, heat, or moisture.
• Do not obstruct the driver's view or interfere with the operation of any vehicle controls or safety features during installation.
• This camera is an aid for reversing and parking; it does not replace the need for careful driving and direct observation of surroundings.
• Ikkonsulta installatur professjonali jekk m'intix ċert dwar xi parti tal-proċess tal-installazzjoni.

3. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

• iBeam TE-CSC Chrome Push-in Camera
• 22.5mm Toqba Saw
• Korda tal-Enerġija
• 20-foot Video Cable (RCA type)
• Manwal ta' Istruzzjoni

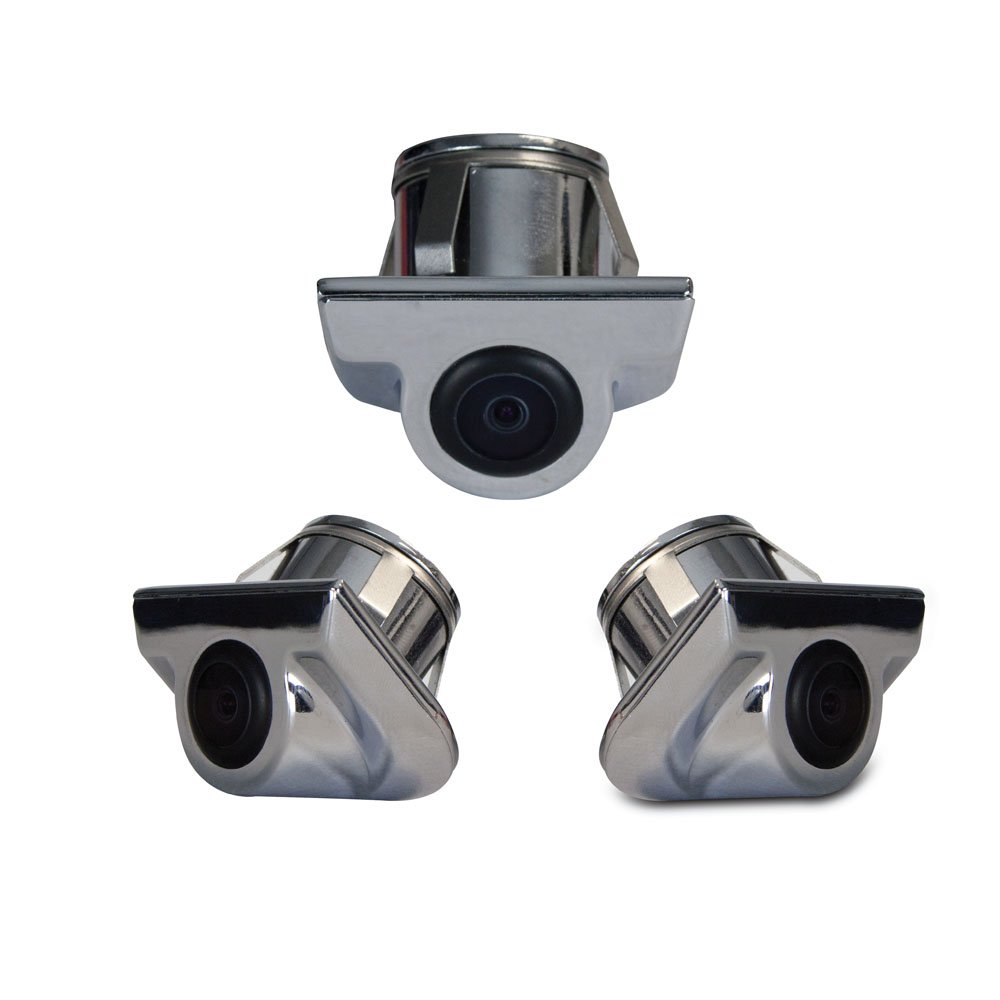

Image 1: iBeam TE-CSC Chrome Push-in Camera with its main components, including the camera unit, power cable, video cable, and hole saw.

4. Setup u Installazzjoni

The iBeam TE-CSC camera is designed for a push-in installation, typically above the rear license plate, mimicking an OEM camera setup. The camera is pre-set at a 45-degree angle for optimal viewing.

1. Agħżel Post tal-Immuntar: Identify a suitable flat surface above the rear license plate where the camera can be flush-mounted. Ensure there is enough space behind the mounting surface for the camera body and wiring.
2. Drill Toqba: Use the included 22.5mm hole saw to drill a precise hole at the chosen mounting location. Ensure the hole is clean and free of burrs.
3. Daħħal il-Kamera: Carefully push the camera into the drilled hole until it sits flush with the mounting surface. Ensure the camera's lens is oriented correctly (facing downwards and outwards).
4. Qabbad l-Enerġija: Connect the camera's power cord to the vehicle's reverse light circuit. This will ensure the camera activates automatically when the vehicle is put into reverse. Connect the red wire to the positive (+) lead of the reverse light and the black wire to a chassis ground (-).
5. Qabbad il-Kejbil tal-Vidjo: Route the 20-foot RCA video cable from the camera to your compatible monitor or head unit. Ensure the cable is securely routed away from moving parts, heat sources, and sharp edges. Connect the yellow RCA connector from the camera to the video input of your monitor.
6. Sistema tat-Test: Reconnect the vehicle's battery. Turn on the vehicle and engage reverse gear to test the camera's functionality. Adjust the camera's position slightly if needed (though it's fixed at 45 degrees, ensure the housing is seated correctly).

Nota: For vehicles with complex wiring or if you are uncomfortable with electrical connections, professional installation is recommended.

5. Istruzzjonijiet Operattivi

The iBeam TE-CSC camera operates automatically in conjunction with your vehicle's reverse gear and compatible monitor.

• Attivazzjoni Awtomatika: When the vehicle's transmission is shifted into reverse, the camera will automatically power on and transmit video to the connected monitor.
• ViewIng Angolu: The camera provides a wide 170-degree field of view, offering a comprehensive perspective of the area behind your vehicle.
• Għajnuna għall-Parkeġġ: Use the displayed image on your monitor to assist with parking maneuvers and to identify obstacles that may not be visible in your mirrors.
• Diżattivazzjoni: When the vehicle is shifted out of reverse, the camera will automatically power off, and your monitor will return to its previous display mode.

6. Manutenzjoni

To ensure the longevity and clear performance of your iBeam TE-CSC camera, follow these simple maintenance guidelines:

• Tindif tal-Lenti: Naddaf il-lenti tal-kamera perjodikament b'drapp artab u dryer.amp cloth to remove dirt, dust, or water spots. Avoid abrasive cleaners or materials that could scratch the lens.
• Spezzjoni tad-Djar: Regularly inspect the camera housing for any signs of damage or loose connections. The chrome finish is designed to withstand elements, but extreme conditions may require more frequent checks.
• Iċċekkja tal-Cable: Ensure all cables remain securely connected and are not exposed to excessive tension or abrasion.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and technical support, please contact iBeam USA directly. Details are typically provided with your product packaging or can be found on the official iBeam USA websit.

When contacting support, please have your product model number (TE-CSC) and purchase date available.
