1. Introduzzjoni
The Inogen One G3 External Battery Charger (Model BA-303) is designed to provide a convenient and efficient method for charging Inogen One G3 standard and extended batteries independently of the Inogen One G3 portable oxygen concentrator. This manual provides essential information for the safe and effective use of your charger.
Image: The Inogen One G3 External Battery Charger with an Inogen One G3 battery inserted, ready for charging.
2. Informazzjoni dwar is-Sigurtà
Please read all safety instructions before using the Inogen One G3 External Battery Charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Use only with Inogen One G3 standard (BA-300) and extended (BA-316) batteries.
- Tesponix il-ċarġer għall-ilma jew għal umdità eċċessiva.
- Tippruvax iżarma jew timmodifika l-ċarġer.
- Ensure the charger is connected to a compatible electrical outlet (100-240V AC, 50-60Hz).
- Żomm il-ċarġer 'il bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
- If the charger or power cord is damaged, discontinue use immediately and contact customer support.
Ċaħda Legali: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is an accessory for a medical device.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- Inogen One G3 External Battery Charger (Model BA-303)
- Kurdun tal-Input AC
4. Kompatibilità
This external battery charger is specifically designed for use with Inogen One G3 batteries. It supports both the standard (BA-300) and extended (BA-316) Inogen One G3 battery models.

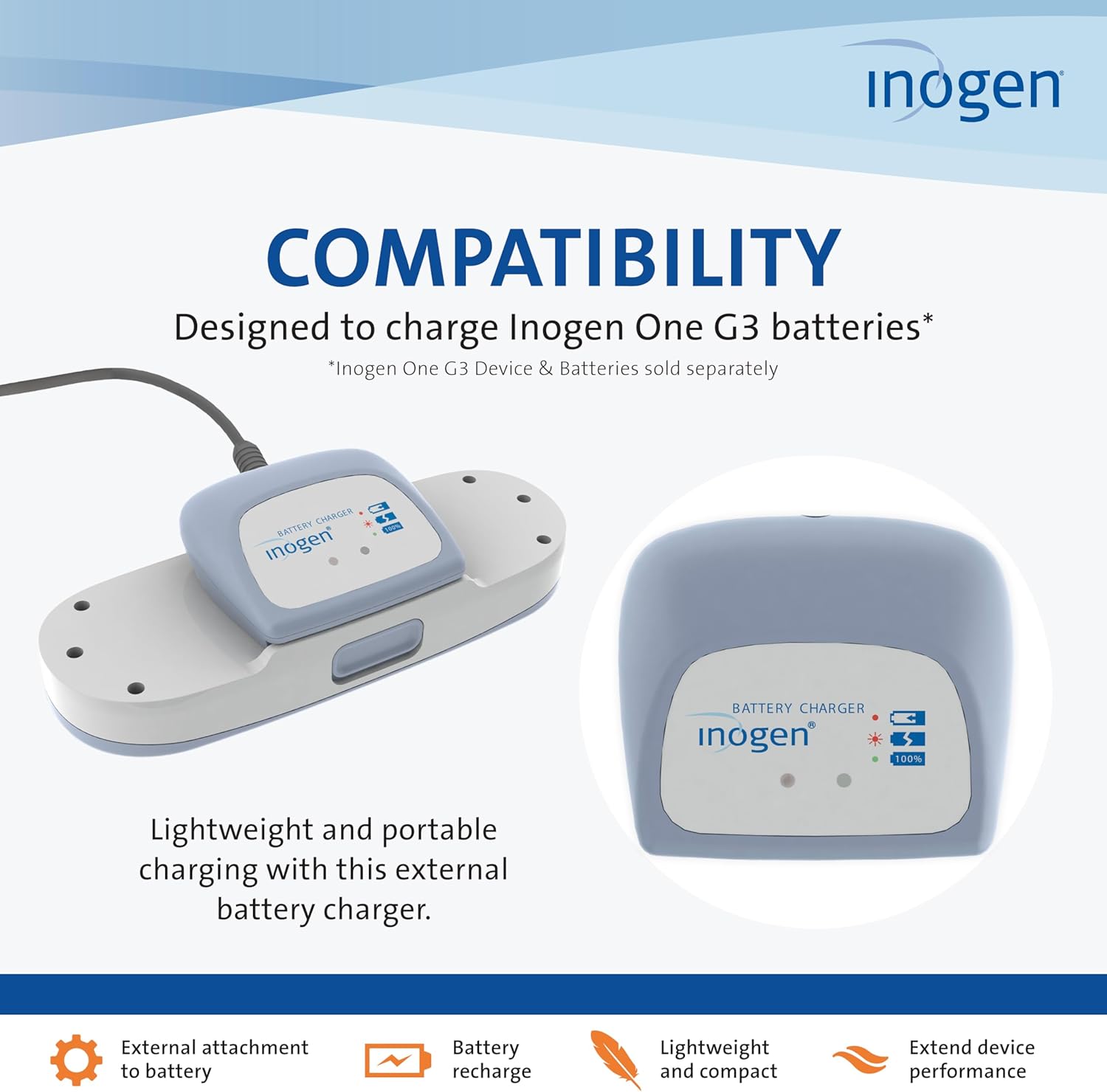

Image: An accessory compatibility chart showing the Inogen One G3 External Battery Charger (BA-303) is compatible with Inogen One G3 Standard (BA-300) and Extended (BA-316) batteries.
5. Istruzzjonijiet ta' Setup
Follow these steps to set up your Inogen One G3 External Battery Charger:
- Qabbad l-Enerġija AC: Plug the AC input cord into an electrical outlet.
Image: Step 1 of the charging process, showing the AC power cord being plugged into a wall outlet.
- Qabbad mal-Ċarġer: Plug the other end of the AC input cord into the designated port on the external battery charger.
Image: Step 2 of the charging process, illustrating the AC power cord connected to the external battery charger.
- Daħħal il-batterija: Slide your Inogen G3 battery onto the charger until it clicks and locks into place. Ensure it is seated correctly.
Image: Step 3 of the charging process, showing an Inogen G3 battery being slid onto the charger until it locks.
6. Istruzzjonijiet Operattivi
Once the charger is set up and a battery is inserted, the charging process will begin automatically.
Indikaturi tal-Iċċarġjar
- Dawl Aħmar Solidu: When the battery is correctly positioned on the charger, a solid red light will illuminate, indicating that the battery is actively charging.
Image: Step 4 of the charging process, showing the charger with a solid red light, indicating the battery is charging.
- Dawl aħdar: When the green light illuminates, the battery is fully charged and ready for use.
Image: Step 5 of the charging process, showing the charger with a green light, indicating the battery is fully charged.
Ħinijiet tal-Iċċarġjar
Approximate charging times are as follows:
- Standard Inogen One G3 Battery: Up to 5 hours
- Extended Inogen One G3 Battery: Up to 8 hours
Image: The Inogen One G3 External Battery Charger with a battery, illustrating the approximate charging times for standard and extended batteries.
For continuous use, consider having multiple batteries and an additional external charger to ensure batteries are always ready.
7. Manutenzjoni
The Inogen One G3 External Battery Charger requires minimal maintenance.
- Keep the charger clean and free from dust. Wipe with a dry, soft cloth.
- Tużax prodotti tat-tindif likwidi jew materjali li joborxu.
- Aħżen il-ċarġer f'post frisk u niexef meta ma tkunx qed tuża.
- Spezzjona l-korda tal-enerġija regolarment għal kwalunkwe sinjal ta’ ħsara.
8 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-ċarġer tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Charger light not illuminating | No power to charger, battery not inserted correctly, or charger malfunction. |
|
| Dawl aħmar li jteptep | Error during charging process. |
|
| Il-batterija mhix qed tiċċarġja kompletament | Battery issue or charger malfunction. |
|
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | BA-303 |
| Kompatibilità | Inogen One G3 Standard (BA-300) and Extended (BA-316) Batteries |
| Input Voltage | 100-240V AC, 50-60Hz |
| Ħruġ Voltage | 15 Volts |
| Dimensjonijiet (W x L x H) | 3.3 pulzieri x 2.75 pulzieri x 1 pulzieri. |
| Piż | 0.12 lbs. (madwar) |
| Standard Battery Charge Time | Sa 5 sigħat |
| Extended Battery Charge Time | Sa 8 sigħat |
10. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation provided with your original Inogen One G3 portable oxygen concentrator or visit the official Inogen websit.
Tista 'wkoll iżżur il- Inogen Store on Amazon għal aktar informazzjoni dwar il-prodott u aċċessorji.
