NESCAFE DOLCE GUSTO MD9748-MB Coffee Machine User Manual

Model: MD9748-MB

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NESCAFE DOLCE GUSTO MD9748-MB coffee machine. Please read these instructions carefully before first use and keep them for future reference.

The NESCAFE DOLCE GUSTO MD9748-MB is designed to prepare a variety of coffee and other beverages using NESCAFE DOLCE GUSTO capsules.

2. Istruzzjonijiet tas-Sigurtà

  • Always ensure the machine is placed on a stable, flat surface.
  • Tgħaddasx il-magna, il-korda tal-enerġija, jew il-plagg fl-ilma jew f'likwidi oħra.
  • Żomm l-apparat fejn ma jintlaħaqx mit-tfal.
  • Skonnettja l-magna mill-plagg tal-elettriku qabel ma tnaddafha u meta ma tkunx qed tużaha.
  • Tħaddimx il-magna jekk il-korda tal-enerġija jew il-plagg ikunu bil-ħsara.
  • Use only NESCAFE DOLCE GUSTO capsules with this machine.
  • Be cautious of hot surfaces and hot water/steam during operation.

3. Prodott Aktarview

3.1 Komponenti Inklużi

The following components are typically included with your NESCAFE DOLCE GUSTO MD9748-MB coffee machine:

NESCAFE DOLCE GUSTO MD9748-MB coffee machine with accessories

Image: The NESCAFE DOLCE GUSTO MD9748-MB coffee machine shown with its power cord, water tank, capsule holder, and drip tray assembly.

3.2 Identifikazzjoni tal-Parti

Iffamiljarizza ruħek mal-partijiet ewlenin tal-magna tal-kafè tiegħek:

Close-up view of NESCAFE DOLCE GUSTO MD9748-MB components: capsule holder, water tank, and drip tray parts

Image: A collage showing detailed views of the capsule holder, the removable water tank, and the drip tray components of the MD9748-MB machine.

  • Tank tal-Ilma: Riżervwar tal-ilma li jista' jitneħħa.
  • Detentur tal-kapsula: Where the coffee capsule is inserted.
  • Trej tat-taqtir: Jiġbor il-likwidu żejjed u jappoġġja t-tazzi.
  • Ras tal-Birra: Mechanism that pierces the capsule and dispenses beverage.
  • Buttuna tal-Qawwa: Biex tixgħel u titfi l-magna.
  • Lever/Selector: To control hot or cold water dispensing and start/stop brewing.

4. Setup

4.1 Żpakkjar u Tindif Inizjali

  1. Neħħi l-materjali kollha tal-ippakkjar mill-magna.
  2. Imsaħ il-barra tal-magna bl-adamp drapp.
  3. Wash the water tank, capsule holder, and drip tray with warm soapy water, then rinse thoroughly and dry.

4.2 Mili tat-Tank tal-Ilma

Ġenb view of NESCAFE DOLCE GUSTO MD9748-MB showing the transparent water tank

Image: The side of the MD9748-MB machine, highlighting the transparent water tank at the rear, ready for filling.

  1. Neħħi t-tank tal-ilma minn wara tal-magna.
  2. Fill the tank with fresh, potable water up to the maximum fill line.
  3. Replace the water tank securely on the machine.

4.3 L-Ewwel Użu / Ċiklu tat-Tlaħliħ

Before brewing your first beverage, perform a rinsing cycle:

  1. Kun żgur li t-tank tal-ilma jkun mimli.
  2. Poġġi tazza vojta fuq it-trej tat-taqtir.
  3. Daħħalx kapsula.
  4. Turn on the machine. Wait for the power button to turn solid green.
  5. Move the selector lever to the hot water position (red) and let water flow until the tank is empty or the cup is full.
  6. Repeat the process with cold water (blue position).
  7. Armi l-ilma. Il-magna tiegħek issa hija lesta għall-użu.

5. Istruzzjonijiet Operattivi

5.1 Brewing a Beverage

Quddiem view of NESCAFE DOLCE GUSTO MD9748-MB showing the capsule insertion area

Image: The front of the MD9748-MB machine, illustrating the open capsule holder ready for capsule insertion.

  1. Ensure the water tank is filled and the machine is plugged in and turned on. Wait for the power button to turn solid green.
  2. Erfa’ l-manku tal-illokkjar u iġbed il-kontenitur tal-kapsula ’l barra.
  3. Insert a NESCAFE DOLCE GUSTO capsule into the holder.
  4. Imbotta l-kontenitur tal-kapsula lura fil-magna u niżżel il-manku tal-illokkjar sakemm tikklikkja.
  5. Place a cup on the drip tray. Adjust the drip tray height if necessary.
  6. Select the desired water temperature (hot/cold) using the selector lever.
  7. Move the selector lever to the desired water volume (indicated on the capsule packaging or by personal preference).
  8. The machine will start brewing. Once the desired volume is reached, return the selector lever to the neutral (middle) position to stop the flow.
  9. Wait a few seconds for any remaining drips, then lift the locking handle and remove the used capsule. Dispose of the capsule responsibly.

6. Manutenzjoni

6.1 Tindif ta 'Kuljum

After each use, or at least daily:

  • Spluggja l-magna.
  • Empty and rinse the drip tray and capsule holder.
  • Imsaħ il-barra tal-magna bl-adamp drapp.
  • Empty and rinse the water tank. Refill with fresh water if needed.

6.2 Tneħħija tal-Ġebla

Descaling is crucial for maintaining machine performance and beverage quality. The frequency depends on water hardness and usage, but typically every 3-6 months.

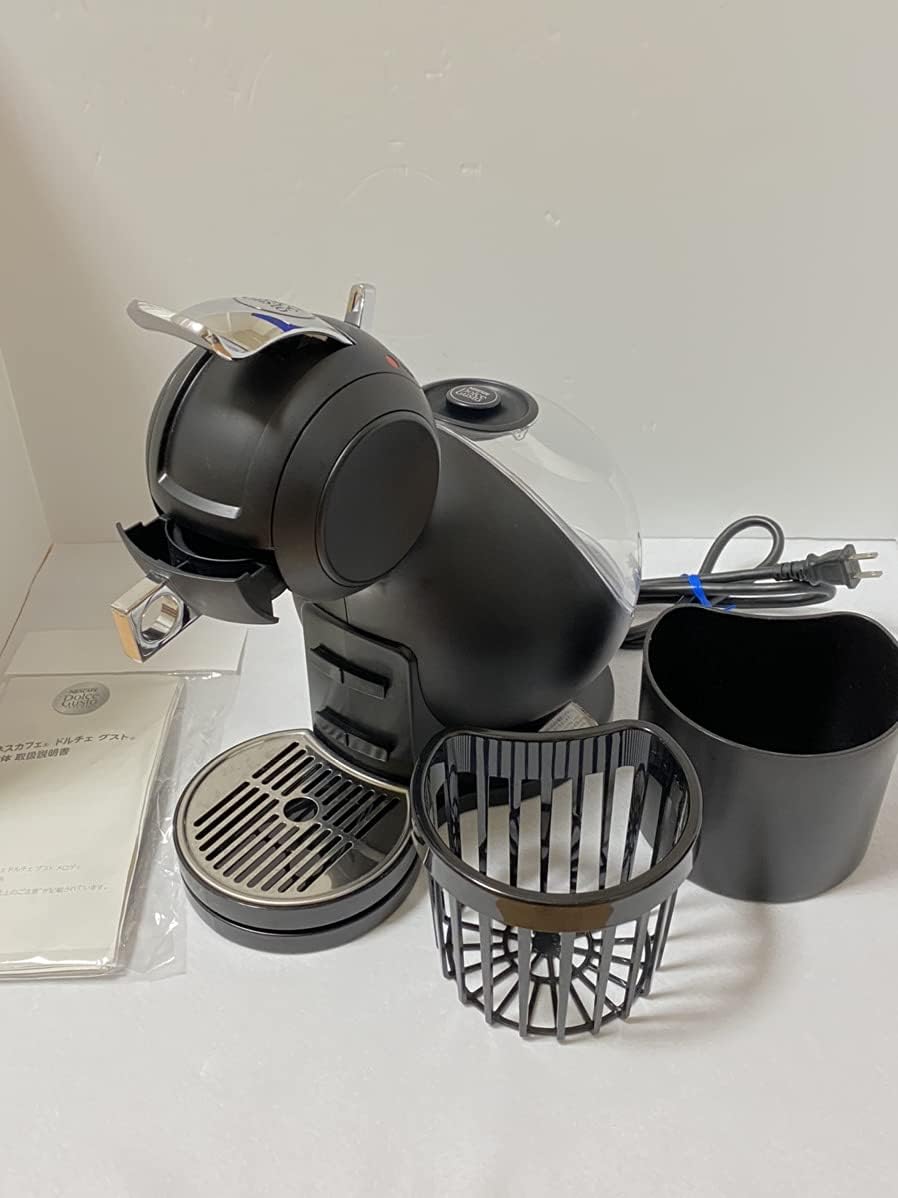

NESCAFE DOLCE GUSTO MD9748-MB removable parts: capsule holder, cup holder, and water tank

Image: Removable components of the MD9748-MB machine, including the capsule holder, cup holder, and water tank, which require regular cleaning and descaling.

  1. Purchase a suitable descaling solution for coffee machines.
  2. Follow the instructions on the descaling solution packaging for dilution and application.
  3. Imla t-tank tal-ilma bis-soluzzjoni tat-tneħħija tal-qoxra.
  4. Poġġi kontenitur kbir (mill-inqas litru) taħt il-ħruġ tal-kafè.
  5. Run the descaling solution through the machine using both hot and cold settings until the tank is empty.
  6. Laħlaħ it-tank tal-ilma sewwa u imlieh b'ilma frisk.
  7. Perform at least two full rinsing cycles with fresh water to remove any descaling residue.

7 Issolvi l-problemi

Problema Kawża Possibbli Soluzzjoni
Il-magna ma tixgħelx. Mhux imdaħħla fil-plakka; is-sokit tal-elettriku difettuż. Iċċekkja l-konnessjoni tal-korda tal-enerġija; ipprova sokit differenti.
Ebda fluss ta 'ilma. Water tank empty; machine needs descaling; air bubble in pump. Fill water tank; perform descaling; run a rinsing cycle without a capsule.
Il-kafè huwa kiesaħ jew mhux sħun biżżejjed. Machine not preheated; machine needs descaling. Wait for the power button to turn solid green; perform descaling.
Tnixxija mill-magna. It-tank tal-ilma mhux imqiegħed sew; it-trej tat-taqtir mimli. Kun żgur li t-tank tal-ilma jkun pożizzjonat sew; vojta t-trej tat-taqtir.

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

  • Mudell: MD9748-MB
  • Ditta: Nescafe
  • Dimensjonijiet: 17.6 x 9.2 x 3 ċm (Daqs tal-Pakkett)
  • Kulur: Iswed
  • Qawwa: (Typically 100V for Japan, specific wattage not provided in data)
  • Kapaċità tat-Tank tal-Ilma: (Specific capacity not provided in data, typical for Dolce Gusto is 0.8L - 1.2L)

Note: Specific power and water tank capacity details may vary. Refer to the product packaging or official Nescafe documentation for precise figures.

9. Garanzija u Appoġġ

Your NESCAFE DOLCE GUSTO MD9748-MB coffee machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for details regarding coverage, terms, and conditions.

For technical assistance, spare parts, or warranty claims, please contact Nescafe Dolce Gusto customer support through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.

Riżorsi onlajn: For additional tips, recipes, and support, visit the official NESCAFE DOLCE GUSTO websit.
