1. Introduzzjoni
This manual provides essential instructions for the safe and efficient operation of your QFX CS-27BTWH Portable Bluetooth Speaker. This device allows for wireless audio streaming via Bluetooth and wired connection through its AUX-in port. Please read this manual thoroughly before use and retain it for future reference.
2. Kontenut tal-Pakkett
Kun żgur li l-oġġetti kollha huma preżenti fil-pakkett:
- QFX CS-27BTWH Portable Bluetooth Speaker
- USB to 3.5mm Charging Cable
3. Karatteristiċi tal-prodott
- Portable Bluetooth speaker with AUX-In functionality
- Stream music and manage calls wirelessly from Bluetooth-enabled devices
- Compatible with PCs, CD players, and MP3/MP4 players via AUX-in
- Built-in rechargeable Lithium battery for portable use
4. Kontrolli u Indikaturi

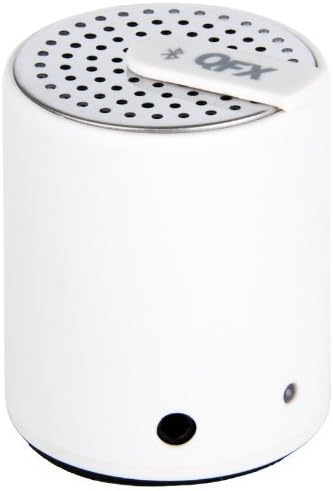

Familiarize yourself with the speaker's ports and indicators:
- Buttuna tal-Qawwa: Typically located on the top or side. Press and hold to power on/off.
- 3.5mm AUX-in Port: Used for wired audio connection and for charging with the provided USB to 3.5mm cable.
- Dawl Indikatur LED: Displays the speaker's status (e.g., charging, Bluetooth pairing mode, connected).
5. Setup
5.1. Iċċarġja l-Ispeaker
- Connect the small end of the included USB to 3.5mm charging cable to the speaker's 3.5mm port.
- Connect the USB-A end of the cable to a USB power source (e.g., computer USB port, USB wall adapter).
- The LED indicator light will illuminate to show charging status. It will typically change color or turn off when fully charged.
5.2. Tixgħil / Mitfi
- To power on, press and hold the Power button until the LED indicator light illuminates and an audible tone is heard.
- To power off, press and hold the Power button again until the LED indicator light turns off and an audible tone is heard.
6. Istruzzjonijiet Operattivi
6.1. Tqabbil tal-Bluetooth
- Ensure the speaker is powered on and within close proximity to your Bluetooth device (e.g., smartphone, tablet).
- L-ispiker jidħol awtomatikament fil-modalità ta' tqabbil Bluetooth, indikat minn dawl LED li jteptep.
- Fuq it-tagħmir Bluetooth tiegħek, mur fis-settings tal-Bluetooth u fittex tagħmir disponibbli.
- Select "CS-27BTWH" from the list of devices.
- Once paired, the LED indicator light will typically become solid, and an audible confirmation will be heard.
6.2. AUX-In Connection
- Qabbad tarf wieħed ta' kejbil awdjo ta' 3.5mm (mhux inkluż) mal-port AUX-in fuq l-ispiker.
- Connect the other end of the 3.5mm audio cable to the headphone jack or audio output port of your audio device.
- The speaker will automatically switch to AUX-in mode. Adjust volume on both the speaker and your connected device.
7. Manutenzjoni
- Naddaf l-ispiker b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Avoid exposing the speaker to extreme temperatures, direct sunlight, or moisture.
- Aħżen l-ispiker f'post frisk u niexef meta ma jkunx qed jintuża għal perjodi twal.
8 Issolvi l-problemi
| Problema | Soluzzjoni Possibbli |
|---|---|
| L-ispiker ma jixgħelx | Ensure the battery is charged. Connect the speaker to a power source using the charging cable. |
| Ma nistax nqabbad permezz tal-Bluetooth | Ensure the speaker is in pairing mode (flashing LED). Turn off and on Bluetooth on your device. Move closer to the speaker. |
| L-ebda ħoss mill-kelliem | Check volume levels on both the speaker and the connected device. Ensure the correct input mode (Bluetooth or AUX-in) is selected. |
| Kwalità fqira tal-awdjo | For Bluetooth, reduce distance between devices or remove obstacles. For AUX-in, check cable connection and try a different cable. |
9. Speċifikazzjonijiet
| Speċifikazzjoni | Dettall |
|---|---|
| Numru tal-Mudell | CS-27BTWH |
| Brand | QFX |
| Tip ta' Kelliem | Personal, Portable |
| Teknoloġija tal-Konnettività | Bluetooth, 3.5mm AUX-in |
| Sors tal-Enerġija | Li jaħdem bil-batterija (batterija tal-jone tal-litju inkluża) |
| Qawwa tal-Ħruġ Massimu tal-Ispeaker | 3 Watts |
| Impedenza | 1 Ohm |
| Kulur | Abjad |
| Dimensjonijiet tal-Prodott | 2.5 x 2 x 4 pulzieri |
| Piż tal-oġġett | 0.353 uqija |
| UPC | 606540022597 |
10. Garanzija u Appoġġ
This QFX product comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official QFX websit.
For technical support or customer service inquiries, please visit the QFX website or contact their customer support department. You can find more information at: Ħanut Uffiċjali tal-QFX
11. Informazzjoni Importanti dwar is-Sigurtà
TWISSIJA: This product may contain chemicals known to the State of California to cause cancer and reproductive harm. For more information, please visit www.P65Warnings.ca.gov. QFX requests that this information be provided to any retailer selling this product, requiring them to display the internet warning as set forth above. QFX cannot be held responsible for any Proposition 65 action based on the failure to provide an internet warning.
