1. Introduzzjoni
Thank you for choosing the EIBENSTOCK DSS 35 M iP Industrial Vacuum Cleaner. This robust and durable industrial vacuum is designed for efficient dust and debris extraction in professional environments. This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your device. Please read these instructions carefully before initial use and keep them for future reference.

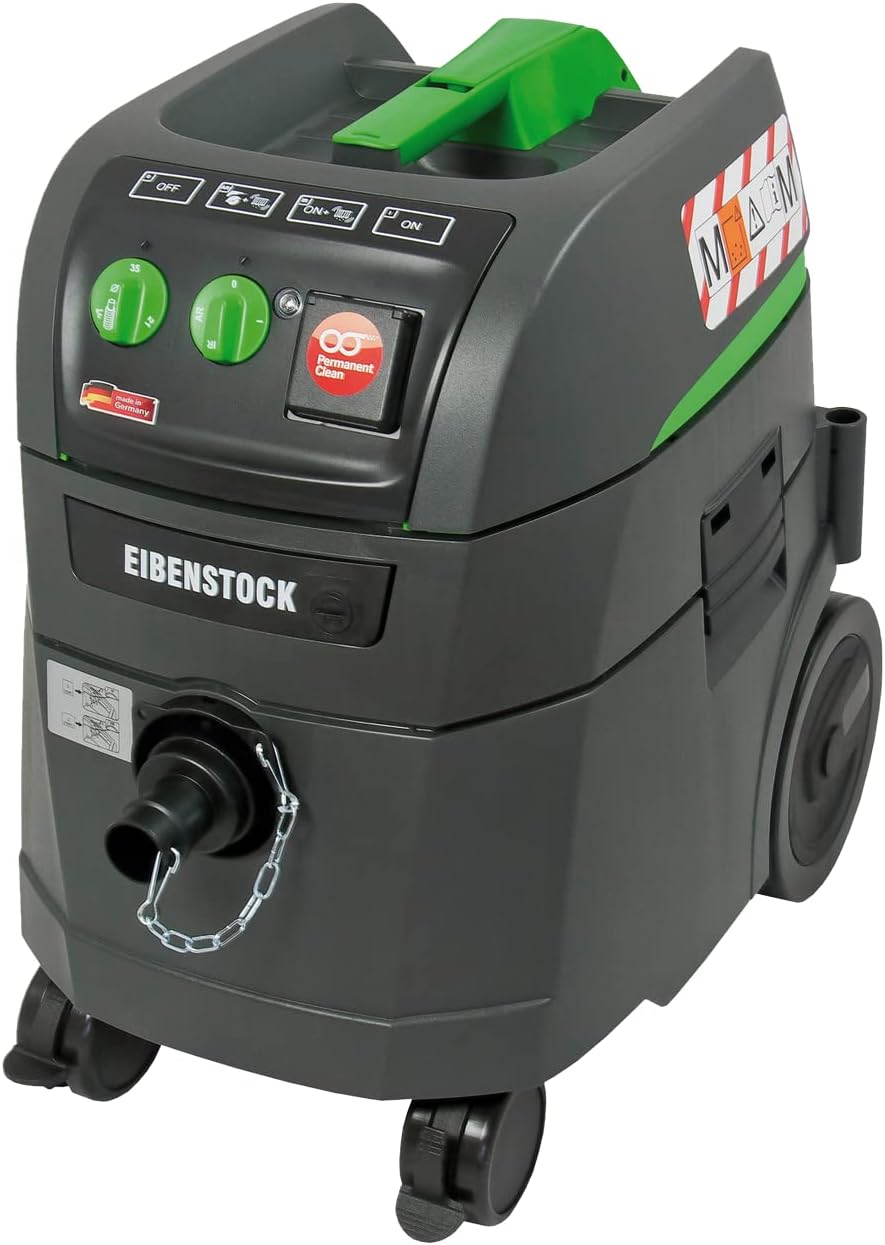

Figure 1: EIBENSTOCK DSS 35 M iP Industrial Vacuum Cleaner, front-left view with hose connection.
2. Istruzzjonijiet tas-Sigurtà
Dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita xokk elettriku, korriment, jew nar:
- Sigurtà Elettrika: Żgura li l-provvista tal-enerġija taqbel mal-voltage specified on the vacuum cleaner. Do not operate with a damaged power cord or plug.
- Użu xieraq: This vacuum cleaner is designed for industrial use to extract dry and wet non-flammable materials. Do not vacuum flammable liquids, explosive dusts, or hot materials.
- Tagħmir Protettiv Personali: Wear appropriate personal protective equipment (PPE) such as safety glasses and dust masks, especially when dealing with fine dust.
- Superviżjoni: Tħallix il-vacuum cleaner waħdu waqt li jkun qed jaħdem.
- Manutenzjoni: Disconnect the power plug before performing any maintenance, cleaning, or filter changes.
- Stabbiltà: Ensure the vacuum cleaner is placed on a stable, level surface during operation to prevent tipping.
3. Prodott Aktarview
Familiarize yourself with the main components and controls of your EIBENSTOCK DSS 35 M iP industrial vacuum cleaner.
Figure 2: Control panel with power switch, suction power adjustment, and Permanent Clean indicator.
Komponenti Ewlenin:
- Unità Prinċipali: Houses the motor, dust container, and filter system.
- Panel tal-Kontroll: Located on top, includes power switch, suction control, and filter cleaning functions.
- Konnessjoni tal-manka: Port for attaching the suction hose.
- Wheels/Casters: Għal mobilità faċli.
- Kontenitur tat-Trab: Collects vacuumed material.
- Sistema tal-Filtru: Includes a permanent filter for efficient dust separation.
4. Setup
Follow these steps to prepare your vacuum cleaner for operation:
- Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Iċċekkja għal xi ħsara.
- Installazzjoni tal-Filtru: Ensure the permanent filter is correctly seated in its compartment. Refer to the maintenance section for filter access.
- Konnessjoni tal-manka: Attach the suction hose securely to the designated inlet port on the front of the vacuum cleaner.
- Aċċessorju Aċċessorju: Connect the desired nozzle or accessory to the end of the suction hose.
- Konnessjoni tal-Enerġija: Ipplaggja l-korda tal-enerġija f'sokit elettriku adattat (230V).
5. Istruzzjonijiet Operattivi
Operating the EIBENSTOCK DSS 35 M iP is straightforward:
Figure 3: Industrial vacuum cleaner connected to a power tool for dust extraction.
- Qawwa Mixgħul: Turn the main power switch on the control panel to the 'ON' position.
- Aġġustament tal-ġbid: Use the rotary knob on the control panel to adjust the suction power as needed for the task.
- Permanent Clean System: The DSS 35 M iP features an automatic 'Permanent Clean' filter cleaning system. This system periodically cleans the filter during operation to maintain optimal suction performance. An indicator light may signal its activity.
- Tool Connection (if applicable): If using with a power tool, connect the tool's dust extraction port to the vacuum hose. The vacuum may have an integrated power outlet for synchronized operation.
- Operazzjoni: Begin vacuuming the desired area or material.
- Itfi: After use, turn the main power switch to the 'OFF' position and unplug the unit from the power supply.
6. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-vacuum cleaner tiegħek.
Figure 4: Accessing and removing the permanent filter for cleaning or replacement.
Tindif u Sostituzzjoni tal-Filtru:
- Frekwenza: The permanent filter should be inspected and cleaned regularly, depending on the intensity of use and the type of material vacuumed. The 'Permanent Clean' system helps, but manual inspection is still necessary.
- Aċċess: Disconnect the power. Open the filter compartment (refer to the product diagram or manufacturer's specific instructions for your model).
- Tindif: Carefully remove the filter. Tap it gently to dislodge dust or use compressed air (from the clean side) to blow out fine particles. Do not wash the filter unless explicitly stated by the manufacturer.
- Sostituzzjoni: If the filter is damaged or excessively clogged and cannot be cleaned effectively, replace it with an original EIBENSTOCK permanent filter (part number 9919000-FILTER, if available).
Dust Container Emptying:
- Frekwenza: Empty the dust container when it reaches its maximum capacity (25 liters net) or when suction power noticeably decreases.
- Proċedura: Disconnect the power. Unlatch and remove the top section of the vacuum cleaner. Carefully lift out the dust container and dispose of its contents according to local regulations. Clean the container if necessary.
Tindif Ġenerali:
- Imsaħ il-barra tal-vacuum cleaner b'adamp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
- Check hoses and accessories for blockages or damage.
7 Issolvi l-problemi
If you encounter issues with your EIBENSTOCK DSS 35 M iP, consult the table below for common problems and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-vakwu ma jixgħelx | Ebda provvista tal-enerġija; Korda/plagg tal-enerġija bil-ħsara; Swiċċ difettuż | Check power outlet and plug; Inspect power cord; Contact service if switch is faulty. |
| Qawwa baxxa ta 'ġbid | Clogged filter; Full dust container; Blocked hose/nozzle; Air leak | Clean/replace filter; Empty dust container; Clear blockages; Check all connections for leaks. |
| Storbju mhux tas-soltu waqt it-tħaddim | Foreign object in fan/motor; Motor issue | Disconnect power and inspect for foreign objects (if safe); Contact service. |
| Trab li joħroġ mill-vakwu | Filter not properly seated; Damaged filter; Container not sealed | Ensure filter is correctly installed; Replace damaged filter; Check container seals. |
If the problem persists after attempting these solutions, please contact EIBENSTOCK customer support or an authorized service center.
8. Speċifikazzjonijiet
Technical data for the EIBENSTOCK DSS 35 M iP Industrial Vacuum Cleaner:
- Mudell: DSS 35 M iP
- Numru ta' Referenza: 9919000
- Input ta' Enerġija: 1600 W
- Voltage: 230 V
- Tank Volume (Gross): 35 Litri
- Dust Volume (Net): 25 Litri
- Fluss ta' Arja Max: 64 l/s
- Pressjoni massima tal-vakwu: 259 mbar
- Dimensjonijiet (L x W x H): 55 x 40 x 55 ċm
- Piż: 15 kg
- Sors tal-Enerġija: Corded Elettriku
- Karatteristika Speċjali: Permanent Clean Filter System, Increased Dust Capacity
- Komponenti Inklużi: Filtru Permanenti
9. Garanzija u Appoġġ
For warranty information, please refer to the warranty card included with your product or contact your point of purchase. EIBENSTOCK provides support for its products. For technical assistance, spare parts, or service inquiries, please visit the official EIBENSTOCK website or contact their customer service department directly. Always provide the model number (DSS 35 M iP) and reference number (9919000) when seeking support.
