Saeco Odea Giro Plus RI9755 47 Espresso Machine

1. Introduzzjoni

Welcome to the Saeco Odea Giro Plus RI9755 47 espresso machine user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new espresso machine. Please read these instructions carefully before using the appliance for the first time and keep them for future reference.

2. Informazzjoni dwar is-Sigurtà

• Dejjem kun żgur li l-magna hija konnessa ma' sokit tal-elettriku ertjat.
• Tgħaddasx il-magna, il-korda tal-enerġija, jew il-plagg fl-ilma jew f'likwidi oħra.
• Keep hands and face away from hot water and steam outlets during operation.
• Aqla’ l-magna mill-plagg qabel ma tnaddafha u meta ma tkunx qed tużaha għal perjodi twal.
• Do not operate the machine with a damaged cord or plug. Contact authorized service for repairs.
• Dan l-apparat huwa għall-użu fid-dar biss.

3. Prodott Aktarview

The Saeco Odea Giro Plus RI9755 47 is a super-automatic espresso machine designed for convenience and quality. It features automatic circuit cleaning for consistent hygiene, a quick heat boiler for immediate readiness, and a milk frother for creamy milk foam. The machine is equipped with durable metal grinders and offers adjustable grind settings to customize your coffee experience. The brewing group is easily removable for simple cleaning and maintenance.

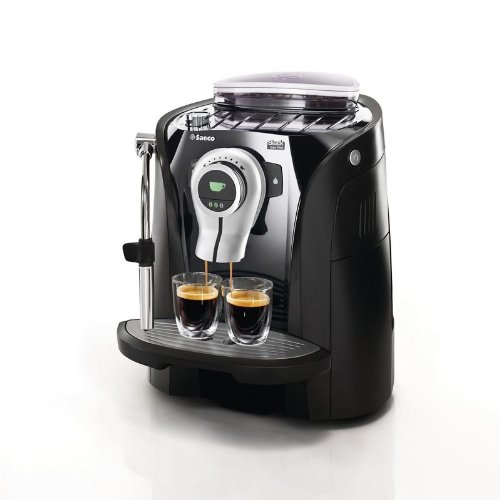

Figura 1: Quddiem view of the Saeco Odea Giro Plus RI9755 47 Espresso Machine, showing the control panel, coffee spout, and milk frother.

4. Setup

4.1 Disimballaġġ

Carefully remove all packaging materials from the machine. Retain packaging for future transport if needed.

4.2 Tindif Inizjali

Before first use, wash the water tank, drip tray, and coffee grounds container with warm water and a mild detergent. Rinse thoroughly and dry.

4.3 Mili tat-Tank tal-Ilma

Remove the water tank, fill it with fresh, cold tap water up to the MAX level indicator, and reinsert it firmly into the machine.

4.4 Imla l-Fażola Hopper

Open the bean hopper lid and pour fresh coffee beans into the hopper. Do not overfill. Ensure no foreign objects are present.

4.5 Konnessjoni tal-Enerġija

Plug the power cord into a suitable grounded electrical outlet. The machine will perform an initial self-check.

4.6 L-Ewwel Użu / Ipprajmjar

Follow the on-screen prompts or indicator lights for the initial priming cycle. This process flushes the internal circuits with water and prepares the quick heat boiler for operation. The machine's automatic circuit cleaning will also activate.

5. Istruzzjonijiet Operattivi

5.1 Nagħmlu Espresso

• Poġġi tazza taħt il-bekka tal-kafè.
• Select your desired coffee strength and length using the control panel. The machine allows you to save your preferred settings.
• Press the espresso button. The machine will grind the beans with its metal grinders and brew your coffee.

5.2 L-Użu tal-Ħalib Frother

• Imla buqar bil-ħalib kiesaħ.
• Poġġi l-bastun tal-fwar fil-ħalib.
• Activate the steam function. Move the pitcher to create desired milk foam.
• After frothing, clean the steam wand immediately with a damp drapp.

5.3 Aġġustament tas-Settings tat-Tħin

The machine features adjustable grinders with 5 available settings. To adjust, locate the grind adjustment knob inside the bean hopper. Turn the knob while the grinder is operating (e.g., during a brewing cycle) to select a finer or coarser grind. A finer grind produces a stronger espresso, while a coarser grind results in a lighter taste.

6. Manutenzjoni

6.1 Tindif ta 'Kuljum

• Vojta u laħlaħ it-trej tat-taqtir u l-kontenitur tal-fdal tal-kafè kuljum.
• Imsaħ il-barra tal-magna b'artab, damp drapp.

6.2 Cleaning the Brewing Group

The brewing group is easily removed for cleaning. Open the service door, press the PUSH button, and pull the brewing group out. Rinse it thoroughly under lukewarm running water. Allow it to air dry completely before reinserting. This ensures optimal hygiene and coffee quality.

6.3 Tneħħija tal-Ġebla

The machine will indicate when descaling is required. Use a Saeco-approved descaling solution and follow the instructions provided with the descaler or in the machine's display. Regular descaling is crucial for the longevity and performance of your espresso machine.

6.4 Automatic Circuit Cleaning

The Saeco Odea Giro Plus RI9755 47 features automatic circuit cleaning, which activates periodically to ensure the internal circuits are clean. Allow this process to complete when prompted by the machine.

7 Issolvi l-problemi

• Ma nħareġ l-ebda kafè: Check water tank level, ensure brewing group is correctly inserted, and check for blockages in the coffee spout.
• Kafè Dgħajjef: Adjust grind setting to finer, increase coffee strength setting, or check if beans are fresh.
• Magna Mhux Tissaħħan: Ensure the machine is properly plugged in. If the quick heat boiler is not functioning, contact support.
• Ilma li jnixxi: Check water tank for proper seating, inspect drip tray, and ensure brewing group is clean and correctly positioned.
• Grinder Noise/No Grinding: Check bean hopper for sufficient beans and ensure no foreign objects are present.

For persistent issues, refer to the full troubleshooting guide or contact customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the warranty card included with your product or visit the official Saeco website. If you require technical assistance or have questions not covered in this manual, please contact Saeco customer support.
