1. Introduzzjoni
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Star Mfg. Star-Max 30 lb Electric Fryer, Model 530TF. This commercial-grade countertop electric fryer is designed for deep frying various food items, featuring a 30-pound oil capacity and two 15-pound baskets. Please read this manual thoroughly before operating the appliance.
Immaġni 1: Naħa ta' quddiem view of the Star-Max 30 lb Electric Fryer, Model 530TF, showcasing its stainless steel construction and two frying baskets.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korrimenti jew ħsara lill-apparat:
- Sigurtà Elettrika: Ensure the fryer is connected to a properly grounded electrical supply matching the specifications (208/240V, 41.5/47.9A). Do not use extension cords.
- Uċuħ sħan: The fryer and its components become extremely hot during operation. Use caution and wear protective gloves when handling. The "CAUTION HOT" label indicates areas of high temperature.
- Immaniġġjar taż-Żejt: Hot oil can cause severe burns. Never move the fryer when filled with hot oil. Allow oil to cool completely before draining or cleaning.
- Ilma u Żejt: Never pour water into hot oil. This can cause dangerous splattering and steam. Ensure food items are dry before frying.
- Mili żejjed: Do not overfill the kettle with oil or food, as this can lead to boil-overs and fire hazards.
- Ventilazzjoni: Operate the fryer in a well-ventilated area.
- Hi-Limit Thermostat: The fryer is equipped with a hi-limit safety thermostat to prevent overheating. If activated, the fryer will shut down. Consult the troubleshooting section if this occurs frequently.

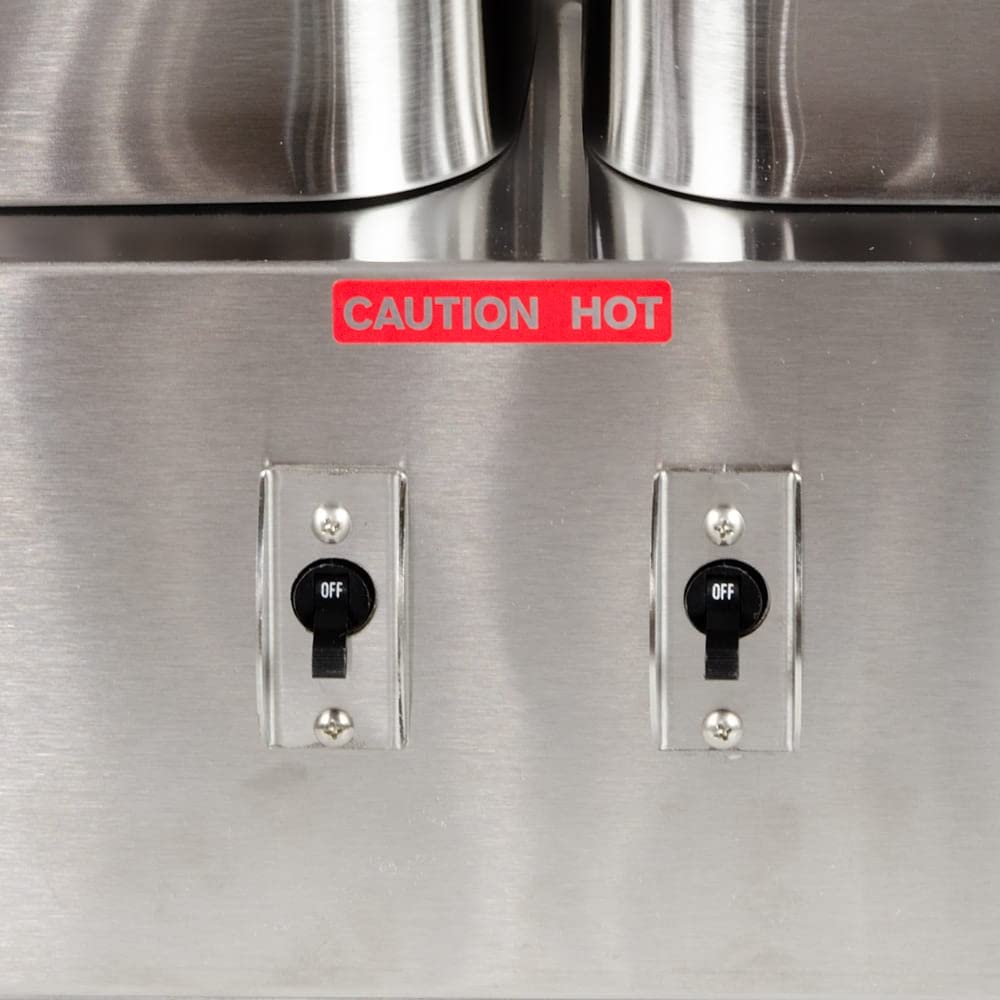

Image 2: Detail of the front panel showing the "CAUTION HOT" warning label and individual power switches for each frying well.
3. Setup u Installazzjoni
- Spakkjar: Carefully remove the fryer from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier.
- Pjazzament: Place the fryer on a stable, level, heat-resistant countertop or surface. Ensure adequate clearance around the unit for ventilation and safe operation.
- Installazzjoni tar-riġlejn: Attach the heavy-duty adjustable legs to the bottom of the fryer. Ensure all legs are securely tightened and adjusted to provide a stable base.
- Konnessjoni Elettrika: Connect the fryer to a dedicated, grounded electrical outlet that meets the specified voltage u amperage requirements (208/240V, 41.5/47.9A).
- Tindif Inizjali: Before first use, clean the nickel-plated kettle and baskets with warm, soapy water. Rinse thoroughly and dry completely.
- Mili taż-Żejt: Fill the lift-out nickel-plated kettle with cooking oil to the indicated fill line. Do not overfill. The fryer has a 30 lb oil capacity.
Stampa 3: Quddiem view of the fryer with both 15 lb capacity baskets positioned within the oil wells, ready for operation.
4. Istruzzjonijiet Operattivi
- Qawwa Mixgħul: Ensure the oil is at the correct level. Turn the individual power switches to the "ON" position. The "POWER ON" indicator light will illuminate.
- Issettjat Temperatura: Rotate the temperature control knob to the desired frying temperature, ranging from 200°F to 375°F. The "HEATING" indicator light will illuminate while the elements are active.
- Tisħin minn qabel: Allow the oil to preheat. The fryer typically preheats in approximately 4.5 minutes. The "HEATING" light will turn off once the set temperature is reached.
- Qli: Place food items into the nickel-plated baskets. Lower the baskets slowly into the hot oil. Do not overload the baskets. The fryer is capable of cooking up to 64 lbs of french fries per hour.
- Monitoraġġ: Monitor the cooking process. The immersion type tubular heating elements provide even heat distribution.
- Tneħħija tal-Ikel: Once cooked, carefully lift the baskets and allow excess oil to drain.
- Itfi: After use, turn the temperature control knob to the lowest setting or "OFF" and then turn the individual power switches to the "OFF" position.
Immaġni 4: Dettaljata view of the control panel, showing the temperature dial with settings from 250°F to 375°F, and indicator lights for "POWER ON" and "HEATING."
5. Manutenzjoni u Tindif
Regular cleaning and maintenance ensure optimal performance and longevity of your fryer.
- Tindif ta 'Kuljum:
- Ensure the fryer is completely cooled and unplugged.
- Carefully drain the oil from the kettle.
- Remove the lift-out nickel-plated kettle for thorough cleaning.
- Flip up the immersion type tubular heating elements to access the kettle interior for cleaning.
- Clean the kettle, baskets, and heating elements with warm, soapy water and a non-abrasive brush or cloth.
- Rinse all components thoroughly and dry completely before reassembly.
- Tindif ta' barra: Wipe down the stainless steel cabinet with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they can damage the finish.
- Oil Filtration/Replacement: Regularly filter or replace cooking oil according to usage and food quality standards.
Image 5: The fryer with one basket removed and placed on the side, illustrating the ease of access for cleaning the kettle and heating elements.
6 Issolvi l-problemi
If you encounter issues with your fryer, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Fryer does not power on. | No electrical supply; power switch off; tripped circuit breaker. | Check power cord connection; ensure power switches are ON; check building's circuit breaker. |
| Żejt mhux tisħin. | Temperature knob not set; heating element failure; hi-limit thermostat tripped. | Set desired temperature; if hi-limit tripped, allow to cool and reset (if applicable, consult manual for reset procedure); contact service if element failure is suspected. |
| Tisjir irregolari. | Overloading baskets; insufficient oil; old oil. | Reduce batch size; ensure oil is at correct level; replace or filter oil. |
For issues not resolved by these steps, please contact Star Manufacturing customer support.
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 530TF |
| Brand | Star Manufacturing |
| Kapaċità taż-Żejt | 30 lbs |
| Firxa tat-Temperatura | 200°F sa 375°F |
| Ħtiġiet Elettriku | 208 / 240 Volts, 8638 / 11500 Watts, 41.5 / 47.9 Amps |
| Dimensjonijiet tal-Prodott (W x D x H) | 24" x 24" x 16.75" |
| Piż tal-oġġett | 80 lbs |
| Piż tat-Tbaħħir | 81 lbs |
| Basket Dimensions (H x D x L) | 8.75" x 5.25" x 10" (each) |
| Materjal | Stainless Steel |
| Ċertifikazzjonijiet | CSA, UL Listed, NSF Approved |
| French Fry Production | 64 libbra fis-siegħa |
| Ħin Preheat | minuti 4.5 |
8. Garanzija u Appoġġ
The Star Mfg. Star-Max 30 lb Electric Fryer (Model 530TF) comes with a 1 snin partijiet u garanzija tax-xogħol mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.
For warranty claims, technical assistance, or to order replacement parts, please contact Star Manufacturing customer support. Ensure you have your model number (530TF) and proof of purchase available when contacting support.
Contact information for Star Manufacturing can typically be found on their official website or through your product distributor.
