Prodott Overview
The PAC LP7-4 L.O.C. PRO Series 4-Channel Line Output Converter is designed to seamlessly integrate aftermarket amplifiers with factory car stereo systems. It converts high-level speaker outputs from your factory radio into low-level RCA signals, which are required by most aftermarket amplifiers. This process helps maintain optimal audio quality and prevents noise interference.
Il-karatteristiċi ewlenin jinkludu:
- Konvertitur tal-Output tal-Linja ta' Qawwa Għolja b'4 Kanali tas-Serje PRO
- Ottimizza l-livelli tal-awdjo bejn ir-radju u amplifer għal kwalità tal-ħoss superjuri
- Ideali biex iżżid amplifer għal sistema OEM
- Konfigurabbli għal-livell tal-kelliem jew input/output tal-livell RCA
- Single dial, precision matched stereo, level gain adjustment
Figure 1: The PAC LP7-4 Line Output Converter unit shown with its included wiring harness and a small screwdriver for adjustments.
X'hemm fil-Kaxxa
- Pro Series Line Output Converter (4 Channels)
- Qfil tal-Wajers
- Small Adjustment Tool (screwdriver)
Installazzjoni u Setup
Proper installation is crucial for optimal performance and to avoid audio issues. It is recommended that installation be performed by a qualified professional.
Prekawzjonijiet tas-Sigurtà
- Skonnettja l-batterija tal-vettura qabel tibda kwalunkwe installazzjoni elettrika.
- Kun żgur li l-wajers kollha huma iżolati u mwaħħlin sew biex jipprevjenu short circuits.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Handle with care and wash hands after handling.
Konnessjonijiet tal-Wiring
The LP7-4 converts speaker-level signals from your factory radio to RCA line-level signals for your amplifier. Refer to the diagram printed on the device or the included wiring diagram for specific connections.
- Input Wiring (Speaker Level): Connect the speaker output wires from your factory radio to the corresponding input wires on the LP7-4 harness. Ensure correct polarity (positive to positive, negative to negative) for each channel (Front Left, Front Right, Rear Left, Rear Right).
- Output Wiring (RCA): Connect RCA cables from the LP7-4's RCA outputs to the RCA inputs on your aftermarket amplifier. The LP7-4 provides four channels of RCA output.
- Tixgħel mill-bogħod: The LP7-4 features a remote turn-on output. Connect this wire to the remote turn-on input of your amplifier. This will turn on your amplifier when the factory radio is powered on.
- Power and Ground (Optional/Situational): While some installations may not require constant 12V+ or 12V- connections for the LP7-4 itself, refer to the detailed wiring instructions provided with the unit. Incorrect power connections can lead to issues such as the head unit not shutting off.

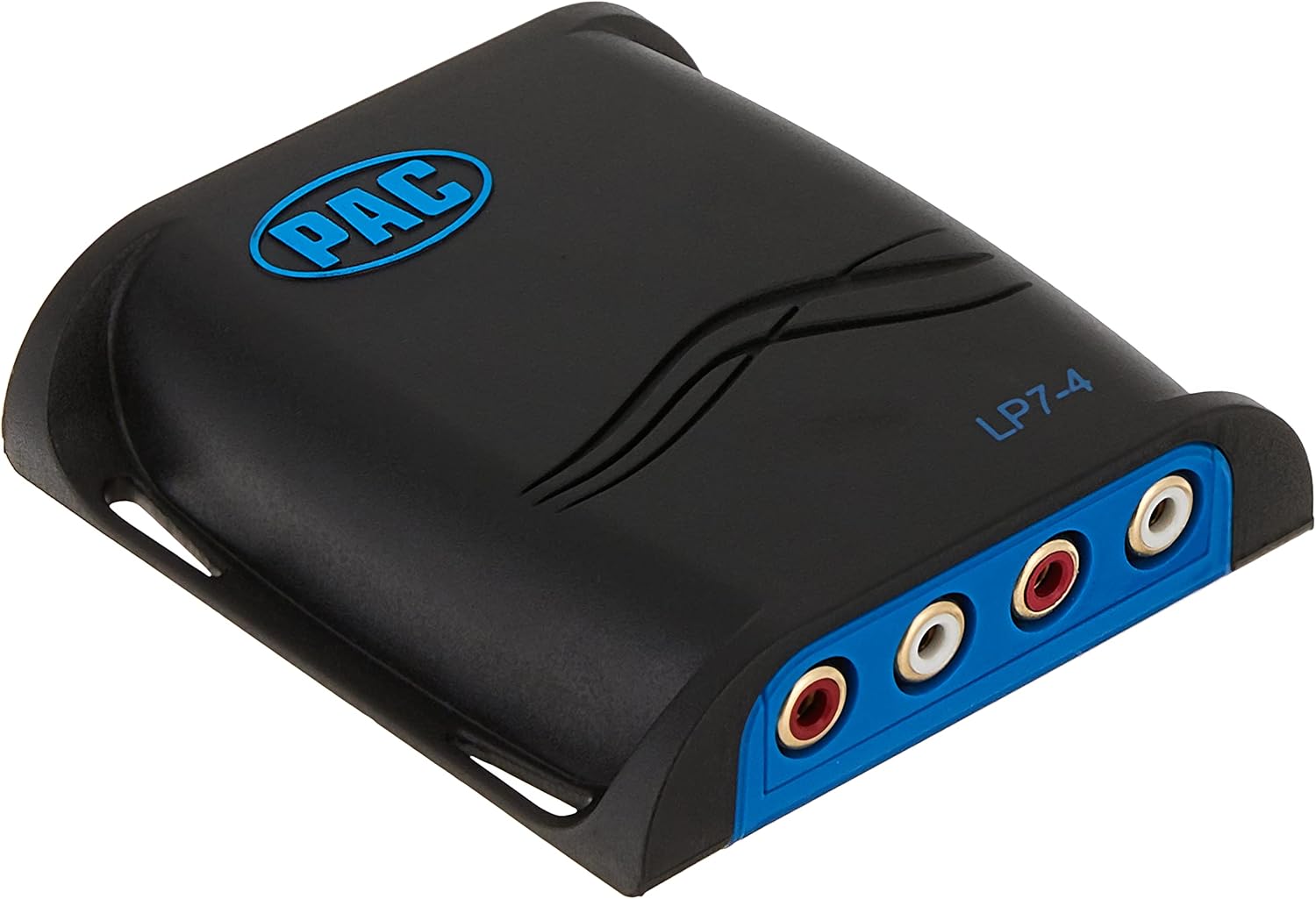

Figura 2: Quddiem view of the LP7-4 showing the four RCA output jacks (left) and rear view showing the input wiring harness connection point (right).
Istruzzjonijiet Operattivi
Aġġustament tal-gwadann
The LP7-4 features a single dial for precision-matched stereo level gain adjustment. This allows you to optimize the signal level sent to your amplifier, preventing clipping and ensuring clear audio.
- L-issettjar inizjali: Start with the gain dial on the LP7-4 set to its minimum position.
- AmpGwadan lifier: Set the gain controls on your amplifier to their minimum position.
- Daqq tal-awdjo: Play a familiar piece of music through your car stereo at a moderate to high volume level (e.g., 75% of maximum).
- Adjust LP7-4 Gain: Slowly increase the gain dial on the LP7-4 until you hear distortion or clipping in the audio. Then, slightly reduce the gain until the audio is clear.
- Tirfina AmpGwadan lifier: Once the LP7-4 gain is set, you can make minor adjustments to your amplifier's gain controls to achieve the desired overall volume and sound balance.
Nota: Qligħ xieraq staging is essential. Setting the gain too high on either the LP7-4 or the amplifier can introduce noise and distortion.
Manutenzjoni
The PAC LP7-4 is designed for long-term reliability and requires minimal maintenance.
- Ensure the unit is installed in a dry environment, away from excessive heat or moisture.
- Periodically check all wiring connections to ensure they remain secure. Loose connections can lead to intermittent audio or noise.
- Żomm l-unità ħielsa mit-trab u l-fdalijiet. Tista' tuża drapp artab u niexef għat-tindif tal-barra.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda Output Awdjo |
|
|
| Static, Hiss, or Engine Whine |
|
|
| Head Unit Not Shutting Off |
|
|
| Distorted Audio / Clipping |
|
|
Speċifikazzjonijiet
| Brand | PAC |
| Numru tal-Mudell | LP7-4 |
| Numru ta 'Kanali | 4 |
| Tip ta' Interface | RCA |
| Provvista Minima Voltage | 12 Volts |
| Dimensjonijiet tal-Prodott | 8"L x 4"W (approx. 4 x 8 x 1.25 inches) |
| Piż tal-oġġett | 6.4 uqija (0.4 Libbra) |
| Materjal | Hard plastic or synthetic material |
| Manifattur | AAMP tal-Amerika |
Figure 3: Approximate dimensions of the PAC LP7-4 unit.
Informazzjoni dwar Garanzija
The PAC LP7-4 Line Output Converter comes with a Garanzija tal-Manifattur ta' 1 Snin. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or contact PAC customer support.
Appoġġ għall-Klijent
For further assistance, technical support, or inquiries regarding your PAC LP7-4, please visit the official PAC webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. L-informazzjoni ta' kuntatt tipikament tista' tinstab fuq is-sit tal-manifattur webis-sit jew fuq l-imballaġġ tal-prodott.
Nota: An official user manual in PDF format is available for download at https://manuals.plus/m/cf4410ac0776cdfa859bf7f014d9609653df910e56cc709b8615a8b0f7d0dbb6.
