York S1-4HK16502006 HVAC Replacement Part Instruction Manual

1. Introduzzjoni

This manual provides essential information for the safe and correct installation, operation verification, and maintenance of the York S1-4HK16502006 HVAC Replacement Part. This component is a critical heating element designed for specific HVAC systems. Please read this manual thoroughly before attempting any installation or service.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Periklu ta' Xokk Elettriku. Skonnettja l-provvista tal-enerġija qabel ma tagħmel manutenzjoni.

• L-installazzjoni u s-servizz għandhom jitwettqu biss minn tekniku kwalifikat tal-HVAC.
• Always disconnect all electrical power to the HVAC unit before installing, servicing, or removing this replacement part. Failure to do so can result in severe personal injury or death.
• Ensure proper grounding of the HVAC system.
• Ilbes tagħmir protettiv personali (PPE) xieraq, inklużi nuċċalijiet tas-sigurtà u ingwanti iżolati.
• Verify that the replacement part is compatible with your specific HVAC system model before installation.
• Do not operate the HVAC system with damaged or improperly installed components.

3. Setup u Installazzjoni

The York S1-4HK16502006 is a replacement heating element assembly. Installation requires technical expertise and adherence to the original equipment manufacturer's (OEM) guidelines for your specific HVAC unit.

3.1 Passi ta' Qabel l-Installazzjoni

1. Skonnettjar tal-Enerġija: Turn off all electrical power to the HVAC unit at the main circuit breaker or fuse box. Verify power is off using a voltagtester.
2. Access Unit: Open the access panel of your HVAC unit to locate the existing heating element.
3. Dokumentazzjoni: Take photographs of the existing wiring connections before disconnection for reference.

3.2 Removal of Old Part

1. Carefully disconnect all electrical wiring from the old heating element, noting their positions.
2. Remove any mounting screws or fasteners securing the old heating element in place.
3. Gently extract the old heating element from the unit.

3.3 Installation of New Part

The York S1-4HK16502006 replacement part is designed to fit into the designated slot within your HVAC system. Ensure correct orientation, often indicated by an 'AIR FLOW' arrow on the component.

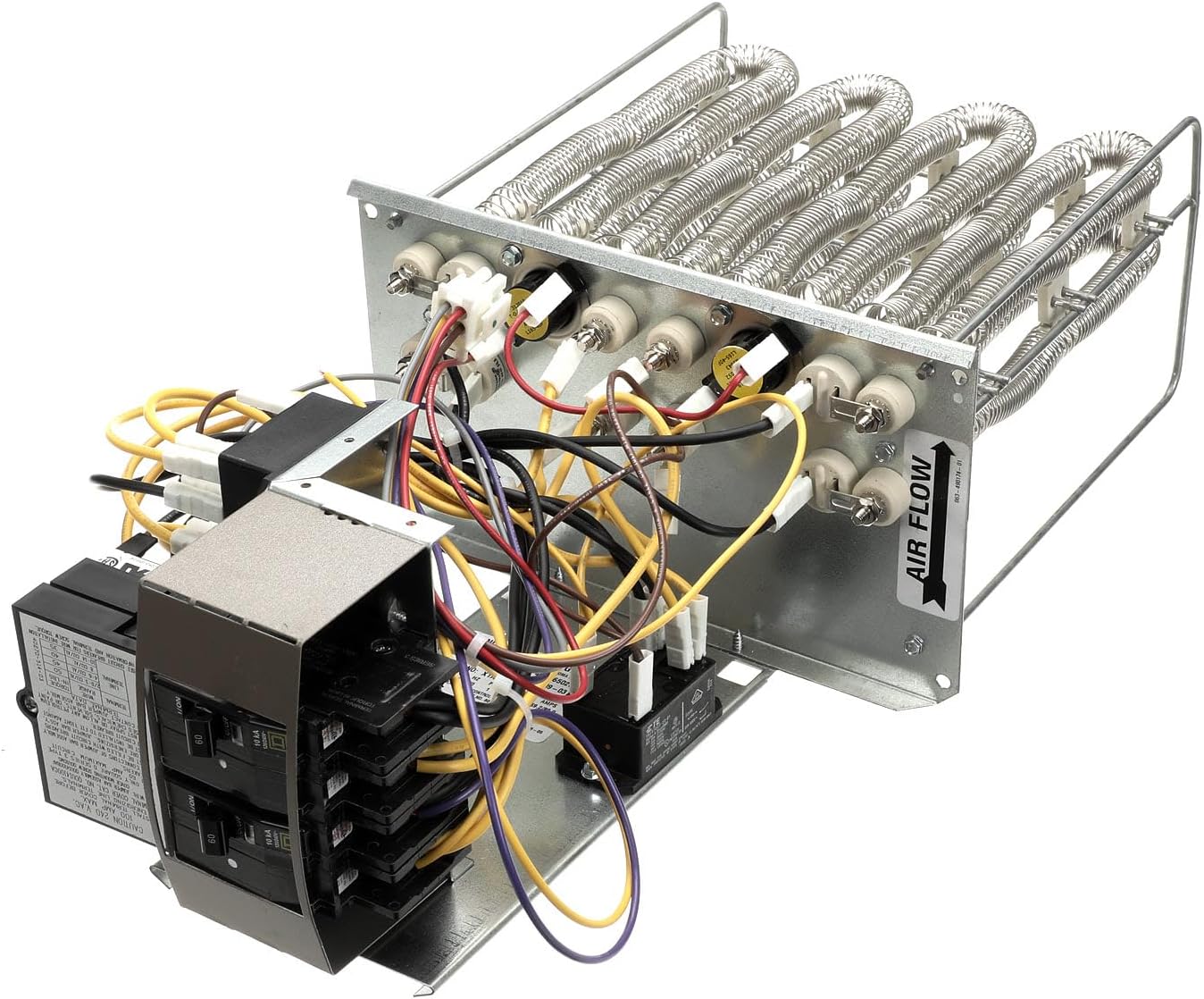

Figura 1: B'mod ġenerali view of the York S1-4HK16502006 heating element assembly, showing the electrical connections and heating coils.

1. Pożizzjonament: Carefully insert the new York S1-4HK16502006 heating element into the HVAC unit, ensuring it aligns with the mounting points.
2. Żgurar: Secure the new heating element using the appropriate screws or fasteners. Do not overtighten.
3. Wiring: Reconnect all electrical wiring to the new heating element according to the photographs taken during removal and the wiring diagram of your HVAC unit. Ensure all connections are secure and properly insulated.

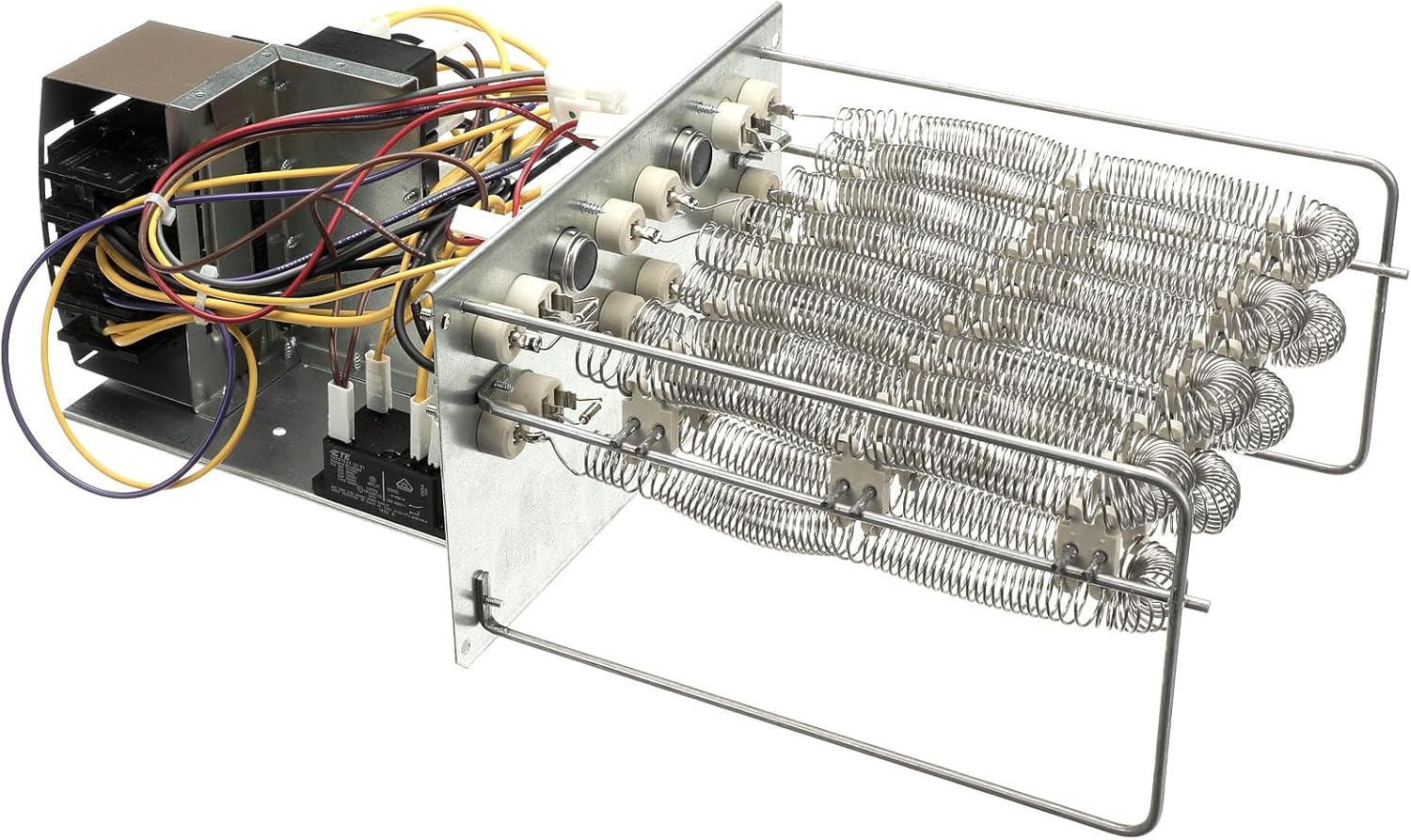

Figura 2: Ġenb view of the heating element, illustrating the coiled heating elements and their ceramic insulators.

Figura 3: Angolat view highlighting the multiple heating coils and their individual electrical connections.

4. Unità mill-Agħlaq: Replace the access panel and secure it properly.

4. Istruzzjonijiet Operattivi

As a replacement component, the York S1-4HK16502006 does not have independent operating controls. Its function is integrated into the overall HVAC system. After installation, the primary operating instruction is to verify proper function.

1. Irrestawra l-Enerġija: Turn on the electrical power to the HVAC unit at the main circuit breaker or fuse box.
2. Test tas-Sistema: Set your thermostat to a heating mode and a temperature higher than the current room temperature to activate the heating cycle.
3. Ivverifika l-Operazzjoni: Observe the HVAC unit for proper operation. Check for warm air output and listen for any unusual noises. The heating element should energize and produce heat as expected.
4. Monitor: Allow the system to run for a full cycle to ensure stable operation.

If the system does not operate correctly or if you notice any issues, immediately disconnect power and refer to the Troubleshooting section or contact a qualified technician.

5. Manutenzjoni

The York S1-4HK16502006 heating element itself typically requires minimal direct maintenance beyond ensuring its connections remain secure and free from corrosion. Regular maintenance of the overall HVAC system is crucial for the longevity and efficiency of all components, including this replacement part.

• Kontroll Annwali tas-Sistema: Have your entire HVAC system inspected annually by a qualified technician. This includes checking electrical connections, airflow, and overall component health.
• Żomm ċar: Ensure that the area around the HVAC unit is kept clear of obstructions to allow for proper airflow and prevent overheating.
• Sostituzzjoni tal-filtru: Regularly replace or clean your HVAC system's air filters as recommended by the system manufacturer to maintain optimal airflow and prevent strain on heating elements.

6 Issolvi l-problemi

If your HVAC system experiences issues after installing the York S1-4HK16502006, consider the following common troubleshooting steps. Always disconnect power before inspecting the unit.

6.1 No Heat or Insufficient Heat

• Provvista tal-Enerġija: Verify that the circuit breaker for the HVAC unit is not tripped and that power is supplied to the unit.
• Issettjar tat-Termostat: Ensure the thermostat is set to heating mode and the desired temperature is above the ambient room temperature.
• Konnessjonijiet tal-Wiring: Check all electrical connections to the heating element for tightness and proper insulation. Loose connections can prevent operation or cause intermittent issues.
• Fluss tal-arja: Ensure air filters are clean and there are no obstructions blocking airflow through the unit. Restricted airflow can cause safety limits to trip.
• Safety Limits: The heating element may have thermal cutouts or limit switches that trip if the unit overheats. These may need to be reset or replaced by a technician.

6.2 Unusual Noises or Odors

• Oġġetti Barranin: Disconnect power and carefully inspect the unit for any foreign objects that may have entered during installation.
• Riħa ta' Ħruq: A slight burning odor may occur during the first few uses as manufacturing oils burn off. If the odor persists or is strong, immediately disconnect power and contact a technician.

For any persistent issues or if you are unsure about a repair, it is strongly recommended to contact a qualified HVAC service technician.

7. Speċifikazzjonijiet

8. Informazzjoni dwar Garanzija

Based on available product information, this York S1-4HK16502006 Replacement Part is sold with Ebda Garanzija. Please verify warranty terms with your point of purchase or the manufacturer if you have specific concerns.

9. Appoġġ

For technical assistance, installation questions, or service, please contact a qualified HVAC professional. You may also refer to the official York website or contact their customer support for general product inquiries.

• York Official Websit: www.york.com (Dan huwa detentur tal-post) URL, jekk jogħġbok ivverifika l-uffiċjal attwali websit)
• Professional HVAC Technician: Always recommended for installation and complex troubleshooting.
