1. Introduzzjoni
Thank you for choosing the Bopita Mix & Match Bunk Beds. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Twissijiet ta 'Sigurtà Importanti
- Kapaċità massima tal-piż: The top bunk is designed for one occupant with a maximum weight of 100 kg (220 lbs). The bottom bunk is also designed for one occupant with a maximum weight of 100 kg (220 lbs).
- Rakkomandazzjoni dwar l-Età: The top bunk is not suitable for children under 6 years of age due to the risk of falls.
- Poġġamani: Always use the guardrails on the top bunk. Ensure they are properly installed and secured.
- Sigurtà tas-Sellum: Use the ladder for entering and exiting the top bunk. Do not use the bed as a climbing frame.
- Ventilazzjoni: Ensure adequate ventilation around the bed to prevent moisture buildup.
- Assemblea: Assembly should be performed by two adults. Ensure all hardware is tightened securely before use and check periodically.
- Ebda Qbiż: Do not allow jumping on either bunk.
- Daqs tas-saqqu: Use only mattresses that are 90 cm x 200 cm and do not exceed a thickness of 15 cm for the top bunk to ensure guardrail effectiveness.
3. Kontenut tal-Pakkett
Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact Bopita customer support.
- Bed frame components (headboards, footboards, side rails)
- Sellum
- Slatted bed bases (for both bunks)
- Guardrails for top bunk
- Hardware pack (screws, bolts, nuts, dowels, Allen key)
- Folja ta' struzzjonijiet tal-assemblaġġ
4. Istruzzjonijiet tal-Assemblea
Follow these steps carefully. It is recommended that two adults assemble the bunk bed.
- Iftaħ u Identifika l-Partijiet: Lay out all components on a soft, clean surface to prevent scratches. Refer to the parts list in the separate assembly instructions sheet to identify each piece.
- Assemble Bed Ends: Attach the crossbars to the headboards and footboards for both the top and bottom bunks using the provided hardware. Do not fully tighten screws yet.
- Qabbad il-Binarji tal-Ġenb: Attach the side rails to the assembled bed ends for both the top and bottom bunks. Ensure the rail connectors are securely fitted.
- Installa s-Sellum: Securely attach the ladder to the designated side of the bunk bed frame. Ensure all ladder steps are firmly in place.
- Waħħal il-Gwardjani: Install the guardrails on the top bunk, ensuring they are securely fastened to the bed frame.
- Insert Slatted Bases: Place the slatted bed bases into the designated supports on both the top and bottom bunks. Ensure they are evenly spaced and secured if applicable.
- Issikkar finali: Ladarba l-komponenti kollha jkunu f'posthom u allinjati, issikka sistematikament il-viti u l-boltijiet kollha. Tissikkax iżżejjed.
- Pjazzament: Position the bunk bed against a wall for stability, ensuring there is no gap between the bed and the wall that could trap a child.

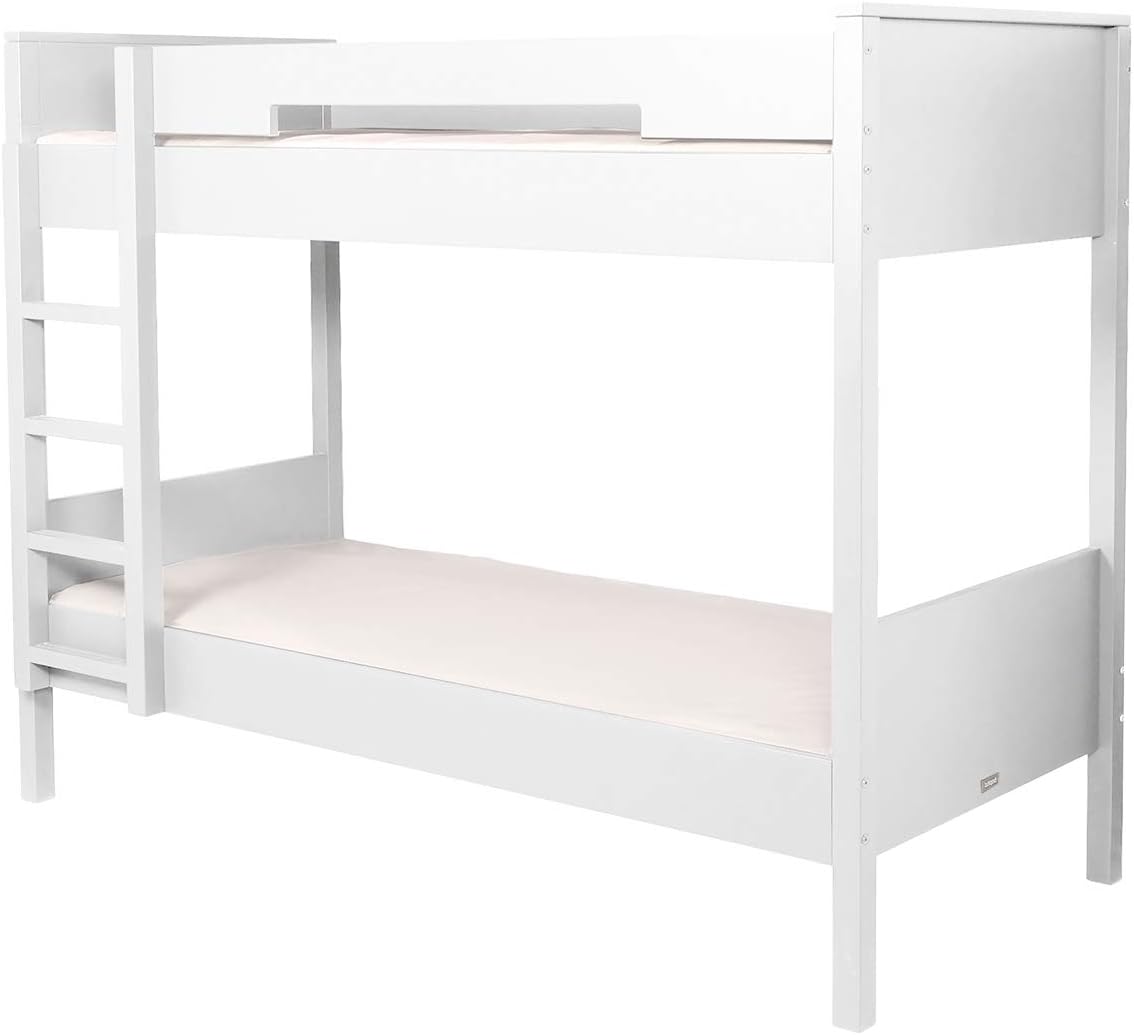

Image 1: Assembled Bopita Mix & Match Bunk Beds in white. This image shows the complete structure of the bunk bed, including the ladder and guardrails on the top bunk, ready for mattress placement.
5. Linji Gwida Operattivi
- Użu ta 'Kuljum: Ensure children understand the safe use of the ladder and the importance of not playing on the top bunk.
- Distribuzzjoni tal-piż: Distribute weight evenly on both bunks. Avoid concentrating weight in one small area.
- Ebda Mdendlin: Do not allow anyone to hang from any part of the bunk bed structure.
- Dawl bil-lejl: Consider using a night light near the ladder for safe access during the night.
6. Kura u Manutenzjoni
- Tindif: Imsaħ il-qafas tas-sodda b'ċarruta ratba u damp drapp. Evita li tuża kimiċi ħarxa jew prodotti tat-tindif li joborxu, li jistgħu jagħmlu ħsara lill-finitura.
- Iċċekkja tal-Hardware: Periodically check all screws, bolts, and connections to ensure they remain tight. Retighten as necessary to maintain stability and safety.
- Kura tas-saqqu: Rotate and flip mattresses regularly according to their manufacturer's instructions to ensure even wear and prolong their lifespan.
- Ventilazzjoni: Ensure good air circulation around and under the mattresses to prevent moisture buildup and mold.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Bed is wobbly or unstable | Konnessjonijiet tal-ħardwer maħlula. | Check and tighten all screws and bolts. Ensure all parts are correctly aligned. |
| Ħsejjes ta' tgergir | Konnessjonijiet laxki jew frizzjoni bejn il-partijiet. | Tighten all hardware. If squeaking persists, apply a small amount of silicone lubricant to metal-on-metal contact points (avoid wood). |
| Ladder feels loose | Ladder attachment hardware is loose. | Ensure the ladder is correctly seated and its attachment bolts are fully tightened. |
8. Speċifikazzjonijiet tal-Prodott
- Numru tal-Mudell: 5027
- Ditta: Bopita
- Kulur: Abjad
- Dimensjonijiet (L x W x H): 211 ċm x 101 ċm x 170 ċm (madwar 83.1 x 39.8 x 66.9 pulzieri)
- Piż tal-Prodott: 100 Kilogrammi (madwar 220.46 lbs)
- Daqs Rakkomandat tas-Saqqu: 90 ċm x 200 ċm
- Recommended Age Range (Top Bunk): Tifel/tifla (6+ snin)
Image 2: Bopita Mix & Match Bunk Beds with key dimensions indicated. This image visually represents the length (211cm), width (101cm), and height (170cm) of the assembled bunk bed.
9. Garanzija u Appoġġ
Bopita products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official Bopita website. If you require assistance with assembly, missing parts, or have any questions regarding your bunk bed, please contact Bopita customer support directly.
Għal aktar għajnuna, jekk jogħġbok żur: Bopita Official Website - Contact Us
