1. Prodott Aktarview
The Bilstein B8 5125 series shock absorbers are high-performance monotube units designed for custom automotive suspension applications. These shocks are engineered to provide superior damping characteristics, making them suitable for vehicles that require specific fitments or enhanced suspension performance. They feature a 46mm piston with self-adjusting deflective disc valving, ensuring consistent performance across various driving conditions. The design incorporates industry-standard 5/8 inch hour-glass bushings and is available in eye/eye or stem/eye mount configurations to accommodate diverse vehicle setups.
Stampa 1.1: Bilstein 33-230412 Monotube Shock Absorber. This image displays the complete shock absorber unit, highlighting its robust construction and zinc-plated finish.
2. Kontenut tal-Pakkett
Upon unpacking, verify that all components are present and undamaged. The standard package for the Bilstein 33-230412 Monotube Shock Absorber typically includes:
- One (1) Bilstein 33-230412 Monotube Shock Absorber
- Necessary mounting hardware (bushings, washers, sleeves, nut)

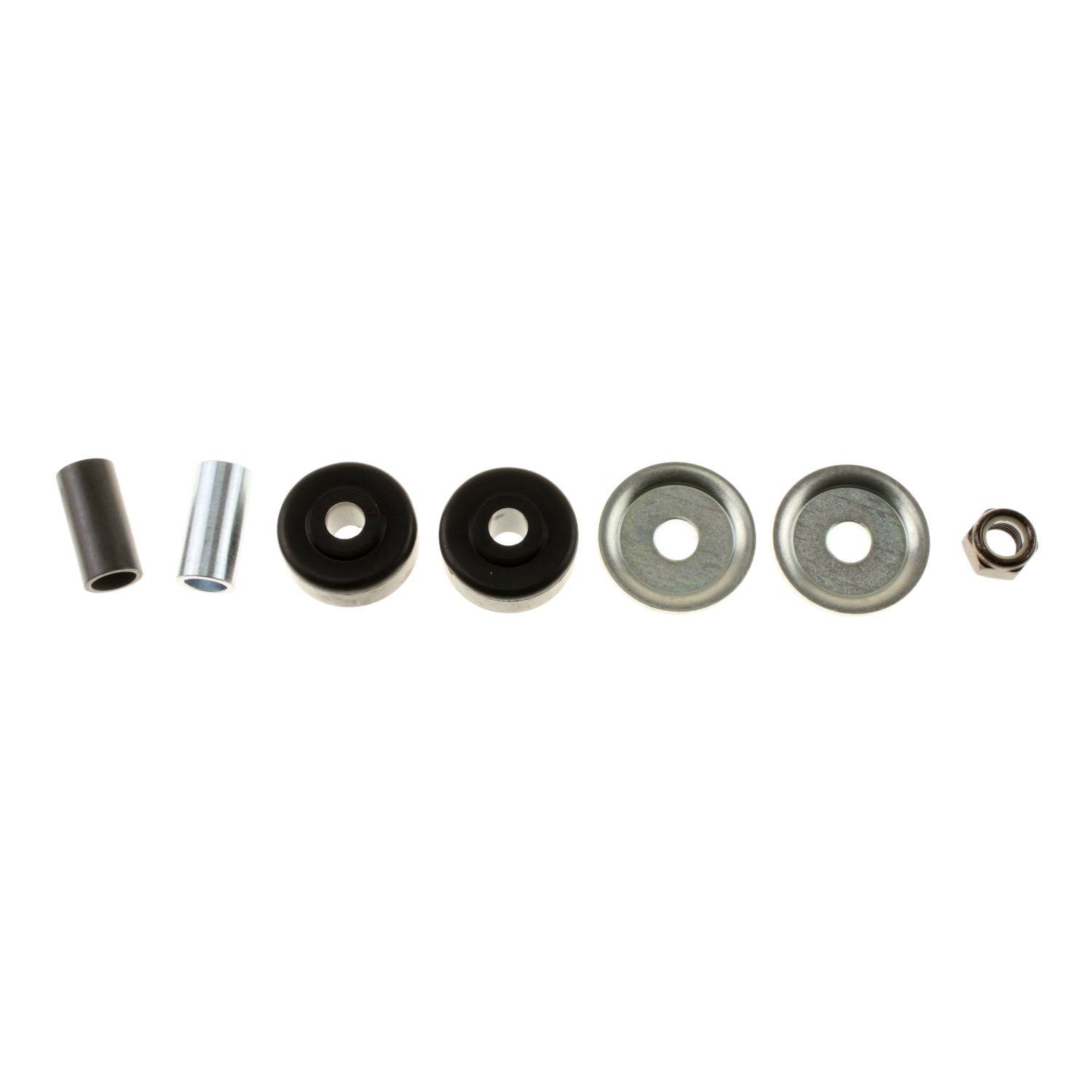

Stampa 2.1: Mounting hardware components. This image shows the individual parts included for mounting the shock absorber, which typically consist of two black rubber bushings, two metal sleeves, two metal washers, and one hexagonal nut.
3. Speċifikazzjonijiet
Detailed technical specifications for the Bilstein 33-230412 Monotube Shock Absorber:
| Brand | Bilstein |
| Numru tal-Mudell | 33-230412 |
| Serje | 5125 Serje |
| Disinn Intern | Monotube |
| Disinn tal-Korp | 46mm ID Smooth Body (Non-Coilover) |
| Materjal | Aluminju |
| Finish ta 'barra | Miksijin biż-żingu |
| Pożizzjoni tal-Parti tal-Auto | Wara |
| Tip ta 'Servizz tal-Vettura | Karozza, Trakk |
| Extended Length (IN/MM) | 24.38 IN / 619.30 MM |
| Collapsed Length (IN/MM) | 15.19 IN / 385.80 MM |
| Lower Mount Type | Eye 5/8in |
| Upper Mount Type | Zokk |
| Boot Included | Black bellows |
| Ġibjun | Nru |
| Piż tal-oġġett | 5.05 liri |
| Pajjiż ta' Oriġini | Istati Uniti |
4. Installazzjoni (Setup)
TWISSIJA: Installation of shock absorbers requires specialized tools and knowledge. Improper installation can lead to vehicle damage, loss of control, and serious injury. It is highly recommended that installation be performed by a qualified automotive technician.
The Bilstein 33-230412 shock absorber is designed for vehicle-specific fitment. Always consult your vehicle's service manual for specific instructions and torque specifications relevant to your make and model.
Passi Ġenerali ta' Installazzjoni:
- Preparazzjoni: Safely lift and support the vehicle on a level surface using jack stands. Remove the wheel(s) to access the suspension components.
- Neħħi Xokk Qadim: Carefully unbolt the upper and lower mounting points of the existing shock absorber. Be aware that the suspension may be under tension.
- Spezzjona l-Komponenti: Examine the mounting points, bushings, and other suspension components for wear or damage. Replace any worn parts as necessary.
- Installa Xokk Ġdid:
- Assemble the new Bilstein shock absorber with the provided bushings, washers, and sleeves according to the vehicle manufacturer's specifications for the upper and lower mounts.
- Position the new shock absorber into its mounting locations.
- Secure the upper and lower mounting bolts, tightening them to the vehicle manufacturer's specified torque values.
- Kontrolli Finali: Reinstall the wheel(s) and lower the vehicle. Torque lug nuts to specification. Perform a visual inspection to ensure all connections are secure and there is no interference with other components.
- Allinjament: After replacing suspension components, it is often necessary to have a professional wheel alignment performed to ensure proper vehicle handling and tire wear.
5. Operazzjoni
Once installed, the Bilstein 33-230412 Monotube Shock Absorber operates as an integral part of your vehicle's suspension system. Its primary function is to dampen spring oscillations, control suspension movement, and maintain tire contact with the road surface. The monotube design and 46mm piston with deflective disc valving provide consistent performance, contributing to improved ride comfort, stability, and handling characteristics.
The shock absorber is a passive component that reacts to road conditions and vehicle dynamics. No direct user interaction is required for its operation after proper installation.
6. Manutenzjoni
Bilstein shock absorbers are designed for durability and long-term performance with minimal maintenance. However, periodic inspection is recommended to ensure optimal function and safety.
- Spezzjoni Viżwali: Regularly inspect the shock absorbers for signs of leaks, damage to the body, bent shafts, or worn bushings. Any visible fluid leakage indicates a failed seal and requires replacement.
- Ħardwer tal-Immuntar: Check all mounting bolts and nuts for tightness. Loose hardware can lead to noise and premature wear.
- Bushing Condition: Examine the rubber bushings for cracks, tears, or excessive compression. Worn bushings can cause clunking noises and reduce damping effectiveness.
- Tindif: Keep the shock absorber body and shaft clean from excessive dirt and debris, which can potentially damage seals over time.
- Intervall ta' Sostituzzjoni: While there is no universal replacement interval, shock absorbers typically have a lifespan that varies based on driving conditions, vehicle type, and mileage. Consult your vehicle's service manual or a qualified technician for recommended inspection and replacement schedules.
7 Issolvi l-problemi
If you experience issues with your vehicle's suspension after installing Bilstein 33-230412 shock absorbers, consider the following common troubleshooting points:
| Sintomu | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Excessive Bouncing/Poor Ride Quality | Worn or damaged shock absorber, incorrect valving for application, or issues with other suspension components (springs, tires). | Inspect shock for leaks or damage. Verify correct part number for vehicle. Check tire pressure and other suspension components. |
| Ħsejjes ta' Tħabbit jew Tħaxwix | Loose mounting hardware, worn bushings, or contact with other vehicle components. | Tighten all mounting bolts to specification. Inspect bushings for wear and replace if necessary. Check for clearance issues. |
| Fluid Leakage from Shock Body | Internal seal failure. | The shock absorber has failed and requires replacement. |
| Ilbies irregolari tat-tajers | Improper wheel alignment, worn suspension components, or incorrect tire pressure. | Perform a wheel alignment. Inspect all suspension components. Check and adjust tire pressure. |
If troubleshooting steps do not resolve the issue, consult a qualified automotive technician for further diagnosis.
8. Garanzija u Appoġġ
The Bilstein 33-230412 Monotube Shock Absorber is covered by a Bilstein Limited 3 Month Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official Bilstein warranty documentation or contact Bilstein customer support directly.
For technical assistance, product inquiries, or warranty claims, please visit the official Bilstein website or contact their customer service department. Ensure you have your product model number (33-230412) and purchase information available when seeking support.
