Introduzzjoni
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your EVGA GeForce GTX 780 SuperClocked graphics card. This high-performance graphics card is designed to deliver an enhanced visual experience for computing tasks and gaming.
The EVGA GeForce GTX 780 SuperClocked features 3GB GDDR5 memory, a 384-bit memory interface, and an ACX Cooler for efficient thermal management. It supports Microsoft DirectX 12 API (feature level 11_0) and offers multiple display outputs including DVI-I, DVI-D, HDMI, and DisplayPort.
Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tal-prodott tiegħek:
- EVGA GeForce GTX 780 SuperClocked Graphics Card
- Driver CD / User Manual
- Power Adapters (if required for your system)
- DVI to VGA Adapter (if included)
- Promotional materials (stickers, posters)
Figura 1: Example of included accessories such as manuals, driver CD, and promotional stickers.
Figura 2: Power adapters and a DVI to VGA adapter, which may be included to facilitate connection to older monitors or power supplies.
Setup u Installazzjoni
Rekwiżiti tas-Sistema
- PCI Express-compliant motherboard with one or more x16 graphics slots.
- Minimum 600W or greater power supply with two 6-pin or 8-pin PCI Express power connectors (check your specific card's power requirements).
- Memorja tas-sistema minima ta' 4GB (8GB rakkomandata).
- Microsoft Windows 10, 8, 7, Vista, or Linux operating system.
- CD-ROM/DVD-ROM drive or internet connection for driver installation.
Installazzjoni tal-Ħardwer
- Sistema ta' Mitfija: Itfi l-kompjuter tiegħek u skonnettja l-kejbil tal-enerġija mis-sokit tal-ħajt.
- Kawża Miftuħa: Iftaħ il-kaxxa tal-kompjuter tiegħek. Irreferi għall-manwal tal-kompjuter tiegħek għal struzzjonijiet speċifiċi.
- Sib is-Slott tal-PCI Express: Identifika slott PCI Express x16 disponibbli fuq il-motherboard tiegħek.
- Neħħi l-Għatu tas-Slott: Remove the metal slot cover from the back of the computer case corresponding to the chosen PCI Express slot.
- Daħħal il-Karta tal-Grafika: Carefully align the graphics card with the PCI Express slot and press it firmly until it is securely seated. Ensure the retention clip on the slot engages.
- Karta Sikura: Secure the graphics card to the computer case with the screw or retention mechanism.
- Qabbad l-Enerġija: Connect the required 6-pin and/or 8-pin PCI Express power connectors from your power supply to the graphics card. Ensure all connections are firm.
- Agħlaq il-Każ: Agħlaq il-kaxxa tal-kompjuter tiegħek u erġa' qabbad il-kejbil tal-enerġija.

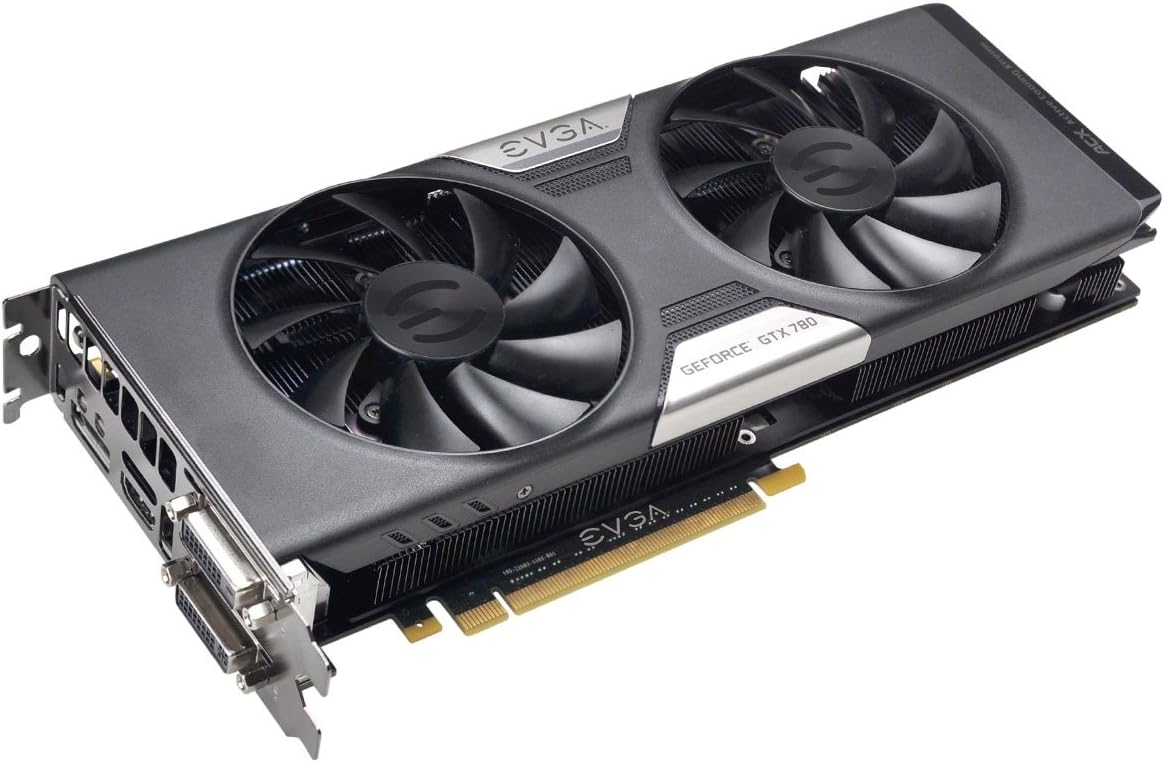

Figura 3: The EVGA GeForce GTX 780 SuperClocked graphics card, ready for installation into a PCI Express slot.
Installazzjoni tas-sewwieq
- Sistema ta' Mixgħul: Ixgħel il-kompjuter tiegħek.
- Installa Sewwieqa:
- From CD: Insert the EVGA driver CD into your optical drive and follow the on-screen instructions.
- Minn Web: For the latest drivers, visit the official NVIDIA websit (www.nvidia.com/sewwieqa) or EVGA websit (www.evga.com/support/download/). Select your product model and operating system, then download and run the installer.
- Ibda mill-ġdid: Erġa' ibda l-kompjuter tiegħek wara li titlesta l-installazzjoni tas-sewwieq.
Istruzzjonijiet Operattivi
Konnessjoni Displays
Your EVGA GeForce GTX 780 SuperClocked graphics card supports multiple display configurations. Connect your monitor(s) to the available ports:
- DVI-I: Digital and Analog output. Can be used with a DVI to VGA adapter for analog monitors.
- DVI-D: Digital output only.
- HDMI: High-Definition Multimedia Interface for audio and video.
- DisplayPort (DP): High-performance digital display interface.
Figura 4: Display output ports on the graphics card, including DVI-I, DVI-D, HDMI, and DisplayPort.
After connecting your display(s), you may need to configure display settings within your operating system to set resolution, refresh rate, and multi-monitor arrangements.
Karatteristiċi u Teknoloġiji Ewlenin
- NVIDIA GeForce GTX 780 GPU: Powerful graphics processing unit for demanding applications.
- EVGA ACX Cooler: Advanced Cooling eXperience cooler with dual fans designed for improved airflow, lower temperatures, and quieter operation compared to reference designs.
- SuperClocked Performance: Factory overclocked for enhanced performance out of the box.
- 3GB GDDR5 Memory: High-speed memory for texture and frame buffer storage.
- NVIDIA GPU Boost 2.0: Dynamically maximizes clock speeds based on workload and temperature for optimal performance.
- NVIDIA SLI Ready: Supports multi-GPU configurations for scalable performance.
- Microsoft DirectX 12 API Support: Ensures compatibility with the latest graphics technologies.
Figura 5: The ACX Cooler with dual fans, designed for efficient heat dissipation.
Manutenzjoni
Manutenzjoni xierqa tista' testendi l-ħajja u tiżgura prestazzjoni ottimali tal-karta grafika tiegħek.
- Żomm Nadif: Periodically clean dust from the graphics card's heatsink and fans using compressed air. Ensure the system is powered off and unplugged before cleaning. Avoid touching internal components directly.
- Aġġornamenti tas-sewwieq: Regularly check the NVIDIA or EVGA website for the latest graphics drivers. Keeping drivers updated can improve performance, stability, and compatibility with new software and games.
- Fluss tal-Arja tas-Sistema: Ensure your computer case has adequate airflow to prevent heat buildup, which can affect the graphics card's performance and longevity.
Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-karta grafika tiegħek, ikkunsidra l-passi komuni li ġejjin għas-soluzzjoni tal-problemi:
- L-ebda Output tal-Wiri:
- Ensure the monitor is correctly connected to the graphics card and powered on.
- Verify that the graphics card is fully seated in the PCI Express slot.
- Check that all required power connectors are securely attached to the graphics card.
- Ittestja b'kejbil tad-displej jew monitor differenti jekk possibbli.
- Driver Issues / Instability:
- Perform a clean installation of the latest graphics drivers from the NVIDIA or EVGA websit.
- Kun żgur li s-sistema operattiva tiegħek hija aġġornata.
- Check for conflicts with other installed software.
- Overheating / Performance Throttling:
- Naddaf it-trab mill-fannijiet tal-karta grafika u s-sink tas-sħana.
- Aċċerta ruħek li l-fluss tal-arja huwa adegwat fil-kaxxa tal-kompjuter tiegħek.
- Monitor temperatures using third-party software (e.g., EVGA Precision X, MSI Afterburner).
- Artifacts / Visual Glitches:
- Aġġorna s-sewwieqa tal-grafika.
- Reduce graphics settings in applications or games.
- Jekk il-problema tippersisti, tista' tindika ħsara fil-ħardwer.
Għal aktar għajnuna, irreferi għall- Appoġġ tal-EVGA websit or contact their technical support.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 03G-P4-2784-KR |
| GPU | NVIDIA GeForce GTX 780 |
| Arloġġ tal-qalba | 967 MHz (Bażi) |
| Memorja tal-Vidjo | 3GB GDDR5 |
| Interface tal-memorja | 384-bit |
| Veloċità tal-Memorja | 6008 MHz (Effettiv) |
| Riżoluzzjoni massima | 4096 x 2160 |
| Konnetturi | DVI-I, DVI-D, HDMI, DisplayPort |
| Interface | PCI Express 3.0 x16 |
| Tkessiħ | EVGA ACX Cooler (Dual Fan) |
| SLI Support | Yes, SLI Ready |
| Dimensjonijiet (LxWxH) | 10.5 x 1.5 x 4.38 pulzieri |
| Piż tal-oġġett | 3 liri |
Garanzija u Appoġġ
For detailed warranty information, including terms, conditions, and registration procedures, please visit the official EVGA website. Warranty periods can vary by region and product, and registration may be required to activate or extend your warranty.
EVGA Support:
- Websit: www.evga.com/support/
- Bażi ta' Għarfien: Access FAQs, troubleshooting guides, and driver downloads.
- Appoġġ Tekniku: Contact EVGA's technical support team for personalized assistance.
It is recommended to register your product on the EVGA website after purchase to ensure access to full support and warranty benefits.
