GEORGE KOVACS P5040-084-L Tube LED Wall Sconce Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the safe installation, operation, and maintenance of your GEORGE KOVACS P5040-084-L Tube LED Wall Sconce. Please read all instructions carefully before beginning installation and retain this manual for future reference.

Informazzjoni Importanti dwar is-Sigurtà: Always turn off the main power supply at the circuit breaker before installing or servicing the fixture. Consult a qualified electrician if you are unsure about the installation process.

2. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni.

LED Wall Sconce Fixture (1)
Ħardwer tal-Immuntar (sett 1)
Manwal ta' Istruzzjoni (1)

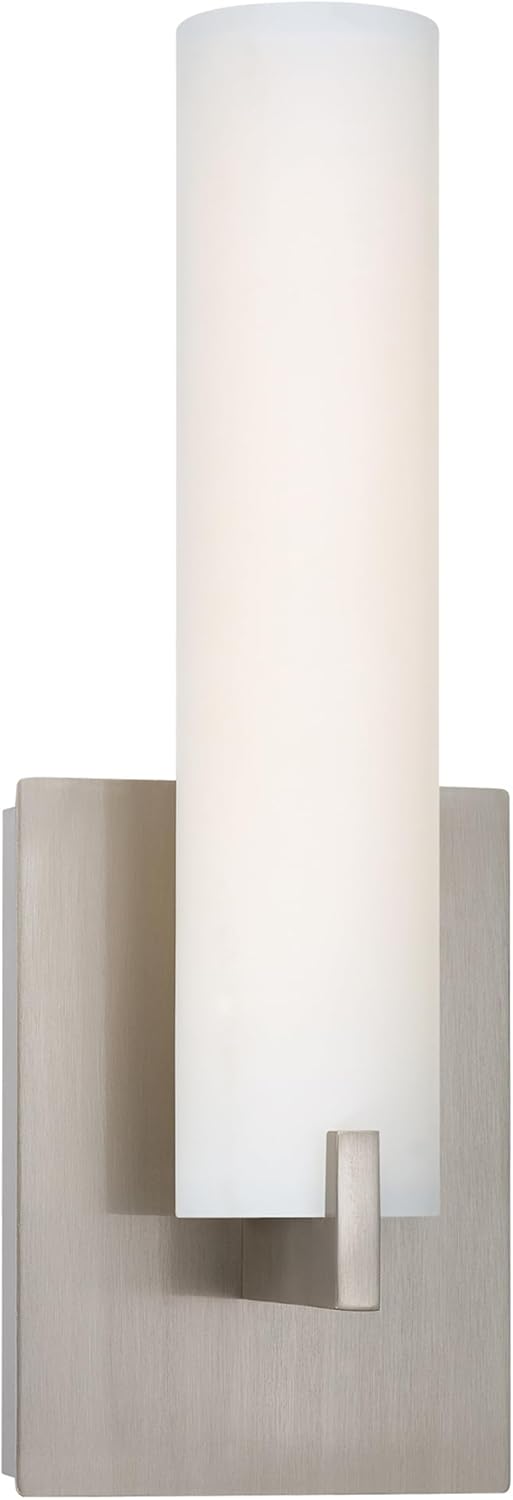

Figura 2.1: The GEORGE KOVACS P5040-084-L Tube LED Wall Sconce, featuring a brushed nickel finish and an etched opal glass shade.

3. Speċifikazzjonijiet

Karatteristika	Dettall
Numru tal-Mudell	P5040-084-L
Dimensjonijiet (H x W)	13.25 pulzier x 4.75 pulzier
Piż	Madwar 3.68 lbs
Materjal	Aluminum Casting, Steel, Glass
Temm	Nikil brushed
Materjal tad-dell	Etched Opal Glass
Sors tad-Dawl	Modulu LED integrat
Wattage	12 Total Watts
Output Lumen	633 Lumens
Temperatura tal-Kulur	3000K (abjad sħun)
CRI	92
Dimmable	Iva
Voltage	120 Volts
Ċertifikazzjonijiet	ETL Certified, Title 24, ADA Compliant
Użu tal-Post	Damp Rated (Indoor)

Dimensions of GEORGE KOVACS P5040-084-L Tube LED Wall Sconce

Figura 3.1: Dimensjonali view of the wall sconce, illustrating its height and width for installation planning.

4. Setup u Installazzjoni

Qabel ma tibda: Ensure the power is OFF at the circuit breaker. This fixture is designed for wall mount installation to an existing junction box (junction box not included).

Ipprepara ż-Żona: Turn off power at the main electrical panel. Clear the installation area.
Mount the Mounting Plate: Attach the mounting plate (included in hardware) to the junction box using the provided screws. Ensure it is securely fastened.
Agħmel Konnessjonijiet elettriċi:
- Qabbad il- ram aħdar jew mikxuf wajer tal-ert mill-apparat sal- ram aħdar jew mikxuf wajer tal-ert mill-kaxxa tal-junction.
- Qabbad il- abjad wajer mill-apparat sal- abjad wajer (newtrali) mill-kaxxa tal-junction.
- Qabbad il- iswed wajer mill-apparat sal- iswed wajer (sħun) mill-kaxxa tal-junction.
- Waħħal il-konnessjonijiet kollha bil-ġewż tal-wajer (ipprovduti).
Sikura l-Armatura: Carefully tuck all wires into the junction box. Align the fixture with the mounting plate and secure it using the provided screws.
Installa d-dell tal-ħġieġ: Gently slide the etched opal glass shade onto the fixture, ensuring it is properly seated and secured according to the design.
Irrestawra l-Enerġija: Turn the power back ON at the main electrical panel.

Close-up of the GEORGE KOVACS P5040-084-L Tube LED Wall Sconce showing the brushed nickel finish and glass shade detail.

Figura 4.1: Dettaljati view of the sconce's base and glass shade, illustrating the aesthetic and potential attachment points.

5. Istruzzjonijiet Operattivi

The GEORGE KOVACS P5040-084-L Tube LED Wall Sconce is designed for simple operation.

Power On/Off: Operate the fixture using a standard wall switch connected to the electrical circuit.
Funzjonalità tad-Dimming: This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed on the circuit. Follow the dimmer switch manufacturer's instructions for proper operation.

6. Manutenzjoni

Regular maintenance will help preserve the appearance and functionality of your wall sconce.

Tindif:
- Ensure the power is OFF before cleaning.
- Imsaħ l-apparat b'ċarruta ratba u niexfa.
- For the glass shade, use a mild glass cleaner applied to a cloth, then wipe the shade. Avoid spraying cleaner directly onto the fixture.
- Tużax prodotti tat-tindif jew solventi li joborxu, għax dawn jistgħu jagħmlu ħsara lill-finitura.
Modulu LED: The LED module is integrated and designed for long-term use. It is not user-replaceable. If the LED module fails, contact customer support for assistance.

7 Issolvi l-problemi

If you experience issues with your wall sconce, refer to the following common problems and solutions:

Problema	Kawża Possibbli	Soluzzjoni
L-apparat tad-dawl ma jixgħelx.	Power is off at the circuit breaker or wall switch. Konnessjonijiet tal-wajers maħlula jew mhux korretti. Faulty LED module (unlikely for new product).	Ensure power is ON at the circuit breaker and wall switch. Turn off power, check all wiring connections for security and correctness. Contact customer support if wiring is correct and power is supplied.
Id-dawl jitteptep jew jitbaxxa b'mod inkonsistenti.	Swiċċ tad-dimmer inkompatibbli. Konnessjoni tal-wajers sfużi.	Kun żgur li qed jintuża swiċċ tad-dimmer kompatibbli mal-LED. Turn off power, check wiring connections.
L-apparat jagħmel ħoss ta' tħaxwix.	Swiċċ tad-dimmer inkompatibbli.	Ibdel b'dimmer switch ta' kwalità għolja u kompatibbli mal-LED.

8. Garanzija u Appoġġ

Garanzija: This GEORGE KOVACS fixture comes with a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.

For warranty claims or technical support, please contact GEORGE KOVACS customer service. Please have your model number (P5040-084-L) and proof of purchase available.

Manifattur: Minka Lighting LLC.

Għal aktar informazzjoni, żur l-uffiċjal GEORGE KOVACS Store.
