1. Introduzzjoni
This manual provides essential instructions for the safe installation, operation, and maintenance of your PROFLO PFWPLUSA6032 Lansford 60" x 32" Drop-In 8-Jet Whirlpool Bathtub. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Retain this manual for future reference.
2. Informazzjoni dwar is-Sigurtà
Observe all local plumbing and electrical codes. Improper installation or use can lead to serious injury or property damage. Always consult with qualified professionals for installation.
- Sigurtà Elettrika: Ensure the electrical supply meets the product's requirements (115 Volts). All electrical connections must be performed by a licensed electrician and comply with local codes. The unit must be connected to a Ground-Fault Circuit Interrupter (GFCI).
- Temperatura tal-Ilma: Do not exceed 104°F (40°C) water temperature to avoid hyperthermia.
- Kimiċi: Use only recommended cleaning agents. Avoid abrasive cleaners or harsh chemicals that can damage the acrylic surface or internal components.
- Superviżjoni: Children and individuals with health conditions should be supervised when using the whirlpool tub.
- Dħul/Ħruġ: Exercise caution when entering and exiting the tub to prevent slips and falls.
3. Prodott Aktarview
The PROFLO PFWPLUSA6032 Lansford is a 60" x 32" drop-in whirlpool bathtub designed for a relaxing bathing experience. It features durable acrylic construction and 8 hydro-massage jets.
Karatteristiċi ewlenin:
- Durable acrylic construction for heat retention and easy cleaning.
- 8 hydro-massage jets for a therapeutic bathing experience.
- Designed for drop-in installation.
- Reversible drain placement for flexible installation.
- Adattat kemm għal applikazzjonijiet residenzjali kif ukoll kummerċjali.

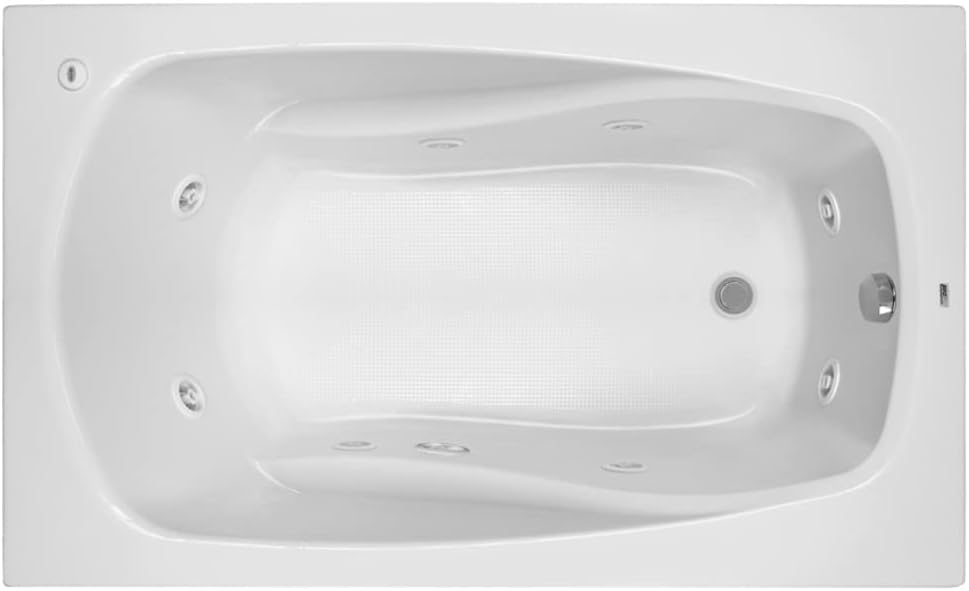

Figura 1: Minn fuq għal isfel view of the PROFLO PFWPLUSA6032 Lansford Whirlpool Bathtub, highlighting the jet placement and overall design.
4. Setup u Installazzjoni
Installation of the PROFLO PFWPLUSA6032 whirlpool bathtub should be performed by a qualified plumber and licensed electrician in accordance with all local building and plumbing codes.
Passi ta' qabel l-installazzjoni:
- Inspect Tub: Carefully inspect the tub for any shipping damage before installation. Do not install a damaged tub.
- Preparazzjoni tas-Sit: Ensure the installation area is level, structurally sound, and properly prepared for a drop-in tub. Verify rough-in dimensions match the tub specifications.
- Aċċess: Plan for future access to the pump and plumbing connections for maintenance.
- Rekwiżiti elettriċi: A dedicated 115 Volt, GFCI-protected circuit is required for the whirlpool pump.
- Konnessjonijiet tal-plaming: Prepare hot and cold water supply lines and a drain connection. The tub features reversible drain placement, allowing flexibility.
Installazzjoni Drop-In:
- Set Tub: Carefully lower the tub into the prepared opening. Ensure it is level and fully supported around its perimeter.
- Qabbad Plumbing: Connect the drain assembly and water supply lines. Test for leaks before proceeding.
- Konnessjoni Elettrika: A licensed electrician should connect the whirlpool pump to the dedicated GFCI circuit.
- Siġillar Finali: Apply a waterproof sealant around the tub's perimeter where it meets the deck or surround.
- Operazzjoni tat-Test: Fill the tub with water and test the whirlpool system to ensure all jets function correctly and there are no leaks.
5. Istruzzjonijiet Operattivi
Follow these steps for safe and effective operation of your whirlpool bathtub.
- Fill the Tub: Ensure the water level is at least 2 inches above the highest jet opening before activating the whirlpool system. Operating the pump without sufficient water can cause damage.
- Activate Jets: Locate the control button (typically pneumatic or electronic) on the tub deck. Press the button to turn the whirlpool jets on.
- Adjust Jets: Some jets may have adjustable nozzles to direct water flow. Rotate or pivot the jet face to customize the massage.
- Deactivate Jets: Press the control button again to turn off the whirlpool system.
- Drain Tub: After use, open the drain to empty the tub.
Importanti: Do not add bath oils, salts, or other additives that are not specifically designed for whirlpool tubs, as they can clog the jets or damage the pump.
6. Manutenzjoni
Regular maintenance will help preserve the appearance and functionality of your PROFLO whirlpool tub.
- Tindif tal-wiċċ: Clean the acrylic surface with a soft cloth and a non-abrasive, mild bathroom cleaner. Avoid harsh chemicals, abrasive pads, or solvents, which can scratch or dull the finish.
- Tindif bil-Ġett: Periodically fill the tub with warm water and add a small amount of a whirlpool system cleaner (or a few tablespoons of dishwasher detergent). Run the jets for 10-15 minutes, then drain and rinse thoroughly.
- Drain Cleaning: Regularly remove and clean the drain cover to prevent hair and debris buildup.
- Spezzjoni Ġenerali: Periodically check all visible plumbing and electrical connections for any signs of wear or leaks.
7 Issolvi l-problemi
Refer to this section for common issues and their potential solutions. For problems not listed or if solutions do not resolve the issue, contact customer support.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Jets do not activate | No power to pump; GFCI tripped; Insufficient water level. | Check power supply and GFCI. Ensure water level is above jets. |
| Weak jet pressure | Clogged jets; Air intake blocked; Low water level. | Clean jets. Ensure air intake is clear. Verify adequate water level. |
| Tnixxijiet tal-ilma | Loose plumbing connections; Damaged seals. | Tighten connections. Inspect and replace damaged seals. Contact a professional. |
| Ħoss mhux tas-soltu mill-pompa | Debris in pump; Air in system; Loose mounting. | Turn off power and inspect pump for debris. Bleed air from system if applicable. Ensure pump is securely mounted. |
8. Speċifikazzjonijiet
| Numru tal-Mudell | PFWPLUSA6032 |
| Brand | Proflo |
| Dimensjonijiet (L x W x H) | 60" x 17.25" x 19.5" |
| Tip ta' Installazzjoni | drop-in |
| Materjal | Akriliku |
| Kulur | Abjad |
| Kapaċità | 50 Galun |
| Numru ta' Ġettijiet | 8 |
| Voltage | 115 Volts |
| Piż tal-oġġett | 83 Liri |
| UPC | 781889197486 |
9. Informazzjoni dwar Garanzija
The PROFLO PFWPLUSA6032 Lansford Whirlpool Bathtub is covered by a limited warranty.
- Garanzija Residenzjali: Sentejn mid-data tax-xiri.
- Garanzija Kummerċjali: Sena mid-data tax-xiri.
For detailed terms and conditions of the limited warranty, please refer to the official PROFLO warranty documentation or contact PROFLO customer support.
10. Appoġġ għall-Klijent
If you have any questions regarding the installation, operation, maintenance, or warranty of your PROFLO PFWPLUSA6032 Lansford Whirlpool Bathtub, please contact PROFLO customer support for assistance.
For contact information, please visit the official PROFLO webis-sit jew irreferi għad-dokumentazzjoni tax-xiri tiegħek.
