Rev-A-Shelf 6-Inch Pull-Out Base Cabinet Filler Organizer

Prodott Overview

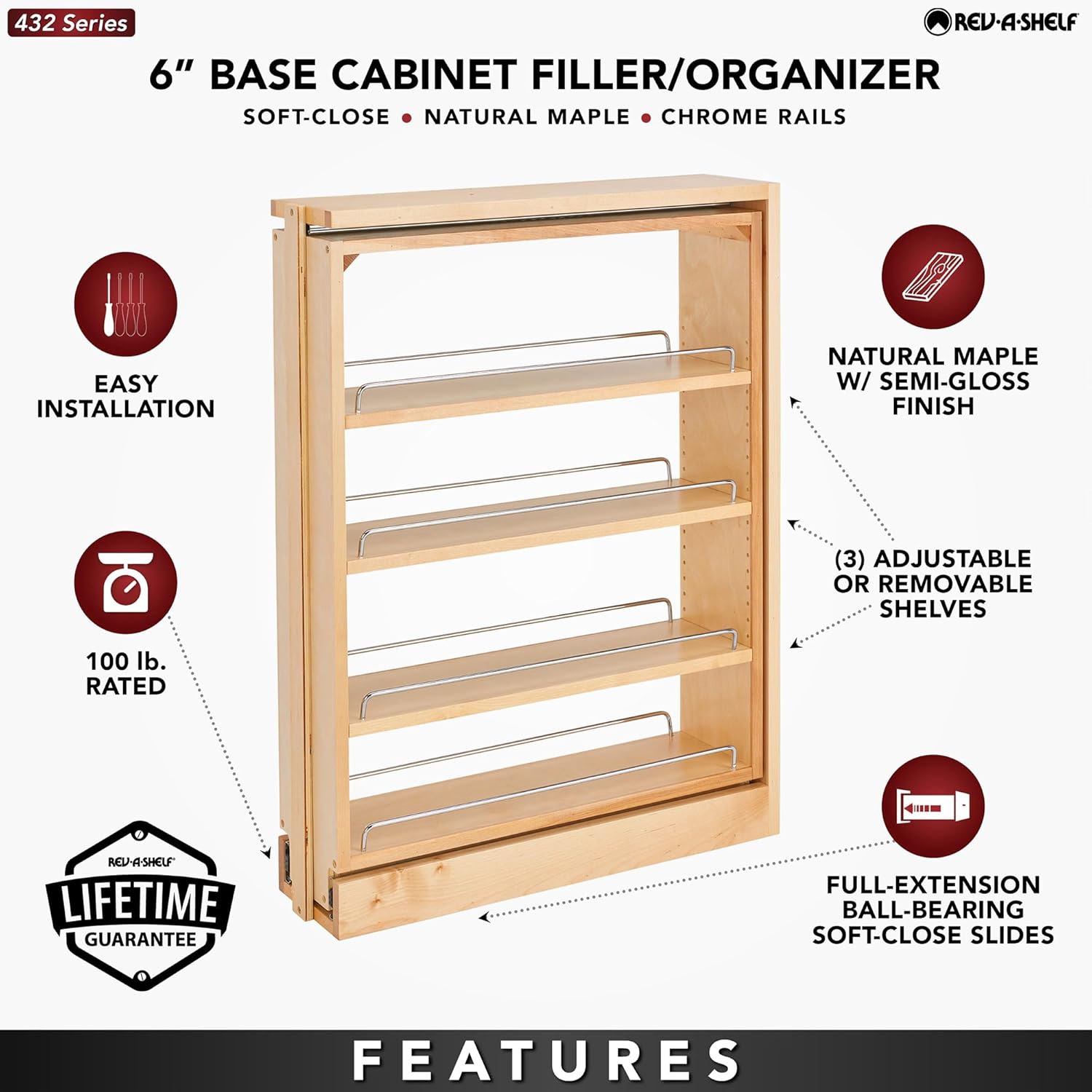

The Rev-A-Shelf 6-inch Pull-Out Base Cabinet Filler Organizer is designed to maximize space and efficiency within kitchen cabinetry. This unit transforms otherwise unused filler space between cabinets into functional storage, ideal for spices, seasonings, and other small items.

It features a fully assembled wood construction with adjustable shelves and soft-close slides for smooth operation.

Important Considerations: What is a Filler?

A cabinet filler is a pre-assembled unit designed to occupy and utilize the small, often wasted, spaces between standard kitchen cabinets. It provides functional storage that would otherwise be covered by a decorative panel.

Nota: This filler is designed for new kitchen installations only. It is intended to fit between two newly installed cabinets and is not compatible with existing cabinet setups.

Setup u Installazzjoni

The Rev-A-Shelf filler organizer comes fully assembled for straightforward installation. It is designed to be mounted between two base cabinets.

Għodod meħtieġa:

• Power Drill
• Lapes
• Tornavit
• Tape Measure

Passi ta' qabel l-installazzjoni:

1. Kejjel il-Ftuħ tal-Kabinett: Carefully measure the width, depth, and height of the space where the filler will be installed. Ensure the opening is exactly 6 inches wide and 30 inches high. Check for any obstructions like door hinges or plumbing.
2. Ipprepara ż-Żona tal-Installazzjoni: Ensure sufficient access between the adjacent cabinets for proper installation.

Proċedura ta' Installazzjoni:

1. Position the Filler: Determine the desired location for the filler. The unit is designed to be inserted and aligned between the two base cabinets.
2. Secure the Filler: Insert the filler into the designated space. Align it properly and screw it into place using the provided mounting hardware. The front wood piece should remain attached during this step to maintain the unit's squareness.
3. Complete Cabinetry: After the filler is securely installed, proceed with installing the countertop, any necessary filler strips, and your chosen pull hardware (not included).
4. Attach Door Mount Brackets: The adjustable door mount brackets are included and required for operation. Attach them as per the detailed instructions provided in the packaging to allow for a decorative panel to be mounted.

Istruzzjonijiet Operattivi

The Rev-A-Shelf Pull-Out Filler Organizer is designed for simple and efficient use.

• Aċċess għall-Kontenut: Gently pull the attached decorative panel (not included) to extend the organizer from the cabinet. The full-extension ball-bearing soft-close slides ensure smooth and complete access to all items.
• Xkafef ta' aġġustament: The unit includes three adjustable shelves with chrome rails. To adjust a shelf, carefully lift it from its current position and reposition it into the desired slots along the side panels. This allows for customization based on the height of your stored items.
• L-Għeluq tal-Unità: Push the organizer back into the cabinet. The soft-close mechanism will engage, ensuring the unit closes quietly and completely without slamming.

Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your Rev-A-Shelf product.

• Imsaħ Naddaf: Periodically clean the product to remove dirt and spills. Use mild soap and water with a soft cloth. Avoid abrasive cleaners, bleach, or harsh chemicals, as these can damage the wood finish, plastic polymers, or metal components.
• Aġġusta: If any brackets, screws, or bolts become loose over time due to normal use, simply adjust or tighten them as needed to maintain stability and function.
• Griż: The slide system is pre-coated with a multi-purpose grease. While additional greasing is generally not required, if the slides begin to feel stiff, apply a good quality multi-purpose grease. Do not use spray lubricants, as they can break down the existing grease over time.

Issolvi l-problemi

If you encounter issues with your Rev-A-Shelf Pull-Out Filler Organizer, consider the following common solutions:

• Difficulty with Smooth Operation (Sticking/Tight Pull):
  • Ensure the unit is properly aligned and level within the cabinet opening. Misalignment can cause friction.
  • Check for any debris or obstructions in the slide tracks.
  • If the slides feel stiff, apply a small amount of high-quality multi-purpose grease to the ball bearings. Avoid spray lubricants.
  • Verify that all mounting screws are tightened appropriately. Overtightening or uneven tightening can affect slide performance.
• Unit Does Not Close Completely or Has a 'Hitch':
  • Inspect the soft-close mechanism for any damage or obstruction.
  • Re-check the mounting screws, particularly those near the slide mechanism, to ensure none are protruding or interfering with the closing action.
  • Confirm that the cabinet opening dimensions are precise and that the unit is not binding against the cabinet frame.
• L-ixkafef mhumiex stabbli:
  • Ensure shelves are correctly seated in all four support pins.
  • Verify that the chrome rails are securely attached to the shelves.

Jekk dawn il-passi ma jsolvux il-problema, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Speċifikazzjonijiet

Garanzija u Appoġġ

Garanzija: This Rev-A-Shelf product is covered by a limited lifetime warranty.

Appoġġ għall-Klijent: For any additional questions, concerns, or warranty claims, please contact Rev-A-Shelf Customer Service:

• Telefon: 1-800-626-1126
• Email: INFO@REV-A-SHELF.COM
