Introduzzjoni
Thank you for choosing the Reality Leuchten R024 Stand Fan. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new fan. Please read this manual thoroughly before use and retain it for future reference.
Istruzzjonijiet Importanti dwar is-Sigurtà
Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, dejjem segwi dawn il-prekawzjonijiet bażiċi ta’ sigurtà:
- Tiżgura l-provvista tal-enerġija voltage jaqbel mat-tikketta tal-klassifikazzjoni fuq il-fann.
- Do not operate the fan with a damaged cord or plug. If damaged, contact qualified service personnel.
- Żomm il-fann fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
- Daħħalx subgħajk jew xi oġġetti oħra mill-gradilja meta l-fann ikun qed jaħdem.
- Poġġi l-fann fuq wiċċ stabbli u livellat biex tevita li jinqaleb.
- Tużax il-fann fl-imxarrab jew damp locations, such as bathrooms or laundries.
- Skonnettja l-fann mis-sokit tal-enerġija qabel ma tnaddaf jew tagħmel xi manutenzjoni.
- Do not block air openings. Ensure adequate ventilation around the fan.
Kontenut tal-Pakkett
Before assembly, please check that all components are present and undamaged:
- Fan Head Assembly (Motor, Blades, Grilles)
- Arblu tal-Istand Aġġustabbli
- Base (Cross-shaped)
- Base Screws/Washers
- Korda tal-Enerġija (integrata)
- Manwal għall-Utent (dan id-dokument)
Image: The complete Reality Leuchten R024 Stand Fan, showing the fan head, adjustable pole, and cross-shaped base.
Istruzzjonijiet ta' Armar
Segwi dawn il-passi biex tiġbor il-fann stand tiegħek:
- Arma l-Bażi: Attach the two parts of the cross-shaped base together. Secure them with the provided screws and washers.
- Attach the Stand Pole: Insert the bottom end of the adjustable stand pole into the center opening of the assembled base. Tighten the securing knob or screw at the base to firmly attach the pole.
- Mount the Fan Head: Carefully place the fan head assembly onto the top of the stand pole. Ensure it clicks into place or is secured with the designated screw/fastener.
- Aġġusta l-Għoli: Loosen the height adjustment collar on the stand pole, extend or retract the inner pole to your desired height (between 105cm and 128cm), and then firmly tighten the collar to secure the height.
- Position the Fan Head: Adjust the tilt of the fan head to direct airflow as needed.
Image: A line drawing illustrating the fan's dimensions (44cm diameter, 105-128cm height) and key components for assembly.
Istruzzjonijiet Operattivi
Once assembled, your fan is ready for use:
- Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku standard.
- Power On/Off: Press the '0' button on the control panel to turn the fan off. Press '1', '2', or '3' to turn the fan on and select a speed.
- Għażla tal-Veloċità:
- 1: Veloċità Baxxa
- 2: Veloċità Medja
- 3: Veloċità Għolja
- Funzjoni ta 'Oxxillazzjoni: To activate the oscillation (swinging) feature, push down the knob located on top of the motor housing at the rear of the fan head. To stop oscillation, pull the knob up.

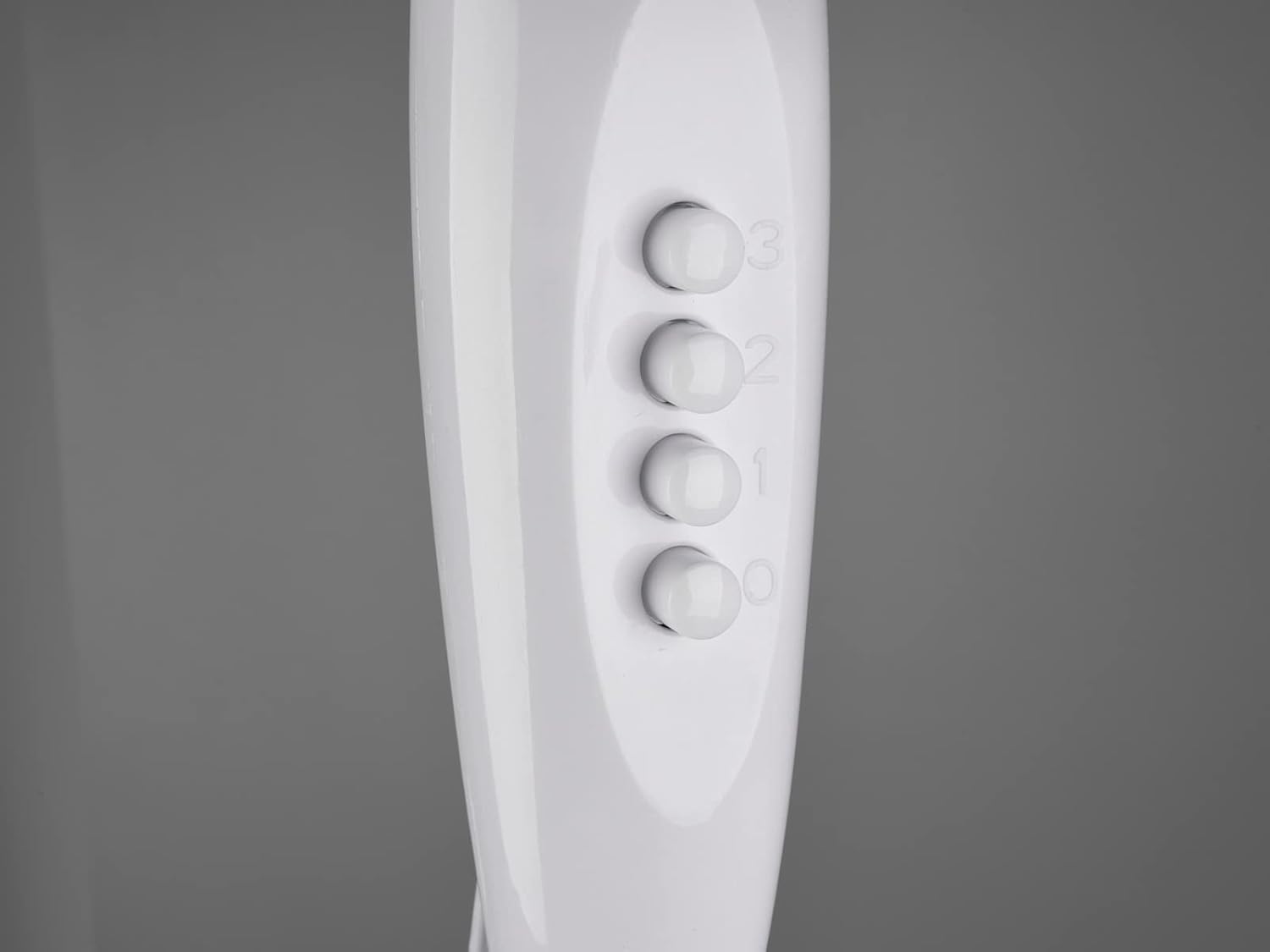

Immaġni: Dettaljata view of the fan's control panel, showing the '0', '1', '2', and '3' buttons for power and speed selection.
Karatteristiċi
The Reality Leuchten R024 Stand Fan offers several features designed for comfort and convenience:
- 3 Settings tal-Veloċità: Choose between low, medium, and high airflow for optimal comfort.
- Funzjoni Oxxillanti: Distributes air across a wider area for more effective cooling.
- Għoli aġġustabbli: The fan height can be adjusted from 105 cm to 128 cm to suit various needs and room setups.
- Tilt-Adjustable Fan Head: Allows you to direct the airflow precisely where it's needed.
- Stable Cross Base: Provides robust support and stability for the fan.
- Disinn portabbli: Lightweight and easy to move between rooms.
Image: The fan shown with visual indicators for its 44cm diameter, 3 speed levels, height adjustability, oscillation, and strong airflow.
Manutenzjoni u Tindif
Tindif regolari jgħin biex iżomm il-prestazzjoni tal-fann tiegħek u jtawwal il-ħajja tiegħu.
- Dejjem aqla’ l-fann mis-sokit tal-elettriku qabel it-tindif.
- Tindif ta' barra: Imsaħ l-uċuħ ta' barra tal-fann b'ċarruta ratba u damp drapp. Tużax prodotti tat-tindif jew solventi li joborxu, għax jistgħu jagħmlu ħsara lill-finitura.
- Gradilja u Xfafar: Dust can accumulate on the grilles and blades. Use a vacuum cleaner with a brush attachment or a soft, dry cloth to remove dust. For deeper cleaning, the front grille may be removable (refer to assembly steps in reverse if needed). Ensure all parts are dry before reassembling and operating.
- Ħażna: Meta ma tkunx qed tużah għal perjodi twal, aħżen il-fann f'post frisk u niexef, preferibbilment fl-imballaġġ oriġinali tiegħu, biex tipproteġih mit-trab u l-ħsara.
Issolvi l-problemi
If you encounter issues with your fan, consult the following table before contacting support:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-fann ma jixgħelx. | Mhux imdaħħla fil-plakka; Is-sokket tal-elettriku mhux qed jaħdem; Il-buttuna tal-enerġija mhux ippressata. | Ensure plug is fully inserted; Test outlet with another device; Press speed button (1, 2, or 3). |
| Fluss ta 'arja dgħajjef. | Fan speed set too low; Grilles are blocked by dust. | Increase fan speed; Clean the grilles and blades. |
| Il-fann huwa storbjuż. | Loose parts; Fan not on a level surface; Obstruction in blades. | Check for loose screws or components; Place fan on a flat, stable surface; Unplug and check for obstructions. |
| L-oxxillazzjoni mhux qed taħdem. | Oscillation knob not pushed down. | Push down the oscillation knob on the rear of the motor housing. |
Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Numru tal-Mudell | R024-01 |
| Brand | RL LIVE YOUR LIGHT |
| Dimensjonijiet tal-Prodott | 44 x 62 x 105 cm (adjustable height up to 128 cm) |
| Piż tal-oġġett | 2.94 kg |
| Kulur | Abjad |
| Materjal | Plastik |
| Sors tal-Enerġija | Corded Elettriku |
| Disinn tal-fann | Fann tal-art / Fann tal-pedestall |
| Karatteristiċi Speċjali | Oscillating, Portable, 3 Speed Settings, Height Adjustable |
| Komponenti Inklużi | Kurdun |
Garanzija u Appoġġ
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer. For technical support, spare parts, or service inquiries, please contact RL LIVE YOUR LIGHT customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fil-punt tax-xiri.
Image: The official logo for RL LIVE YOUR LIGHT, the brand of this product.
