Haul-Master Heavy Duty Portable Scaffold User Manual

Introduzzjoni

This manual provides essential information for the safe assembly, operation, and maintenance of your Haul-Master Heavy Duty Portable Scaffold. This portable scaffolding unit is designed to facilitate work at elevated heights for tasks such as painting indoors and outdoors. Please read this manual thoroughly before use to ensure proper handling and to prevent injury or damage.

Informazzjoni dwar is-Sigurtà

TWISSIJA: In-nuqqas ta' segwitu ta' dawn l-istruzzjonijiet jista' jirriżulta fi korriment serju jew mewt.

• Always inspect all components for damage or wear before each use. Do not use if any part is damaged.
• Ensure all locking mechanisms, including casters, are fully engaged before climbing or working on the scaffold.
• Do not exceed the maximum weight capacity of the scaffold. Refer to the Specifications section for details.
• Maintain three points of contact (two hands and one foot, or one hand and two feet) when ascending or descending.
• Keep the work area clear of debris and obstructions.
• Do not use the scaffold on uneven or unstable surfaces.
• Always use appropriate personal protective equipment (PPE) such as hard hats and safety footwear.
• Never move the scaffold while someone is on it.
• Kun żgur li hemm dawl xieraq fiż-żona tax-xogħol.
• Do not modify the scaffold in any way. Use only manufacturer-approved replacement parts.

Lista ta' Komponenti

Verify that all parts are present and undamaged before beginning assembly.

• Main Scaffold Frames (2) - Heavy duty welded steel construction
• Wooden Plank (1) - 28-1/2" W x 67" L
• Casters li jduru li jissakkru (4)
• Cross Braces / Support Bars (Quantity as per design, typically 2-4)
• Assembly Hardware (Pins, bolts, nuts, etc.)

Setup u Assemblea

Segwi dawn il-passi bir-reqqa għal assemblaġġ xieraq.

1. Ħoll il-Komponenti: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the Components List.
2. Waħħal ir-Roti: Insert the four locking swivel casters into the designated receptacles at the bottom of the main scaffold frames. Ensure they are securely seated and locked before proceeding.
3. Erect Frames: Stand the two main scaffold frames upright, parallel to each other, at the desired working distance.
4. Installa l-Braces Inkroċjati: Attach the cross braces between the two main frames. Ensure all connections are secure and tightened according to the manufacturer's instructions. These braces provide stability.
5. Position Wooden Plank: Place the 28-1/2" W x 67" L wooden plank onto the horizontal support bars of the scaffold frames at the desired working height. Ensure the plank is fully seated and stable on all four corners. The scaffold features 30 height adjustments for exact positioning.

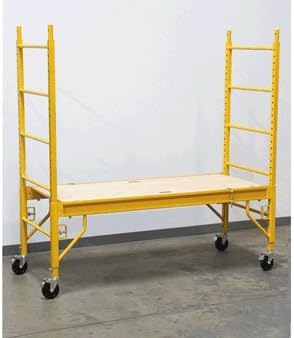

Image: Fully assembled Haul-Master Heavy Duty Portable Scaffold, showing its yellow steel frame, wooden plank, and four locking swivel casters.

Istruzzjonijiet Operattivi

Proper operation ensures safety and efficiency.

1. Pożizzjonament: Roll the scaffold to the desired work location. Ensure the ground is level and stable.
2. Roti tas-serratura: Engage the locks on all four swivel casters to prevent unintended movement. Verify that the scaffold is stationary before climbing.
3. Aġġustament tal-Għoli: The scaffold offers 30 height adjustments. To change the plank height, ensure no one is on the scaffold. Unlock the support bars, adjust them to the desired height, and securely re-lock them into place. Always ensure both sides are adjusted to the same height.
4. Tixbit: Use the ladder rungs on the scaffold frames to ascend and descend. Always maintain three points of contact.
5. Working on Scaffold: Maintain balance and avoid sudden movements. Do not lean too far over the edge. If using optional toe-boards or safety-rails, ensure they are properly installed in the built-in fittings.
6. Moving the Scaffold: Before moving, ensure all tools and materials are removed from the plank. Unlock all four casters. Carefully push the scaffold to the new location. Re-lock casters once positioned.

Manutenzjoni

Regular maintenance extends the life of your scaffold and ensures safe operation.

• Tindif: Clean the scaffold after each use to remove paint, debris, or other substances. Use a damp drapp u deterġent ħafif. Evita cleaners li joborxu.
• Spezzjoni: Periodically inspect all welded joints, fasteners, and the wooden plank for signs of wear, cracks, bends, or corrosion. Pay close attention to the caster wheels and their locking mechanisms.
• Lubrikazzjoni: Apply a light lubricant to the caster swivel points and locking mechanisms as needed to ensure smooth operation.
• Ħażna: Store the scaffold in a dry, protected area away from extreme temperatures and corrosive materials. If disassembling for storage, ensure all parts are clean and dry.
• Partijiet bil-ħsara: Do not attempt to repair damaged components. Replace them with genuine Haul-Master parts only.
