1. Introduzzjoni
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Phoenix P-ZB Meter Profile. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

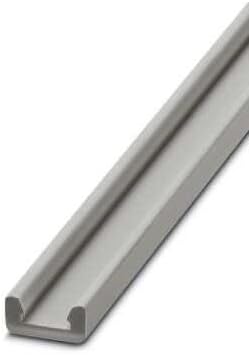

Figure 1: Phoenix P-ZB Meter Profile. This image displays the grey, elongated rail designed for mounting various electrical and electronic components.
2. Informazzjoni dwar is-Sigurtà
Dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara lill-prodott:
- Kun żgur li l-enerġija kollha hija skonnettjata qabel l-installazzjoni jew il-manutenzjoni.
- Persunal kwalifikat biss għandu jwettaq l-installazzjoni u l-wajers.
- Do not expose the profile to extreme temperatures or corrosive environments.
- Verify that the mounting surface is stable and capable of supporting the profile and mounted components.
3. Setup
3.1 Disimballaġġ
Carefully unpack the P-ZB Meter Profile and inspect it for any signs of damage. Retain the packaging for future transport or storage.
- Neħħi l-profile from its protective packaging.
- Check for any visible defects or missing parts.
- Confirm that the product matches the model number on your order.
3.2 Installazzjoni
The P-ZB Meter Profile is designed for secure mounting of various components. Follow these steps for proper installation:
- Select a suitable, flat, and stable mounting surface.
- Mark the drilling points according to the profile's mounting holes.
- Drill pilot holes if necessary, ensuring appropriate drill bit size for your fasteners.
- Sikura l-profile to the surface using appropriate screws or fasteners (not included). Ensure it is level and firmly attached.
- Mount your desired components onto the profile following their respective installation guides.
4. Joperaw
The Phoenix P-ZB Meter Profile is a passive mounting component. Its operation is directly tied to the components mounted upon it. Ensure all mounted devices are correctly installed and functioning according to their individual specifications.
5. Manutenzjoni
The P-ZB Meter Profile requires minimal maintenance. Regular inspection will ensure its longevity and proper function.
- Periodically check all mounting screws for tightness.
- Naddaf il-profile with a dry, soft cloth. Avoid abrasive cleaners or solvents.
- Inspect for any signs of corrosion or physical damage. Replace if significant damage is observed.
6 Issolvi l-problemi
This section addresses common issues that may arise with the P-ZB Meter Profile.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Profile feels loose after installation. | Mounting screws are not tight enough or incorrect fasteners used. | Tighten all mounting screws. Ensure appropriate fasteners are used for the mounting surface. |
| Components do not fit securely on the profile. | Incompatible components or incorrect mounting technique. | Verify component compatibility with P-ZB profile. Refer to component's installation guide. |
7. Speċifikazzjonijiet
Key technical specifications for the Phoenix P-ZB Meter Profile:
| Karatteristika | Dettall |
|---|---|
| Manifattur | Phoenix |
| Numru tal-Parti | 1051854 |
| Dimensjonijiet tal-Pakkett | 100 x 4 x 0.11 ċm |
| Piż tal-oġġett | 40 g |
| Numru tal-Mudell | p-zb metro |
| Numru ta' Oġġetti fil-Pakkett | 1 |
| Batteriji Meħtieġa? | Nru |
| ASIN | B009RNBJ88 |
| L-Ewwel Data Disponibbli | 30 ta’ Ottubru, 2022 |
8. Garanzija u Appoġġ
This Phoenix product is manufactured to high quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Phoenix Contact websit.
For technical support or inquiries, please contact Phoenix Contact customer service through their official channels. Provide your product model number (P-ZB Metro) and part number (1051854) when seeking assistance.
