Scosche UI3050F Single DIN Radio Installation Kit User Manual

1. Introduzzjoni u Fuqview

This manual provides comprehensive instructions for installing the Scosche UI3050F Single DIN Radio Installation Kit. This kit is designed to facilitate the integration of an aftermarket car stereo into select 1980-2004 Acura, Honda, Infiniti, Isuzu, and Nissan vehicles. The kit ensures a secure and aesthetically integrated fit for your new audio unit, maintaining the vehicle's interior appearance.

2. Kompatibilità tal-Vettura

The Scosche UI3050F kit is compatible with various 1980-2004 Acura, Honda, Infiniti, Isuzu, and Nissan vehicle models. It is designed specifically for single DIN aftermarket radios and does not accommodate double DIN units. For precise vehicle fitment, please refer to the fit guide provided with the product or consult the manufacturer's resources.

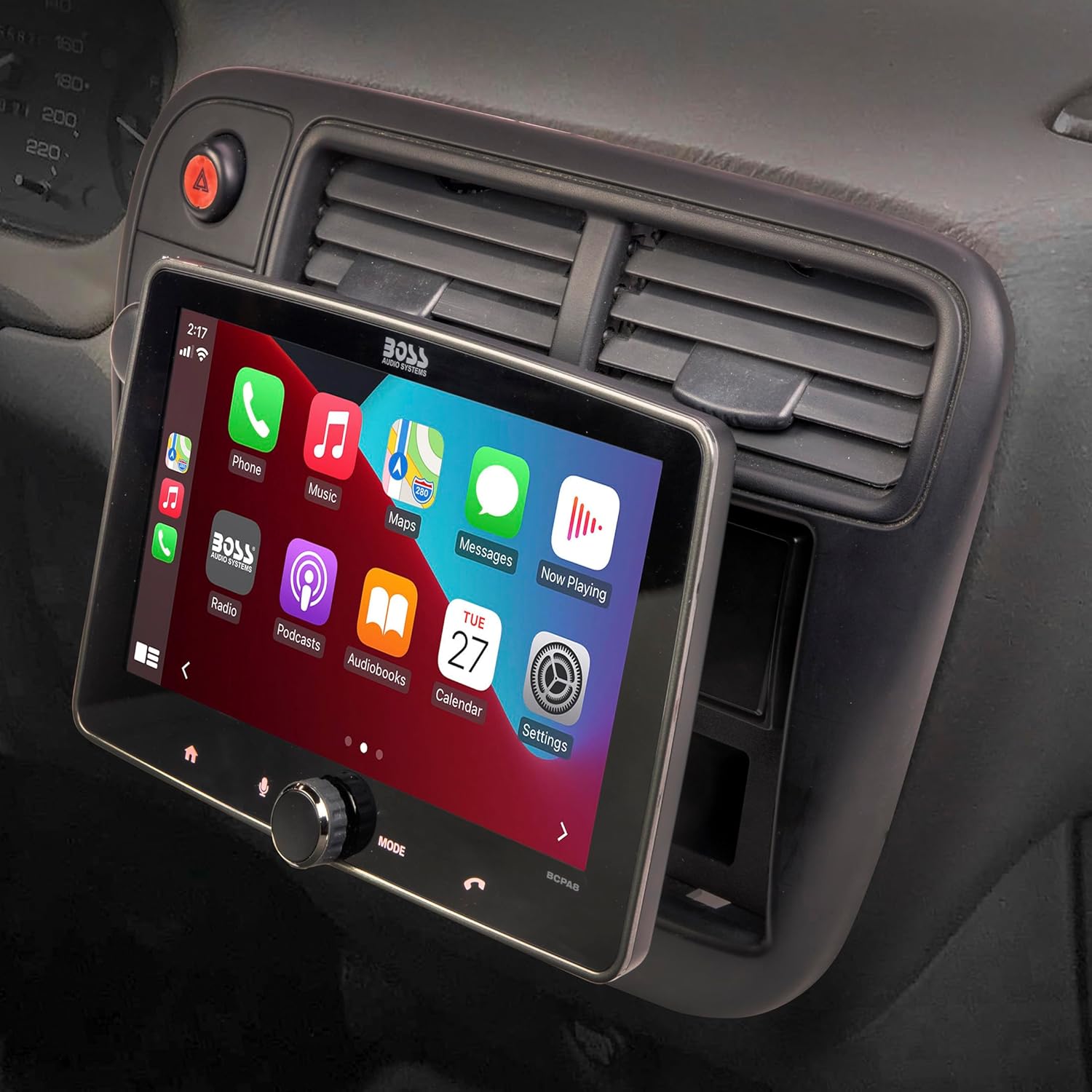

The kit features an industry-standard 1-31/32″ x 7-3/32″ (50mm x 180mm) radio opening. Some large screen floating displays that utilize a single DIN chassis may fit; verify cutout requirements with the stereo manufacturer.

3. Kontenut tal-Pakkett

The Scosche UI3050F kit includes the following components:

• Single DIN Dash Kit Frame

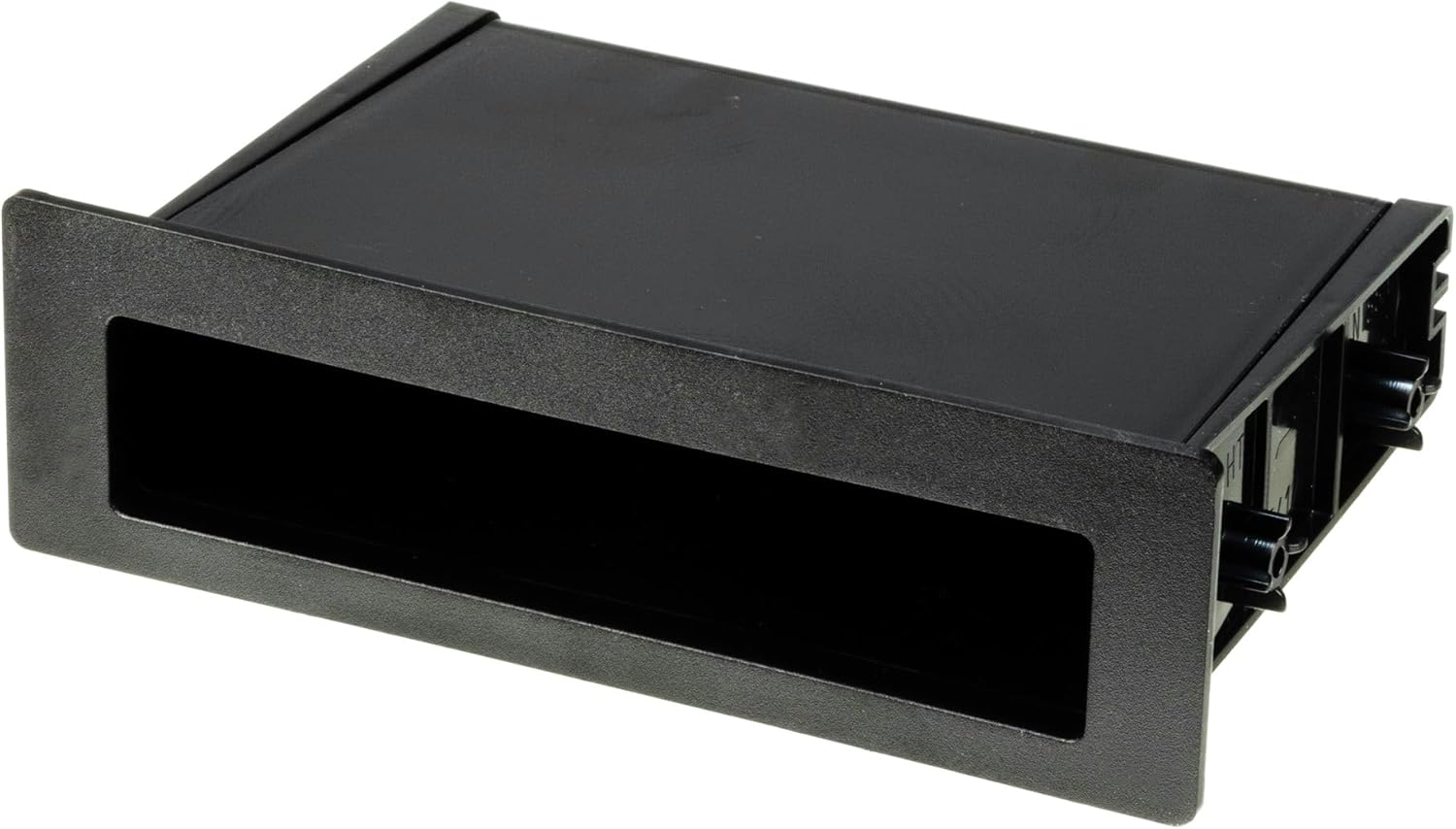

• But tal-Ħażna
• Brazzi tal-Immuntar
• Necessary Installation Hardware (screws, nuts)

4. Istruzzjonijiet ta 'installazzjoni

Follow these steps for the proper installation of your Scosche UI3050F dash kit and aftermarket stereo. Always ensure the vehicle's battery is disconnected before beginning any electrical work.

4.1. Preparation and Kit Assembly

1. Skonnettja l-batterija: Qabel tibda, skonnettja t-terminal negattiv tal-batterija tal-vettura biex tevita xorts elettriċi.
2. Prepare Dash Kit: Review the specific instructions provided with your kit. Break off and remove any tabs from the dash kit components that are not required for your specific vehicle application.
3. Mount Stereo to Dash Kit: Install your new aftermarket single DIN stereo into the Scosche dash kit using the screws provided with the stereo. Ensure it is securely fastened.

4.2. Factory Stereo Removal

Refer to your vehicle's service manual for specific instructions on removing the factory stereo. General steps include:

1. Neħħi l-Panelli tat-Trim: Carefully remove any surrounding trim panels using a panel removal tool to avoid damage.
2. Ħoll ir-Radju tal-Fabbrika: Locate and unscrew the mounting screws holding the factory radio in place.
3. Skonnettja l-Arnessi: Gently pull out the factory radio and unplug all electrical harnesses and antenna cables from the back.

4.3. Konnessjonijiet tal-Wiring

Connect the aftermarket stereo's wiring harness to the vehicle's wiring harness. It is crucial to match wire colors correctly. Use appropriate splice connectors for secure and reliable connections.

• Kuluri taqbel: Connect wires from the aftermarket stereo harness to the vehicle harness adapter by matching corresponding colors.
• Special Connections: Xi wajers jistgħu ma jikkonnettjawx direttament mal-wajers tal-vettura, bħal pereżempju amplifier turn-on wire, parking sense wire, and Steering Wheel Control connections. Consult your aftermarket stereo's manual for these specific connections.

4.4. Final Installation and Testing

1. Installa Stereo Ġdid: Carefully slide the assembled aftermarket stereo and dash kit into the vehicle's dashboard opening. Secure it with screws as per your vehicle's requirements.
2. Erġa' qabbad il-batterija: Erġa' qabbad it-terminal negattiv tal-batterija tal-vettura.
3. Funzjonijiet tat-test: Turn on the vehicle and the new radio to verify all functions (audio, balance, fader, radio presets, etc.) are working correctly.

4.5. Installazzjoni Videos

For visual guidance, refer to the following official Scosche installation videos:

5. Speċifikazzjonijiet

• Piż tal-oġġett: 15.2 uqija
• Dimensjonijiet tal-pakkett: 10.2 x 6.1 x 2.8 pulzieri
• Radio Opening: Industry standard 1-31/32″ x 7-3/32″ (50mm x 180mm) for Single DIN units.
• Materjal: Automotive-grade ABS plastic

6 Issolvi l-problemi

Jekk tiltaqa' ma' problemi waqt jew wara l-installazzjoni, ikkunsidra l-passi komuni li ġejjin għas-soluzzjoni tal-problemi:

• Ebda Qawwa għall-Stereo: Verify battery connections are secure. Check all wiring harness connections for proper seating and correct color matching. Inspect vehicle fuses related to the stereo and power.
• Ebda Output Awdjo: Ensure speaker wires are correctly connected and not shorted. Check the stereo's fader and balance settings. Confirm any external amplifier (if used) is receiving power and a turn-on signal.
• Kontrolli tal-Istering Wheel Mhux Jaħdmu: If your vehicle has steering wheel controls and you are using an adapter (sold separately), ensure the adapter is correctly wired and programmed according to its specific instructions.
• Twaħħil maħlul: Double-check that all mounting screws are tightened and that the dash kit tabs are correctly aligned and secured within the vehicle's dashboard.

For further assistance, consult your aftermarket stereo's user manual or contact Scosche customer support.

7. Garanzija u Appoġġ

For information regarding product warranty, returns, or technical support, please refer to the official Scosche webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom direttament. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta’ garanzija.
