Manwal tal-Utent tal-RCA RP2511 Plejer tas-CD Personali

1. Introduzzjoni

This manual provides comprehensive instructions for the safe and efficient operation of your RCA RP2511 Personal CD Player. Designed for portability, this device offers CD, CD-R/W playback, an integrated FM radio, and essential features for an enhanced listening experience.

Karatteristiċi ewlenin:

• CD and CD-R/W Playback Compatibility
• 45-Second Anti-Skip Protection (ESPXtreme)
• Integrated FM Radio with 20 Programmable Presets
• Spinta Dinamika tal-Bass
• Wired Remote Control Capability
• Up to 20 Hours of Battery Life (with specified batteries)

2. Informazzjoni dwar is-Sigurtà

Please read and understand all safety instructions before using this product. Retain this manual for future reference.

• Tesponix l-unità għal temperaturi estremi, umdità, jew dawl tax-xemx dirett.
• Evita li twaqqa' l-unità jew li tissottomettiha għal impatti qawwija.
• Tippruvax tiżżarma jew timmodifika l-unità. Irreferi kull servizz lil persunal kwalifikat.
• Use only the specified battery type (2 x AA batteries). Ensure correct polarity when inserting batteries.
• Neħħi l-batteriji jekk l-unità mhux se tintuża għal perjodu estiż.
• Listening at high volume levels for prolonged periods can cause permanent hearing damage.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• RCA RP2511 Personal CD Player
• Headphones Stereo
• Kontroll mill-bogħod bil-fili
• Manwal għall-Utent (dan id-dokument)

4. Prodott Aktarview

Familiarize yourself with the components of your personal CD player.

Figura 1: Quddiem view of the RCA RP2511 Personal CD Player in its original packaging. The image highlights the player's main body, which is silver and blue, featuring a digital display, control buttons (PRESET/STATION, TUNING, ON/MODE), and a BASS BOOST indicator. The packaging also mentions key features like '45 Joggable Antivibración' and 'Wired Remote Control'.

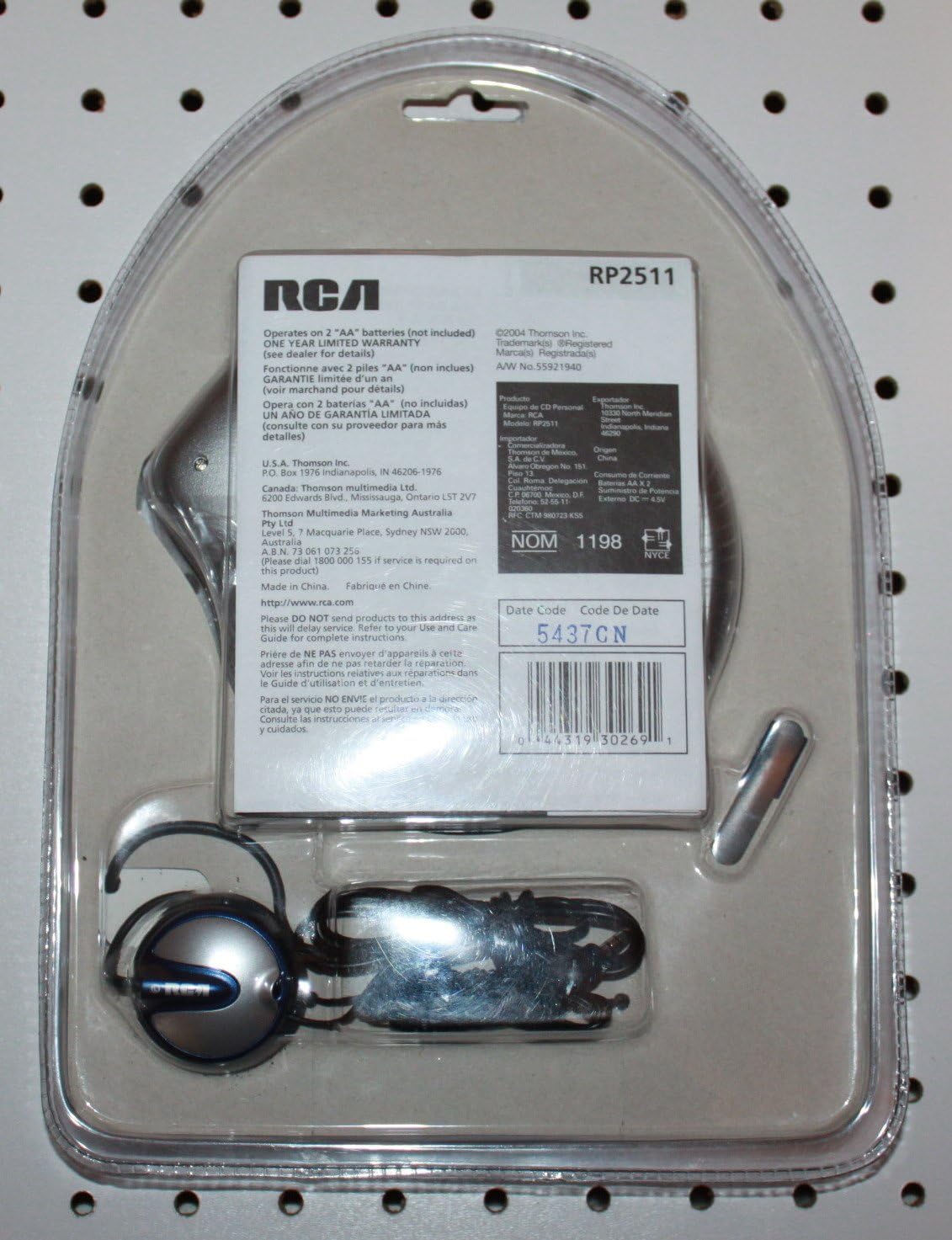

Figura 2: Lura view of the RCA RP2511 Personal CD Player's retail packaging. This image displays the included headphones and wired remote control, neatly arranged within the blister pack. Visible text on the packaging indicates that the unit operates on two 'AA' batteries (not included) and provides a 'ONE YEAR LIMITED WARRANTY'. Essential product details such as the model number RP2511, manufacturer information, and a UPC barcode (0044319302691) are also present.

Kontrolli u Konnessjonijiet:

• Display LCD: Shows track number, time, FM frequency, and battery status.
• PLAY/PAUSE (►/▮): Jibda jew iwaqqaf id-daqq tas-CD.
• WAQQAF (■): Twaqqaf il-qari tas-CD.
• SKIP/SEARCH (◀◀ / ►►): Skips tracks or fast forwards/rewinds within a track.
• VOLUM (+/-): Jaġġusta l-livell tal-ħruġ tal-awdjo.
• ON/MODE: Powers the unit on and switches between CD and FM radio modes.
• PRESET/STATION: For FM radio, selects preset stations or initiates auto-scan.
• TUNING (+/-): For FM radio, manually tunes frequencies.
• Boost Bass: Enhances bass frequencies.
• DC IN 4.5V Jack: For optional external power adapter (not included).
• Jack tal-headphone: Connects headphones or external audio devices.
• REMOTE Jack: Connects the wired remote control.

5. Setup

5.1 Installazzjoni tal-batterija

1. Sib il-kompartiment tal-batterija fil-qiegħ tal-unità.
2. Żerżaq l-għatu tal-kompartiment tal-batterija miftuħ.
3. Insert two (2) AA-size batteries (not included), ensuring correct polarity (+ and -) as indicated inside the compartment.
4. Agħlaq l-għatu tal-kompartiment tal-batterija sew.

Nota: For optimal performance and battery life, use high-quality alkaline batteries. Remove batteries if the unit is not used for extended periods to prevent leakage.

5.2 Connecting Headphones and Remote Control

1. Plug the stereo headphones into the HEADPHONE jack.
2. If using the wired remote control, plug its connector into the REMOTO jack. Then, plug your headphones into the headphone jack on the remote control.

6. Istruzzjonijiet Operattivi

6.1 Tixgħel/Jitfi

Agħfas il- ON/MODALITÀ button to turn the unit on. To turn off, press and hold the ON/MODALITÀ buttuna sakemm il-wiri jintefa.

6.2 Daqq ta’ CD

1. Open the CD compartment cover by sliding the latch.
2. Place a CD (or CD-R/W) onto the spindle with the label side facing up. Gently press the CD until it clicks into place.
3. Close the CD compartment cover firmly.
4. Agħfas il- ON/MODALITÀ button to power on the unit. Ensure it is in CD mode (indicated on the display).
5. Agħfas il- PLAY/PAUSE (►/▮) buttuna biex tibda d-daqq.
6. Biex tieqaf, agħfas PLAY/PAUSE (►/▮) għal darb'oħra. Agħfasha darba oħra biex tkompli.
7. Biex twaqqaf il-plejbek, agħfas il-buttuna WAQQAF (■) buttuna.

6.3 Skipping Tracks and Searching

• Waqt id-daqq, agħfas AQBEŻ/FITTEX (►►) biex taqbeż għall-binarju li jmiss.
• Agħfas AQBEŻ/FITTEX (◀◀) to skip to the beginning of the current track. Press it twice quickly to go to the previous track.
• Agħfas u żomm AQBEŻ/FITTEX (►►) to fast forward within a track.
• Agħfas u żomm AQBEŻ/FITTEX (◀◀) to fast rewind within a track.

6.4 Anti-Skip Protection (ESPXtreme)

The RP2511 features 45-second anti-skip protection, which stores audio data in a buffer to prevent interruptions during movement or minor shocks. This feature is automatically active during CD playback.

6.5 Tħaddim tar-Radju FM

1. Agħfas il- ON/MODALITÀ button repeatedly until 'FM' appears on the display.
2. Auto-Scan and Preset Storage: Agħfas u żomm il- PRESET/STATION button. The radio will scan for available stations and automatically store them as presets (up to 20).
3. L-Għażla tal-Presets: Agħfas il- PRESET/STATION button briefly to cycle through stored preset stations.
4. Irfinar Manwali: Uża l- TUNING (+/-) buttons to manually adjust the frequency. Press briefly for fine-tuning, or press and hold to scan for the next strong station.

6.6 Dynamic Bass Boost

Agħfas il- BASS BOOST button to activate or deactivate the bass enhancement feature. An indicator on the display will confirm its status.

6.7 Kontroll tal-Volum

Uża l- VOLUM (+/-) buttons on the unit or the wired remote control to adjust the listening volume.

7. Manutenzjoni

7.1 Tindif tal-Unità

Wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents. For the CD lens, use a specialized CD lens cleaning kit if necessary, following its instructions carefully.

7.2 Kura tal-Batterija

Always remove depleted batteries promptly. If the unit will not be used for an extended period, remove the batteries to prevent corrosion and leakage.

7.3 Ħażna

Store the CD player in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the unit.

8 Issolvi l-problemi

If you encounter issues with your RCA RP2511, refer to the following table for common problems and solutions.

9. Speċifikazzjonijiet

• Mudell: RP2511
• Ditta: RCA
• Format Awdjo Appoġġjat: MP3 (for CD-R/W)
• Numru ta' Diski: 1
• Karatteristika Speċjali: 45-second Anti-Skip Protection, Dynamic Bass Boost
• Teknoloġija tal-Konnettività: Awżiljarju (Jack tal-Headphone)
• Sors tal-Enerġija: 2 x AA Batteries (not included) or DC IN 4.5V (adapter not included)
• Piż tal-oġġett: 13.3 uqija
• Dimensjonijiet tal-pakkett: 11.2 x 8 x 1.7 pulzieri
• Data L-Ewwel Disponibbli: 20 ta’ Ottubru, 2016
• Manifattur: RCA
• UPC: 0044319302691

10. Garanzija u Appoġġ

This RCA RP2511 Personal CD Player comes with a GARANZIJA LIMITATA SENA mid-data tax-xiri. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For technical support or warranty inquiries, please contact RCA customer service. You can also visit the official RCA store for more product information and support resources:
