Introduzzjoni
The BMB CSD-880 is a high-powered 10-inch karaoke speaker system designed to deliver robust sound and handle high volumes. This speaker is part of the BMB CSD series, known for its sound stability and durability. Each unit features a highly reliable paper cone from Japan and is housed in a double-layer wood cabinet with interlocking panels, enhancing audio quality and structural integrity.
Key features of the CSD-880 include:
- Equipped with new high-volume woofers for powerful bass.
- Luxurious 3-Way/5 speaker configuration with tweeters and squawkers positioned on both sides for wide sound dispersion.
- Tweeters and squawkers utilize high-quality paper cones made in Japan.
- Designed for a very wide listening position, ensuring consistent sound quality across the room.
- Incorporates an anti-howling function to prevent unwanted feedback, allowing for seamless mixing of vocals with music.

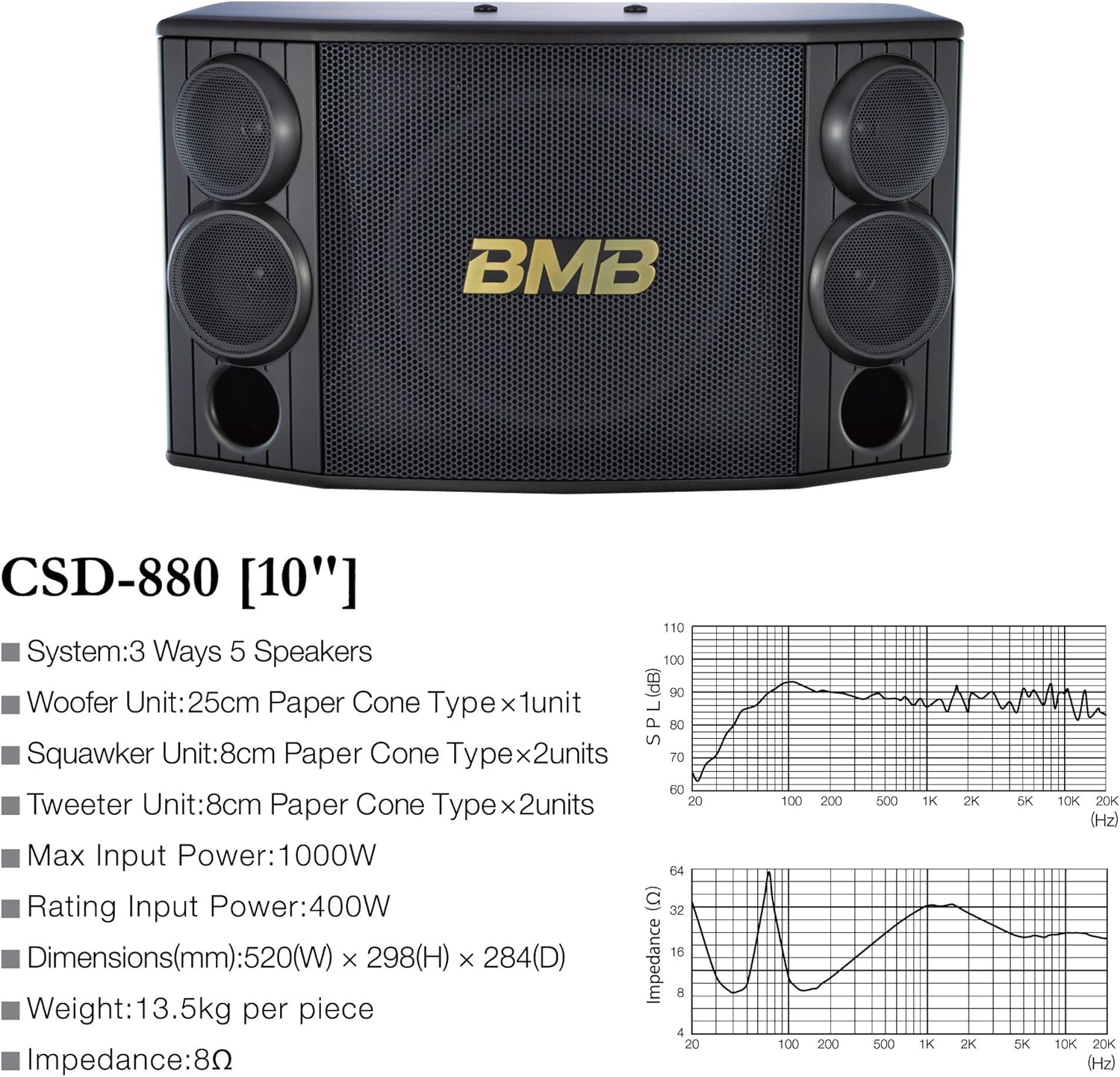

Image: A pair of BMB CSD-880 10-inch karaoke speakers, highlighting their robust construction and multi-driver setup.
Informazzjoni dwar is-Sigurtà
The BMB CSD-880 speakers are designed with a unique safety mechanism for secure installation. This mechanism reinforces the speaker's hold when mounted, preventing accidental falls even if adhesives or primary fasteners weaken over time. Always ensure proper installation according to professional guidelines to maximize safety and product longevity.
Kontenut tal-Pakkett
Upon unpacking your BMB CSD-880 speaker system, please verify that all components are present:
- BMB CSD-880 10-inch Karaoke Speaker (Pair)
- Amplifier (Included Component)
- Manwal għall-Utent (Dan id-dokument)
Setup
Follow these steps to set up your BMB CSD-880 speaker system:
- Pjazzament: Position the speakers in your desired location. The CSD-880's wide listening position design allows for flexible placement while maintaining sound quality. For optimal sound, consider placing them to cover the primary listening area.
- Wiring: Connect the speaker cables from your amplifier to the input terminals on the back of each CSD-880 speaker. Ensure correct polarity (red to red, black to black) for optimal audio performance.
Image: Speaker wire terminals on the back of a BMB speaker.
- Qawwa: Qabbad tiegħek amplifier to a power source and ensure all connections are secure before powering on.
Istruzzjonijiet Operattivi
The BMB CSD-880 speakers are designed for ease of use with your karaoke system. Here are some operational guidelines:
- Kontroll tal-Volum: Adjust the master volume on your amplifier to a comfortable listening level. Avoid excessively high volumes for prolonged periods to prevent speaker damage.
- Microphone Integration: These speakers are specifically designed to incorporate microphones into your setup. The built-in anti-howling function helps prevent feedback, ensuring clear vocal performance.
- Aġġustament tal-ħoss: The CSD-880 features a 3-Way/5 speaker configuration with individually adjustable tweeters and squawkers. These can be adjusted to optimize sound dispersion and quality based on your room's acoustics and personal preference.
Image: Close-up of the CSD-880 speaker drivers.
Prodott Overview Video
Video: This video provides a general overview of BMB karaoke speakers, including a discussion of the CSD series, highlighting their features like anti-howling function, wide listening position, and robust construction. It compares different BMB series to help understand their specific applications.
Manutenzjoni
To ensure the longevity and optimal performance of your BMB CSD-880 speakers, follow these maintenance guidelines:
- Tindif: Gently wipe the speaker cabinets with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.
- Protezzjoni mit-Trab: Keep the speakers free from dust accumulation. You may use a soft brush or a vacuum cleaner with a brush attachment to clean the grilles.
- Kundizzjonijiet Ambjentali: Avoid exposing the speakers to extreme temperatures, high humidity, or direct sunlight.
- Ġestjoni tal-Kejbil: Ensure speaker cables are not kinked, pinched, or under tension, which can lead to damage.
Issolvi l-problemi
If you encounter issues with your BMB CSD-880 speakers, consider the following common troubleshooting steps:
- Ebda Ħsejjes:
- Check all cable connections between the speakers and the amplifer. Kun żgur li huma siguri u polarizzati b'mod korrett.
- Ivverifika l- amplifier is powered on and the volume is not set to minimum or muted.
- Test with a different audio source or speaker cable if possible.
- Ħoss Mgħawġ:
- Reduce the volume on both the amplifier u s-sors tal-awdjo.
- Check for damaged speaker cones or loose connections.
- Tiżgura l- amplifier's power output matches the speaker's impedance and power handling capabilities.
- Rispons (Tgħajjir):
- Move microphones further away from the speakers.
- Reduce microphone gain or speaker volume.
- Utilize the speaker's built-in anti-howling function if available and adjustable.
Jekk il-problemi jippersistu, ikkonsulta tekniku tal-awdjo kwalifikat.
Speċifikazzjonijiet
Detailed technical specifications for the BMB CSD-880 10-inch Karaoke Speaker System:
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | CSD Series (CSD-880) |
| Tip ta' Kelliem | Bass Reflex System, 3 Ways 5 Speakers |
| Dijametru tal-Woofer | 10 Inches (25cm Paper Cone Type x 1 unit) |
| Squawker Unit | 3.15 Inches (8cm Paper Cone Type x 2 units) |
| Unità tat-tweeter | 3.15 Inches (8cm Paper Cone Type x 2 units) |
| Qawwa ta 'Input Massima | 1000 Watts |
| Qawwa ta' Input Rated | 400 Watts |
| Impedenza | 8 Ohms |
| Rispons ta' Frekwenza | 20 KHz (Upper limit, typical for full-range speakers) |
| Dimensjonijiet tal-Prodott (P x W x H) | 11.18" x 20.47" x 11.73" (28.4ċm x 52ċm x 29.8ċm) |
| Item Weight (per piece) | 29.8 Lira (13.5 kg) |
| Materjal | Wood (Double-layer cabinet) |
| Tip ta 'Immuntar | Tabletop Mount (with safety mechanism for ceiling mounting) |
| Teknoloġija tal-Konnettività | Speaker Cable (Wired) |
| Metodu ta' Kontroll | Touch (Implies external control, not on speaker itself) |
| UPC | 639767443791, 600164490046 |
Image: Dimensional drawing of the BMB CSD-880 speaker.
Garanzija u Appoġġ
The BMB CSD-880 speaker system comes with a Full Warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the warranty card included with your product or contact BMB customer support through their official channels.
BMB products are shipped with a certificate of authenticity, and each unit is assigned a unique serial number for verification.
