Introduzzjoni
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Bilstein 24-131506 Monotube Shock Absorber. Designed for front vehicle applications, this 36mm yellow shock absorber is engineered to deliver enhanced performance and ride quality. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Informazzjoni dwar is-Sigurtà
TWISSIJA: Improper installation or use of this product can lead to serious injury or vehicle damage. Always follow vehicle manufacturer's specifications and use appropriate safety equipment.
- L-installazzjoni professjonali hija rakkomandata ħafna.
- Wear appropriate personal protective equipment (PPE) including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands before working underneath.
- Do not modify the shock absorber.
- Keep hands and tools clear of moving parts during installation.
Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- 1 x Bilstein 24-131506 Monotube Shock Absorber (Front, 36mm, Yellow)
- Necessary mounting hardware (bolts, nuts, washers, bushings)

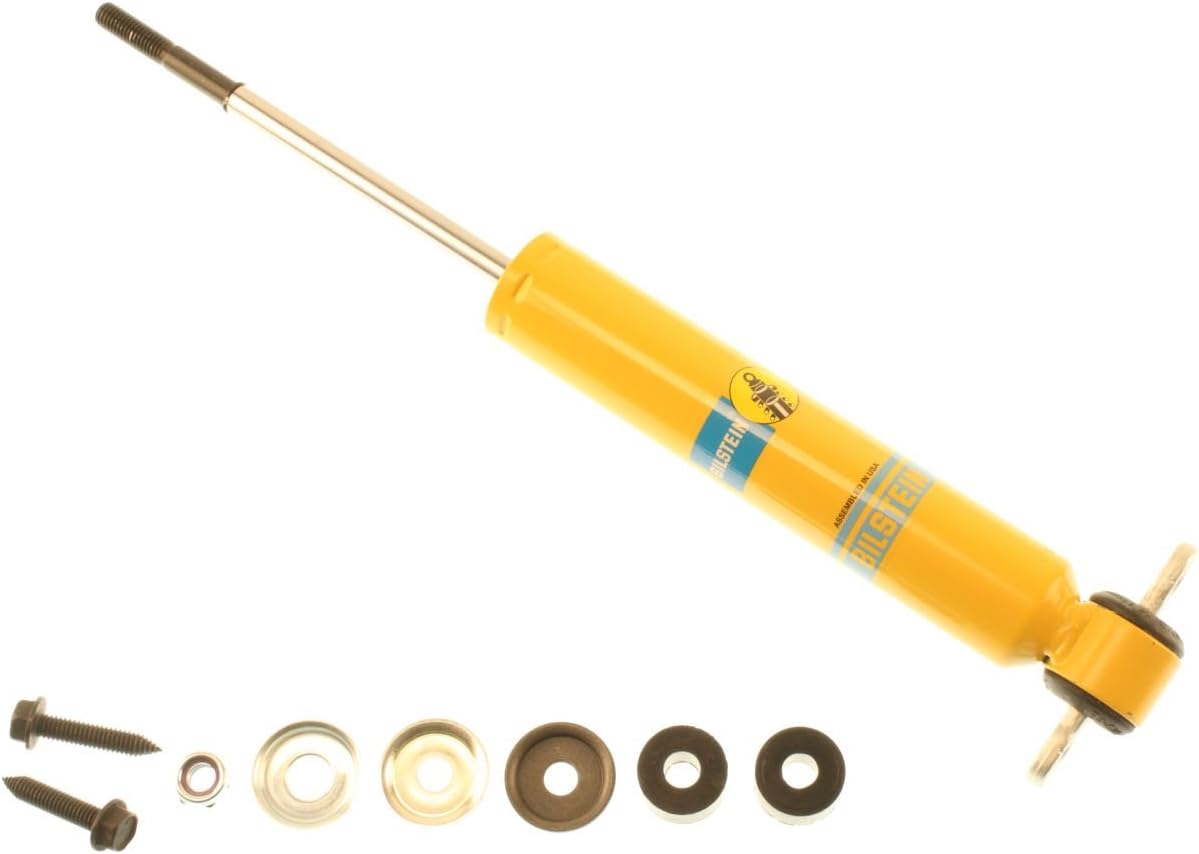

Image: Bilstein 24-131506 Monotube Shock Absorber. This image displays the main shock absorber unit, which is yellow and features the Bilstein branding.

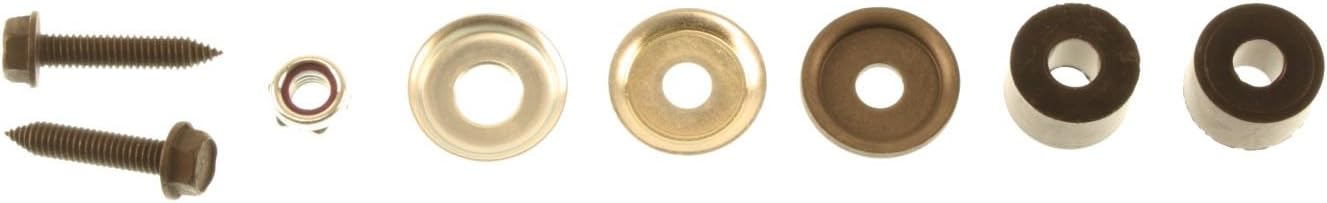

Image: Shock Absorber Mounting Hardware. This image shows the various bolts, nuts, washers, and rubber bushings included for installation of the shock absorber.
Setup u Installazzjoni
Installation of the Bilstein 24-131506 shock absorber requires mechanical knowledge and specialized tools. Refer to your vehicle's service manual for specific torque specifications and procedures.
- Ipprepara Vettura: Park the vehicle on a level surface, engage the parking brake, and block the wheels. Loosen lug nuts on the wheels to be removed.
- Lift Vehicle: Safely lift the vehicle using a hydraulic jack and support it with sturdy jack stands. Ensure the vehicle is stable before proceeding.
- Neħħi r-Rota: Remove the wheel(s) to gain access to the suspension components.
- Disconnect Old Shock: Locate the existing front shock absorber. Carefully remove the upper and lower mounting bolts/nuts. You may need to compress the suspension slightly to relieve tension.
- Neħħi Xokk Qadim: Once disconnected, remove the old shock absorber from the vehicle.
- Installa Xokk Ġdid: Position the new Bilstein 24-131506 shock absorber. Install the upper and lower mounting hardware, ensuring all bushings and washers are correctly oriented. Do not fully tighten bolts at this stage.
- Qafliet tat-torque: With the vehicle's weight on the suspension (or at ride height), tighten all mounting bolts to the vehicle manufacturer's specified torque values. This is critical for proper function and longevity.
- Erġa' installa r-rota: Reinstall the wheel(s) and hand-tighten lug nuts.
- Vettura t'isfel: B'attenzjoni niżżel il-vettura mal-art.
- Torque Finali: Torque the lug nuts to the vehicle manufacturer's specifications.
- Kontroll tal-Allinjament: It is recommended to have a professional wheel alignment performed after shock absorber replacement.
Operazzjoni
The Bilstein 24-131506 Monotube Shock Absorber is a passive component designed to dampen suspension oscillations. Once correctly installed, it operates continuously to control spring movement, improve tire contact with the road, and enhance vehicle stability and comfort. No user interaction is required for its operation.
Manutenzjoni
Bilstein shock absorbers are designed for long-term, maintenance-free operation. However, periodic inspection is recommended:
- Spezzjoni Viżwali: During routine vehicle maintenance, visually inspect the shock absorbers for signs of fluid leaks, bent rods, damaged bushings, or corrosion.
- Ħardwer tal-Immuntar: Check that all mounting bolts and nuts remain tight and secure.
- Verifika tal-Prestazzjoni: If you notice a degradation in ride quality, excessive bouncing, or unusual noises from the suspension, have the shock absorbers inspected by a qualified technician.
Issolvi l-problemi
| Sintomu | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Qbiż eċċessiv / Kwalità ħażina tas-sewqan | Worn or damaged shock absorber. | Inspect for leaks or damage; replace if necessary. |
| Clunking/Rattling Noise from Suspension | Loose mounting hardware; worn bushings. | Check and tighten all mounting bolts; inspect and replace worn bushings. |
| Fluid Leak on Shock Body | Internal seal failure. | Shock absorber requires replacement. |
Speċifikazzjonijiet
- Mudell: Bilstein 24-131506
- Tip: Monotube Shock Absorber
- Pożizzjoni: Quddiem
- Piston Diameter: 36mm
- Kulur: Isfar
- Stil: Prestazzjoni
- Materjal: Plastic (Note: This might refer to a component, not the entire shock body which is metal)
- Piż tal-oġġett: 1 Kilogramma (madwar 2.2 lbs)
- Dimensjonijiet tal-oġġett (LxWxH): 2.95 x 22.45 x 2.95 pulzieri
- Tul estiż: 13.48 Pulzier
- Numru tal-Parti: 24-131506
- UPC: 651860565538
Informazzjoni dwar Garanzija
This product comes with a manufacturer's warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official Bilstein websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
Appoġġ u Kuntatt
For technical assistance, installation questions, or warranty inquiries, please contact Bilstein customer support:
- Websit: www.bilstein.com (Jekk jogħġbok iċċekkja l-uffiċjal website for current contact details)
- Irreferi għall-imballaġġ jew għall-informazzjoni uffiċjali website for phone numbers or email contacts.
