Bilstein 24-026758 B6 4600 Series Rear Shock Absorber Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your Bilstein 24-026758 B6 4600 Series Rear Shock Absorber. Designed for specific vehicle applications, this shock absorber is engineered to enhance vehicle control and ride quality. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.

2. Informazzjoni dwar is-Sigurtà

Always prioritize safety when working on your vehicle. Failure to follow safety guidelines can result in serious injury or damage to the vehicle.

• Ilbes tagħmir protettiv personali (PPE) xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
• Kun żgur li l-vettura tkun appoġġjata sew fuq stands tal-ġakk fuq wiċċ livell qabel tibda kwalunkwe xogħol. Qatt ma tiddependi biss fuq ġakk.
• Skonnettja l-batterija tal-vettura qabel ma taħdem fuq il-komponenti elettriċi, jekk applikabbli.
• Use the correct tools for each step and ensure they are in good working condition.
• Refer to your vehicle's service manual for specific torque specifications and additional safety procedures.
• Jekk m'intix ċert dwar xi pass, ikkonsulta tekniku tal-karozzi kwalifikat.

3. Kompatibilità tal-Vettura

The Bilstein 24-026758 B6 4600 Series Rear Shock Absorber is compatible with the following vehicle:

• Agħmel: Toyota
• Mudell: Tacoma Pick Up
• Snin: 1995-2004
• Ix-xażi: Chassis Standard

This shock absorber is designed for the rear auto part position.

4. Karatteristiċi tal-prodott

The Bilstein B6 4600 Series Shock Absorber incorporates advanced technology for superior performance and durability:

• Monotube Design: Utilizes a single-tube construction for consistent, fade-free performance under various driving conditions. This design allows for more efficient heat dissipation and prevents aeration of the oil.
• Gas-Pressure Technology: High-pressure gas technology provides high traction and precise handling, contributing to enhanced safety and performance without requiring additional spring changes.
• Durabilità Mtejba: Built with robust materials and construction to withstand demanding use, offering a longer service life, especially when carrying loads or towing.
• Optimized Control: Engineered to provide optimum grip and enhanced lane stability in both everyday driving and challenging situations.
• Improved Handling: Delivers more precise handling characteristics, contributing to a more controlled and comfortable driving experience.

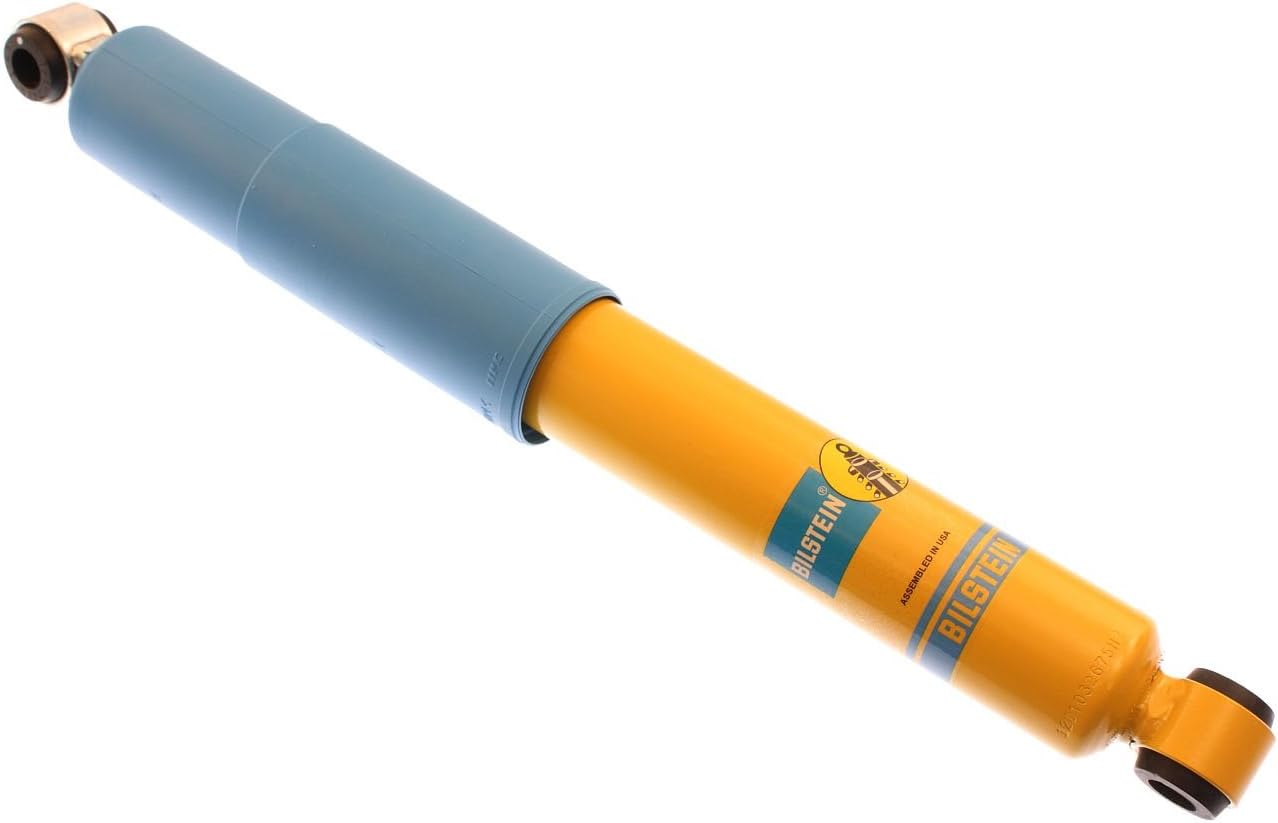

Figure 1: Bilstein 24-026758 B6 4600 Series Rear Shock Absorber. This image displays the yellow and blue monotube shock absorber, highlighting its robust construction and distinctive branding.

5. Istruzzjonijiet ta 'installazzjoni

This section outlines the general steps for replacing the rear shock absorbers. It is highly recommended to consult your vehicle's specific service manual for detailed procedures and diagrams. Always replace shock absorbers in pairs to maintain balanced suspension performance.

5.1. Għodod u Materjali Meħtieġa

• Nuċċalijiet u ingwanti tas-sigurtà
• Ġakk tal-vetturi u stands tal-ġakk
• Chocks tar-roti
• Socket wrench set (including 14mm socket)
• Impact wrench (optional, for stubborn bolts)
• Pry bar
• Pinzell tal-wajer
• Rubber-friendly grease or silicone paste
• Torque wrench

5.2. Removal of Old Shock Absorber

1. Park the vehicle on a level surface, engage the parking brake, and chock the front wheels.
2. Loosen the rear wheel lug nuts, then raise the rear of the vehicle using a jack and secure it with jack stands. Remove the rear wheels.
3. Support the rear axle with a jack to relieve tension on the shock absorber.
4. Locate the upper mounting bolt of the shock absorber. Use a 14mm socket to remove this bolt.
5. Locate the lower mounting bolt of the shock absorber. Use the appropriate socket to remove this bolt.
6. Once both bolts are removed, the old shock absorber can be carefully removed from its mounting points. A pry bar may be needed to dislodge stubborn bushings or washers.
7. Inspect the mounting points for rust or damage. Clean any rust with a wire brush. If significant corrosion is present, address it before installing the new shock.

5.3. Preparation of New Shock Absorber

1. Activate the Shock: Before installation, it is crucial to 'start' or 'prime' the new shock absorber. Hold the shock upright and compress it fully by hand. Allow it to extend completely on its own. Repeat this process several times (3-5 cycles). This ensures the internal fluids and gases are properly mixed and the shock functions correctly from the start.
2. Apply a thin layer of rubber-friendly grease or silicone paste to the mounting studs/shafts and the new bushings to aid installation and prevent premature wear.

5.4. Installation of New Shock Absorber

1. Align the new shock absorber with its upper mounting point. If necessary, use a jack to slightly adjust the height of the rear axle to facilitate alignment.
2. Insert the upper mounting bolt and hand-tighten it.
3. Align the lower end of the shock absorber with its mounting point on the axle. Insert the lower mounting bolt and hand-tighten it.
4. Speċifikazzjonijiet tat-torque:
   • For 2WD models: Torque both upper and lower mounting bolts to 19 pied-lb.
   • For 4WD models: Torque both upper and lower mounting bolts to 53 pied-lb.

   Always use a torque wrench to ensure proper tightening. Over-tightening or under-tightening can lead to component failure or reduced performance.
5. Once both shocks are installed and torqued, remove the jack supporting the axle and lower the vehicle.
6. Reinstall the wheels and torque the lug nuts to the manufacturer's specifications (refer to your vehicle's service manual).

6. Prinċipji Operattivi

Shock absorbers are critical components of your vehicle's suspension system, designed to dampen spring oscillations and maintain tire-to-road contact. The Bilstein B6 4600 Series uses a monotube, gas-pressure design to provide consistent damping force, preventing excessive body roll, dive, and squat. This results in improved stability, handling, and overall ride comfort.

After installation, you may notice an immediate improvement in your vehicle's ride quality and handling. The shocks will adapt to various road conditions, providing firm control without a harsh ride.

7. Manutenzjoni

Regular inspection and maintenance can help prolong the life of your shock absorbers and ensure continued optimal performance.

• Spezzjoni Viżwali: Periodically inspect the shock absorbers for signs of leaks (oil residue), damage (dents, bends), or worn bushings. Any visible damage or leaks indicate a need for replacement.
• Ħardwer tal-Immuntar: Check all mounting bolts and nuts for tightness at recommended service intervals. Re-torque if necessary.
• Ilbies tat-Tajers: Uneven tire wear can sometimes indicate worn shock absorbers. Monitor tire wear patterns.
• Kwalità tas-Sewqan: Pay attention to changes in ride quality, such as excessive bouncing, swaying, or a generally rougher ride, which may signal worn shocks.

8 Issolvi l-problemi

If you experience issues after installing your new shock absorbers, consider the following common problems and solutions:

9. Speċifikazzjonijiet tal-Prodott

10. Garanzija

This product is covered by a manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your product or visit the official Bilstein websit.

11. Appoġġ għall-Klijent

For technical assistance, installation questions, or warranty inquiries, please contact Bilstein customer support through their official website or the contact information provided in your product packaging. Always have your product model number (24-026758) and purchase details available when contacting support.
