Introduzzjoni
This manual provides essential information for the safe installation, operation, and maintenance of the Leviton MS303 Motor Starter Switch. Please read these instructions thoroughly before installation and use to ensure proper function and to prevent electrical hazards.
Informazzjoni dwar is-Sigurtà
TWISSIJA: Riskju ta' Xokk Elettriku jew Nar.
- L-installazzjoni għandha titwettaq minn elettriċista kwalifikat skont il-kodiċijiet elettriċi nazzjonali u lokali kollha.
- Skonnettja l-enerġija mis-circuit breaker jew mill-kaxxa tal-fjusijiet qabel ma tinstalla jew tagħmel manutenzjoni fuq is-swiċċ.
- Uża biss kondutturi tar-ram.
- Kun żgur li l-konnessjonijiet kollha huma siguri u iżolati kif suppost.
- Do not exceed the specified electrical ratings (30A, 600V, 3 Phase).
- This device is intended for controlling electric motors. Do not use for other applications unless specified.
Kontenut tal-Pakkett
- 1 x Leviton MS303 Motor Starter Switch
- Manwal ta 'Istruzzjoni (dan id-dokument)
Prodott Overview
The Leviton MS303 is a robust 30A, 600V, 3-phase motor starter switch designed for reliable control of electric motors. Its large toggle actuator allows for easy operation, even with gloved hands.

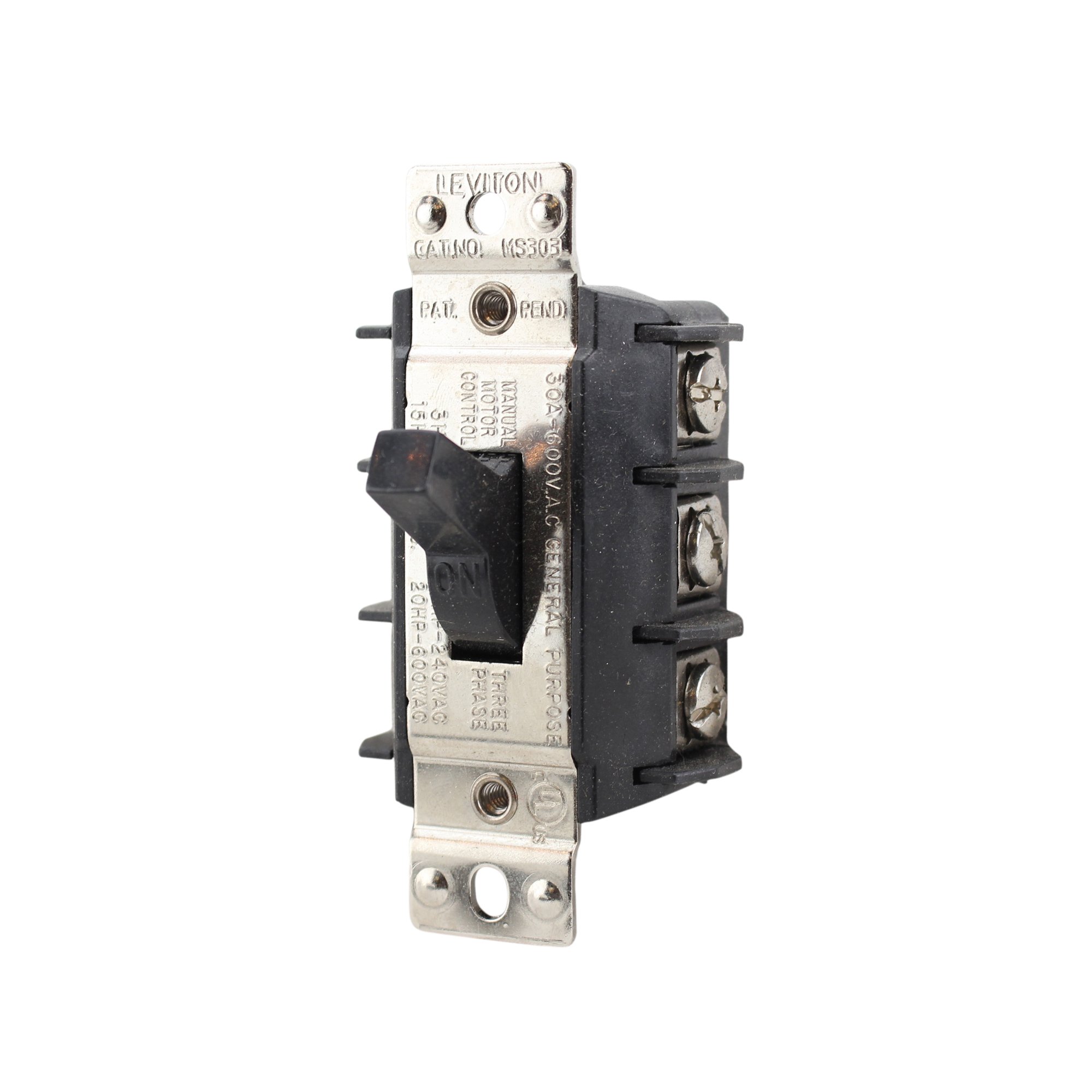

Figure 1: Leviton MS303 Motor Starter Switch. This image shows the front view of the black motor starter switch with its prominent toggle lever.
Karatteristiċi ewlenin:
- Klassifikazzjoni kurrenti: 30 Amps
- Vol Operattivtage: 600 Volts AC
- Fażi: 3 Fażi
- Tip ta' attwatur: Toggle
- Tip ta' Kuntatt: Normalment Miftuħ
- Tip ta' Konnettur: Terminali bil-kamin
- Kulur: Iswed
Setup u Installazzjoni
IMPORTANTI: Ensure all power is disconnected at the main circuit breaker before proceeding with installation. Failure to do so can result in serious injury or death.
- Skonnettjar tal-Enerġija: Locate the circuit breaker or fuse controlling the motor circuit and turn it OFF. Verify power is off using a voltagtester.
- Immuntar: Securely mount the MS303 switch in a suitable electrical enclosure or junction box. Ensure the mounting surface is stable and the switch is easily accessible for operation.
- Konnessjonijiet tal-Wiring:
- Identify the incoming power lines (L1, L2, L3 for 3-phase) and the motor load lines.
- Connect the incoming power lines to the designated input screw terminals on the switch.
- Connect the motor load lines to the designated output screw terminals on the switch.
- Ensure all wire insulation is stripped to the correct length and that wires are fully inserted into the screw terminals before tightening securely.
- Connect the ground wire to the appropriate ground terminal in the enclosure.
Refer to local electrical codes and the wiring diagram provided with your motor for specific connection details.
- Għeluq tal-Għeluq: Once all wiring is complete and verified, close and secure the electrical enclosure cover.
- Restawr tal-Enerġija: Irrestawra l-enerġija fis-circuit breaker.
Istruzzjonijiet Operattivi
The Leviton MS303 Motor Starter Switch features a simple toggle mechanism for controlling the power supply to a connected motor.
- Biex Tixgħel: Push the toggle lever to the "ON" position. This will supply power to the connected motor.
- Biex titfi: Push the toggle lever to the "OFF" position. This will disconnect power from the connected motor.
The large toggle is designed for easy manipulation, even when wearing work gloves.
Manutenzjoni
The Leviton MS303 Motor Starter Switch is designed for long-term, reliable operation with minimal maintenance.
- Spezzjoni Perjodika: Annually, or as required by local codes, inspect the switch for any signs of physical damage, loose connections, or overheating.
- Tindif: Ensure power is OFF before cleaning. Use a dry, soft cloth to wipe the exterior of the switch. Do not use abrasive cleaners or solvents.
- Kontroll tal-Konnessjoni: If accessible and power is safely disconnected, periodically check that all screw terminal connections remain tight.
Issolvi l-problemi
If the motor starter switch is not functioning as expected, consider the following common issues:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Motor does not start when switch is ON. |
|
|
| Switch feels loose or damaged. | Physical damage or wear. | Replace the switch. Do not attempt to repair damaged electrical components. |
If issues persist after attempting these solutions, consult a qualified electrician.
Speċifikazzjonijiet
| Brand | Leviton |
| Numru tal-Mudell | MS303 |
| Klassifikazzjoni kurrenti | 30 Amps |
| Vol Operattivtage | 600 Volts |
| Fażi | 3 Fażi |
| Mod ta' Operazzjoni | Off, Toggle |
| Tip ta' Kuntatt | Normalment Miftuħ |
| Tip ta' Konnettur | Terminali bil-kamin |
| Tip ta' Attwatur | Toggle |
| Kulur | Iswed |
| Dimensjonijiet tal-oġġett (L x W x H) | 2 x 2 x 4 pulzieri |
| Piż tal-oġġett | 1 liri |
| UPC | 078477020326 |
Informazzjoni dwar Garanzija
For detailed warranty information regarding the Leviton MS303 Motor Starter Switch, please refer to the official Leviton website or contact Leviton customer service. Warranty terms and conditions may vary.
Appoġġ għall-Klijent
If you require further assistance, technical support, or have questions not covered in this manual, please visit the official Leviton website or contact their customer support department directly. Contact information can typically be found on the manufacturer's webis-sit jew l-imballaġġ tal-prodott.
