Tejp tal-Fojl tal-Aluminju 3M 425 Fidda Tleqq, Ċrieki b'Dijametru ta' 0.5 pulzieri Manwal tal-Istruzzjonijiet

1. Introduzzjoni

This manual provides comprehensive instructions for the proper use and application of 3M 425 Shiny Silver Aluminum Foil Tape, 0.5 inch Diameter Circles. This product is engineered for various industrial applications requiring excellent reflection of heat and light, effective sealing, and specific masking processes.

Image 1.1: A sheet of 3M 425 Shiny Silver Aluminum Foil Tape circles, each 0.5 inches in diameter, arranged on a release liner.

2. Karatteristiċi tal-prodott

• Aluminum Backing: Provides excellent reflection of both heat and light, making it suitable for thermal management and light reflection applications.
• Electroplating Maskant: Good candidate as a maskant in electroplating of aluminum because it will not contaminate the bath.
• Durable Acrylic Adhesive: The acrylic adhesive, combined with the durable aluminum backing, offers ideal properties for long serviceable life in both indoor and outdoor environments.
• Low Moisture Vapor Transmission Rate: The very low moisture vapor transmission rate makes these tapes an effective sealant against moisture.
• Daqsijiet Versatili: Available in a larger assortment of sizes through 3M Preferred Converter TapeCase, allowing for use in a variety of applications.

3. Applikazzjonijiet

3M 425 Aluminum Foil Tape circles are designed for a range of industrial uses, including:

• Electrical Applications: Suitable for shielding and grounding in electrical components.
• Użu fuq barra: Its durable construction and adhesive make it ideal for long-term outdoor exposure.
• Plumbing: Can be used for sealing and insulation in plumbing systems.
• Electroplating: Functions as a maskant to protect specific areas during aluminum electroplating processes.
• Issiġillar: Effective for sealing against moisture and vapor due to its low moisture vapor transmission rate.
• Heat and Light Reflection: Utilized in applications where reflection of thermal energy or light is required.

4. Setup u Installazzjoni

Proper preparation and application are crucial for optimal performance of the 3M 425 Aluminum Foil Tape circles.

4.1 Tħejjija tal-Wiċċ

Ensure the application surface is clean, dry, and free from dust, oil, grease, and other contaminants. For best adhesion, surfaces should be smooth and non-porous. Cleaning with an appropriate solvent (e.g., isopropyl alcohol) and allowing it to dry completely is recommended.

4.2 Passi tal-Applikazzjoni

1. Carefully peel a single 0.5 inch diameter circle from its release liner. Avoid touching the adhesive side to prevent contamination.
2. Position the tape circle precisely on the desired application area.
3. Apply firm, even pressure across the entire surface of the tape circle. Use a squeegee or roller to ensure maximum contact with the surface and to eliminate any trapped air bubbles.
4. For optimal adhesion, apply the tape at temperatures between 60°F (15°C) and 80°F (27°C). Adhesion may be reduced at lower temperatures.

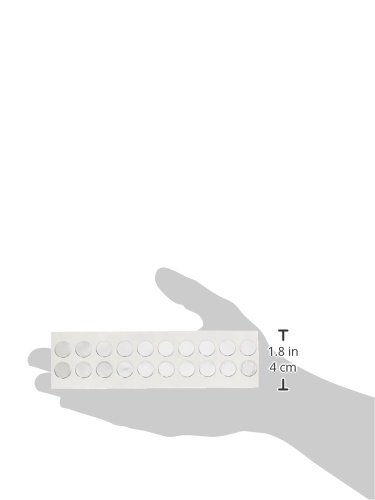

Image 4.1: A hand holding a sheet of 3M 425 Aluminum Foil Tape circles, illustrating the product's compact size and diameter.

5. Operating Best Practices

To ensure the longevity and effectiveness of the applied tape circles:

• Ħin ta' tqaddid: While initial adhesion is immediate, the adhesive will continue to build strength over 24 to 72 hours. Avoid stressing the bond during this period.
• Kundizzjonijiet Ambjentali: The tape is designed for both indoor and outdoor use. However, extreme temperature fluctuations immediately after application can affect initial bond strength.
• Overlap for Sealing: When using multiple circles for sealing larger areas, ensure a slight overlap to maintain a continuous barrier against moisture and vapor.

6. Manutenzjoni u Ħażna

6.1 Ħażna

Store 3M 425 Aluminum Foil Tape circles in their original packaging in a cool, dry environment, away from direct sunlight and extreme temperatures. Ideal storage conditions are typically 60-80°F (15-27°C) and 40-60% relative humidity. Proper storage helps maintain adhesive integrity and product shelf life.

6.2 Tindif

Once applied, the tape generally requires no specific maintenance. If cleaning is necessary, gently wipe the aluminum surface with a soft, damp cloth. Avoid harsh chemicals that could degrade the tape or adhesive.

7 Issolvi l-problemi

If you encounter issues during or after application, consider the following:

• Adeżjoni fqira: Ensure the surface was thoroughly cleaned and dry before application. Verify that sufficient pressure was applied during installation. Low application temperatures can also affect initial bond strength.
• Bubbles or Wrinkles: These often occur if the tape is applied too quickly or stretched during application. Apply slowly and use a squeegee or roller to smooth out the tape from the center outwards.
• Residue Upon Removal: While designed for long-term use, if removal is necessary, some adhesive residue may remain depending on the surface and duration of application. Test in an inconspicuous area first.

8. Speċifikazzjonijiet

9. Ċaħda Legali

Il-prodotti industrijali u okkupazzjonali ta' 3M huma maħsuba, ittikkettjati, u ppakkjati għall-bejgħ lil klijenti industrijali u okkupazzjonali mħarrġa għall-użu fuq il-post tax-xogħol. Sakemm ma jkunx iddikjarat speċifikament mod ieħor fuq l-imballaġġ jew il-letteratura tal-prodott applikabbli, dawn il-prodotti mhumiex maħsuba, ittikkettjati, jew ippakkjati għall-bejgħ lil jew għall-użu mill-konsumaturi (eż., għad-dar, personali, skola primarja jew sekondarja, rikreazzjoni/sport, jew użi oħra mhux deskritti fl-imballaġġ jew fil-letteratura tal-prodott applikabbli), u għandhom jintgħażlu u jintużaw f'konformità mar-regolamenti u l-istandards tas-saħħa u s-sigurtà applikabbli (eż., US OSHA, ANSI), kif ukoll il-letteratura kollha tal-prodott, l-istruzzjonijiet għall-utent, it-twissijiet, u limitazzjonijiet oħra, u l-utent għandu jieħu kwalunkwe azzjoni meħtieġa taħt kwalunkwe sejħa lura, azzjoni fuq il-post, jew avviż ieħor dwar l-użu tal-prodott. L-użu ħażin tal-prodotti industrijali u okkupazzjonali ta' 3M jista' jirriżulta fi korriment, mard, mewt, jew ħsara lill-proprjetà. Għal għajnuna bl-għażla u l-użu tal-prodott, ikkonsulta l-professjonist tas-sigurtà fuq il-post tiegħek, l-iġjenista industrijali, jew espert ieħor fis-suġġett. Għal aktar informazzjoni dwar il-prodott, żur www.3M.com.

10. Appoġġ u Kuntatt

For further assistance, technical support, or inquiries regarding 3M 425 Shiny Silver Aluminum Foil Tape, 0.5 inch Diameter Circles, please refer to the official 3M website or contact 3M Industrial Customer Service.

• 3M Industrial Websit: www.3M.com/industrial
• 3M Store on Amazon: Visit the 3M Store
