Haul Master Dual Hitch Extender Instruction Manual

Introduzzjoni

This manual provides essential information for the safe and effective use of your Haul Master Dual Hitch Extender. This product is designed to provide two receiver tubes, allowing for simultaneous towing of a trailer and the use of a hitch-mount accessory such as a bike rack. Please read this manual thoroughly before installation and operation.

Informazzjoni dwar is-Sigurtà

WARNING: Failure to follow these safety instructions may result in serious injury, property damage, or death.

• Always ensure the total weight of the trailer and any hitch-mounted accessories does not exceed the maximum gross trailer weight (GTW) of 4000 lbs. for this extender.
• Do not exceed the towing capacity of your vehicle or the hitch receiver. Always refer to your vehicle's owner's manual for specific towing limits.
• Ensure the extender is securely installed into a standard 2-inch hitch shank using a 5/8-inch diameter pin.
• Regularly inspect the extender for any signs of wear, damage, or corrosion before each use. Do not use if damaged.
• Ensure all connections are tight and secure before towing or transporting.
• Dejjem uża ktajjen tas-sigurtà xierqa meta tirmonka trejler.

Kontenut tal-Pakkett

• Haul Master Dual Hitch Extender (1 unit)
• Note: Hitch pins and clips are sold separately and are required for installation.

Karatteristiċi

• Strong welded carbon steel construction for durability.
• Designed to fit standard 2-inch shanks.
• Durable enamel finish provides corrosion resistance.
• Maximum Gross Trailer Weight (GTW): 4000 lb.
• Receiver size: 2 inches.
• Pin hole diameter: 5/8 inches.
• Overall length: 17 inches.
• Product weight: 17.35 lb.

Figure 1: The Haul Master Dual Hitch Extender, showcasing its robust carbon steel construction and dual receiver design.

Setup u Installazzjoni

1. Ipprepara Vettura: Ensure your vehicle's hitch receiver is clean and free of debris.
2. Insert Extender: Slide the main shank of the Dual Hitch Extender into your vehicle's 2-inch hitch receiver.
3. Secure with Pin: Align the pin holes on the extender with those on your vehicle's receiver. Insert a 5/8-inch hitch pin (not included) through the aligned holes and secure it with a clip (not included). Ensure the pin is fully seated and the clip is properly engaged.
4. Waħħal Aċċessorji: You can now attach your trailer hitch ball mount to the lower receiver tube and a hitch-mounted accessory (e.g., bike rack) to the upper receiver tube. Secure each accessory with its respective hitch pin and clip.
5. Ivverifika s-Sigurtà: Before driving, double-check that all pins are securely in place and all connections are tight.

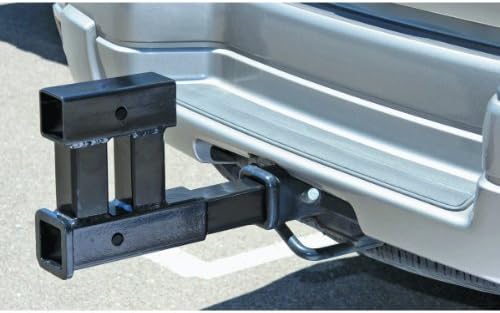

Figure 2: The Dual Hitch Extender properly installed into a vehicle's hitch receiver, ready for use with a trailer and an additional accessory.

Istruzzjonijiet Operattivi

• Distribuzzjoni tal-piż: When using both receiver tubes, be mindful of the combined weight and ensure it does not exceed the extender's 4000 lb. GTW limit or your vehicle's towing capacity.
• Clearance: Be aware that the extender adds length to your vehicle's rear. Exercise caution when backing up, turning, or navigating tight spaces to avoid striking obstacles.
• Kontrolli regolari: During long trips, periodically stop and check the security of all hitch connections, pins, and clips.

Manutenzjoni

• Tindif: Clean the extender regularly with mild soap and water to remove dirt, salt, and road grime. Rinse thoroughly and dry completely.
• Spezzjoni: Before and after each use, inspect the extender for any signs of rust, cracks, bends, or other damage to the carbon steel structure or enamel finish. Pay close attention to welded areas and pin holes.
• Lubrikazzjoni: Apply a light coat of grease or rust-inhibiting spray to the inside of the receiver tubes and the hitch pin holes to prevent corrosion and ease insertion/removal.
• Ħażna: When not in use, store the extender in a dry place to prevent rust and prolong its lifespan.

Issolvi l-problemi

• Extender does not fit vehicle receiver: Ensure your vehicle has a standard 2-inch hitch receiver. The Haul Master Dual Hitch Extender is designed for this size. Check for any obstructions inside your vehicle's receiver.
• Hitch pin does not align: Ensure the extender is fully inserted into the vehicle's receiver. Wiggle the extender slightly to help align the pin holes. Do not force the pin.
• Excessive play/wobble: Ensure the hitch pin is fully inserted and secured with a clip. Some minor play is normal, but excessive movement may indicate an incorrect pin size or a worn receiver.
• Rust or corrosion: This can occur over time, especially in harsh environments. Regular cleaning and lubrication (as per Maintenance section) can prevent this. If significant rust is present, inspect for structural integrity before use.

Speċifikazzjonijiet

Garanzija u Appoġġ

Information regarding product warranty and customer support was not provided in the available product data. Please refer to the retailer or manufacturer's official website for details on warranty coverage and how to obtain support for your Haul Master Dual Hitch Extender.
