AAXA Technologies P300 Pico Projector User Manual

1. Introduzzjoni

The AAXA P300 Pico Projector is a compact, high-definition projector designed for portability and versatility. It features a native 1280x800 HD resolution, 500 LED lumens, and a rechargeable battery, making it suitable for various applications including business presentations, home entertainment, and travel. This manual provides essential information for the proper setup, operation, and maintenance of your P300 projector.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• AAXA P300 Pico Projector
• Adapter tal-Enerġija
• Kontroll mill-bogħod
• Mini Tripod
• Manwal għall-Utent

3. Prodott Aktarview

Familiarize yourself with the physical components and ports of your P300 projector.

Figura 3.1: Quddiem u fuq view of the AAXA P300 Pico Projector, illustrating its compact size and dimensions (5.9 x 3.8 x 1.5 inches).

3.1 Pannelli ta' wara u tal-ġenb

The projector features various input and output ports for connectivity.

Figura 3.2: Wara/Ġenb view of the projector, showing the USB port for media playback and the Mini VGA port for computer connections.

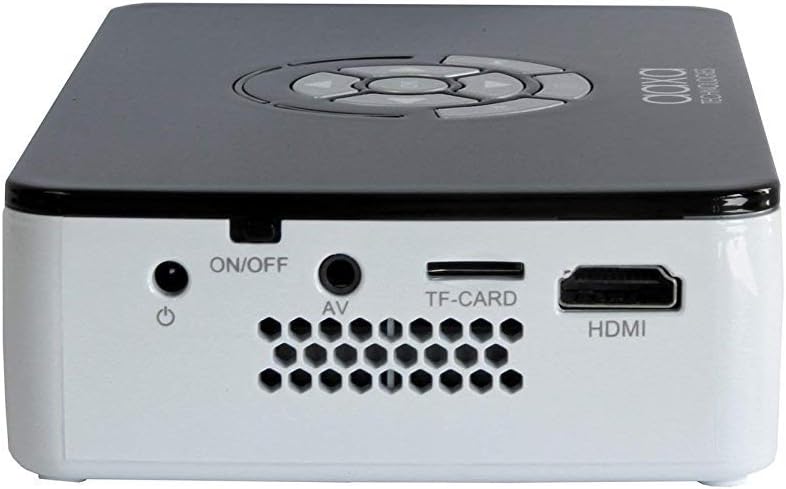

Figura 3.3: Right side panel, featuring the HDMI input, AV (composite) input, TF-CARD slot, and the power ON/OFF button.

Figura 3.4: Left side panel, highlighting the focus adjustment wheel for image clarity.

4. Setup

4.1 Tixgħel/Jitfi

1. Connect the power adapter to the projector's DC input and then to a power outlet.
2. Agħfas u żomm il- ON/OFF button located on the side panel until the projector powers on.
3. Biex tintefa, agħfas u żomm il-buttuna ON/OFF button again until the projector shuts down.

4.2 Apparat li jgħaqqad

The P300 supports multiple input sources:

• HDMI: Connect an HDMI cable from your device (laptop, gaming console, streaming stick) to the projector's HDMI port.
• Mini VGA: Use a Mini VGA to VGA cable (sold separately) to connect to a computer's VGA output.
• Composite A/V: Use a 3.5mm to RCA composite A/V cable (sold separately) to connect to devices with RCA outputs.
• USB: Insert a USB flash drive into the USB port for direct media playback.
• TF-CARD: Insert a MicroSD card into the TF-CARD slot for direct media playback.

4.3 Aġġustament tal-Focus

To achieve a clear image, adjust the focus wheel on the side of the projector until the projected image is sharp.

4.4 Positioning and Projection Size

Place the projector on a stable, flat surface. The included mini tripod can be used for angle adjustments. The P300 can project an image up to 120 inches diagonally in low-light conditions.

Figura 4.1: The AAXA P300 projector mounted on its mini tripod, demonstrating flexible positioning options.

5. Istruzzjonijiet Operattivi

5.1 Navigazzjoni tal-Menu

Use the directional buttons on the projector or the remote control to navigate through the on-screen menu. Press the OK/Daħħal buttuna biex tagħżel l-għażliet.

5.2 Daqq tal-Midja

When a USB drive or TF-CARD is inserted, the projector's onboard media player can be accessed through the main menu. Select the desired file type (video, photo, music, text) and navigate to your content for playback.

5.3 Użu tal-Batterija

The P300 features a built-in rechargeable lithium-ion battery providing approximately 60 minutes of operation. The battery charges automatically when the projector is connected to the power adapter. For optimal battery life, fully charge the projector before first use and avoid completely draining the battery frequently.

6. Manutenzjoni

6.1 Tindif

• Lenti: Use a soft, lint-free cloth or lens cleaning wipes specifically designed for optical surfaces. Avoid abrasive materials.
• Casing: Wipe the projector's exterior with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Ventijiet: Ensure the ventilation openings are clear of dust and debris to prevent overheating. Use compressed air if necessary.

6.2 Kura tal-Batterija

• Aħżen il-proġekter f'post frisk u niexef meta ma jkunx qed jintuża.
• If storing for extended periods, charge the battery to approximately 50% every few months to maintain battery health.

7 Issolvi l-problemi

• Ebda Immaġni/Sinjal:
  Ensure the correct input source is selected in the projector's menu. Verify all cables are securely connected. Test with a different source device or cable if possible.
• Immaġni mċajpra:
  Adjust the focus wheel on the side of the projector. Ensure the projection surface is flat and the projector is at an appropriate distance.
• Ebda Ħsejjes:
  Check the volume settings on both the projector and the source device. Ensure external speakers are connected correctly if used. The internal speaker may have limited output.
• Tisħin żejjed tal-proġettazzjoni:
  Ensure ventilation vents are not blocked. Operate the projector in a well-ventilated area.
• Batterija Mhux Iċċarġja:
  Verify the power adapter is correctly connected and the power outlet is functional.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, technical support, or service inquiries, please refer to the official AAXA Technologies webis-sit jew ikkuntattja l-appoġġ għall-klijenti tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

AAXA Technologies Contact Information:
Jekk jogħġbok żur www.aaxatech.com for the most current support resources and contact details.
