Introduzzjoni
This manual provides essential information for the safe and effective use of your Stack-On SS-22-MB-E 22 Gun Fully Convertible Security Safe. Please read all instructions carefully before setup and operation to ensure proper functionality and security.
Image: The Stack-On SS-22-MB-E security safe in its closed position, showcasing its matte black finish, electronic keypad, and chrome handle.
Setup
1. Spakkjar
Carefully remove the safe from its packaging. Inspect the safe for any signs of damage. Retain packaging materials for potential future transport or returns.
2 Tqegħid
Place the safe on a level, stable surface. For maximum security, it is highly recommended to bolt the safe to the floor or a wall using the pre-drilled mounting holes. Bolts are included for this purpose.
3. Installazzjoni tal-batterija
The electronic lock requires batteries for operation. Locate the battery compartment, typically on the inside of the door or behind the keypad. Insert the required number of Alkaline batteries, ensuring correct polarity. The electronic lock includes operational lights for low battery warning.
4. Initial Code Setup
Refer to the specific instructions provided with your electronic lock for setting the initial user code. Typically, this involves pressing a program button, entering a factory default code, and then entering your desired new code. Test the new code multiple times with the door open before closing and locking the safe.
Istruzzjonijiet Operattivi
1. Opening the Safe
To open the safe, enter your programmed electronic code on the keypad. The lock will typically emit a confirmation sound or light. Within a few seconds, turn the handle to open the door.
2. Closing and Locking
Close the safe door firmly. Turn the handle to engage the locking bolts. The safe is designed with 2-way locking, featuring 1-inch steel live action locking bolts at up to 6 locking points, and hinge side steel dead bolts for added security.
3. Changing the Electronic Code
To change your user code, follow the specific instructions for your electronic lock model. This usually involves entering the current code, pressing a program button, and then entering your new desired code. Always test the new code with the door open first.
4. Using the Override Key
In case of electronic lock malfunction or forgotten code, a master override key is provided. Locate the keyhole, typically concealed near the keypad. Insert the key and turn to unlock the safe. This key should be stored securely away from the safe.
5. Interior Configuration
The safe features a fully carpeted interior and includes 4 adjustable shelves. These shelves can be repositioned to accommodate various items, allowing for storage of 22 rifles or shotguns up to 54 inches tall, or 11 firearms with additional storage, or full storage capacity without firearms.
Image: The interior of the Stack-On SS-22-MB-E safe, displaying its adjustable shelves, carpeted lining, and capacity for firearms and other valuables.
6. Patented Barrel Rests
The safe is equipped with patented molded barrel rests designed to accommodate rifles and side-by-side shotguns without deteriorating or compressing over time.

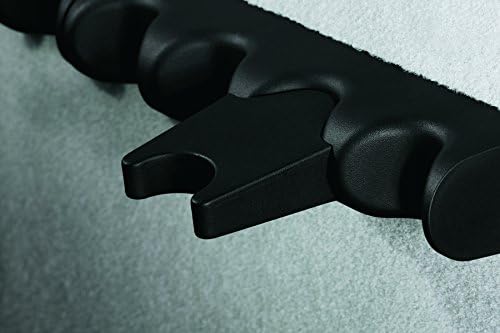

Immaġni: Dettaljata view of the patented molded barrel rests, designed to securely hold firearms within the safe's interior.
Manutenzjoni
1. Sostituzzjoni tal-batterija
Replace the electronic lock batteries annually or immediately when the low battery warning light illuminates. Use only new Alkaline batteries of the specified type.
2. Tindif
Naddaf il-barra tas-sejf b'ċarruta ratba u damp cloth. Avoid abrasive cleaners that could damage the black epoxy paint finish. The interior carpeted surfaces can be vacuumed or wiped with a dry cloth.
3. Lock Care
Keep the electronic keypad clean and dry. Do not apply lubricants or cleaning agents directly to the keypad or lock mechanism.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Electronic lock unresponsive or buttons not working. | Low batteries; keypad malfunction. | Replace batteries. If problem persists, remove batteries for an hour and reinsert. Use override key if necessary and contact support. |
| Safe door sticks or is difficult to open/close. | Obstruction; hinge issue; internal weld issue. | Check for obstructions. Inspect hinges for damage. If an internal weld is broken, contact customer support. |
| Low battery warning light is on. | Il-batteriji huma baxxi. | Replace all batteries immediately with new Alkaline batteries. |
| Incorrect entry light/sound. | Daħħal kodiċi mhux korrett. | Re-enter the correct code carefully. Ensure you are not pressing multiple buttons simultaneously. |
| Shelves or barrel rests are unstable. | Improper installation; pegs not secure. | Ensure shelf pegs are fully inserted into the designated holes. Distribute weight evenly on shelves. |
Speċifikazzjonijiet
- Ditta: Stack-On
- Numru tal-Mudell: SS-22-MB-E
- Tip ta' serratura: Elettroniku
- Kulur: Iswed Matte
- Materjal: Azzar Liga
- Karatteristika Speċjali: Fireproof (Note: Product description states "Non-Fire", while specifications list "Fireproof". Please verify with manufacturer if fire resistance is critical.)
- Tip ta 'Immuntar: Freestanding, Tabletop (designed for bolting)
- Komponenti Inklużi: Boltijiet
- Allarm: Kontra s-serq
- Livell ta' Reżistenza għall-Ilma: Mhux Reżistenti għall-Ilma
- UPC: 085529117224
- Manifattur: STAAP
- Piż tal-oġġett: 244 liri
- Dimensjonijiet tal-Prodott: 17.64 x 55.12 x 26.77 inches (Depth x Height x Width)
- Daqs: 22 Gun Capacity
- Sors tal-Enerġija: No (refers to external power, operates on batteries)
- Batteriji Inklużi?: Iva
- Batteriji Meħtieġa?: Iva
- Tip taċ-Ċellula tal-Batterija: Alkalin
- Data L-Ewwel Disponibbli: 16 ta’ Ġunju 2011
Garanzija
This product comes with a Limited Three Years Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Stack-On customer support.
Appoġġ
For further assistance, technical support, or warranty claims, please contact Stack-On customer service. Refer to the contact information provided in your product packaging or visit the official Stack-On websit.
