Gold Hunter 9-Function Metal Detector User Manual

Introduzzjoni

Thank you for choosing the Gold Hunter 9-Function Metal Detector. This device is designed for easy operation and effective detection of various metals, including ferrous and non-ferrous targets. Its lightweight design and sensitivity control make it suitable for both beginners and experienced users in various treasure hunting environments. Please read this manual thoroughly before operating your metal detector to ensure proper use and optimal performance.

Informazzjoni dwar is-Sigurtà

• Always obtain permission before searching on private property.
• Avoid searching in areas where underground utilities (cables, pipes) may be present. Contact local authorities if unsure.
• Oqgħod attent meta tħaffer biex tevita korriment jew ħsara lill-proprjetà.
• Do not operate the detector near live electrical wires or equipment.
• Keep the detector away from extreme temperatures and moisture.
• Armi l-batteriji b'mod responsabbli skont ir-regolamenti lokali.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-kontenut tal-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:

• Gold Hunter Metal Detector Main Unit
• Zokk Aġġustabbli
• Search Coil with Cable
• Armrest
• Manwal għall-Utent (dan id-dokument)

Setup u Assemblea

Follow these steps to assemble your Gold Hunter Metal Detector:

1. Waħħal il-Kojl tat-Tiftix: Connect the search coil to the lower stem using the provided bolt and knob. Ensure it is securely fastened but not overtightened.
2. Connect the Stems: Insert the lower stem into the middle stem, and then the middle stem into the upper stem. Adjust the length to a comfortable height using the locking collars.
3. Immonta l-Kaxxa tal-Kontroll: Slide the control box onto the upper stem. Secure it in place.
4. Wrap the Cable: Carefully wrap the search coil cable around the stem, ensuring it is snug but not stretched. Plug the cable connector into the corresponding port on the control box.
5. Installa Batteriji: Open the battery compartment (usually located on the control box or under the armrest) and insert the required batteries, observing correct polarity. This model operates on a rechargeable battery.

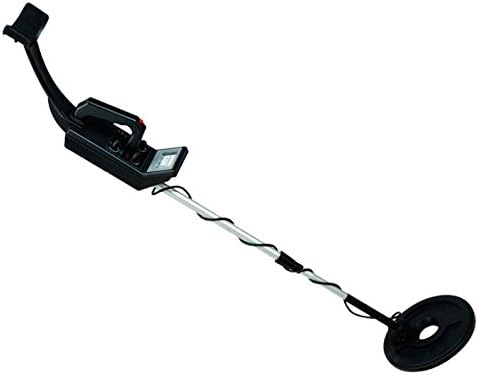

Image: Fully assembled Gold Hunter 9-Function Metal Detector, showing the control box, adjustable stem, and search coil.

Istruzzjonijiet Operattivi

Tixgħel u Mitfi

• To turn on the detector, locate the power button/knob on the control box and switch it to the 'ON' position.
• To turn off the detector, switch the power button/knob to the 'OFF' position.

Sensittività ta 'aġġustament

The Sensitivity Control allows you to adjust the detector's responsiveness to targets. Higher sensitivity settings can detect smaller or deeper objects but may also pick up more ground noise or interference.

• Żid is-Sensittività: Turn the sensitivity knob clockwise (or press the '+' button) to increase detection depth.
• Decrease Sensitivity: Turn the sensitivity knob counter-clockwise (or press the '-' button) to reduce false signals, especially in highly mineralized ground or areas with electrical interference.

Mod ta' Diskriminazzjoni

The discrimination feature allows the detector to ignore certain types of metal, typically iron (ferrous metals), while still detecting more valuable non-ferrous metals like gold, silver, and copper.

• Setting Discrimination: Use the discrimination control (knob or buttons) to set the level at which unwanted metals are rejected. A higher discrimination setting will filter out more types of junk metal.
• Modalità tal-Metall Kollha: For maximum depth and to detect all types of metal, set the discrimination to its lowest level or select the 'All-Metal' mode if available.

Sweeping Technique

Proper sweeping technique is crucial for effective detection:

• Hold the search coil parallel to the ground, about 1-2 inches above the surface.
• Sweep the coil from side to side in a slow, overlapping motion.
• Maintain a consistent speed and height for best results.
• When a target is detected, the detector will emit an audible tone, and the display (if present) may indicate the type of metal.

Manutenzjoni

• Tindif: Imsaħ id-ditekter b'reklamaramp cloth after each use. Do not use abrasive cleaners or solvents. The search coil can be rinsed with water, but ensure the control box remains dry.
• Ħażna: Store the detector in a cool, dry place when not in use. If storing for an extended period, remove the rechargeable battery to prevent leakage.
• Kura tal-batterija: Recharge the battery fully before storage and periodically during long storage periods to maintain battery health.
• Spezzjoni tal-Cable: Regularly check the search coil cable for any signs of wear or damage.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Gold Hunter websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For further assistance, you may contact the seller, Master Detector, through the Amazon platform where the product was purchased.
