American Standard Ultima Selectronic Touchless Urinal Flush Valve Instruction Manual

Prodott Overview

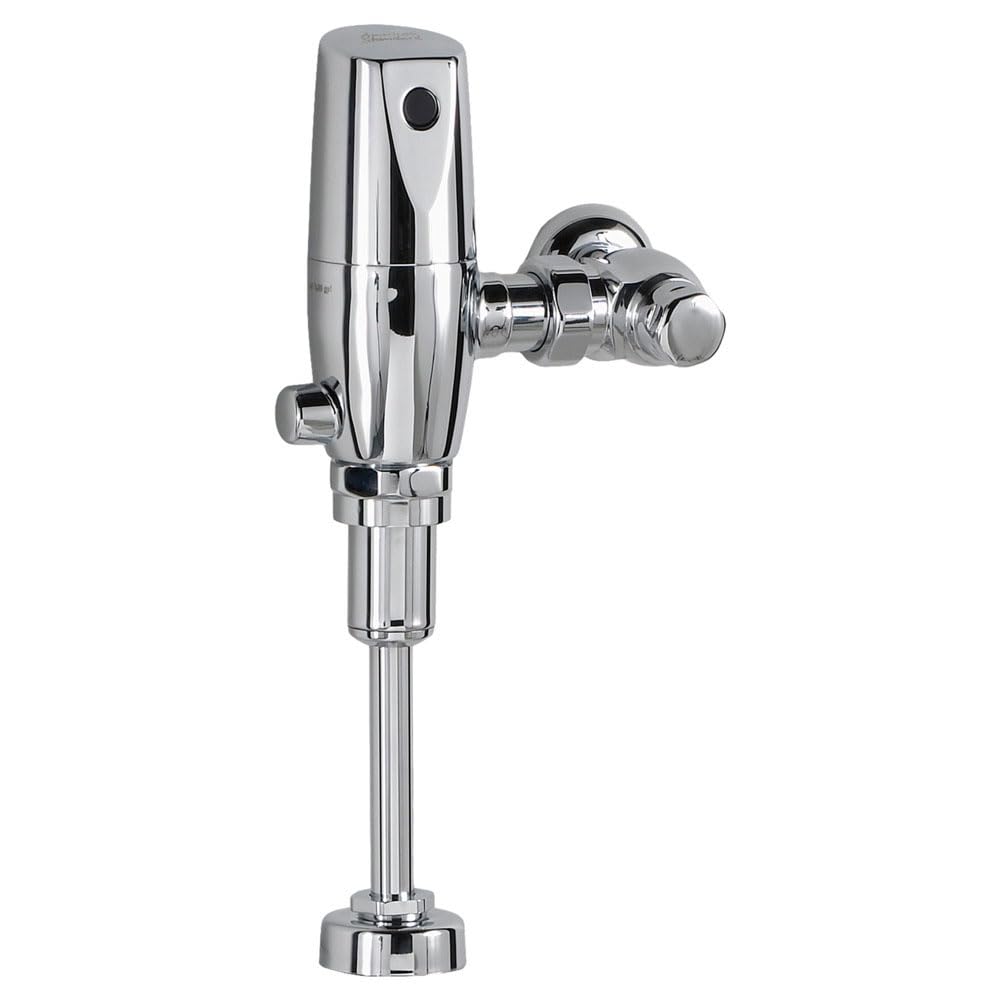

The American Standard Ultima Selectronic Touchless Urinal Flush Valve is designed for efficient and hygienic operation. This piston-type flush valve features touch-free activation and a manual override button, ensuring reliable performance. It is engineered with self-cleaning mechanisms to minimize maintenance and maintain consistent flush volume.

Setup u Installazzjoni

This flush valve is designed for urinals with a 3/4-inch (19 mm) exposed top spud. Installation should be performed by a qualified professional to ensure proper function and compliance with local codes.

• Konnessjoni tal-Provvista tal-Ilma: Ensure the urinal has a 3/4-inch (19 mm) exposed top spud for connection.
• Installazzjoni tal-batterija: The valve comes with a pre-installed CR-P2 lithium battery. Ensure it is properly connected before final assembly.
• Assemblea tal-Valv: Securely connect the flush valve to the urinal's top spud and the water supply line.
• Kalibrazzjoni tas-Sensor: The Selectronic Proximity System allows for easy adjustment and customization of the sensor range. Refer to the detailed installation guide for specific calibration steps.

Istruzzjonijiet Operattivi

The Ultima Selectronic flush valve offers both automatic and manual flushing options:

• Operazzjoni mingħajr mess: The integrated sensor detects presence and automatically flushes the urinal after use. This feature promotes hygiene by eliminating the need for physical contact.
• Override manwali: A fully mechanical manual override button is located on the valve. In case of power loss or if manual flushing is preferred, simply press this button to activate the flush cycle.
• Adjustable Sanitary Flush: This feature cleans the fixture and maintains the trap seal, contributing to overall hygiene.
• Stadium Feature: During periods of heavy usage, the valve automatically switches to a water-saving mode to optimize water consumption.

Manutenzjoni

The Ultima Selectronic flush valve is designed for minimal maintenance due to its advanced features:

• Self-Cleaning Piston: The unique piston design significantly reduces clogging and prevents valve run-on, eliminating routine maintenance tasks like diaphragm replacement or filter cleaning.
• Integral Wiper Spring: This component cleans the refill orifice with every flush, ensuring consistent and reliable operation.
• Ħajja tal-batterija: The CR-P2 lithium battery has an estimated life of 4 years, assuming 4,000 flushes per month. Replace the battery when the low battery indicator (if present) illuminates or when flush performance degrades.
• Tindif: Clean the exterior of the valve with a soft cloth and mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive materials that could damage the chrome finish.

Issolvi l-problemi

Irreferi għall-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet potenzjali tagħhom:

• Ebda Tlaħliħ jew Tlaħliħ Dgħajjef:
  • Check battery status; replace if necessary.
  • Ensure water supply is fully open.
  • Inspect for any obstructions in the sensor path.
• Continuous Flushing (Valve Run-On):
  • The self-cleaning piston and wiper spring are designed to prevent this. If it occurs, check for debris or damage to internal components.
  • Verify proper water pressure.
• "Ghost Flushing" (Unintended Flushes):
  • Adjust sensor sensitivity if external factors (e.g., reflections, movement) are causing unintended activation.
  • Kun żgur li l-lenti tas-sensorju tkun nadifa u mingħajr ostakli.
• Valve Does Not Respond to Sensor:
  • Iċċekkja l-batterija.
  • Naddaf lenti tas-sensorju.
  • Verify sensor calibration.
• Mekkaniżmu ta' Sikurezza: The valve automatically closes upon loss of power or water pressure, preventing continuous water flow. It does not require manual resetting after such an event.

Speċifikazzjonijiet

Garanzija u Appoġġ

For detailed warranty information, product registration, or technical support, please visit the official American Standard webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta’ garanzija.
