Generac 0E0601ASRV Engine Starter Assembly

1. Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of your Generac 0E0601ASRV Engine Starter Assembly. This 12V metal starter is designed for use in Generac lawn and garden equipment, ensuring reliable engine starting. Please read this manual thoroughly before installation and operation to ensure safety and optimal performance of the unit.

2. Informazzjoni dwar is-Sigurtà

Dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korrimenti jew ħsara lit-tagħmir:

• Skonnettja l-Enerġija: Before attempting any installation, maintenance, or repair, ensure that the battery is disconnected from the system to prevent accidental starting or electrical shock.
• Ilbes Tagħmir Protettiv: Always wear appropriate personal protective equipment, including safety glasses and gloves, when working with electrical components and machinery.
• Installazzjoni professjonali: If you are not familiar with electrical systems or engine components, it is recommended to have the starter assembly installed by a qualified technician.
• Għodda xierqa: Use only the correct tools for installation and maintenance to avoid damaging the starter or other components.
• Ventilazzjoni: Ensure adequate ventilation when working with batteries, as they can produce explosive gases.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra malli tiftaħ il-pakkett. Jekk xi partijiet huma neqsin jew imħassra, ikkuntattja lill-fornitur tiegħek immedjatament.

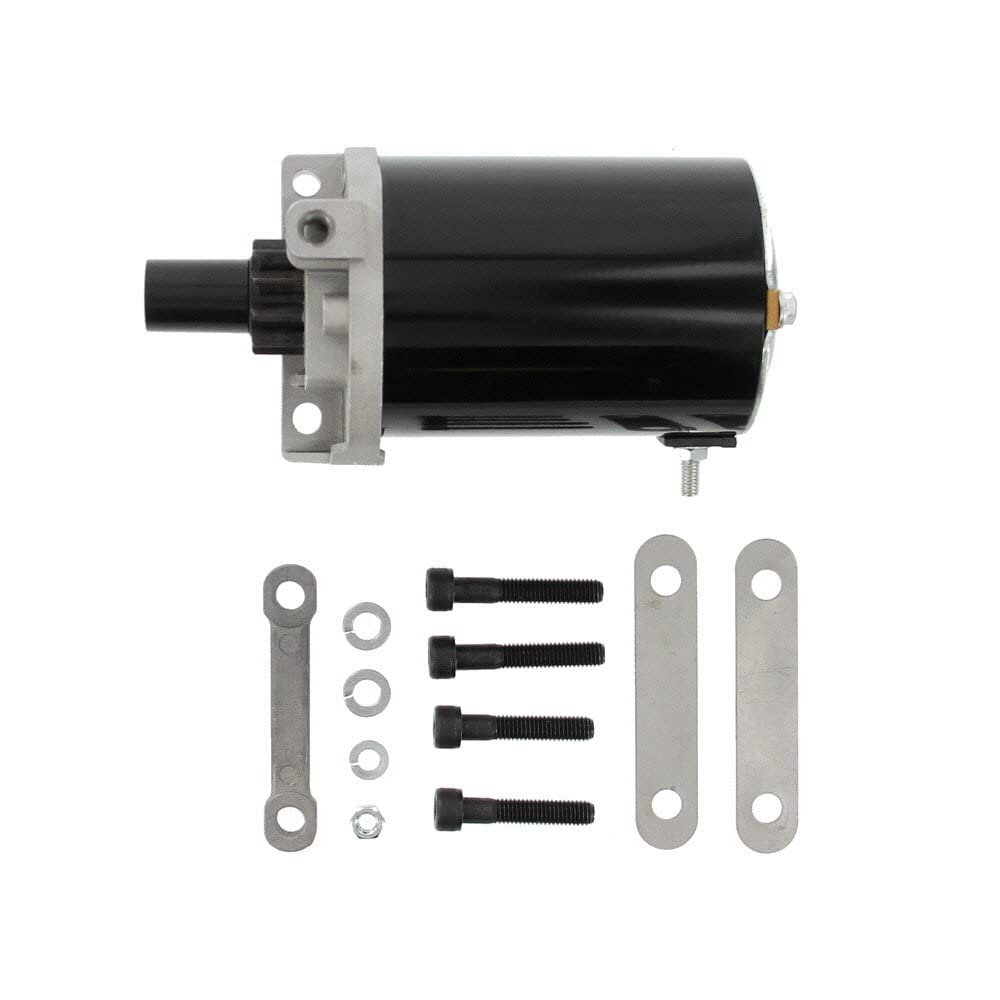

Stampa 1: Generac 0E0601ASRV Engine Starter Assembly with included bolts, washers, and mounting brackets.

• Generac 0E0601ASRV Engine Starter Assembly (1 unit)
• Mounting Bolts (various sizes, typically 4-5)
• Washers and Nuts (as required for mounting)
• Mounting Brackets/Straps (2 units, as shown in image)

4. Konfigurazzjoni u Installazzjoni

The Generac 0E0601ASRV is a direct replacement starter assembly. Follow the manufacturer's specific instructions for your Generac equipment model for proper installation. The general steps are outlined below:

1. Preparazzjoni: Ensure the engine is cool and the battery is disconnected. Locate the existing starter motor on your Generac equipment.
2. Removal of Old Starter: Carefully disconnect all electrical connections from the old starter. Remove the mounting bolts that secure the old starter to the engine block. Detach the old starter.
3. Spezzjoni: Inspect the mounting surface and flywheel teeth for any damage or wear. Address any issues before installing the new starter.
4. Installation of New Starter: Position the new Generac 0E0601ASRV starter assembly onto the engine block, aligning the pinion gear with the flywheel. Secure it with the provided mounting bolts, washers, and nuts. Ensure all fasteners are tightened to the manufacturer's torque specifications.
5. Konnessjonijiet elettriċi: Reconnect the electrical wiring to the new starter. Typically, this involves a heavy gauge battery cable and a smaller gauge solenoid activation wire. Ensure all connections are clean, tight, and free from corrosion.
6. Kontroll Finali: Double-check all connections and mounting hardware. Ensure no tools or debris are left near moving parts.

Stampa 2: Ġenb view of the Generac 0E0601ASRV Engine Starter Assembly, showing the pinion gear and electrical terminals.

This starter operates at 12 Volts, features a Kontra l-Arloġġ rotation, and has 10 snien on its pinion gear. Verify these specifications match your equipment's requirements.

5. Operazzjoni

Once the Generac 0E0601ASRV Engine Starter Assembly is correctly installed and all electrical connections are secure, reconnect the battery. The starter motor is activated by the ignition system of your Generac equipment. When the ignition key is turned to the "Start" position, the starter solenoid engages, extending the pinion gear to mesh with the engine's flywheel and rotating the engine to initiate combustion.

• Proċedura tal-Bidu: Follow your equipment's specific starting procedure, which typically involves ensuring fuel supply, choke settings (if applicable), and turning the ignition key.
• Ħin tal-Krankjar: Avoid prolonged cranking. If the engine does not start within 5-10 seconds, release the key, wait for a short period (e.g., 30 seconds), and try again. Excessive cranking can overheat the starter motor.
• Immediate Release: Release the ignition key immediately once the engine starts to prevent damage to the starter motor and flywheel.

6. Manutenzjoni

Regular maintenance helps ensure the longevity and reliable performance of your starter assembly.

• Spezzjona Konnessjonijiet: Periodically check all electrical connections to the starter motor and solenoid. Ensure they are clean, tight, and free from corrosion. Loose or corroded connections can lead to poor starting performance or damage.
• Indafa: Keep the starter motor and surrounding area clean and free from dirt, debris, oil, and moisture.
• Kundizzjoni tal-batterija: Ensure your equipment's battery is in good condition and fully charged. A weak battery can put excessive strain on the starter motor.
• Pinion Gear Inspection: During routine engine maintenance, inspect the starter's pinion gear and the engine's flywheel teeth for signs of wear or damage. Replace the starter if significant wear is observed on the pinion gear.

7 Issolvi l-problemi

If your engine fails to start or the starter exhibits unusual behavior, consider the following common issues:

If these steps do not resolve the issue, it is recommended to seek assistance from a qualified service technician.

8. Speċifikazzjonijiet

9. Informazzjoni dwar Garanzija

Specific warranty terms and conditions for the Generac 0E0601ASRV Engine Starter Assembly are provided by Generac Power Systems or the authorized seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for detailed warranty information, including coverage period and claim procedures. Keep your proof of purchase for warranty validation.

10. Appoġġ għall-Klijent

For technical assistance, replacement parts, or further inquiries regarding your Generac 0E0601ASRV Engine Starter Assembly, please contact:

• Generac Power Systems: Visit the official Generac websit għal riżorsi ta' appoġġ, FAQs, u informazzjoni ta' kuntatt.
• Authorized Seller: Contact the retailer or distributor from whom you purchased the product for immediate assistance.

When contacting support, please have your product model number (0E0601) and proof of purchase readily available.
