Manwal għall-Utent tal-Monitor tal-Pressjoni tad-Demm Beurer BM60

1. Introduzzjoni

Thank you for choosing the Beurer BM60 Upper Arm Blood Pressure Monitor. This device is designed for fully automatic, non-invasive measurement of arterial blood pressure and pulse rate on the upper arm. It features a patented resting indicator for precise results, a large LCD display, WHO classification, and arrhythmia detection. Please read this manual carefully before first use and keep it for future reference.

Karatteristiċi ewlenin:

• Fully automatic blood pressure and pulse measurement on the upper arm.
• Patented resting indicator for accurate measurement results.
• Display LCD kbir, faċli biex jinqara.
• WHO (World Health Organization) classification indicator.
• Arrhythmia detection.
• 2 user memory channels with 60 memory spaces each.
• Calculates average of all saved morning and evening measurements for the last 7 days.
• Funzjoni tat-tifi awtomatika.
• Includes batteries and a storage bag.

2. Informazzjoni dwar is-Sigurtà

Please observe the following safety instructions to ensure safe and effective use of your blood pressure monitor:

• This device is intended for measuring human arterial blood pressure and pulse rate. It is not intended for use on children.
• Do not attempt to repair the device yourself. Any repairs must be performed by authorized service personnel.
• Ikkonsulta lit-tabib tiegħek qabel tuża l-apparat jekk għandek xi kundizzjonijiet mediċi, speċjalment jekk għandek pacemaker jew apparati oħra impjantati.
• Do not use the device in areas with high electromagnetic fields, such as near mobile phones or microwave ovens, as this may affect accuracy.
• Measurements taken by yourself are for your information only. Do not alter the dosage of any medicines prescribed by your doctor based on self-measurements.
• Ensure the cuff is applied correctly and comfortably. Over-tightening can cause discomfort or injury.
• Żomm l-apparat u l-komponenti tiegħu fejn ma jintlaħqux mit-tfal.

3. Prodott Aktarview

The Beurer BM60 Blood Pressure Monitor consists of the main unit and an upper arm cuff. Familiarize yourself with the components:

Figure 1: Beurer BM60 Blood Pressure Monitor main unit.

Figure 2: The BM60 monitor connected to its upper arm cuff.

Figura 3: Close-up view of the M1, Power, and M2 buttons on the monitor.

Figure 4: The LCD display showing systolic, diastolic, pulse, and memory indicators.

4. Setup

4.1 Installazzjoni tal-batterija

1. Iftaħ l-għatu tal-kompartiment tal-batterija fuq wara tal-apparat.
2. Insert four (4) AA 1.5V batteries, ensuring correct polarity (+/-).
3. Agħlaq l-għatu tal-kompartiment tal-batterija sew.
4. The low battery indicator will appear on the display when batteries need replacement.

4.2 Konnessjoni tal-Maniċċa

1. Insert the air tube connector from the cuff firmly into the port on the left side of the monitor unit.
2. Kun żgur li l-konnessjoni hija sikura biex tevita t-tnixxija tal-arja waqt il-kejl.

4.3 L-applikazzjoni tal-pulzieri

The standard cuff is suitable for upper arm circumferences of 23-35 cm. An optional XL cuff (30-42 cm) is available separately.

1. Place the cuff on your bare upper left arm, approximately 2-3 cm above the elbow joint. The air tube should run along the inside of your arm.
2. Ensure the cuff is snug but not too tight. You should be able to fit two fingers under the cuff.
3. The arrow on the cuff should point towards your hand.

Figure 5: Correct placement of the cuff on the upper arm.

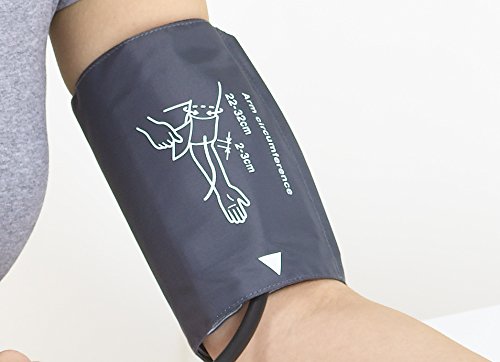

Figure 6: Detail of the cuff showing the arm circumference guide (22-32cm in this example, actual cuff is 23-35cm).

5. Istruzzjonijiet Operattivi

5.1 Qabel il-Kejl

• Istrieħ għal mill-inqas 5 minuti qabel ma tieħu kejl.
• Avoid eating, drinking alcohol, smoking, or exercising for at least 30 minutes prior to measurement.
• Sit in a relaxed position with your back supported and feet flat on the floor. Your arm should be resting on a table so the cuff is at heart level.
• Ibqa' kwiet u sieket waqt il-kejl.

5.2 Teħid ta 'Kejl

1. Agħfas il- ON/OFF buttuna (I) to start the measurement.
2. The cuff will automatically inflate, and the measurement will begin.
3. During the measurement, the device will display a patented resting indicator. This indicates whether your circulatory system is sufficiently at rest for an accurate reading.
4. Once the measurement is complete, the systolic pressure, diastolic pressure, and pulse rate will be displayed on the LCD screen.
5. The results will also be classified according to WHO guidelines and checked for arrhythmia.
6. The device automatically stores the measurement in the selected user memory (M1 or M2).
7. The device will automatically switch off after approximately one minute of inactivity.

5.3 Funzjonijiet tal-Memorja

The BM60 has two user memory channels (M1 and M2), each capable of storing 60 measurements.

• Selecting a User: Before starting a measurement, press the M1 or M2 button to select the desired user profile.
• Viewing Stored Measurements: Bl-apparat mitfi, agħfas il-buttuna M1 or M2 buttuna biex view the stored measurements for that user. Repeated presses will cycle through the readings.
• 7-Day Average: The device can display an average of all saved morning and evening readings taken over the last 7 days for each user. Refer to the full user manual for specific instructions on accessing this feature.

6. Manutenzjoni

6.1 Tindif

• Clean the monitor unit and cuff with a slightly damp drapp. Tużax tindif li joborxu jew tgħaddas l-apparat fl-ilma.
• Taħsilx il-pulzieri.

6.2 Ħażna

• Store the device in the provided storage bag when not in use.
• Żomm l-apparat f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Neħħi l-batteriji jekk l-apparat mhux se jintuża għal perjodu estiż.

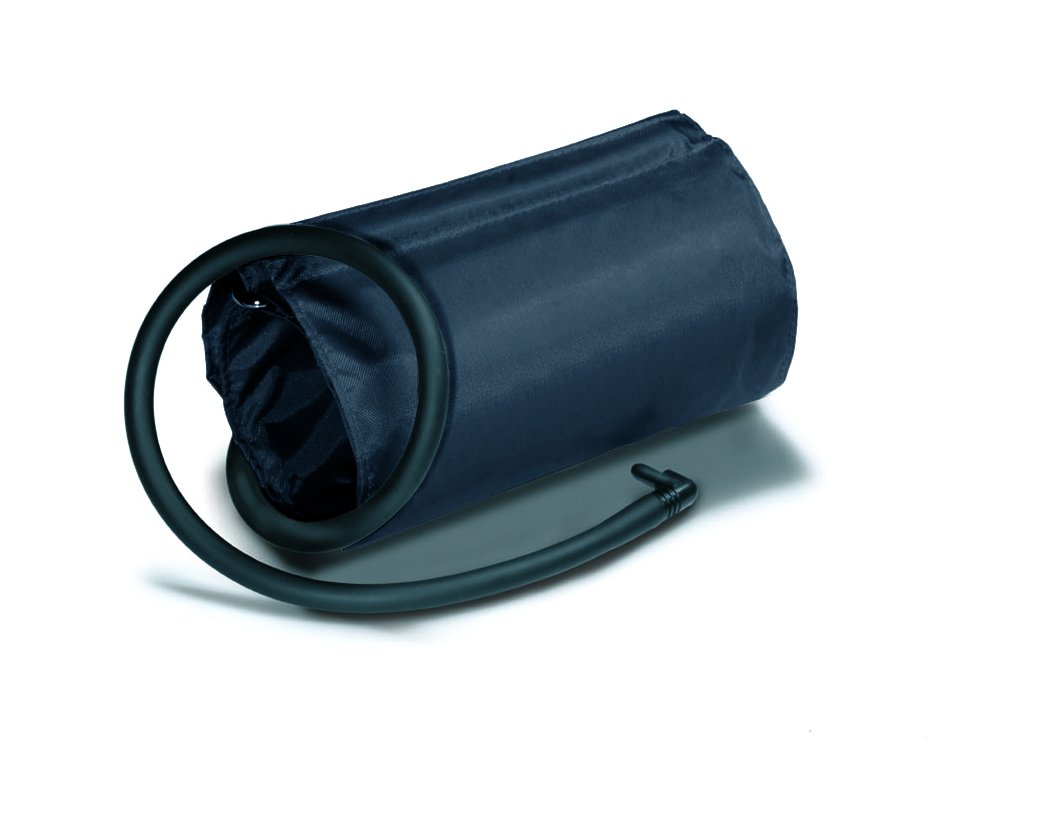

Figure 7: The cuff can be rolled up for compact storage in the included bag.

7 Issolvi l-problemi

If you encounter issues with your Beurer BM60, refer to the table below for common problems and solutions:

If the problem persists, contact Beurer customer support or your local service center.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

9.1 Garanzija

The Beurer BM60 Blood Pressure Monitor comes with a 1-year manufacturer's warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.

9.2 Appoġġ għall-Klijent

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Beurer customer support. Contact information can typically be found on the Beurer official webis-sit jew fuq l-imballaġġ tal-prodott.
