Introduzzjoni
The Keeley Java Boost is a high-quality guitar effects pedal meticulously designed to replicate the authentic sound and dynamic response of legendary treble boosters from the late 1960s. This pedal offers guitarists precise control over their tone, allowing for adjustments to both output frequency range and boost gain. It is handcrafted using premium components, including original New Old Stock (NOS) Mullard OC44 transistors, ensuring a vintage and rich sonic character, particularly when paired with a tube ampaktar ħaj.
Karatteristiċi Ewlenin
- Authentic sound and response of legendary '60s treble boosters.
- Enhanced control over tone and level for versatile sound shaping.
- Handcrafted construction ensures superior quality and durability.
- Utilizes original NOS Mullard OC44 transistors for classic tone.
- Equipped with cream-colored knobs and distinctive violet LEDs.
Kontrolli u Konnessjonijiet
The Keeley Java Boost pedal features intuitive controls and standard connections for seamless integration into your guitar rig.
Figura 1: Quddiem view of the Keeley Java Boost pedal. This image displays the pedal's top panel, highlighting the 'Tone' and 'Level' control knobs, the 'In' and 'Out' jacks on the sides, and the central footswitch. The pedal is a vibrant blue with white text and graphics, including a coffee cup logo.
Figura 2: Angolat view of the Keeley Java Boost pedal. This perspective provides a clearer view of the 'In' jack on the right side of the pedal and the overall compact enclosure design.

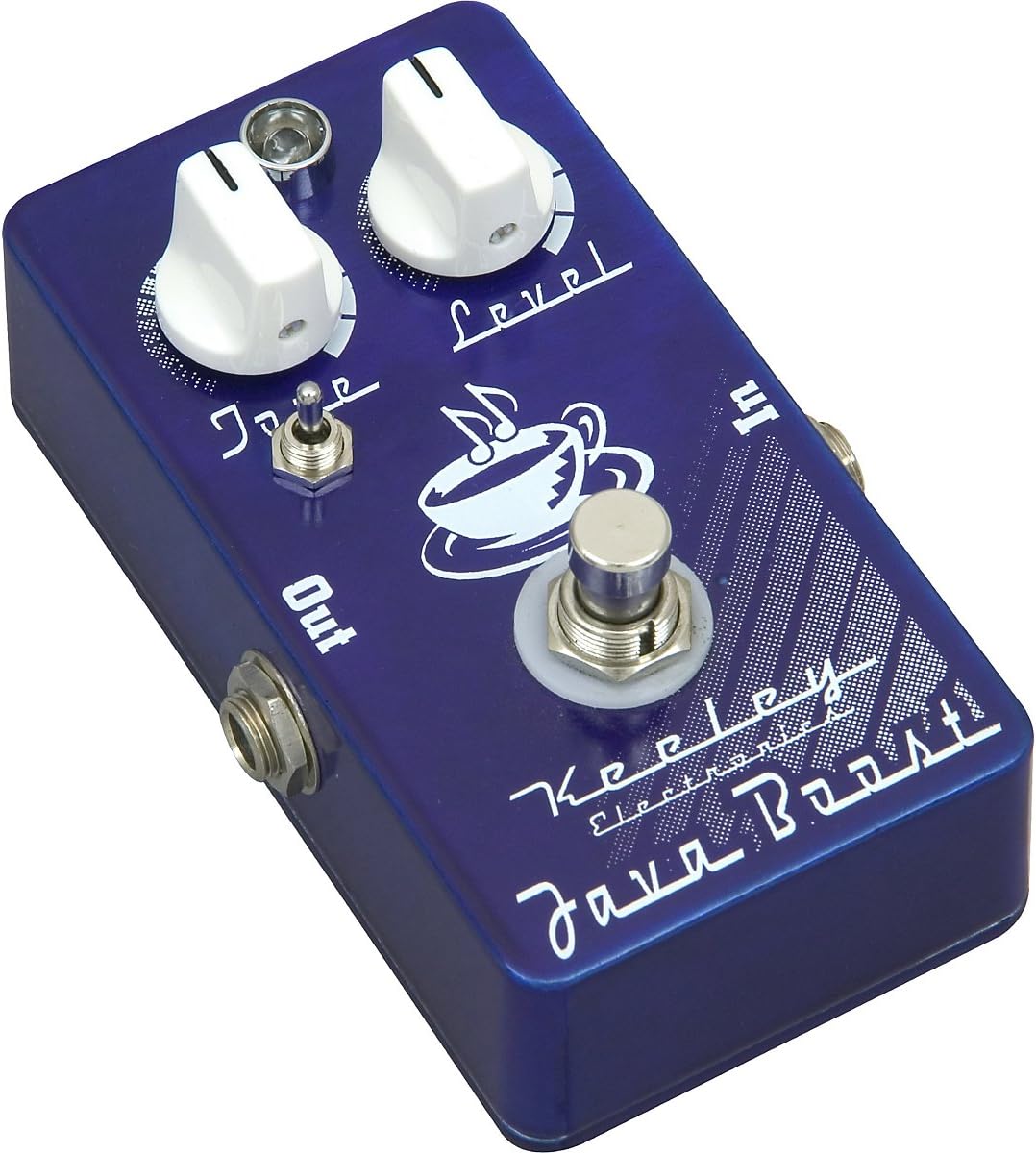

Figura 3: Angolat ieħor view of the Keeley Java Boost pedal. This image focuses on the 'Out' jack on the left side of the pedal, illustrating its robust construction and the placement of the jacks.
- Pum tat-Ton: Controls the frequency response of the boosted signal. Turning it clockwise increases the treble content, while turning it counter-clockwise reduces it, allowing you to fine-tune the brightness of your sound.
- Pum tal-Livell: Adjusts the overall output volume of the pedal. Use this to set the desired boost level, from a subtle push to a significant volume increase.
- Input (IN) Jack: Connect your guitar or the output of a preceding pedal to this jack.
- Output (OUT) Jack: Qabbad dan il-jack ma' tiegħek ampl-input tal-lifer jew għall-input tal-pedala li jmiss fil-katina tas-sinjali tiegħek.
- Swiċċ tas-saqajn: Engages or bypasses the effect. Press once to activate the boost, press again to return to bypass.
Gwida ta' Setup
Rekwiżiti ta' Enerġija
The Keeley Java Boost pedal operates on a standard 9V DC power supply (not included) with a center-negative polarity. Ensure your power supply meets these specifications to prevent damage to the unit. Always use a regulated power supply for optimal performance and noise reduction.
Tqabbad il-Pedale
- Tiżgura tiegħek ampIl-lifer ikun mitfi jew issettjat għal volum baxx.
- Connect your guitar cable from your instrument's output to the IN jack on the Java Boost pedal.
- Connect another guitar cable from the BARRA jack on the Java Boost pedal to the input of your ampaktar ħaj.
- Connect the 9V DC power supply to the power input jack on the pedal.
- Ladarba l-konnessjonijiet kollha jkunu siguri, tista' tixgħel tiegħek amplifier and begin using the pedal.
Operazzjoni
L-involviment tal-Effett
To activate the Java Boost effect, press the footswitch. The violet LED will illuminate, indicating that the effect is active. Press the footswitch again to bypass the effect; the LED will turn off.
Using the Tone Control
The Tone knob allows you to shape the high-frequency content of the boosted signal. Start with the knob at the 12 o'clock position and adjust it to taste. Turning it clockwise will add more bite and presence, while turning it counter-clockwise will result in a warmer, smoother tone. Experiment with this control to find the ideal treble response for your guitar and ampkombinazzjoni ta 'lifier.
Using the Level Control
The Level knob controls the overall output volume of the pedal. This allows you to use the Java Boost as a clean volume boost, a mild overdrive, or to push your amplifier's input for natural tube saturation. Adjust this knob to achieve the desired volume increase or drive level.
Manutenzjoni
Tindif
To clean the pedal, use a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and internal components. Ensure the pedal is disconnected from power before cleaning.
Ħażna
When not in use for extended periods, store the pedal in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect all cables and the power supply before storing.
Issolvi l-problemi
Ebda Ħoss
- Iċċekkja l-konnessjonijiet tal-kejbil kollha (il-kitarra għall-IN, l-OUT għall- amp).
- Kun żgur li l-provvista tal-enerġija hija konnessa sew u tipprovdi l-volum korretttage (9V DC, ċentru-negattiv).
- Ivverifika li l-kitarra tiegħek u amplifier qed jaħdmu sew.
- Test with different cables to rule out faulty cables.
Ħoss jew Tħoss mhux mixtieq
- Ensure you are using a regulated power supply. Unregulated power supplies can introduce noise.
- Iċċekkja għal ground loops fis-setup tiegħek.
- Mexxi l-pedala 'l bogħod mit-transformers tal-enerġija jew minn sorsi oħra ta' interferenza elettromanjetika.
- Test in a different electrical outlet or location.
Speċifikazzjonijiet
| Piż tal-oġġett | 9.6 uqija |
| Dimensjonijiet tal-Prodott | 8 x 10 x 8 pulzieri |
| ASIN | B003776M0U |
| Numru tal-Mudell tal-Oġġett | 0868515002 |
| Data L-Ewwel Disponibbli | 10 ta’ Lulju, 2007 |
| Brand | Keeley |
| UPC | 859743001023 |
Garanzija u Appoġġ
Keeley Electronics stands behind the quality of its products. For specific warranty information, repair services, or technical support, please refer to the official Keeley Electronics webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
