1. Introduzzjoni

This manual provides essential instructions for the installation, operation, and maintenance of your Nordyne 903994 Thermostat. This wall-mounted thermostat is specifically designed for heat-only applications with E4EB/E6EB series furnaces. Please read this manual thoroughly before proceeding with installation or operation to ensure safe and efficient use.

For additional information or support, please refer to the contact details provided in the Warranty and Support section.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Periklu ta' Xokk Elettriku

3. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

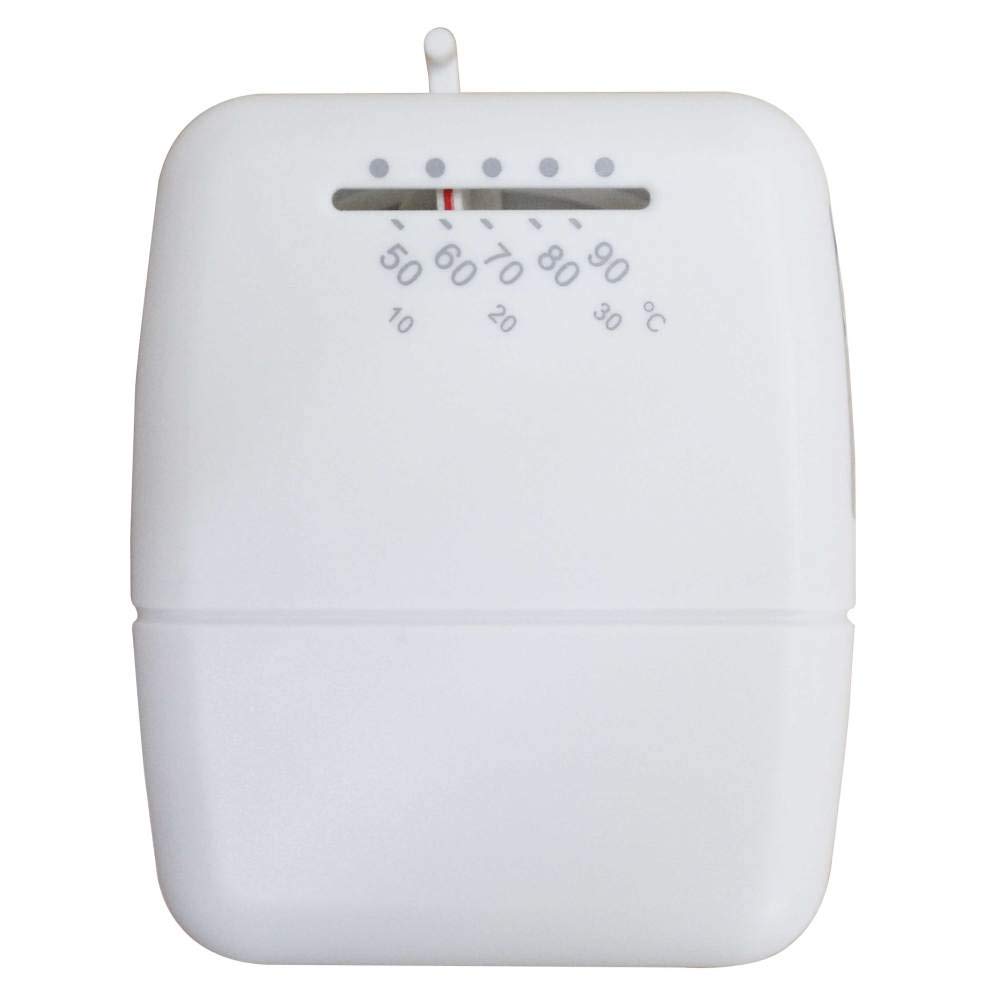

Nordyne 903994 Thermostat, front view, white rectangular unit with a temperature dial.

Image 1: Nordyne 903994 Thermostat. This image shows the front of the white, rectangular thermostat, likely featuring a simple temperature control dial or slider.

4. Setup u Installazzjoni

This thermostat is designed for quick and simple installation. However, due to electrical connections, professional installation is recommended.

4.1 Lista ta 'Kontroll ta' Qabel l-Installazzjoni

4.2 Post tal-Immuntar

Select a location on an interior wall, approximately 5 feet (1.5 meters) above the floor. Avoid locations near:

4.3 Istruzzjonijiet tal-Wiring

  1. Skonnettja l-Enerġija: Ensure power to the furnace is OFF at the main circuit breaker.
  2. Neħħi Termostat Qadim: Carefully remove the cover of your old thermostat. Note the wire connections. Take a picture for reference if possible.
  3. Wajers tat-Tikketta: Label each wire with the terminal designation it was connected to on the old thermostat (e.g., R, W, G, Y).
  4. Remove Old Mounting Plate: Unscrew and remove the old thermostat's mounting plate.
  5. Immuntar Bażi tat-Termostat Ġdida: Thread the wires through the opening in the new Nordyne 903994 thermostat base. Secure the base to the wall using the provided mounting screws and anchors.
  6. Qabbad Wajers: Connect the labeled wires to the corresponding terminals on the Nordyne 903994 thermostat. This thermostat is designed for heat-only systems. Typically, this involves connecting the R (power) and W (heat call) wires. Refer to your furnace's wiring diagram for specific connections if unsure.
  7. Waħħal l-Għatu tat-Termostat: Once wiring is complete and secure, carefully attach the thermostat cover to the base.
  8. Irrestawra l-Enerġija: Turn power back ON at the main circuit breaker.

Nota: This thermostat is designed for 230 Volts. Verify your system's voltage rekwiżiti qabel il-konnessjoni.

5. Istruzzjonijiet Operattivi

The Nordyne 903994 Thermostat provides simple, manual control for heat-only systems.

5.1 Issettjar tat-Temperatura

This thermostat does not feature a backlight or advanced programming options, offering straightforward temperature management.

6. Manutenzjoni

Your Nordyne 903994 Thermostat requires minimal maintenance to ensure optimal performance.

7 Issolvi l-problemi

If you experience issues with your Nordyne 903994 Thermostat, refer to the following common problems and solutions:

ProblemaKawża PossibbliSoluzzjoni
Is-sistema tat-tisħin ma tixgħelx.
  • No power to the furnace.
  • Thermostat set below room temperature.
  • Konnessjoni tal-wajers sfużi.
  • Furnace safety lockout.
  • Iċċekkja s-circuit breaker għall-forn.
  • Increase the thermostat's set temperature.
  • Turn off power, check wiring connections at the thermostat and furnace.
  • Consult furnace manual or a qualified technician.
Room temperature does not match thermostat setting.
  • Il-post tat-termostat huwa affettwat minn kurrenti tal-arja jew sorsi ta' sħana.
  • Thermostat sensor obstructed.
  • Relocate thermostat if possible, or mitigate environmental factors.
  • Ensure thermostat vents are clear.
Thermostat appears unresponsive.
  • Ebda qawwa.
  • Ħsara interna.
  • Check furnace power supply.
  • Contact customer support or a qualified technician.

If troubleshooting steps do not resolve the issue, contact Nordyne customer support or a qualified HVAC technician.

8. Speċifikazzjonijiet

KaratteristikaDettall
BrandNordyne
Isem tal-Mudell903994
KulurAbjad
Tip ta' Kontroll tat-TemperaturaManwal
Tip ta' OperazzjoniSaħħan Biss
KompatibilitàE4EB/E6EB series furnaces
Voltage230 Volts
Tip ta 'ImmuntarMount Wall
Dimensjonijiet tal-Prodott4.33 x 3.54 x 1.81 pulzieri
Piż tal-oġġett0.01 uqija
Komponenti InklużiIntertherm 903994 Wall Thermostat - Heat Only White

9. Garanzija u Appoġġ

Nordyne products are manufactured to high-quality standards. For specific warranty information regarding your 903994 Thermostat, please refer to the documentation included with your purchase or visit the official Nordyne websit.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Nordyne customer support. Contact information can typically be found on the manufacturer's webis-sit jew fuq l-imballaġġ tal-prodott.

Meta tikkuntattja l-appoġġ, jekk jogħġbok żomm in-numru tal-mudell tiegħek (903994) u d-data tax-xiri disponibbli.
