Stack-On GCB-910 10-Gun Security Cabinet User Manual

Informazzjoni Importanti dwar is-Sigurtà

Proposta 65 Twissija

Dan il-prodott jista’ jesponik għal kimiċi inkluż Di(2-ethylhexyl)phthalate (DEHP) li huwa magħruf mill-Istat ta’ Kalifornja li jikkawża kanċer u difetti fit-twelid jew ħsara riproduttiva oħra. Għal aktar informazzjoni mur fuq P65Warnings.ca.gov.

Always follow local and federal regulations for firearm storage. This cabinet is designed to deter unauthorized access and should not be considered a fireproof or burglar-proof safe.

Prodott Overview

The Stack-On GCB-910 10-Gun Security Cabinet is designed to provide secure storage for up to 10 long guns. It features durable welded steel construction and a 3-point locking system for enhanced security. The interior includes a removable shelf, foam-padded bottom, and padded barrel rests to protect firearms from scratches.

Karatteristiċi Ewlenin

• Kapaċità: Securely stores up to 10 rifles or shotguns, with a maximum length of 52 inches.
• Kostruzzjoni: Built with all-steel body and a reinforced door for dependable firearm security.
• Sistema ta 'qfil: Features a 3-point locking system that secures the door at the top, bottom, and center to help prevent forced entry.
• Protezzjoni Interna: Includes a foam-padded bottom, barrel rests, and a removable shelf to keep firearms and gear scratch-free.
• Installazzjoni: Equipped with pre-drilled holes and included mounting hardware for quick and secure setup.
• Ħażna Personalizzabbli: A removable foam-padded shelf allows for flexible storage configurations for ammunition and other valuables.

Setup u Installazzjoni

Spakkjar

Carefully remove the cabinet from its packaging. Inspect the cabinet for any signs of damage. Ensure all components, including the keys and mounting hardware, are present before proceeding with installation.

Immuntar tal-Kabinett

For optimal security and stability, the cabinet must be securely mounted to a floor or wall. The cabinet features pre-drilled mounting holes for this purpose.

1. Agħżel Post: Select a suitable, discreet location for the cabinet, preferably in an area with limited unauthorized access.
2. Immarka toqob: Position the cabinet in the desired location and use the pre-drilled holes on the back or bottom of the cabinet to mark the drilling points on the wall or floor.
3. Drill Pilota Toqob: Drill pilot holes into the marked locations using an appropriate drill bit for your mounting surface (e.g., wood studs, concrete).
4. Kabinett Sikur: Align the cabinet with the drilled holes and secure it using the provided mounting hardware. Ensure all fasteners are tightened securely to prevent movement.

Istruzzjonijiet Operattivi

Qfil u Nisfruttaw

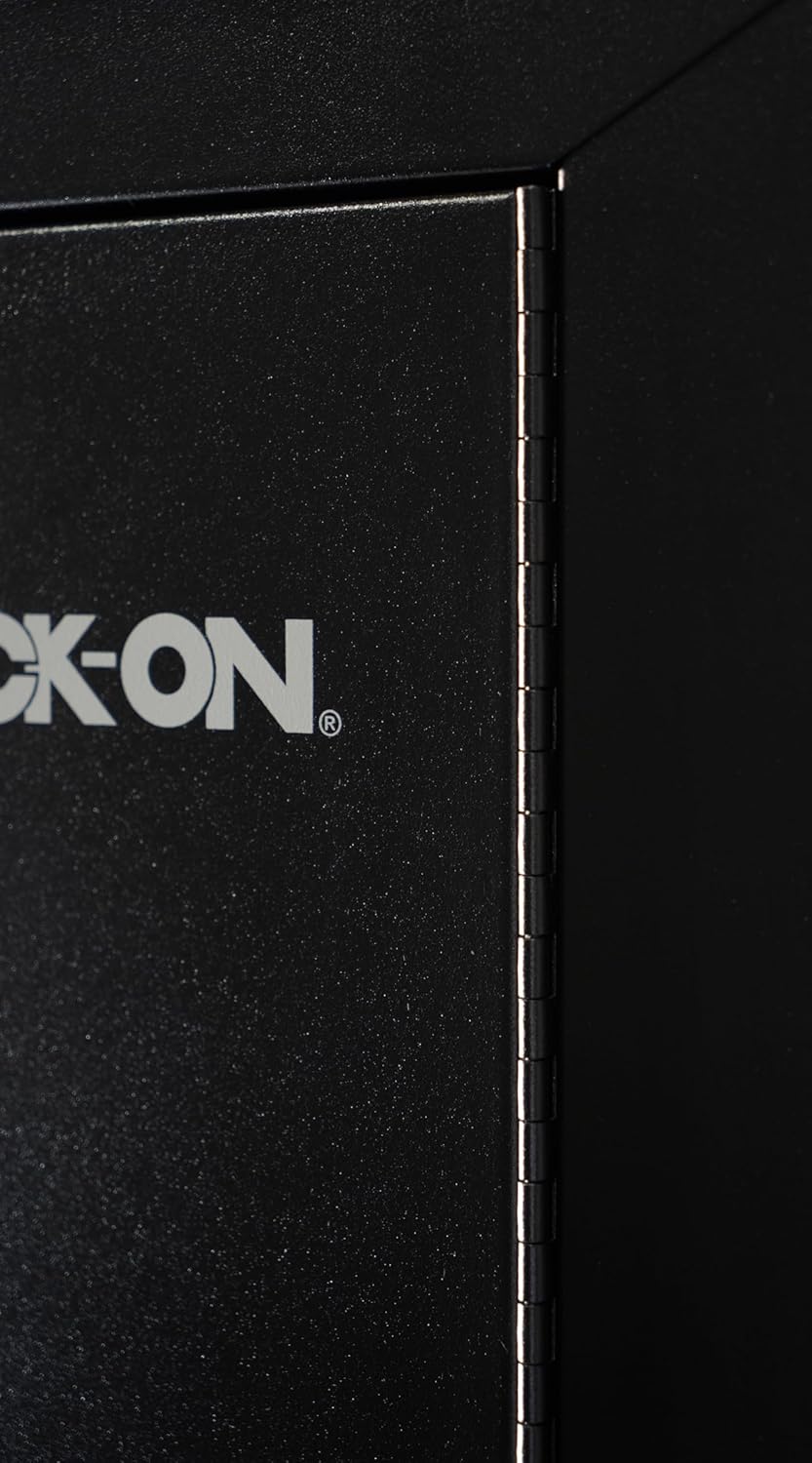

The GCB-910 cabinet is equipped with a 3-point locking system and a key-coded, double-bitted lock for secure access control.

1. Biex Nisfruttaw: Insert the key into the lock cylinder. Turn the key clockwise to the unlock position. Pull the door open.
2. Biex Tissakkar: Close the door firmly. Insert the key into the lock cylinder and turn it counter-clockwise to the lock position. Remove the key and store it in a secure, separate location away from the cabinet.

Konfigurazzjoni Intern

The cabinet's interior is designed for flexible and protective storage.

• Blata li tista' titneħħa: The included shelf can be positioned towards the back of the cabinet to allow for storage of longer firearms in the front. It can also be removed entirely to accommodate taller items or different storage needs.
• Foam-Padded Barrel Rests: These rests are designed to cradle your firearms, preventing scratches and keeping them organized and upright.
• Foam Padded Bottom: The bottom of the cabinet features foam padding to protect the stocks and finishes of your firearms.

Manutenzjoni

Regular maintenance ensures the longevity and proper function of your security cabinet.

• Tindif: Wipe the exterior and interior surfaces of the cabinet with a soft, damp drapp. Evita li tuża prodotti tat-tindif jew solventi li joborxu, għax dawn jistgħu jagħmlu ħsara lill-finitura.
• Mekkaniżmu tas-Sokkjar: Periodically check the lock for smooth operation. If the key becomes stiff or difficult to turn, apply a small amount of graphite lubricant (not oil-based) into the keyhole.
• Ħardwer tal-Immuntar: Regularly inspect all mounting hardware to ensure it remains tight and secure. Re-tighten any loose fasteners to maintain stability.
• Kuxxinett Intern: Check the foam padding for wear or damage. Replace if necessary to continue protecting your firearms.

Issolvi l-problemi

Door Does Not Close Properly

• Check for any obstructions inside the cabinet or along the door frame that might be preventing it from closing fully.
• Ensure the cabinet is level and securely mounted. An uneven installation can cause the door to misalign.

Key Is Stiff or Hard to Turn

• Apply a small amount of graphite lubricant to the keyhole. Do not use oil-based lubricants.
• Ensure the key is fully inserted into the lock cylinder before attempting to turn it. Do not force the key.

Cabinet Appears Unstable

• Verify that the cabinet is securely mounted to the floor or wall using all provided hardware.
• Re-tighten any loose fasteners on the mounting hardware.

Speċifikazzjonijiet

Garanzija u Appoġġ

For specific warranty information, technical assistance, or to inquire about replacement parts, please contact Stack-On customer service directly. Details regarding your product's warranty period and terms can typically be found on the product packaging or the manufacturer's official websit.

You can visit the official Stack-On website for the most current contact information and support resources: www.stack-on.com
