Introduzzjoni
This manual provides essential information for the proper setup, operation, and maintenance of your KEF Ventura 6 Outdoor All-Weather Loudspeakers. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your speakers.
Prodott Overview
The KEF Ventura 6 are high-performance outdoor loudspeakers designed to deliver clear and powerful audio in various weather conditions. They feature a robust construction suitable for outdoor environments.
Image: A pair of KEF Ventura 6 outdoor all-weather loudspeakers in white, showcasing their sleek design and durable grille.
Karatteristiċi ewlenin:
- High power handling, fluid cooled, anodized 25mm aluminum dome tweeter.
- Long-throw 6.5-inch woofer with injection molded cone and rubber surround.
- Weather-resistant UV treated high-impact ABS composite enclosure.
- Powder-coated rust-proof aluminum bracket and grille.
- 180-degree rotation for flexible mounting.
X'hemm fil-Kaxxa
Upon opening the packaging, please verify that all components are present and undamaged:
- KEF Ventura 6 Outdoor All-Weather Loudspeakers (Pair)
- Brazzi tal-Immuntar
- Ħardwer tal-Immuntar (viti, woxers, eċċ.)
- Manwal ta 'Istruzzjoni (dan id-dokument)
Setup u Installazzjoni
Proper installation is crucial for optimal sound performance and speaker longevity. It is recommended to have installation performed by a qualified professional if you are unsure about any steps.
Konsiderazzjonijiet tal-Post tal-Immuntar:
- Choose a sturdy surface capable of supporting the speaker's weight.
- Ensure the location allows for proper sound dispersion and is free from obstructions.
- Consider proximity to power sources and audio equipment.
- The speakers are designed for outdoor use and are waterproof.
Image: A KEF Ventura 6 speaker mounted on an exterior wall of a building, demonstrating a typical outdoor installation overlooking a body of water.
Konnessjonijiet tal-Wiring:
- Tiżgura tiegħek amplifier jew riċevitur huwa mitfi qabel ma tagħmel xi konnessjonijiet.
- Connect the speaker wires to the binding posts on the back of each speaker. Ensure correct polarity (+ to + and - to -).
- Run the speaker wires to your amplifier, ensuring they are protected from environmental elements and physical damage.
- Connect the other end of the speaker wires to the corresponding speaker outputs on your amplifier or receiver, again observing correct polarity.
For optimal sound quality, use high-quality, appropriately gauged speaker wire for the length of your run.
Istruzzjonijiet Operattivi
Once installed and connected, your KEF Ventura 6 speakers are ready for use.
Tixgħel:
- Ixgħel tiegħek amplifier jew riċevitur.
- Select the appropriate audio input source.
- Gradually increase the volume to a comfortable listening level.
Aġġustament tal-Volum u tal-Ħsejjes:
Adjust the volume and tone controls (bass, treble) on your amplifier or receiver to suit your preferences and the acoustic environment. Avoid excessively high volumes that may cause distortion or damage to the speakers.
Użu Rakkomandat:
These speakers are designed for continuous outdoor use. While they are all-weather, extreme conditions (e.g., direct lightning strikes, prolonged submersion) should be avoided.
Manutenzjoni u Kura
To ensure the longevity and performance of your KEF Ventura 6 speakers, follow these maintenance guidelines:
- Tindif: Wipe the speaker enclosures and grilles with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive water pressure.
- Spezzjoni: Periodically inspect the speaker wires and connections for any signs of wear, corrosion, or damage.
- Espożizzjoni Ambjentali: While designed for outdoor use, occasional cleaning of accumulated dirt, leaves, or debris from the grille can help maintain sound quality.
- Winterization (Optional): In regions with severe winter conditions, consider covering the speakers or temporarily removing them for storage indoors to extend their lifespan, although they are built to withstand cold.
Issolvi l-problemi
If you encounter issues with your KEF Ventura 6 loudspeakers, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda Ħoss |
|
|
| Ħoss Mgħawġ |
|
|
| Speaker Wieħed Mhux Jaħdem |
|
|
If the problem persists after attempting these solutions, please contact KEF customer support or your authorized dealer.
Speċifikazzjonijiet
Detailed technical specifications for the KEF Ventura 6 Outdoor All-Weather Loudspeakers:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Isem tal-Mudell | VENTURA6W |
| Tip ta' Kelliem | Barra |
| Materjal | Aluminum (grille/bracket), ABS Composite (enclosure) |
| Kulur | Abjad |
| Dimensjonijiet tal-Prodott (H x W x D) | 11.8" x 9" x 10.37" (29.97 ċm x 22.86 ċm x 26.34 ċm) |
| Piż tal-oġġett | 8.36 pounds (3.8 Kilograms) per speaker |
| Dijametru tal-Woofer | 6.5 Pulzier (16.51 ċm) |
| Dijametru tat-Tweeter | 25 Millimetru |
| Rispons ta' Frekwenza | 54Hz - 20kHz |
| Immaniġġjar tal-Enerġija | 10-125 Watts (Recommended AmpQawwa lifier) |
| Qawwa massima tal-Ħruġ | 250 Watts |
| Impedenza | 6 Ohm |
| Teknoloġija tal-Konnettività | Bil-fili |
| Tip ta 'Immuntar | Wall Mount (with 180-degree rotation) |
| Waterproof | Iva |
| UPC | 637203028809 |

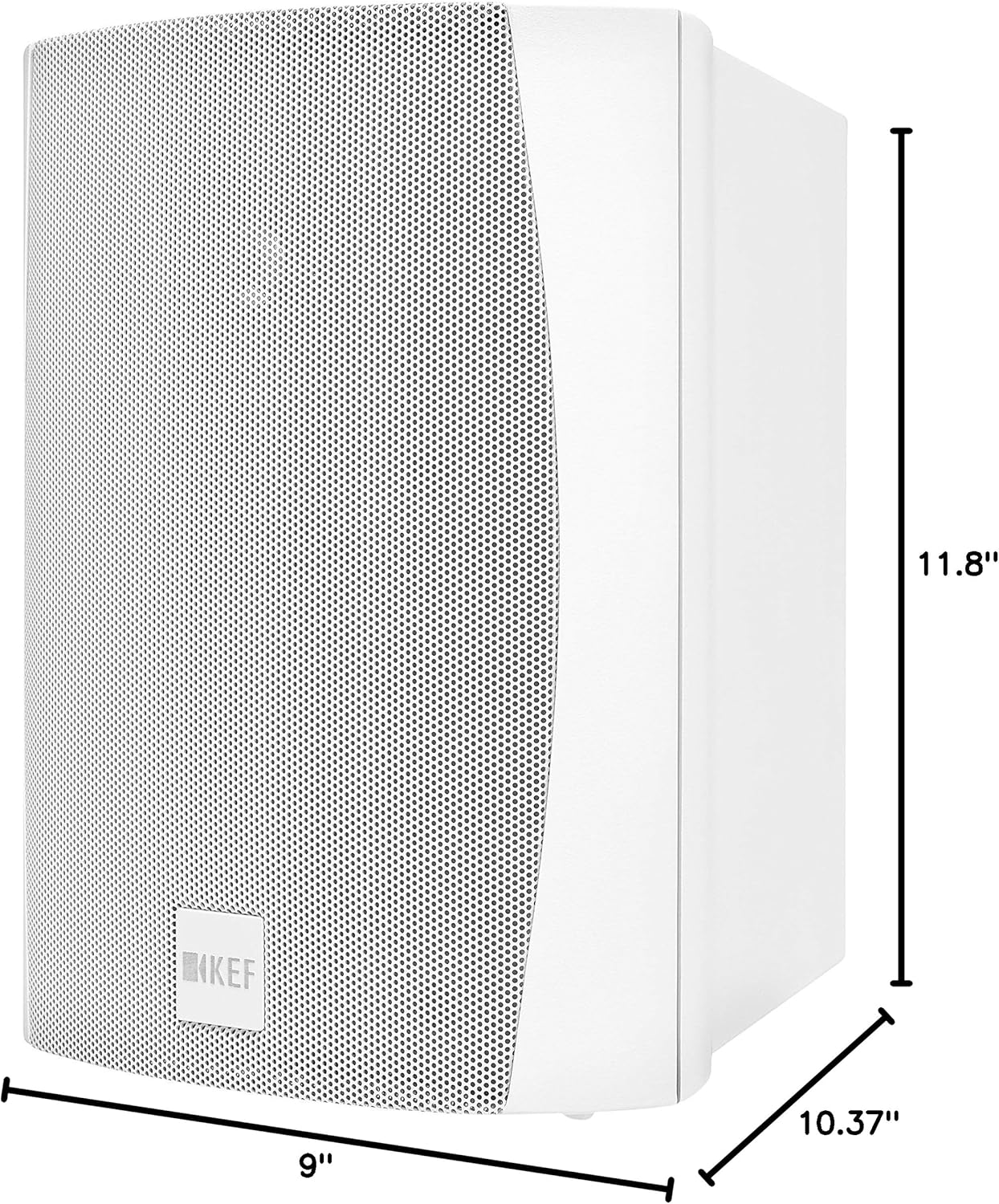

Image: A KEF Ventura 6 speaker with overlaid dimensions, indicating a height of 11.8 inches, width of 9 inches, and depth of 10.37 inches.
Informazzjoni dwar Garanzija
The KEF Ventura 6 Outdoor All-Weather Loudspeakers come with a Garanzija Limitata. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official KEF websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
Appoġġ għall-Klijent
For further assistance, technical support, or service inquiries, please visit the official KEF website or contact their customer service department. You can find contact information and FAQs on their support pages.
Uffiċjal tal-KEF Websit: www.kef.com
