1. Introduzzjoni
This manual provides essential information for the proper handling, installation, maintenance, and troubleshooting of your TIMKEN 3720 Wheel Bearing. Adhering to these instructions will help ensure the longevity and optimal performance of the product. For safety and proper function, it is recommended that installation be performed by a qualified professional.
2. Prodott Aktarview
The TIMKEN 3720 Wheel Bearing is a precision-engineered component designed to facilitate the smooth and quiet rotation of vehicle wheels. Constructed from durable alloy steel, it is built to withstand the demands of automotive applications, offering long-term reliability and improved performance.
Karatteristiċi ewlenin:
- Designed to allow car wheels to spin smoothly and quietly.
- Helps maintain proper oil clearance within the assembly.
- Reduces friction between moving parts, enhancing efficiency.
- Offers long-term reliability for consistent performance.
- Improves overall vehicle performance and increases tire life.
Figura 1: The Timken 3720 Wheel Bearing. This image displays the Timken 3720 Wheel Bearing, a precision-engineered component designed for automotive applications. It features a robust metal construction with a distinct inner race and outer race, separated by a black seal or ring. The bearing number '3720' and 'TIMKEN' brand name are visible on the side.
3. Setup u Installazzjoni
Proper installation is crucial for the performance and safety of the wheel bearing. Incorrect installation can lead to premature failure, noise, and potential safety hazards. It is strongly recommended to have this component installed by a certified automotive technician.
Linji Gwida Ġenerali dwar l-Installazzjoni:
- Is-Sigurtà l-Ewwel: Always use appropriate personal protective equipment (PPE) such as safety glasses and gloves. Ensure the vehicle is securely supported on jack stands.
- Spezzjoni tal-Komponent: Before installation, carefully inspect the new TIMKEN 3720 Wheel Bearing for any signs of damage or manufacturing defects.
- Indafa: Ensure all mating surfaces on the vehicle (e.g., spindle, hub) are thoroughly cleaned and free of rust, dirt, or old grease.
- Lubrikazzjoni: Apply a compatible lubricant, such as automotive grease, to the bearing surfaces as specified by the vehicle manufacturer or bearing type.
- Tagħsir: Use a hydraulic press or appropriate bearing installation tools to press the bearing into place. Never use a hammer directly on the bearing races, as this can cause damage.
- Speċifikazzjonijiet tat-torque: Tighten all fasteners to the vehicle manufacturer's specified torque values. Over-tightening or under-tightening can lead to bearing failure.
- Kontroll Finali: After installation, rotate the wheel by hand to ensure smooth operation and check for any abnormal noises or resistance.
Nota: Specific installation procedures vary by vehicle make and model. Always refer to the vehicle's service manual for detailed instructions.
4. Prinċipji Operattivi
The TIMKEN 3720 Wheel Bearing functions as a critical interface between the stationary axle and the rotating wheel. Its primary role is to reduce friction, allowing the wheel to spin freely and efficiently while supporting the vehicle's weight and handling radial and axial loads. The internal design, typically a ball bearing type, ensures smooth rotation and durability under various driving conditions.
5. Manutenzjoni
While wheel bearings are designed for long service life, periodic inspection and proper maintenance can extend their lifespan and prevent unexpected failures.
Prattiki ta' Manutenzjoni Rakkomandati:
- Spezzjoni regolari: During tire rotations or brake service, inspect wheel bearings for signs of wear, such as excessive play, noise, or grease leakage.
- Lubrikazzjoni: For serviceable bearings, ensure they are properly greased with a compatible automotive grease at recommended intervals. The TIMKEN 3720 is designed for use with grease.
- Evita l-Kontaminazzjoni: Protect bearings from water, dirt, and other contaminants, which can degrade lubricant and cause premature wear.
- Torque xieraq: Ensure axle nuts and other fasteners related to the wheel bearing assembly remain at the manufacturer's specified torque.
6 Issolvi l-problemi
Common issues associated with wheel bearings often manifest as noise or abnormal wheel movement. Below are some typical symptoms and their potential causes.
| Sintomu | Kawża Potenzjali | Azzjoni |
|---|---|---|
| Humming, growling, or grinding noise from wheel | Worn or damaged bearing, lack of lubrication, improper installation | Inspect bearing for play, check for proper lubrication, consider replacement. |
| Loose steering or excessive wheel play | Worn bearing, loose axle nut | Check for bearing play, verify axle nut torque. |
| Vibration in steering wheel or vehicle | Severely worn bearing, unbalanced wheel, other suspension issues | Inspect bearing, check wheel balance, consult a technician. |
| Ilbes irregolari tat-tajers | Excessive bearing play, alignment issues | Check bearing for play, perform wheel alignment. |
If you experience any of these symptoms, it is advisable to have your vehicle inspected by a qualified mechanic promptly to prevent further damage or safety risks.
7. Speċifikazzjonijiet
Detailed specifications for the TIMKEN 3720 Wheel Bearing are provided below:
- Ditta: TIMKEN
- Numru tal-Mudell: 3720
- Bearing Number: 3720
- Materjal: Azzar Liga
- Tip ta' Bearing: Ball Bearing
- Compatible Lubricant: Griż
- Dimensjonijiet tal-oġġett (L x W x H): 4.1 x 4.1 x 1.4 pulzieri
- Piż tal-oġġett: 0.64 Libbra (madwar 10.2 uqija)
- Ħxuna tal-oġġett: 1.87 Pulzier
- Speċifikazzjoni sodisfatta: Automotive Ball Bearing Standard
- Numru tal-Parti tal-Manifattur: 3720
- UPC: 053893129792

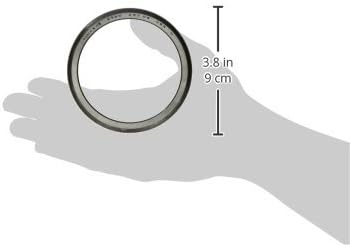

Figura 2: Approximate dimensions of the Timken 3720 Wheel Bearing. This image illustrates the approximate size of the Timken 3720 Wheel Bearing when held in a hand. An overlay indicates a height of 3.8 inches (9 cm), providing a visual reference for its compact dimensions.
8. Garanzija u Appoġġ
For information regarding the warranty of your TIMKEN 3720 Wheel Bearing, please refer to the documentation provided with your purchase or contact TIMKEN customer support directly. TIMKEN is committed to providing high-quality products and support.
TIMKEN Customer Support: Please visit the official TIMKEN website or contact their authorized distributors for technical assistance, warranty claims, or additional product information.
