Barkan Full Motion TV Mount Wall Mount

Introduzzjoni

This manual provides detailed instructions for the safe and proper installation and operation of your Barkan Full Motion TV Wall Mount, Model 3300.B. This articulating wall mount is designed for 13-65 inch flat and curved screen televisions, supporting a maximum weight of 88 lbs (40 kg). Please read all instructions carefully before beginning installation.

Informazzjoni dwar is-Sigurtà

• Kapaċità tal-piż: Teċċedix il-kapaċità massima tal-piż ta' 88 lbs (40 kg). Jekk taqbeż dan il-limitu jista' jirriżulta fi korriment serju jew ħsara lill-proprjetà.
• Daqs tal-iskrin: This mount is compatible with 13-65 inch screens. Ensure your TV's VESA pattern and weight are within the specified limits.
• Tip ta' Ħajt: Install the mount only on solid concrete walls, concrete block walls, or wood stud walls. MA install on drywall, gypsum, or plaster without wood studs.
• Installazzjoni professjonali: Jekk m'intix ċert dwar il-proċess tal-installazzjoni jew it-tip ta' ħajt, ikkonsulta professjonist kwalifikat.
• Għodod: Use appropriate tools and wear safety glasses during installation.
• Tfal: Żomm lit-tfal 'il bogħod miż-żona tal-installazzjoni.
• Iċċekkja l-Konnessjonijiet: Regularly check that all screws and connections are secure.

Kontenut tal-Pakkett

Verify that all components are present before installation. If any parts are missing or damaged, do not proceed with installation and contact Barkan support.

• Assemblea tal-Muntanja tal-Ħajt tat-TV
• Istruzzjonijiet tal-Armar (dan id-dokument)
• Kit tal-Ħardwer (diversi viti, ankri, woxers, spacers)
• Istruzzjonijiet tas-Sigurtà

Image: Barkan Full Motion TV Wall Mount and its retail packaging.

Immaġni: Dettaljata view of the Barkan Hardware Kit, including wall screws, wall anchors, M8, M6, M4 TV mounting screws, metal washers, and plastic spacers.

Speċifikazzjonijiet

Image: Diagram illustrating the mount's full motion capabilities, including tilt, swivel, leveling, and extension from the wall, with key dimensions.

Image: Detailed specifications and a diagram showing VESA backscreen connection points and mount dimensions.

Setup u Installazzjoni

Għodod Meħtieġa

• Drill (1/4" - 6mm, 3/8" - 10mm bits for concrete/wood, 5/32" - 4mm for wood)
• Livell
• Nuċċalijiet tas-Sigurtà
• Stud Finder (għall-installazzjoni ta' studs tal-injam)

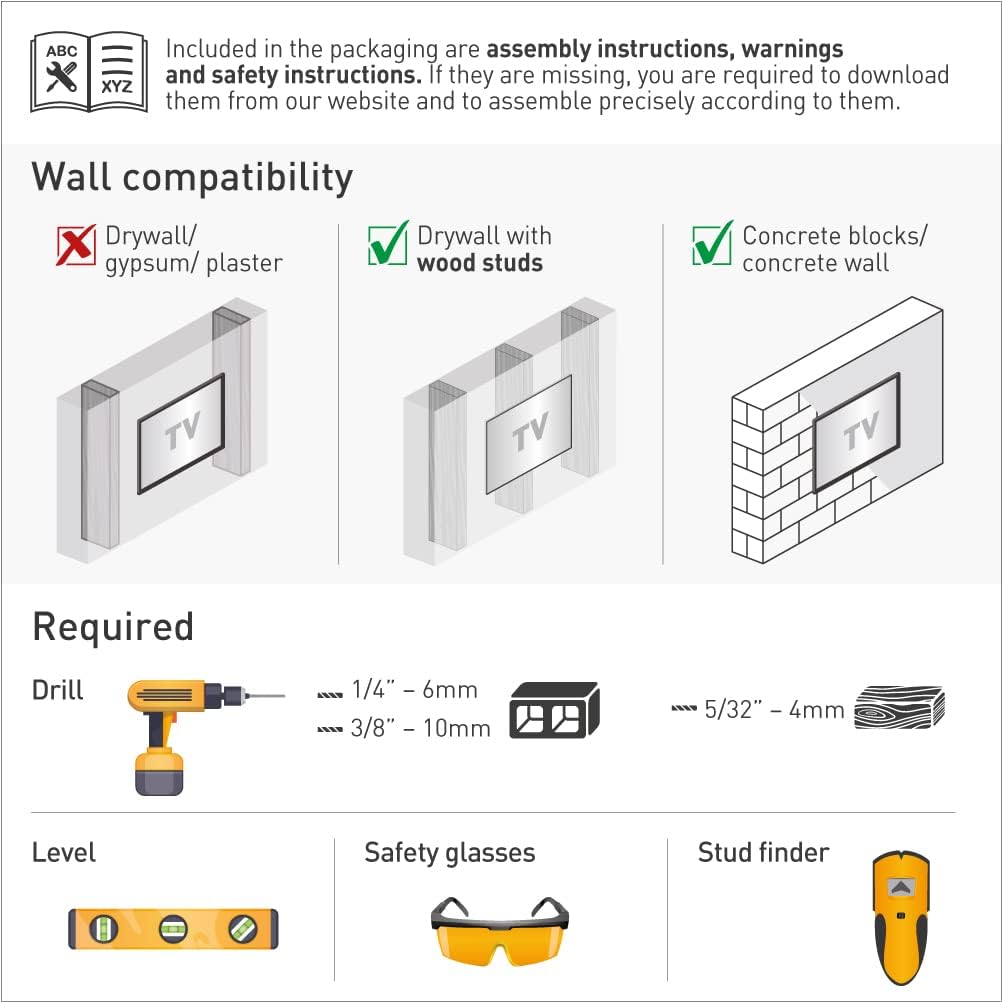

Image: Illustration of required tools for installation and diagrams showing compatible wall types.

Kompatibilità tal-ħajt

Ensure your wall is suitable for mounting. This mount is compatible with:

• Drywall bi studs tal-injam
• Blokki tal-konkrit / Ħajt tal-konkrit

MHUX kompatibbli ma': Drywall / gypsum / plaster without wood studs.

Assembly Steps (1-2-3)

1. Connect the TV plate to the back of the TV: Attach the TV plate to the VESA mounting holes on the back of your television using the appropriate screws, washers, and spacers from the hardware kit. Ensure a secure fit.
2. Install the bracket on the wall: Locate the desired mounting position. Use a stud finder for wood studs or mark drill points for concrete. Drill pilot holes and securely fasten the wall bracket to the wall using the provided wall screws and anchors. Use a level to ensure the bracket is straight.
3. Snap the TV onto the bracket: Carefully lift the television (with the attached TV plate) and align it with the wall bracket. Snap the TV plate onto the wall bracket. Ensure the safety mechanism is engaged to prevent accidental disengagement.

Image: Visual guide for the three-step assembly process: attaching the TV plate, installing the wall bracket, and snapping the TV onto the bracket.

Backscreen Connection Positioning

The mount supports various VESA patterns. Refer to the diagram to determine the correct positioning for your TV's backscreen connections. Adapters may be required for certain configurations.

Image: Multiple diagrams illustrating different VESA backscreen connection patterns and how the mount's arms can be configured.

Kompatibilità tat-Tip tal-Iskrin

This mount is designed to accommodate both flat and curved screen televisions.

Image: Illustrations demonstrating how the mount fits both flat and curved screen televisions.

Istruzzjonijiet Operattivi

Once installed, your Barkan Full Motion TV Wall Mount allows for flexible viewing adjustments:

• Tilt Adjustment (0° to 15°): Loosen the tilt adjustment screws on the TV plate, adjust the screen to your desired vertical angle, and then securely tighten the screws.
• Swivel Adjustment (180°): Gently push or pull the TV to rotate it horizontally to the left or right. The mount allows for a 180-degree swivel range.
• Screen Leveling (±5°): If the screen appears slightly unlevel after installation, adjust the leveling mechanism on the TV plate to achieve a perfectly horizontal display.
• Extension from Wall (2.6" to 10.4"): Extend or retract the TV from the wall by gently pulling or pushing the arm assembly.

Image: Visual representation of the mount's adjustable features, including distance from wall, tilt, and screen leveling.

Manutenzjoni

To ensure the longevity and safe operation of your TV wall mount:

• Spezzjoni regolari: Iċċekkja perjodikament il-viti u l-konnessjonijiet kollha tal-immuntar biex tiżgura li jibqgħu ssikkati u siguri.
• Tindif: Wipe the mount with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
• Lubrikazzjoni: The articulating joints are designed for smooth movement. If movement becomes stiff, a small amount of silicone-based lubricant can be applied to the pivot points.

Issolvi l-problemi

• It-TV mhux livellat: Use the screen leveling adjustment feature (±5°) to correct the horizontal alignment. Ensure the wall bracket was installed level.
• Diffikultà biex iċċaqlaq it-TV: Check if any cables are snagged or if the tilt/swivel screws are overtightened. Apply a small amount of silicone lubricant to the joints if necessary.
• Il-muntatura tħossha instabbli: Immediately remove the TV from the mount. Re-check all wall and TV connections. Ensure the mount is installed on a compatible wall type and that all screws are fully tightened. Do not re-mount the TV until stability is confirmed.
• Ħardwer nieqes: Refer to the package contents list. If parts are missing, contact Barkan customer support.

Garanzija u Appoġġ

Barkan products are designed for quality and durability. This product includes a Garanzija tul il-ħajja. For technical assistance, missing parts, or warranty claims, please visit the official Barkan website or contact their customer service team. Detailed contact information can typically be found on the Barkan webis-sit jew fuq l-imballaġġ tal-prodott.

Image: Features highlighting the lifetime warranty, patented design, and safety aspects of the Barkan mount.
