SuperSprings SSA17 Instruction Manual

1. Prodott Aktarview

The SuperSprings SSA17 is a unique, patented self-adjusting suspension stabilizing system specifically designed for vehicles equipped with rear leaf springs. This system is engineered to effectively level loads and significantly reduce body roll without compromising the vehicle's ride quality. Manufactured in the U.S.A. from high-grade SAE5160H shot-peened steel, SuperSprings are built for durability and performance across various applications.

Image 1.1: SuperSprings SSA17 Helper Springs

Karatteristiċi ewlenin:

• Sold as a pair (left and right).
• Maintenance-free design.
• Self-adjusting suspension stabilizing system.
• Provides up to 4400 lb. of additional load-leveling ability.
• Reduces body roll by up to 30% without negatively impacting ride quality.
• Vehicle-specific fitment ensures optimal performance.

2. Kompatibilità tal-Vettura

The SSA17 SuperSprings are designed for specific vehicle models to ensure proper fit and optimal performance. Please verify your vehicle's compatibility before installation.

Image 2.1: Vehicle Compatibility for SSA17 SuperSprings

Vetturi Kompatibbli:

• 2003-2009 C4500/C5500 Kodiak/Topkick 2WD
• 2009-2025 Express/Savana 4500 2WD
• 1999-2025 F450/F550 & 2019-2025 F600

3. Benefiċċji tal-Prodott

SuperSprings SSA17 offers several benefits to enhance your vehicle's performance and driving experience:

Image 3.1: Works alongside existing suspension components to provide a smoother and more controlled ride.

Image 3.2: Designed for straightforward installation with no special tools or ongoing maintenance required.

Image 3.3: By reducing unwanted movement in the suspension system, it contributes to a safer and more comfortable driving experience.

Image 3.4: Helps improve vehicle stability by minimizing sway, especially during turns or when carrying heavy loads.

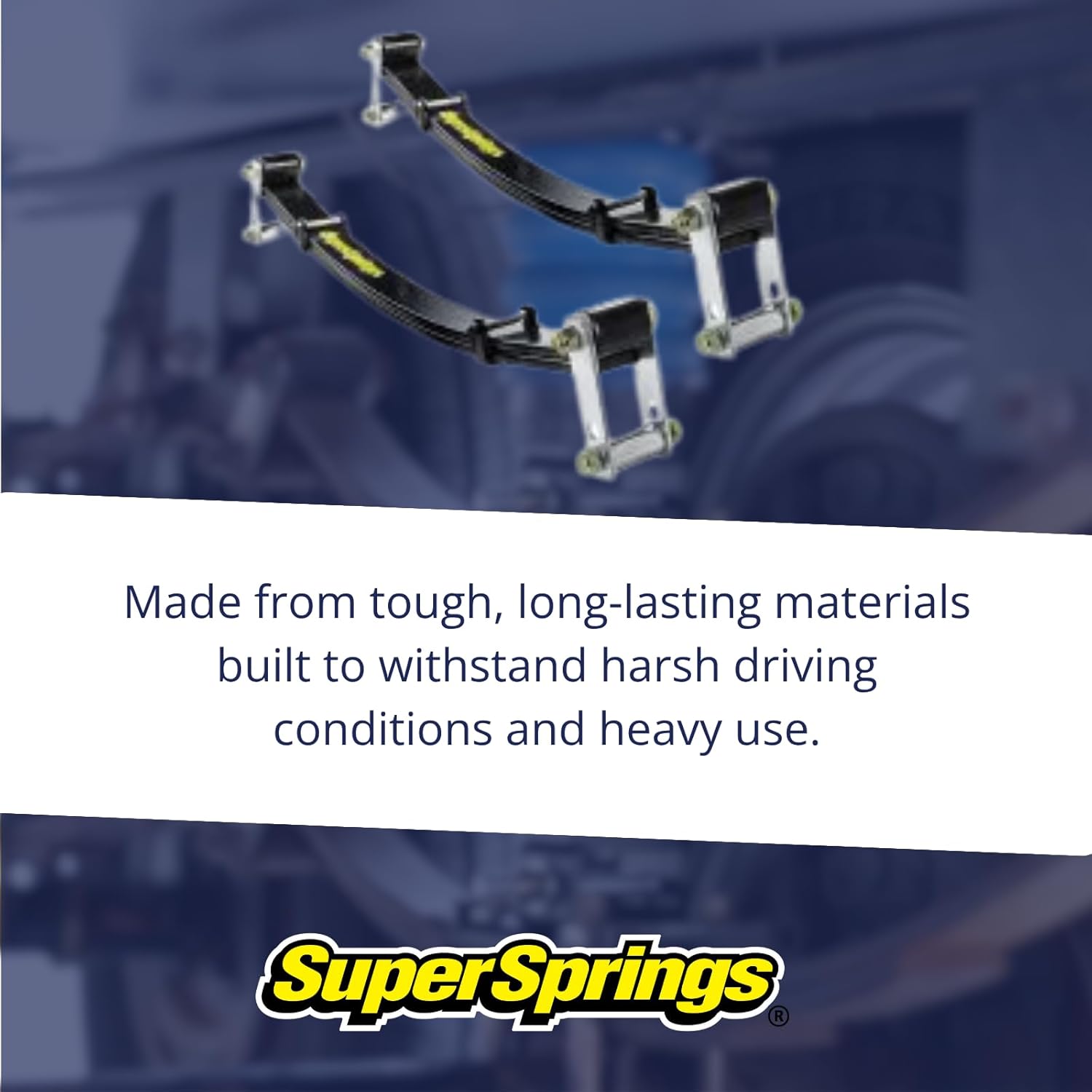

Image 3.5: Made from tough, long-lasting materials built to withstand harsh driving conditions and heavy use.

4. Istruzzjonijiet ta 'installazzjoni

This section provides a general guide for installing the SuperSprings SSA17. For detailed visual instructions, please refer to the installation video below. It is recommended that installation be performed by a qualified technician or individuals with appropriate mechanical experience and tools.

Gwida pass pass:

1. Ipprepara l-Vettura: Start by safely jacking the vehicle by the frame until the wheels are just off the ground. Ensure the vehicle is stable and secure before proceeding.
2. Install PSP Pad: Place the provided PSP pad over the center bolts of the leaf spring assembly, ensuring the small nubs are facing up.
3. Prepare SuperSprings: Remove the roller bolts and sleeves from both ends of the SuperSprings.
4. Position SuperSprings: Place the SuperSprings onto the existing leaf spring assembly.
5. Attach U-Bolt Mechanism: Loosely attach the U-bolt hold-down mechanism with the small plate and bolts.
6. Adjust SuperSprings: Adjust the SuperSprings forward to achieve the desired position.
7. Compress and Insert Bolts: Compress the SuperSprings enough to allow you to insert the roller bolt and sleeve into the end brackets. A SuperClamp (ITL-1) is available for purchase from supersprings.com to assist with this step. Repeat this step for both sides.
8. Żgura t-Tneħħija: Before tightening any bolts, ensure you have as much clearance as possible between the perch and the spring eye.
9. Issikka l-Boltijiet: Place bolts in the center holes as instructed. The top bolts come pre-tightened and should not be tightened further. Tighten the lower bolt until the inner sleeve is taut. Finish by tightening all remaining bolts securely.

5. Operazzjoni

SuperSprings SSA17 are designed to operate passively, working in conjunction with your vehicle's existing leaf spring suspension. They are self-adjusting, meaning they engage automatically as the load on your vehicle increases, providing additional support and stability when needed. When the load is reduced, the SuperSprings disengage, allowing your vehicle's original suspension to function normally, thus maintaining ride comfort.

The primary function is to enhance load-carrying capability, reduce body roll, and improve overall vehicle stability, especially when towing or hauling heavy loads. No manual adjustments are required during operation.

6. Manutenzjoni

The SuperSprings SSA17 are designed to be maintenance-free. No lubrication, adjustments, or regular servicing is required after proper installation. The high-grade steel and robust construction ensure long-term durability under various driving conditions.

7 Issolvi l-problemi

If you experience any issues after installing your SuperSprings SSA17, consider the following:

• Installazzjoni mhux xierqa: Review the installation instructions and video carefully to ensure all steps were followed correctly, particularly regarding bolt tightening and clearance.
• Twaħħil mhux korrett: Double-check that the SSA17 model is indeed compatible with your specific vehicle make, model, and year.
• Ħsejjes mhux tas-soltu: Ensure all bolts are tightened to the manufacturer's specifications. Loose components can cause rattling or squeaking.

For persistent issues or concerns, please contact SuperSprings customer support for assistance.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Informazzjoni dwar il-garanzija:

SuperSprings products, including the SSA17, typically come with a Limited Lifetime Warranty. Additionally, a 30-Day Money Back Guarantee may be offered. Please refer to the official SuperSprings webis-sit jew id-dokumentazzjoni tax-xiri tiegħek għall-aktar termini u kundizzjonijiet tal-garanzija attwali u dettaljati.

Appoġġ għall-Klijent:

For any questions, technical assistance, or support regarding your SuperSprings SSA17, please contact SuperSprings International Inc. customer service. Contact details can typically be found on the official SuperSprings websit jew permezz tal-bejjiegħ tal-prodott tiegħek.
