This manual provides essential information for the safe and effective use of the Sperry Instruments VC61000 Volt Check Voltage & Continuity Tester. This heavy-duty, multi-function tool is designed to indicate voltage levels, test continuity, and allow non-contact AC voltage detection. It features Smart Meter Technology, automatically adjusting to the required application without manual dial adjustments. Please read this manual thoroughly before operation and retain it for future reference.

Informazzjoni Importanti dwar is-Sigurtà

WARNING: Electrical shock hazard. Always exercise extreme caution when working with electrical circuits. Failure to follow safety precautions can result in serious injury or death.

• Dejjem assumi li ċ-ċirkwiti huma ħajjin sakemm jiġi vverifikat mod ieħor.
• Ilbes tagħmir protettiv personali (PPE) xieraq, inklużi nuċċalijiet tas-sigurtà u ingwanti iżolati.
• Do not use the tester if it appears damaged or if the test leads are frayed or broken.
• Ensure the tester's CAT rating (CAT IV 600V/CAT III 1000 V) is suitable for the application.
• Żomm subgħajk wara l-protezzjonijiet tas-swaba' fuq il-probes tat-test waqt l-użu.
• Propożizzjoni 65 Twissija: Dan il-prodott jista' jesponik għal kimiċi magħrufa mill-Istat ta' California li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra. Għal aktar informazzjoni, żur www.P65Warnings.ca.gov.

Karatteristiċi tal-Prodott

The Sperry Instruments VC61000 Volt Check Tester offers a range of features designed for reliability and ease of use:

• Voltage Indikazzjoni: Indicates AC/DC voltage levels from 6V to 600V.
• Ittestjar tal-kontinwità: Provides continuity indication.
• Mhux Kuntatt AC Voltage Detection (Circuit Alert): Integrated sensor in the tip detects AC voltage (50-600V AC) without direct contact.
• Smart Meter Technology: Automatically adjusts to the required application (voltage, continuity, or range) without manual dial adjustments.
• DC Polarity Indication: Clearly shows the polarity of DC voltage.
• Dahar manjetiku: Allows the tester to attach to electrical panels, freeing hands during testing.
• Kostruzzjoni Durabbli: Engineered for demanding environments with a 10-foot drop rating and 250-pound crush rating.
• Sta-Flex Cold Weather Leads: 26-inch leads designed to remain flexible in cold temperatures, with strain reliefs for durability.
• Integral Probe Storage: Probes snap into the unit for compact storage and are spaced to fit standard outlets for one-handed operation.

Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha huma preżenti meta tiftaħ il-pakkett:

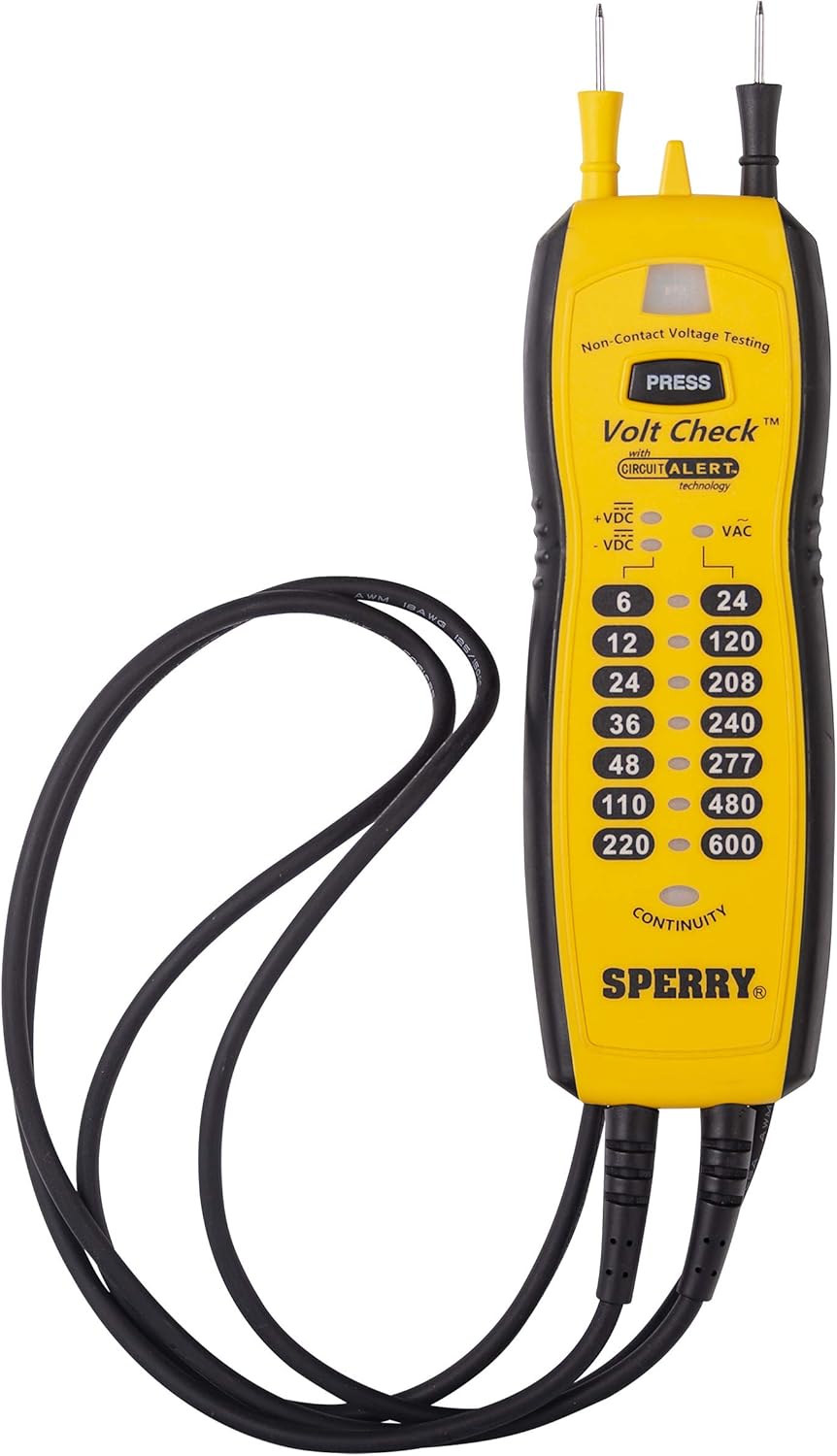

• Sperry Instruments VC61000 Volt Check VoltagE & Kontinwità Tester
• 3 Batteriji AAA (installati minn qabel jew inklużi separatament)

Setup

Installazzjoni tal-batterija

1. Locate the battery compartment cover on the back of the tester.
2. Uża tornavit biex tneħħi l-kamin li jżomm l-għatu.
3. Insert three (3) AAA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
4. Ibdel l-għatu tal-kompartiment tal-batterija u waħħalha bil-kamin.

Iċċekkja Inizjali

Before each use, it is recommended to test the unit on a known live circuit to ensure proper functionality.

Istruzzjonijiet Operattivi

1. Titjiratage Testing (AC/DC)

The VC61000 automatically detects AC or DC voltage and displays the approximate level using LED indicators.

1. Ensure the test leads are securely connected to the tester.
2. Carefully touch the tips of the test probes to the circuit points you wish to measure. For outlets, the probes are spaced to fit directly into the slots.
3. Observe the illuminated LEDs on the tester. The highest illuminated LED indicates the approximate voltaglivell e.
4. Għal DC voltage, the +/- VDC indicators will show the polarity.

2. Ittestjar ta' Kontinwità

The tester can determine if a circuit or component has a continuous electrical path.

1. Ensure the circuit or component is de-energized before performing a continuity test.
2. Touch the tips of the test probes to the two points you wish to test for continuity.
3. If continuity is present, the "CONTINUITY" LED indicator will illuminate.

3. Mhux Kuntatt AC Voltage Detection (Circuit Alert)

This feature allows for quick detection of live AC voltage without direct contact with conductors.

1. Press and hold the "PRESS" button located near the tip of the tester.
2. Move the tip of the tester close to the conductor, outlet, or circuit breaker you suspect is live.
3. Jekk AC voltage is detected, the tip will illuminate, and an audible alert will sound.
4. Release the "PRESS" button to turn off the non-contact detection feature.

4. Using the Magnetic Back

The integrated magnets on the back of the tester allow for hands-free operation when working near metallic surfaces like electrical panels.

Manutenzjoni

Tindif

Wipe the tester and leads with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is dry before storage or next use.

Sostituzzjoni tal-batterija

Replace batteries when the indicators become dim or the unit fails to power on. Refer to the "Battery Installation" section under Setup for instructions.

Lead Inspection

Regularly inspect the test leads for any signs of damage, such as cuts, cracks, or frayed insulation. Damaged leads must be replaced immediately to prevent electrical shock hazards.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

Informazzjoni dwar Garanzija

Sperry Instruments products are designed for durability and reliability. This product is backed by a manufacturer's warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included with your purchase or visit the official Sperry Instruments websit.

Appoġġ għall-Klijent

Should you encounter any issues or have questions regarding the operation, maintenance, or troubleshooting of your VC61000 Volt Check Tester, please contact Sperry Instruments customer support. Contact information can typically be found on the product packaging or the official Sperry Instruments websit.
