Magnavox MPD720 7-Inch Portable DVD Player User Manual

1. Introduzzjoni

This manual provides instructions for the proper setup, operation, and maintenance of your Magnavox MPD720 7-Inch Portable DVD Player. Please read this manual thoroughly before using the device to ensure optimal performance and safety.

The Magnavox MPD720 is a portable multimedia player designed for on-the-go entertainment. It features a 7-inch widescreen LCD display and supports various media formats, including DVD, CD, MP3, and JPEG.

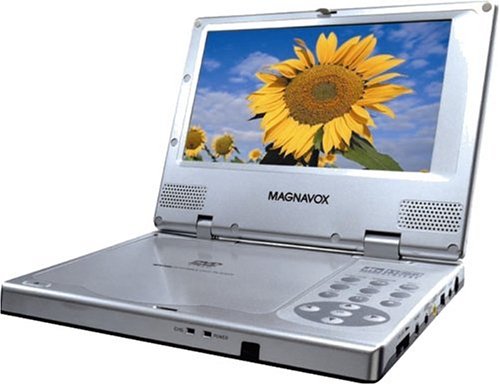

Quddiem view of the Magnavox MPD720 portable DVD player, showing the 7-inch screen and control buttons.

2. X'hemm fil-Kaxxa

Iċċekkja li l-oġġetti kollha li ġejjin huma inklużi fil-pakkett tiegħek:

• DVD player portabbli
• Kontroll mill-bogħod
• Adapter tal-enerġija AC/DC
• Adapter tal-qawwa tal-karozza
• Pakkett ta 'batteriji rikarikabbli u ċarġer
• Cable awdjo/vidjo
• Borża tal-ħażna
• Manwal tas-sid (dan id-dokument)

3. Karatteristiċi tal-prodott

• 7-inch Widescreen LCD Screen: Jipprovdi ċara viewesperjenza bi proporzjon tal-aspett 16:9.
• Multi-format Playback: Compatible with DVD, DVD-R, DVD-RW, CD, CD-R, CD-RW, VCD, MP3, and JPEG formats.
• Batterija rikarikabbli: Offers up to 3 hours of continuous playback on a full charge.
• Awdjo Integrat: Features built-in stereo speakers and a 3.5mm headphone jack for private listening.
• Konnettività versatili: Includes composite, S-video, and digital optical audio outputs for connecting to external displays or audio systems.
• Għażliet tal-Enerġija: Operates via AC/DC power adapter for home use or car power adapter for in-vehicle use.

4. Setup

4.1 Qawwa tal-Konnessjoni

Qawwa AC: Connect the AC/DC power adapter to the DC IN jack on the player and then plug the adapter into a standard wall outlet.

Car Power: For in-vehicle use, connect the car power adapter to the DC IN jack on the player and plug the other end into your vehicle's 12V accessory socket (cigarette lighter).

4.2 Iċċarġjar tal-batterija

The included rechargeable battery pack provides portable power. Before first use, fully charge the battery. Connect the player to AC power as described above. The charging indicator light will illuminate. Charging typically takes several hours. The player can be used while charging.

4.3 Konnessjoni ma' Televiżjoni

Biex view content on a larger screen, connect the portable DVD player to a television using the appropriate cables:

• Vidjow kompost: Use the supplied audio/video cable. Connect the yellow plug to the video input (usually yellow) on your TV, and the red and white plugs to the corresponding audio inputs (red for right, white for left).
• Vidjo S: If your TV has an S-video input, use an S-video cable (not included) for improved picture quality. Connect the S-video cable to the S-VIDEO OUT jack on the player and the S-video input on your TV. You will still need to connect the audio cables (red and white) for sound.
• Awdjo Ottiku Diġitali: For surround sound, connect a digital optical cable (not included) from the DIGITAL OPTICAL OUT jack on the player to a compatible audio receiver.

Select the correct input source on your television (e.g., AV1, Video 1, S-Video) to display the player's output.

5. Istruzzjonijiet Operattivi

5.1 Basic Playback (DVD/CD/MP3/JPEG)

1. Qawwa Mixgħul: Press the POWER button on the player or remote control.
2. Daħħal Diska: Gently open the disc compartment cover and place a disc (DVD, CD, etc.) onto the spindle with the label side facing up. Close the cover securely.
3. Daqq Awtomatiku: The player will typically detect the disc type and begin playback automatically. For DVDs, a menu may appear.
4. Navigazzjoni: Use the directional buttons (Up, Down, Left, Right) and the ENTER/PLAY button on the player or remote to navigate menus and select options.
5. Kontrolli tal-daqq: Use the PLAY/PAUSE, STOP, FAST FORWARD, REWIND, and SKIP buttons for media control.
6. Aġġustament tal-Volum: Adjust the volume using the VOL +/- buttons on the player or remote.
7. Headphones: Plug headphones into the HEADPHONE jack for private listening. This will mute the built-in speakers.

5.2 L-użu tal-Kontroll mill-bogħod

The remote control provides full functionality for the player. Ensure there are fresh batteries installed. Point the remote control directly at the infrared sensor on the front of the DVD player for optimal response.

5.3 Aġġustament tas-Settings

Access the system setup menu by pressing the SETUP button on the remote control. From this menu, you can adjust various settings such as display options, audio preferences, language, and parental controls. Use the directional buttons to navigate and ENTER to confirm selections.

6. Manutenzjoni

6.1 Tindif

• Skrin: Uża drapp artab u mingħajr suf biex timsaħ bil-mod l-iskrin LCD. Għal tbajja' persistenti, neħħi ftitampLaħlaħ id-drapp bl-ilma jew b'soluzzjoni għat-tindif tal-iskrin. Evita kimiċi ħarxa.
• Player Body: Imsaħ il-parti ta' barra tal-plejer b'ċarruta ratba u niexfa.
• Trej tad-Diska: Keep the disc compartment clean and free of dust. Do not use compressed air directly into the disc mechanism.

6.2 Kura tal-Batterija

• Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja kompletament il-batterija ta' spiss.
• Store the player in a cool, dry place when not in use for extended periods.
• If the player will not be used for a long time, charge the battery periodically (e.g., every 3-6 months) to maintain its capacity.

7 Issolvi l-problemi

If you encounter issues with your Magnavox MPD720, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided at the time of purchase or contact Magnavox customer support. Warranty terms typically cover manufacturing defects for a specified period.

If you require further assistance or technical support beyond the troubleshooting steps provided in this manual, please visit the official Magnavox website or contact their customer service department. Keep your purchase receipt and product model number (MPD720) readily available when seeking support.
