SEDETA L-Shaped Electric Standing Desk User Manual

1. Prodott Aktarview

This manual provides instructions for the assembly, operation, and maintenance of your SEDETA L-Shaped Electric Standing Desk. This desk is designed to offer a versatile workspace with adjustable height, integrated storage, and convenient power access.

Karatteristiċi ewlenin:

• Desktop spazjuż f'forma ta' L: Jipprovdi ample surface area for multiple monitors and office equipment.
• Ħażna Integrata: Features 6 large drawers (3 on each side) for organized storage of documents and supplies.
• Aġġustament Elettriku tal-Għoli: Smooth and quiet motor for effortless transitions between sitting and standing positions (28.3" to 47.2").
• Presets tal-memorja: Three programmable memory height settings for quick adjustments.
• Ħwienet tal-Enerġija Inkorporati: Includes 4 AC outlets (120V/12A) and 2 USB ports (5V/2A) with a 6.5-foot power cord.
• Kostruzzjoni Durabbli: Heavy-duty steel frame supports up to 200 lbs, with a scratch-resistant, FSC-certified engineered wood desktop.

Image 1.1: The SEDETA L-Shaped Electric Standing Desk in a home office environment.

2. Informazzjoni dwar is-Sigurtà

• Aqra l-istruzzjonijiet kollha bir-reqqa qabel l-assemblaġġ u l-użu.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-iskrivanija waqt l-operazzjoni.
• Ensure all cables are properly managed to prevent tripping hazards and entanglement during height adjustments.
• Do not overload the desk. The maximum load capacity is 200 lbs (90.7 kg).
• Avoid placing liquids directly on the desk surface, especially near power outlets.
• Tippruvax tiżżarma jew issewwi l-mutur jew is-sistema ta' kontroll int stess. Ikkuntattja l-appoġġ għall-klijenti għall-għajnuna.
• Kun żgur li l-iskrivanija titqiegħed fuq wiċċ livell.

3. Istruzzjonijiet tal-Assemblea

The SEDETA L-Shaped Electric Standing Desk ships in two boxes and includes all necessary hardware and an installation manual. Follow the detailed instructions provided in the separate installation manual for proper assembly.

3.1. Qabel ma Tibda:

• Unpack all components and verify against the parts list in the installation manual.
• Kun żgur li għandek biżżejjed spazju għall-assemblaġġ.
• Iġbor kwalunkwe għodda addizzjonali li tista' tkun meħtieġa (eż., tornavit, jekk mhux inkluż).

3.2. Key Assembly Steps (Refer to separate manual for details):

1. Assemble the desk frame components.
2. Attach the lifting columns to the frame.
3. Mount the desktop sections onto the frame.
4. Install the 6 drawers into their respective cabinets.
5. Qabbad il-kejbils tal-mutur u tal-pannell tal-kontroll.
6. Install the built-in power outlet unit.

Image 3.1: Product dimensions and drawer sizes. The desk ships in two boxes.

Image 3.2: Detail of the heavy-coated steel tube frame, indicating durability and load capacity.

4. Istruzzjonijiet Operattivi

4.1. Control Panel Overview

The desk features a multi-function control panel for height adjustment and memory presets.

Image 4.1: Multi-Function Control Panel.

• Skrin Diġitali: Juri l-għoli attwali tal-iskrivanija.
• Vleġeġ 'il fuq/'l isfel (▲ / ▼): Agħfas u żomm biex taġġusta l-għoli tal-iskrivanija manwalment. Itlaq biex twaqqaf.
• Buttuni tal-Memorja (1, 2, 3): Store and recall preferred height settings.
• 'S' Button (Set): Used to save memory presets.
• 'RST' Button (Reset): Used for resetting the desk (see Troubleshooting).

4.2. Aġġustament tal-Għoli tal-Iskrivanija

• Aġġustament manwali: Press and hold the Up (▲) or Down (▼) arrow button to move the desk to your desired height. Release the button to stop. The desk height ranges from 28.3 inches to 47.2 inches.
• Użu ta' Presets tal-Memorja:
  1. To save a height: Adjust the desk to your desired height using the Up/Down arrows. Press the 'S' button, then press one of the memory buttons (1, 2, or 3) within 3 seconds. The display will show "S-1", "S-2", or "S-3" to confirm the setting is saved.
  2. To recall a height: Simply press the corresponding memory button (1, 2, or 3). The desk will automatically move to the saved height.

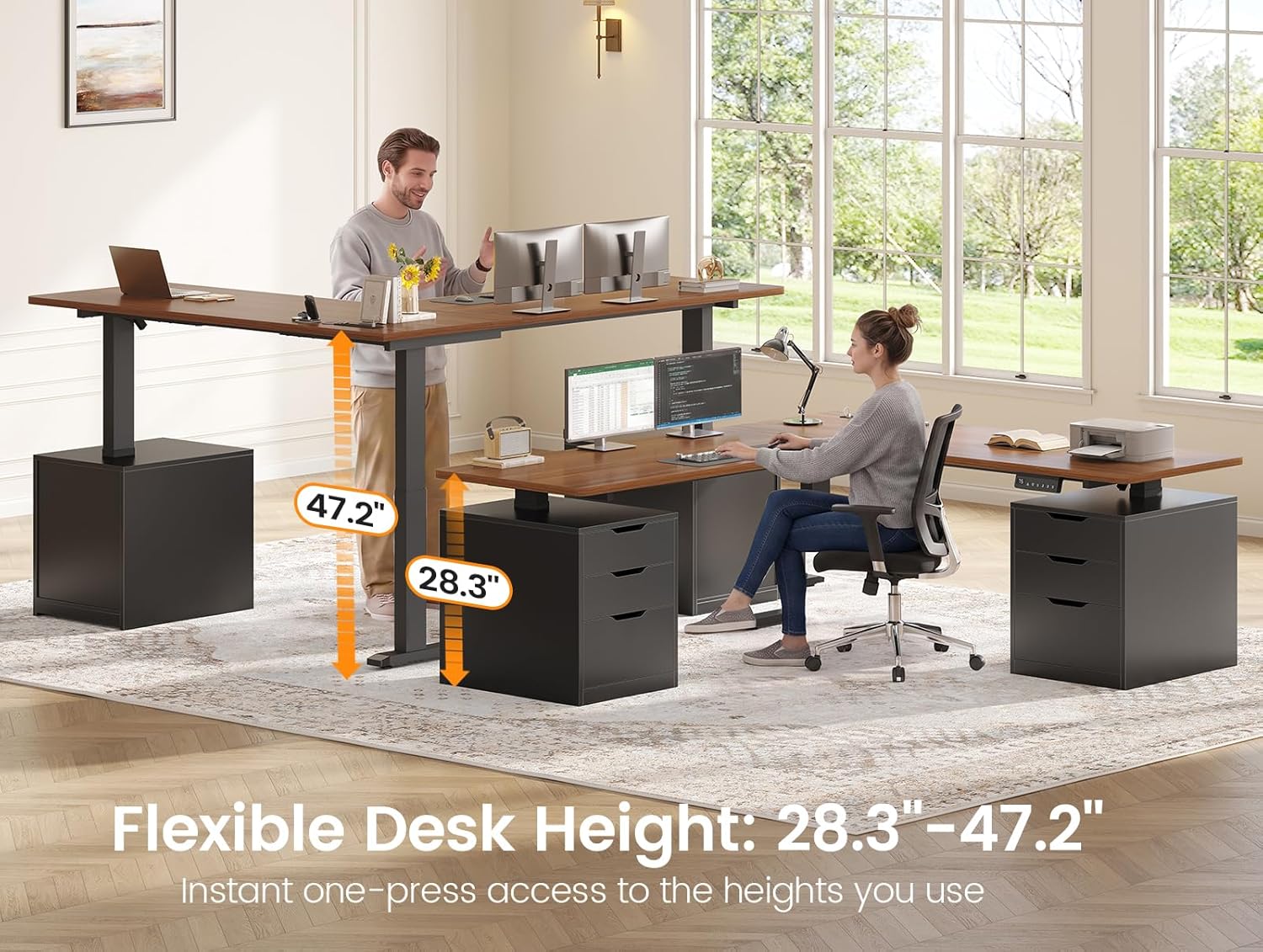

Image 4.2: Flexible desk height adjustment from 28.3" to 47.2".

4.3. Using Built-in Power Outlets

The desk includes an integrated power strip for convenient device charging.

Image 4.3: Built-in power outlet with 4 AC outlets and 2 USB ports.

• The power strip features 4 standard AC outlets (120V/12A) and 2 USB charging ports (5V/2A).
• Use the integrated switch to turn the power outlets on or off.
• Connect the desk's main power cord (6.5-foot) to a wall outlet.

4.4. Użu tal-Kxaxen

The desk features 6 spacious drawers for organizing your workspace.

Image 4.4: Organized workspace with open drawers.

• Each side of the L-shaped desk includes three drawers.
• Ensure drawers are closed before adjusting desk height to prevent items from falling.

5. Manutenzjoni

• Tindif: Imsaħ il-wiċċ tal-iskrivanija b'adamp cloth for general cleaning. For stubborn marks, use a mild cleaner. Dry immediately with a clean, dry cloth.
• Spezzjoni: Iċċekkja l-viti u l-konnessjonijiet kollha perjodikament biex tiżgura li huma ssikkati. Erġa' ssikka jekk meħtieġ.
• Ġestjoni tal-Kejbil: Regularly inspect power cords and cables for any signs of wear or damage. Replace if necessary. Ensure cables are not pinched or stretched during height adjustments.
• Kura tal-Mutur: The electric motor is designed for long-term use. Avoid continuous operation for extended periods without rest.

6 Issolvi l-problemi

If you encounter issues with your SEDETA Electric Standing Desk, refer to the following common troubleshooting steps:

6.1. Reset Proċedura

If the desk is not functioning correctly, a reset may resolve the issue:

1. Press and hold the 'RST' button on the control panel until the desk moves to its lowest position and then slightly rises.
2. Release the button. The desk is now reset.
3. If the reset fails, unplug the desk from the wall outlet for 10-15 minutes, then plug it back in and attempt the reset procedure again.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

SEDETA is committed to providing quality products and customer satisfaction.

• Garanzija: This product comes with a 3-year service commitment. For detailed warranty terms and conditions, please refer to the documentation included with your purchase or contact customer support.
• Appoġġ għall-Klijent: If you have any questions, require assistance with assembly, or experience any issues with your desk, please contact the seller, goodgoodsstore, through your purchase platform or refer to the contact information provided in your product packaging.
• Please have your purchase details and model number (Standing Desk) ready when contacting support.
