TCL 55T8D 55-inch 4K UHD Smart QLED Google TV User Manual

1. Prodott Aktarview

The TCL 55T8D is a 55-inch 4K UHD Smart QLED Google TV, designed to deliver a high-quality viewing experience. It features a 4K QLED display with a 144Hz refresh rate, powered by an AiPQ Pro Processor. The television integrates Google TV for smart functionalities, offering access to various streaming services and Google Assistant.

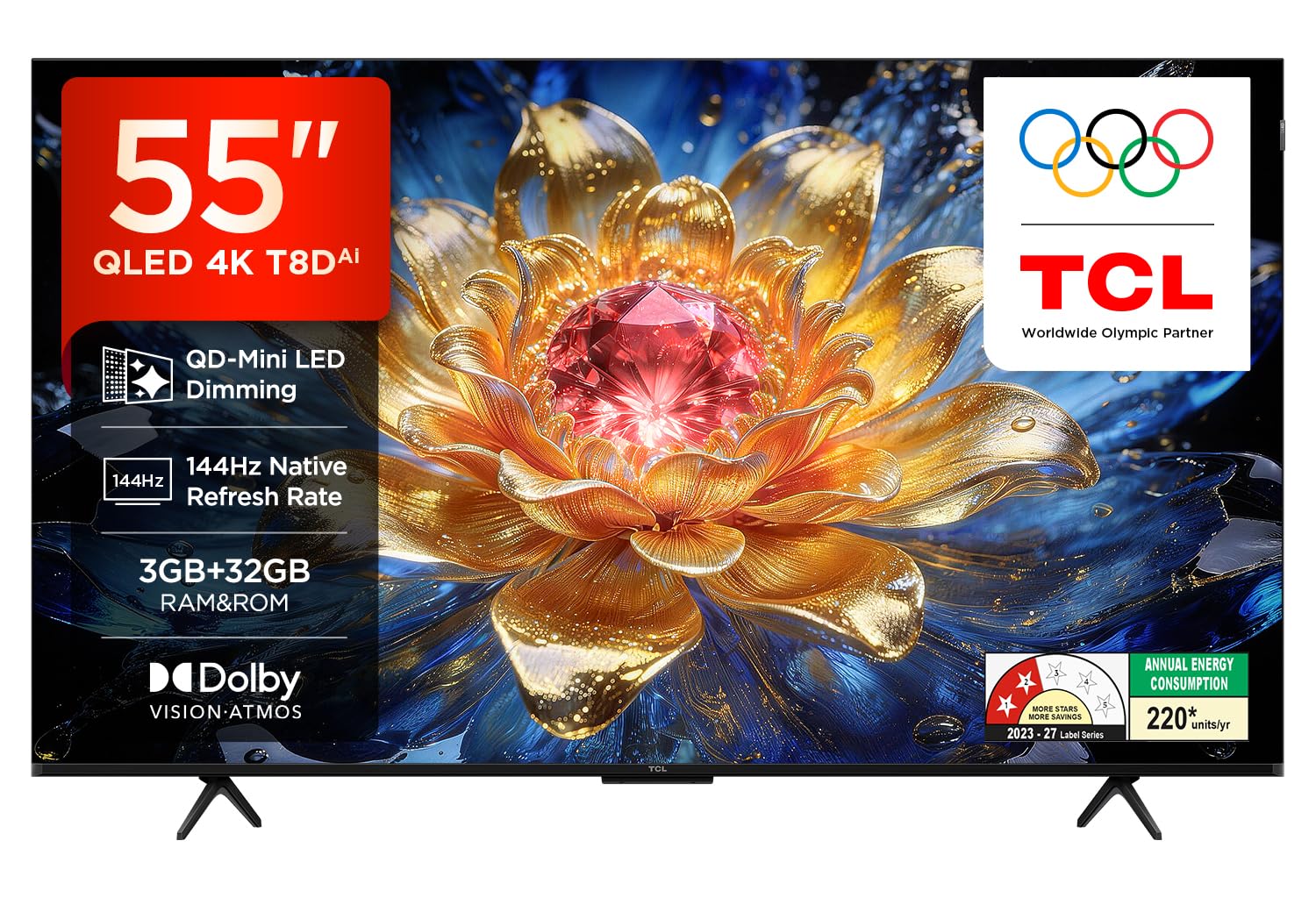

Stampa 1.1: Quddiem view of the TCL 55T8D television, showcasing id-disinn irqiq u l-wiri tiegħu.

Key features include Dolby Atmos and DTS Virtual-X for immersive sound, multiple HDMI and USB ports for connectivity, and a metallic bezel-less design for an expansive screen view. The TV also incorporates multiple eye care technologies for comfortable viewing.

2. Setup u Installazzjoni

2.1 X'hemm fil-Kaxxa

Qabel tibda l-installazzjoni, kun żgur li l-komponenti kollha huma preżenti:

• Televiżjoni LED 1N
• Cable Awdjo 1N
• 1N Stand (Table Top Stand)
• 1N Manwal għall-Utent
• Karta ta' Garanzija 1N
• Korda tal-enerġija 1N
• 1N Kontroll mill-bogħod
• 2N AAA Batteries (for remote control)

Image 2.1: Illustration of the items included in the TV box, such as the television, remote control, and batteries. It also indicates that a table-top stand is included, while a wall mount is not.

2.2 Installazzjoni ta' Stand

1. Poġġi l-iskrin tat-TV b'attenzjoni 'l isfel fuq wiċċ artab u ċatt biex tevita l-ħsara.
2. Attach the included table-top stand to the designated slots at the bottom of the TV using the provided screws. Ensure the stand is securely fastened.
3. Poġġi t-TV fuq wiċċ stabbli u livellat.

2.3 Immuntar mal-Ħajt (Mhux obbligatorju)

If you choose to wall-mount the TV, a fixed or adjustable wall mount is not included and must be purchased separately. Professional installation is recommended for wall mounting to ensure safety and proper setup. Refer to the wall mount manufacturer's instructions for specific installation steps.

2.4 Konnessjoni tal-Periferali

It-TV joffri diversi għażliet ta’ konnettività:

• Portijiet HDMI: Four HDMI ports are available. HDMI 1 and HDMI 2 support 4K@144Hz (eARC/ARC on HDMI 1). HDMI 3 and HDMI 4 support 4K@60Hz.
• Port USB: One USB 3.0 port is available for connecting external storage devices.
• Port tal-LAN: Għal konnessjoni tal-internet bil-fili.
• Input tal-Antenna/Kejbil: Għall-konnessjoni ta' antenna jew sinjal tat-TV bil-kejbil.
• Input tas-Satellita: Għall-konnessjoni ta' antenna tas-satellita.
• Ħruġ tal-Awdjo Diġitali (Ottiku): Għall-konnessjoni ma' sistemi awdjo esterni.

Immaġni 2.2: Dettaljata view of the TV's side and rear connectivity ports, including USB, LAN, HDMI, Antenna/Cable, Satellite, and Digital Audio Out.

3. It-tħaddim tat-TV

3.1 Kontroll mill-Bogħod

The TV comes with a remote control that supports both IR and Bluetooth technology. Insert the two AAA batteries into the remote control before use. The remote features dedicated buttons for quick access to popular streaming services and Google Assistant.

Image 3.1: The TV remote control, highlighting the Google Assistant button and one-button quick access to applications like Netflix, Prime Video, YouTube, SonyLIV, TCL Channel, and Web browsers.

3.2 Karatteristiċi tat-TV Intelliġenti (Google TV)

The TCL 55T8D operates on Google TV, providing a personalized entertainment experience. You can access a wide range of internet applications including Prime Video, Netflix, Hotstar, Zee5, and more. Use the integrated Google Assistant for voice control, content search, and smart home device management.

Image 3.2: Screenshot of the Google TV interface on the TCL 55T8D, showing various streaming applications and content recommendations.

3.3 Karatteristiċi tal-Wiri

• Wiri QLED 4K: Experience vibrant colors and sharp details with the Quantum Dot LED technology.
• Rata ta' Aġġornar ta' 144Hz: Enjoy smooth motion, especially beneficial for gaming and fast-paced action scenes. The refresh rate can boost up to 288Hz (DLG).
• HDR10+: Provides enhanced contrast and color accuracy, revealing more detail in both bright and dark scenes.
• Full Array Dimming: Precisely controls backlighting for deeper blacks and brighter whites.
• AiPQ Pro Processor: Optimizes picture and sound quality in real-time.
• Multiple Eye Care: Features like flicker-free display, natural light adjustment, low blue light mode, and motion compensation help reduce eye strain.

Image 3.3: Visual comparison illustrating the richer, more vivid colors produced by QLED technology compared to displays without QLED.

Image 3.4: An image demonstrating the enhanced detail and striking brightness provided by HDR10+ technology in a landscape scene.

Image 3.5: An illustration of a fast-moving car, emphasizing the smooth and clear motion provided by the 144Hz native refresh rate.

Image 3.6: Visual representation of the Multiple Eye Care features, including Flicker Free, Natural Light, Low Blue Light, and Motion Compensation, designed to protect viewgħajnejn l-ers.

3.4 Karatteristiċi tal-awdjo

The TCL 55T8D features a 34 Watts maximum output sound system with Dolby Atmos and DTS Virtual-X support. This configuration delivers a multi-dimensional audio experience, enhancing movies, music, and games.

Image 3.7: An illustration depicting the immersive stereo sound and powerful bass provided by the ONKYO 2.1 Hi-Fi System, creating a home theater experience.

Image 3.8: A visual demonstrating how Dolby Atmos places sound naturally in space, offering a lifelike, multi-dimensional audio experience.

3.5 Awdjo Bluetooth

Utilize Bluetooth 5.0 connectivity for private listening with compatible headphones. This allows for personal audio enjoyment without disturbing others.

Image 3.9: An image showing a person enjoying private Bluetooth listening with headphones while others in the room are resting, emphasizing the quiet escape feature.

4. Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your TCL 55T8D TV.

• Tindif tal-iskrin: Imsaħ l-iskrin bil-mod b'ċarruta ratba u mingħajr suf. Għal marki iebsa, uża soluzzjoni tat-tindif speċifika għall-iskrin applikata fuq iċ-ċarruta, mhux direttament fuq l-iskrin.
• Tindif tal-Kabinett: Uża drapp artab u niexef biex tnaddaf il-kabinett tat-TV. Evita li tuża prodotti tat-tindif jew solventi li joborxu.
• Ventilazzjoni: Kun żgur li l-fetħiet tal-ventilazzjoni tat-TV mhumiex imblukkati biex tevita li jisħon iżżejjed.
• Korda tal-Enerġija: Regularly check the power cord for any damage. Do not use a damaged power cord.

5 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bit-TV tiegħek, irreferi għall-passi komuni li ġejjin għas-soluzzjoni tal-problemi:

• Ebda Qawwa: Check if the power cord is securely plugged into both the TV and the power outlet. Ensure the power outlet is functional.
• Ebda Stampa/Ħoss: Ivverifika li s-sors tad-dħul korrett intgħażel. Iċċekkja l-konnessjonijiet kollha tal-kejbil (HDMI, antenna, eċċ.).
• Il-Kontroll mill-bogħod Mhux Jaħdem: Ibdel il-batteriji fir-remote control. Kun żgur li m'hemm l-ebda ostaklu bejn ir-remote u s-sensor IR tat-TV.
• Kwalità Fqira tal-Istampa: Adjust picture settings (brightness, contrast, sharpness). Ensure the signal source is of high quality.
• Kwistjonijiet ta' Konnettività tal-Internet: For Wi-Fi, check your router and network settings. For wired connection, ensure the LAN cable is properly connected.

For persistent issues, consult the TCL support websit jew ikkuntattja lis-servizz tal-konsumatur.

6. Speċifikazzjonijiet

Detailed technical specifications for the TCL 55T8D 4K UHD Smart QLED Google TV.

Image 6.1: Diagram illustrating the dimensions (height, width, depth) and weight (with and without stand) of the TCL 55T8D television.

Image 6.2: The energy efficiency label for the TCL 55T8D, indicating its annual energy consumption and star rating.

7. Garanzija u Appoġġ

7.1 Informazzjoni dwar Garanzija

The TCL 55T8D television comes with a 2-year manufacturer's warranty. To avail warranty services, retain your purchase invoice. The warranty covers product defects but does not cover delivery damages.

7.2 Appoġġ għall-Klijent

For any queries, technical assistance, or warranty claims, please contact TCL customer support. You can find detailed contact information on the official TCL webis-sit jew il-karta tal-garanzija tiegħek.

Informazzjoni ta' Kuntatt tal-Manifattur: TTE ELECTRONICS INDIA PRIVATE LIMITED, Vikruthamala Village, Papanaidupeta Post, Yerpedu Mandal, Tirupati, Vikruthamala Village, Chittoor, Andhra Pradesh, INDIA-517527
