BougeRV CRX3 30 Quart Portable Refrigerator User Manual

1. Prodott Aktarview

The BougeRV CRX3 30 Quart Portable Refrigerator is a versatile compressor-based electric cooler designed for mobile use in vehicles such as SUVs, trucks, RVs, campers, vans, and boats, as well as for outdoor activities like camping and overlanding. It offers efficient cooling and freezing capabilities with a wide temperature range and convenient app control.

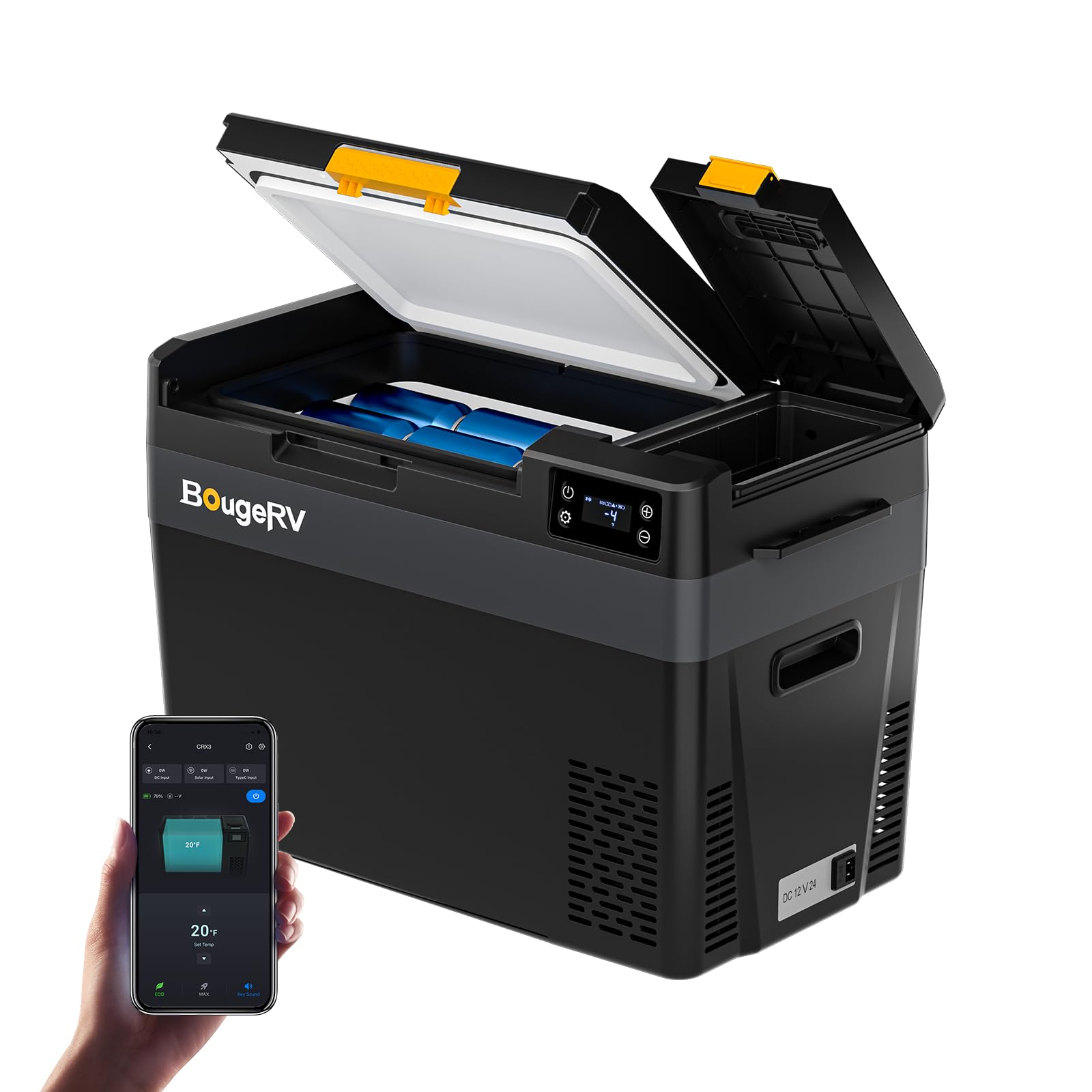

Image: The BougeRV CRX3 30 Quart Portable Refrigerator, a compact and efficient cooling solution.

2. Istruzzjonijiet tas-Sigurtà

Please read all safety instructions carefully before operating the BougeRV CRX3 Portable Refrigerator. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Provvista tal-Enerġija: Ensure the power source (12V/24V DC or 100-240V AC) matches the refrigerator's requirements. Use only the provided power cords and adapters.
• Ventilazzjoni: Maintain adequate ventilation around the refrigerator. Do not block air vents, as this can lead to overheating and reduced performance.
• Pjazzament: Place the refrigerator on a stable, level surface to ensure proper operation and prevent tipping. Avoid direct sunlight or heat sources.
• Espożizzjoni għall-Ilma: Do not expose the refrigerator to rain or immerse it in water. This product is not waterproof.
• Tindif: Disconnect power before cleaning. Use a damp drapp; evita prodotti tat-tindif jew solventi li joborxu.
• Tfal: Keep out of reach of children. Supervise children to ensure they do not play with the appliance.
• Manutenzjoni: Tippruvax issewwi jew timmodifika l-unità int stess. Irreferi għal kull manutenzjoni f'idejn persunal kwalifikat.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• 1 x BougeRV CRX3 Portable Refrigerator (30 Quart)
• 1 x 12V/24V DC Power Cord (for car/vehicle use)
• 1 x 100-240V AC Adapter (for home/wall outlet use)
• 1 x Manwal għall-Utent

Image: All components included in the BougeRV CRX3 package: the refrigerator, DC power cord, AC adapter, and user manual.

4. Karatteristiċi tal-prodott

• Fast Cooling Performance: Achieves 32℉ from 77℉ in approximately 12 minutes using advanced compressor refrigeration technology.
• Operazzjoni li tiffranka l-enerġija: Features an ECO mode that operates at less than 35W for efficient power consumption.
• Operazzjoni kwieta: Designed with low-noise technology, operating at approximately 35dB, ensuring minimal disturbance.
• Kontroll tal-APP: Adjust temperature settings, select modes, and monitor power status remotely via the BougeRV App (up to 32 ft range).
• Għażliet tal-Enerġija Versatili: Kompatibbli ma' sorsi ta' enerġija ta' 12V/24V DC u 100-240V AC.
• Integrated Storage Box: A convenient compartment for the optional 240Wh detachable battery or small accessories.
• Dawl LED inkorporat: Provides illumination for easy access to contents in low-light conditions.
• Sistema ta' Protezzjoni tal-Batterija: Adjustable settings (Low, Medium, High) to prevent draining your vehicle's battery.

Image: A graph illustrating the rapid cooling performance of the BougeRV CRX3 refrigerator, reaching 32℉ in 12 minutes.

Image: The BougeRV CRX3 refrigerator in ECO mode, showcasing its energy-efficient operation with beverages stored inside.

Image: The BougeRV CRX3 refrigerator operating quietly inside a tent, demonstrating its low noise level.

Image: The BougeRV CRX3 refrigerator connected to various power sources, including AC, DC, and an optional solar panel.

5. Gwida ta' Setup

5.1 Preparazzjoni Inizjali

1. Spakkjar: Carefully remove the refrigerator from its packaging. Retain packaging materials for future transport or storage.
2. Pjazzament: Position the refrigerator on a firm, level surface. Ensure there is at least 6 inches (15 cm) of space around all sides for proper ventilation.
3. L-Ewwel Użu: Qabel l-ewwel użu, naddaf l-intern b'adamp cloth and mild detergent. Allow it to air dry completely. It is recommended to run the unit empty for a few hours to ensure proper function before loading food or drinks.

5.2 Konnessjoni tal-Enerġija

The CRX3 refrigerator supports both DC and AC power inputs.

• Qawwa DC (12V/24V): Connect the provided 12V/24V DC power cord to the refrigerator's DC input port and then to your vehicle's cigarette lighter socket or a compatible DC power outlet.
• Qawwa AC (100-240V): Connect the provided AC adapter to the refrigerator's AC input port, then plug the adapter into a standard 100-240V AC wall outlet.
• Batterija mhux obbligatorja: If using the optional BougeRV 240Wh detachable battery, insert it into the designated storage box. The refrigerator will automatically switch to battery power when DC/AC power is disconnected or unavailable.

Image: The BougeRV CRX3 refrigerator with its lid open, showing the compartment for the optional 240Wh detachable battery.

6. Istruzzjonijiet Operattivi

6.1 Control Panel Overview

Immaġni: Close-up view of the BougeRV CRX3 refrigerator's control panel, featuring power, settings, and temperature adjustment buttons with a clear digital display.

The control panel features a digital display and several buttons for operation:

• Buttuna tal-Enerġija (⏻): Agħfas biex tixgħel / tintefa 'l-unità.
• Settings Button (⚙): Press to cycle through settings like ECO/MAX mode and battery protection level.
• Temperatura 'l fuq (+): Iżżid it-temperatura stabbilita.
• Temperatura 'l isfel (-): Tnaqqas it-temperatura stabbilita.

6.2 Operazzjoni Bażika

1. Power On/Off: Press and hold the Power Button (⏻) for 3 seconds to turn the refrigerator on or off.
2. Issettjat Temperatura: Use the Temperature Up (+) and Down (-) buttons to adjust the desired temperature. The display will show the set temperature briefly, then revert to the current internal temperature. The temperature range is -4℉ to 68℉ (-20℃ to 20℃).
3. Mode Selection (ECO/MAX): Press the Settings Button (⚙) to toggle between ECO (Energy Saving) and MAX (Fast Cooling) modes. ECO mode is recommended for general use to conserve power, while MAX mode provides quicker cooling.
4. Protezzjoni tal-batterija: Press and hold the Settings Button (⚙) for 3 seconds to enter battery protection settings. Use the (+) and (-) buttons to select between Low, Medium, and High. This feature prevents your vehicle's battery from being fully discharged.

6.3 Nighttime Access

Image: The interior of the BougeRV CRX3 refrigerator illuminated by its built-in LED light, making contents visible in the dark.

The built-in LED light automatically illuminates when the lid is opened, providing visibility for accessing items in low-light conditions.

7. Kontroll APP

The BougeRV CRX3 refrigerator can be controlled and monitored via a dedicated smartphone application.

1. Niżżel l-App: Fittex għal "BougeRV" in your smartphone's app store (iOS or Android) and download the official application.
2. Tqabbil: Ensure your refrigerator is powered on and Bluetooth is enabled on your smartphone. Open the BougeRV app and follow the on-screen instructions to pair with your CRX3 unit.
3. Funzjonijiet: Once connected, you can remotely perform the following actions:
   • Aġġusta s-settings tat-temperatura.
   • Switch between ECO and MAX cooling modes.
   • Monitor the current internal temperature.
   • Check the power status and battery level (if optional battery is installed).

Image: A smartphone displaying the BougeRV app interface, used to monitor and control the CRX3 portable refrigerator.

8. Manutenzjoni

8.1 Tindif

• Intern: Regularly clean the interior with a soft cloth dampened with mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners, steel wool, or harsh chemicals.
• Barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp.
• Gradilji tal-ventilazzjoni: Periodically clean the ventilation grilles to remove dust and debris, ensuring proper airflow. Use a soft brush or vacuum cleaner.

8.2 Defrosting

Frost may accumulate on the interior cooling surfaces, especially in humid environments. To defrost:

1. Itfi l-friġġ u skonnettjah mis-sors tal-enerġija.
2. Neħħi l-kontenut kollu.
3. Leave the lid open to allow the frost to melt naturally.
4. Wipe away melted water with a clean cloth. Do not use sharp objects to remove frost, as this can damage the cooling system.

8.3 Ħażna

Meta taħżen il-friġġ għal perjodu estiż:

• Kun żgur li l-unità hija nadifa u niexfa.
• Ħalli l-għatu ftit miftuħ biex tevita rwejjaħ ħżiena u t-tkabbir tal-moffa.
• Aħżen f'post niexef u ventilat sew, 'il bogħod mix-xemx diretta u minn temperaturi estremi.

9 Issolvi l-problemi

If you encounter issues with your BougeRV CRX3 refrigerator, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact BougeRV customer support for assistance.

10. Speċifikazzjonijiet

Image: A diagram illustrating the internal dimensions and capacity of the BougeRV CRX3 30 Quart refrigerator, showing how many cans or bottles it can hold.

11. Garanzija u Appoġġ

The BougeRV CRX3 12V refrigerator comes with a Appoġġ tekniku ta' sena period. For any product questions, technical assistance, or warranty claims, please do not hesitate to contact BougeRV customer service. Please have your model number (CRX303001) and purchase information ready when contacting support.

Informazzjoni ta' Kuntatt: Refer to the official BougeRV webis-sit jew id-dokumentazzjoni tax-xiri tiegħek għad-dettalji ta' kuntatt l-aktar aġġornati.
