1. Introduzzjoni
Thank you for choosing the Generic Commercial Floor Scrubber Model LS. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new floor cleaning machine. Please read this manual thoroughly before operating the device and keep it for future reference.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment meta tuża dan l-apparat.
- Aqra l-istruzzjonijiet kollha qabel l-użu.
- Do not operate the machine with a damaged cord or plug. If the machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not use the machine on wet surfaces or in standing water unless specifically designed for such conditions.
- Żomm ix-xagħar, il-ħwejjeġ laxki, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod minn fetħiet u partijiet li jiċċaqilqu.
- Uża biss kif deskritt f'dan il-manwal. Uża biss l-annessi rakkomandati mill-manifattur.
- M'għandekx timmaniġġja l-ċarġer jew l-apparat b'idejn imxarrbin.
- Tpoġġi l-ebda oġġett fil-fetħiet. Tużax b'xi ftuħ imblukkat; żomm ħieles minn trab, lint, xagħar, u kull ħaġa li tista 'tnaqqas il-fluss ta' l-arja.
- Oqgħod attent ħafna meta tnaddaf fuq it-taraġ.
- Disconnect the battery charger from the power outlet before cleaning or performing maintenance.
- Dan l-apparat huwa għal użu kummerċjali biss.
3. Prodott Aktarview
The Generic Commercial Floor Scrubber Model LS is a versatile and efficient cleaning solution designed for various commercial environments. It features a lightweight, maneuverable design with dual brushes for thorough cleaning.
Image: The floor scrubber is designed for both wet and dry floor cleaning, offering efficient operation.

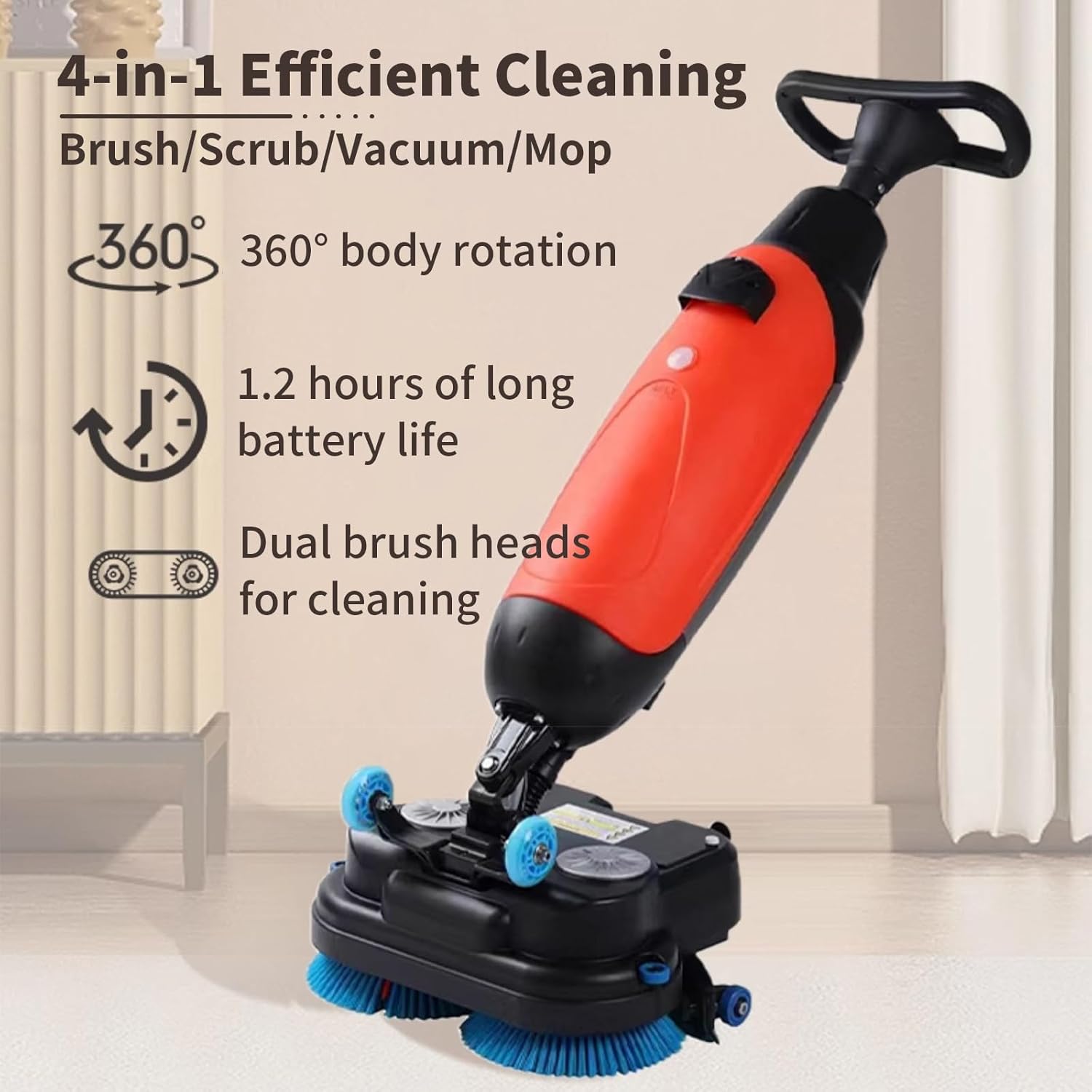

Image: Key features include 4-in-1 cleaning functionality (brush, scrub, vacuum, mop), 360-degree body rotation, and a 1.2-hour battery life.

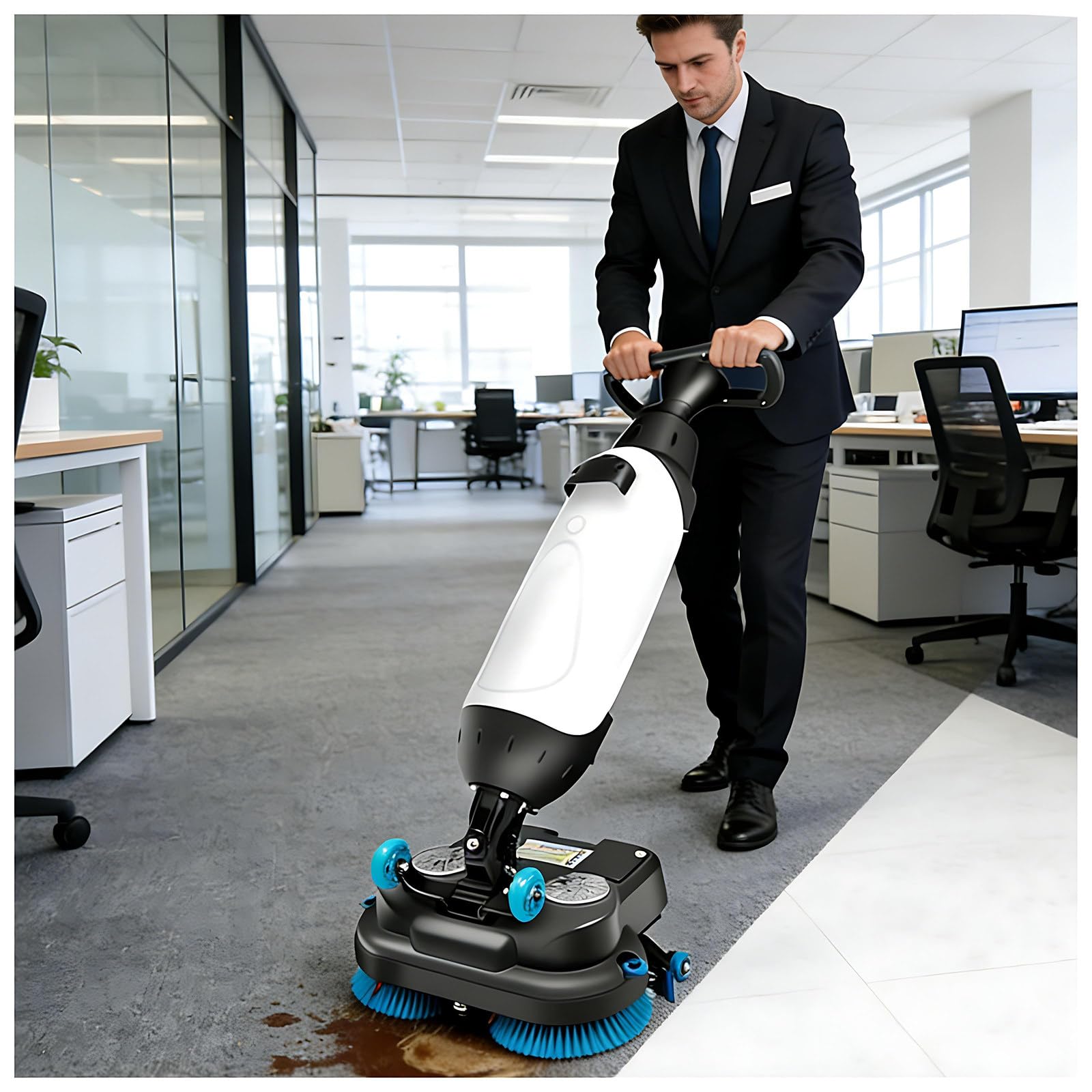

Image: The scrubber effectively handles various surfaces, providing powerful suction, durable soft rubber squeegee mopping, and dual brush disc washing.
The machine is suitable for a wide range of commercial environments, including supermarkets, restaurants, offices, workshops, airports, train stations, and playgrounds.
Immaġni: Eżamples of suitable environments for the floor scrubber, demonstrating its versatility.
4. Setup
4.1 Disimballaġġ
Carefully remove all components from the packaging. Verify that all items listed in the 'Package Includes' section are present:
- 1 Commercial Floor Scrubber
- 2 Scouring Pads
- 2 Needle Trays
- 2 Brush Trays
4.2 Assemblea
Attach the handle to the main body of the scrubber. Ensure it clicks securely into place. Install the desired brush heads or scouring pads onto the brush trays, then attach the trays to the underside of the machine.
4.3 Iċċarġjar tal-batterija
Locate the built-in charging port on the machine. Connect the provided charger to the port and plug it into a suitable power outlet. The battery indicator will show charging status. A full charge takes approximately 3 hours, providing up to 100 minutes of operation.
Image: Details of the machine, including the removable clean water (4.5L) and wastewater (7.5L) tanks, the control panel with power indicator, and the built-in charging port.
4.4 Il-mili tat-tankijiet tal-ilma
The machine features a dual-tank system. Fill the 4.5-liter clean water tank with appropriate cleaning solution and water. Do not overfill. The 7.5-liter waste tank should be empty before starting operation.
5. Istruzzjonijiet Operattivi
5.1 Tixgħel/Jitfi
Press the power button on the control panel to turn the machine on. The power indicator will illuminate. To turn off, press the power button again.
5.2 Modi Operattivi
The scrubber offers 3-in-1 functionality: scrubbing, washing, and drying. Select the desired mode using the controls on the handle. The machine will automatically adjust brush rotation and suction for optimal performance.
5.3 Maneuvering
The lightweight design and 360-degree rotating head allow for easy maneuverability. Guide the machine across the floor at a steady pace. For heavily soiled areas, a slower pass or multiple passes may be required.
5.4 Emptying Dirty Water
When the waste tank is full, or after each use, detach the 7.5-liter waste tank and empty its contents into a suitable drain. Rinse the tank thoroughly with clean water.
5.5 Tindif ta' Uċuħ Differenti
This machine is suitable for concrete, tile, laminate, grout, and sealed wood surfaces. Adjust the cleaning solution concentration based on the surface type and soil level. For delicate surfaces, test a small, inconspicuous area first.
6. Manutenzjoni
6.1 Wara Kull Użu
- Empty and rinse both the clean water and waste water tanks.
- Clean the brush heads or scouring pads. Remove any debris or hair.
- Imsaħ il-barra tal-magna bl-adamp drapp.
- Ensure the suction squeegee is clean and free of obstructions.
6.2 Brush/Pad Replacement
Periodically inspect the brush heads and scouring pads for wear. Replace them when bristles are worn or pads lose their effectiveness to ensure optimal cleaning performance. Refer to the assembly section for removal and installation.
6.3 Kura tal-Batterija
To prolong battery life, avoid completely draining the battery before recharging. Store the machine in a cool, dry place when not in use, and ensure the battery is charged periodically if stored for extended periods.
7 Issolvi l-problemi
If you encounter issues with your floor scrubber, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx | Il-batterija hija skarikata Buttuna tal-qawwa mhux ippressata b'mod korrett | Iċċarġja l-batterija Ensure the power button is fully engaged |
| Prestazzjoni fqira tat-tindif | Worn brushes/pads Soluzzjoni tat-tindif insuffiċjenti Blocked suction path | Replace brushes/pads Erġa' imla t-tank tal-ilma nadif Clear any blockages from the suction squeegee |
| Water not being picked up | Waste tank full Suction squeegee blocked or damaged Suction motor issue | Empty waste tank Clean or replace squeegee Ikkuntattja l-appoġġ tal-klijent |
| Il-magna tieqaf bla mistenni | Batterija baxxa Protezzjoni ta 'tagħbija żejda attivata | Recharge batterija Reduce pressure or clear obstruction, then restart |
8. Speċifikazzjonijiet
Detailed technical specifications for the Generic Commercial Floor Scrubber Model LS:
Image: Visual representation of the product's dimensions and key specifications.
| Parametru | Valur |
|---|---|
| Wisa' tat-Tindif | 430mm (17 pulzier) |
| Brush Power | 250W x 2 |
| Veloċità | 240 RPM |
| Effiċjenza | 1200m²/h (approx. 13,000 sqft/h) |
| Kapaċità tal-batterija | Batterija tal-litju 36V/10Ah |
| Ħajja tal-batterija | Sa 100 minuta (sagħtejn) |
| Ħin tal-Iċċarġjar | Appross. 3 sigħat |
| Suction Width | 450mm |
| Mutur tal-ġbid | 150W |
| Kapaċità tat-Tank tal-Ilma Nadif | 4.5L (1.2 gallun) |
| Kapaċità tat-Tank tal-Iskart | 7.5L (2 gallun) |
| Storbju Operattiv | 43-56dB |
| Piż | 19kg (44 lbs) |
| Dimensjonijiet (L*W*H) | 45cm * 36cm * 120cm (17.7in * 14.2in * 47.2in) |
9. Informazzjoni dwar Garanzija
This product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for warranty claims.
10. Appoġġ għall-Klijent
For any questions, technical assistance, or service inquiries regarding your Generic Commercial Floor Scrubber Model LS, please contact the seller or manufacturer through the platform where the product was purchased. Our dedicated support team is available to provide satisfactory solutions.
