YAWV Brushless Electric Pruning Shears

1. Istruzzjonijiet Importanti dwar is-Sigurtà

Please read and understand all safety warnings and instructions before operating this electric pruning shears. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol nadifa u mdawwla sew. Żoni imbarazzati jew mudlama jistiednu inċidenti. Tħaddimx għodod tal-enerġija f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab fjammabbli. L-għodod tal-enerġija joħolqu xrar li jista' jqabbad it-trab jew id-dħaħen.
• Sigurtà Elettrika: This tool is designed for use with Makita 18V batteries. Ensure the battery is correctly inserted and secured before operation. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Sigurtà Personali: Always wear eye protection (safety glasses) and heavy-duty gloves when operating the pruning shears. Avoid wearing loose clothing or jewelry that can get caught in moving parts. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Użu u Kura tal-Għodda: Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek. L-għodda tal-enerġija korretta tagħmel ix-xogħol aħjar u b'mod aktar sikur bir-rata li ġiet iddisinjata għaliha. Skonnettja l-pakkett tal-batterija mill-għodda tal-enerġija qabel ma tagħmel xi aġġustamenti, tibdel l-aċċessorji, jew taħżen l-għodda tal-enerġija.
• Sigurtà tax-xafra: The blades are extremely sharp. Handle with care. Keep hands and body parts away from the cutting blades during operation. Never attempt to clear jammed material while the tool is running.
• Tfal u Persuni li Qegħdin fil-Viċin: Żomm lit-tfal u lil dawk li jkunu fil-qrib 'il bogħod waqt li tħaddem għodda tal-enerġija. Distrazzjonijiet jistgħu jikkawżaw inti titlef il-kontroll.

2. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha huma preżenti meta tiftaħ il-pakkett:

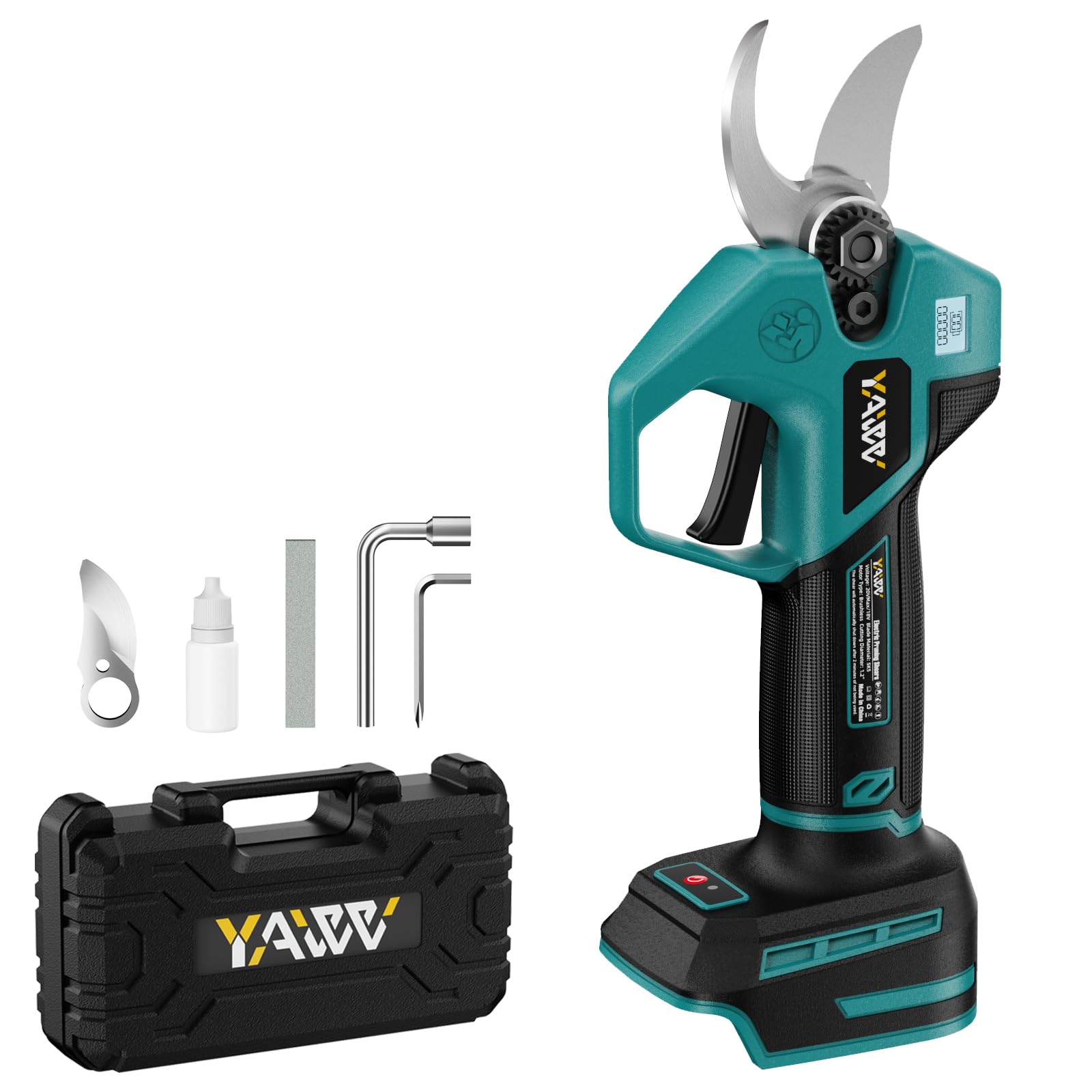

• Electric Pruning Shears x 1
• SK5 Replacement Blade x 1
• Lubricating Oil Bottle x 1
• Sandpaper x 1
• Assembly Tools x 2
• Manwal għall-Utent x 1

3. Prodott Aktarview

The YAWV Brushless Electric Pruning Shears are designed for efficient and effortless tree and plant pruning. This tool features a powerful brushless motor, durable SK5 blades, and an LCD display for monitoring battery level and cut count.

YAWV Brushless Electric Pruning Shears with Makita 18V battery attached.

3.1 Komponenti Ewlenin

• Mutur mingħajr brushes: Provides high performance, efficiency, and extended lifespan with reduced wear and energy consumption.
• SK5 High Carbon Steel Blades: Sharp, anti-rust, and durable for efficient cutting.
• Display Diġitali LCD: Shows battery level and an automatic cutting counter.
• Swiċċ tas-Sigurtà: Built-in mechanism for safe operation.
• Adjustable Cutting Diameter: Two levels (0.8 inch / 20mm and 1.2 inch / 30mm) for various pruning tasks.

Intern view of the YAWV electric pruning shears highlighting the high-performance brushless motor for efficient and quiet operation.

Close-up of the YAWV electric pruning shears featuring SK5 high carbon steel blades, adjustable cutting diameter (20-30mm), and an LCD digital display screen.

4. Setup

4.1 It-twaħħil tal-batterija

This electric pruning shears is compatible with Makita 18V batteries (e.g., BL1860, BL1850, BL1840, BL1830, BL1815). Ensure the battery is fully charged before use.

1. Align the battery pack with the battery port on the bottom of the pruning shears.
2. Slide the battery into the port until it clicks securely into place. Ensure it is firmly seated to prevent accidental disconnection during operation.

Step-by-step operating instructions for the YAWV electric pruning shears, showing battery insertion, activation, mode switching, and automatic blade closure.

YAWV electric pruning shears showing compatibility with various Makita 18V batteries (BL1820, BL1830, BL1840, BL1850, BL1860).

5. Istruzzjonijiet Operattivi

5.1 Tixgħel u Attivazzjoni

1. Insert a charged Makita 18V battery into the tool.
2. Press the power switch (usually located near the battery) once. The tool will beep once, and the LCD display will illuminate.
3. To activate the blades, quickly pull the trigger twice. The blades will open, indicating the tool is ready for use.

5.2 Adjusting Cutting Diameter

The pruning shears offer two adjustable cutting diameter modes:

• Mod 1: Maximum opening of 0.8 inch (20mm), suitable for fine pruning of tree branches.
• Mod 2: Maximum opening of 1.2 inch (30mm), suitable for pruning thicker branches and succulents.

Biex taqleb bejn il-modi:

1. With the tool activated (blades open), press and hold the trigger for 3 seconds.
2. The cutting diameter will switch to the other mode. Release the trigger.

Illustration of the two adjustable cutting diameter modes (0.8 inch / 20mm and 1.2 inch / 30mm) for the YAWV electric pruning shears.

5.3 Pruning Operation

• Poġġi l-fergħa li trid tinqata’ bejn ix-xfafar miftuħa.
• Pull the trigger to close the blades and make the cut. The tool is designed for fast trimming at a rate of 0.5 seconds per cut.
• The LCD display will show the battery level and automatically count the number of cuts made.

Close-up of the LCD display on the YAWV electric pruning shears showing battery level and an automatic cutting counter.

Dettaljati view of the YAWV electric pruning shears illustrating features like 1.25-inch cut capacity, toolless blade change, and up to 900 cuts per charge.

5.4 Tifi

When you are finished using the pruning shears:

1. Press and hold the trigger for 5 seconds. You will hear a series of beeps (beep ~ beep beep beep), and the blades will automatically close.
2. Remove the battery pack from the tool for storage.

Examples of wide applications for the YAWV electric pruning shears, including branch pruning, fruit tree pruning, wire pruning, and bamboo pruning.

6. Manutenzjoni

6.1 Kura u Sostituzzjoni tax-Xafra

• Regularly clean the blades after each use to remove sap and debris. Use a damp drapp u deterġent ħafif jekk meħtieġ.
• Apply a few drops of lubricating oil (provided) to the blades and pivot points periodically to ensure smooth operation and prevent rust.
• If the blades become dull or damaged, they can be replaced. The tool features a toolless blade change mechanism. Refer to the included assembly tools for assistance with blade replacement.

6.2 Ħażna

• Always remove the battery pack before storing the pruning shears.
• Store the tool in a dry, secure location, out of reach of children. The provided storage box is ideal for this purpose.

7 Issolvi l-problemi

Irreferi għat-tabella t'hawn taħt għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom:

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

YAWV provides a Garanzija b'xejn ta 'sena for this electric pruning shears. This warranty ensures the best experience with your product.

If you have any suggestions, questions, or encounter any issues during product usage, please feel free to contact YAWV customer support. Refer to the product packaging or the seller's contact information for support details.
