HARPPA Cuddly Rocking Baby Bassinet

Introduzzjoni

This manual provides essential instructions for the safe assembly, operation, and maintenance of your HARPPA Cuddly Rocking Baby Bassinet, Model B15A. Please read all instructions carefully before use and retain this manual for future reference. This bassinet is designed to provide a safe and comfortable sleeping environment for infants from birth up to 5 months or when the infant begins to push up on hands and knees, whichever comes first. The maximum weight capacity is 20 pounds (9 kg).

Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA: In-nuqqas li ssegwi dawn it-twissijiet u l-istruzzjonijiet jistgħu jirriżultaw fi korriment serju jew mewt.

• PERIKLU TA' FEGA: Infants have suffocated in bassinets.
• NEVER use soft bedding such as quilts, pillows, or extra padding.
• ONLY use the mattress provided by the manufacturer.
• PERIKLU TA’ WAQGĦA: To help prevent falls, do not use this product once the infant begins to push up on hands and knees, or has reached 20 lbs (9 kg), or is 5 months old, whichever comes first.
• ALWAYS ensure the bassinet is placed on a firm, horizontal surface.
• NEVER leave an infant unattended in the bassinet.
• Żomm partijiet żgħar 'il bogħod mit-tfal waqt l-assemblaġġ.
• Regularly check all fasteners and connections to ensure they are secure.
• Do not modify the product or use accessories not approved by the manufacturer.
• When using the wheels, ensure the Support Tube with Wheels is installed with the pointed end outward and aligned with the wheel lock.

Lista tal-Partijiet

Qabel l-assemblaġġ, ivverifika li l-komponenti kollha huma preżenti u mhux imħassra. Irreferi għad-dijagramma t'hawn taħt għall-identifikazzjoni.

Image: Annotated diagram showing the various parts of the bassinet, including the aluminum upper frame, breathable mesh sides, mattress, manual rocking mode, adjustable height mechanism, sturdy iron frame, large storage basket, 360° swivel lockable wheels, and safety straps.

• Aluminum Upper Frame
• Breathable Mesh Sides
• Polyester Fiber Mattress with TPU-Lined, Washable Cover
• Sturdy Iron Frame with Wood-look Accents
• Triangle Support Frame
• Large Storage Basket
• 50mm 360° Swivel Lockable Wheels
• Safety Straps (2x)

Istruzzjonijiet ta' Armar

Follow these steps to assemble your bassinet. Ensure all parts click securely into place.

1. Ħoll il-Komponenti: Carefully remove all parts from the packaging. Lay them out on a clean, flat surface.
2. Arma l-Qafas tal-Bażi: Connect the support tubes to form the base. Ensure the support tube with wheels is installed with the pointed end outward and aligned with the wheel lock.
3. Attach the Bassinet Body: Secure the bassinet sleeping area to the assembled base frame. Listen for a click to confirm it is locked.
4. Daħħal is-Saqqu: Place the provided mattress into the bassinet. Ensure it fits snugly without gaps.
5. Installa l-Basket tal-Ħażna: Attach the large storage basket to the designated hooks or clips on the lower frame.

Istruzzjonijiet Operattivi

1. Għoli Aġġustabbli

The bassinet features five adjustable height levels to match various bed heights. To adjust, locate the height adjustment buttons on the side supports, press them, and slide the bassinet body up or down to the desired level. Ensure both sides are adjusted equally and lock into place.

Image: Diagram illustrating the five adjustable height settings of the bassinet, ranging from 19.3 inches to 22.4 inches.

2. Modalità ta' Raqda ħdejn is-Sodda

To use as a bedside sleeper, lower one side of the bassinet by unzipping the mesh panel. Position the bassinet next to your bed and use the included safety straps to secure it to your bed frame. Ensure there is no gap between the bassinet and your mattress.

Image: Illustration demonstrating how the bassinet functions as a bedside crib, showing the mesh side unzipped and the bassinet secured to an adult bed with safety straps.

Immaġni: Close-up view of hands connecting the safety straps, which are used to secure the bassinet to an adult bed frame.

3. Manual Rocking Mode

The bassinet can be set to a manual rocking mode to gently soothe your baby. To activate, ensure the wheels are locked or removed, and the bassinet is on a flat surface. Gently push the bassinet to initiate a rocking motion.

4. Aġġustament tal-Inklinazzjoni

For infants with reflux or congestion, the bassinet offers a gentle incline adjustment (3-7 degrees). To adjust, follow the height adjustment steps but set one side slightly higher than the other. Ensure the incline is subtle and safe for the infant.

Image: The bassinet is shown with a slight incline, demonstrating its adjustable tilt feature for infant comfort.

5. Mobile & Storage

The bassinet is equipped with smooth-rolling, lockable wheels for easy mobility. To move, unlock the wheels. To secure in place, lock the wheels. The under-bassinet basket provides convenient storage for baby essentials.

Image: The bassinet's lower storage basket is shown, filled with diapers, wipes, and other baby necessities, highlighting its practical storage capacity.

Kura u Manutenzjoni

1. Cleaning the Mattress and Cover

The mattress cover is washable. Remove the cover and machine wash according to the care label instructions. The 4D Air Fiber core of the mattress is also 100% washable. Rinse thoroughly with water and allow to air dry completely before reassembly.

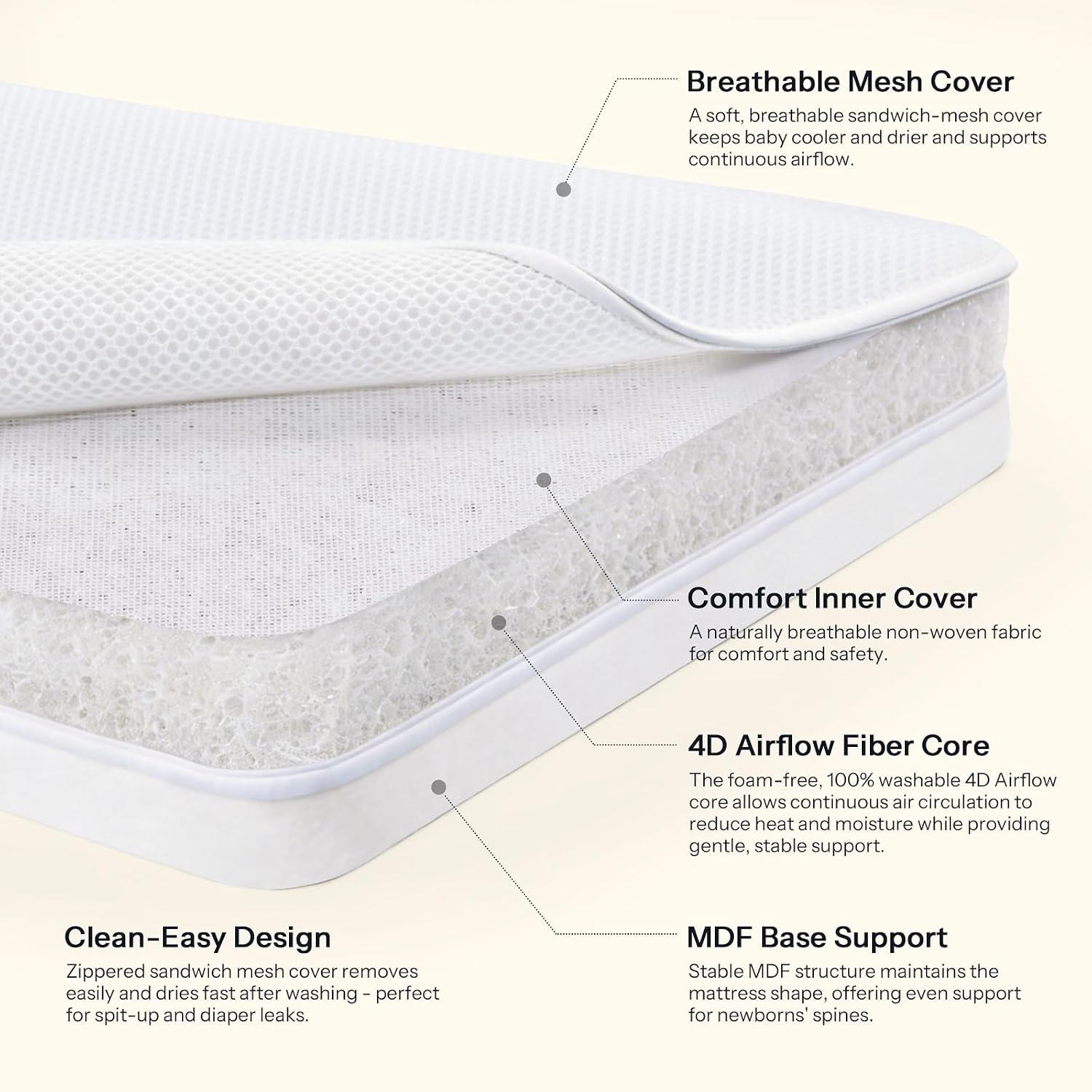

Immaġni: Dettaljata view of the mattress layers, highlighting the breathable mesh cover, comfort inner cover, 4D Airflow Fiber Core, and MDF base support.

Image: The 4D Air Fiber mattress core being rinsed under running water, demonstrating its washable and quick-drying properties.

2. Cleaning the Frame and Mesh

Wipe the aluminum and iron frame components with a damp cloth and mild soap. Do not use abrasive cleaners. The mesh sides can be spot cleaned with a damp cloth and mild detergent. Ensure all parts are completely dry before use.

Issolvi l-problemi

• Il-bassinet iħossu instabbli: Ensure all frame connections are securely locked. Check that the bassinet is on a flat, level surface.
• Ir-roti ma jimxux bla xkiel: Check for debris in the wheels. Ensure wheel locks are disengaged.
• Diffikultà biex taġġusta l-għoli: Ensure the adjustment buttons are fully pressed before attempting to slide the bassinet body.
• Mattress does not fit: Ensure the correct mattress is being used and it is positioned correctly within the bassinet frame.

Speċifikazzjonijiet tal-Prodott

Image: This image displays the detailed dimensions of the bassinet, including outer and inner measurements, along with safety certifications such as ASTM International and CPSC.

Garanzija u Appoġġ għall-Klijent

For warranty information, replacement parts, or customer support, please contact HARPPA directly through their official website or the retailer where the product was purchased. Please have your model number (B15A) and purchase date available when contacting support.
