EBL 2400W Portable Power Station (Acc2400) and 2x200W Solar Panel User Manual

1. Introduzzjoni

Thank you for choosing the EBL 2400W Portable Power Station with 2x200W Solar Panels. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your power station and solar panels. Please read this manual thoroughly before use and retain it for future reference.

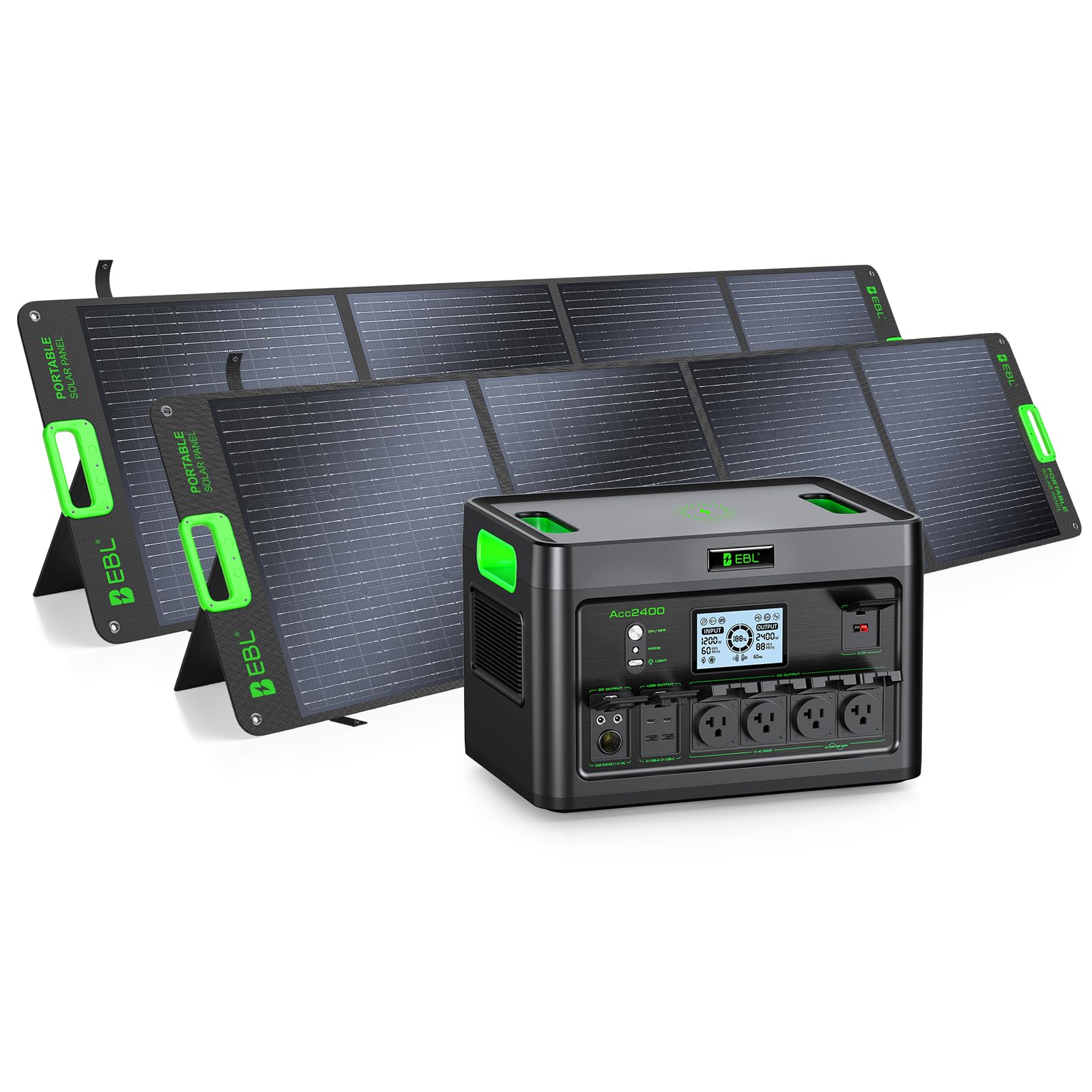

Image 1.1: The EBL 2400W Portable Power Station, a robust power solution for various needs.

The EBL 2400W Portable Power Station is equipped with a 1843.2Wh LiFePO4 battery, offering a substantial 2400W output to power a wide range of devices. Coupled with two 200W solar panels, it provides a versatile and sustainable energy solution for RV trips, camping, home emergencies, and professional use.

2. Istruzzjonijiet tas-Sigurtà

• Do not disassemble, repair, or modify the unit or solar panels. Improper assembly may cause fire, explosion, or injury.
• Do not place the unit or solar panels near fire or expose them to high temperatures.
• Do not use or store the unit or solar panels in bathrooms or areas exposed to water or rain.
• Do not use damaged power cables or solar panel cables.
• Keep the unit and solar panels away from children and pets.
• Kun żgur li tissaħħan sew waqt l-użu u l-iċċarġjar biex tevita li jisħon iżżejjed.
• Handle the unit with care; avoid dropping or subjecting it to strong impacts.
• Armi l-prodott skond ir-regolamenti lokali.

3. Kontenut tal-Pakkett

Please check that all components are present and undamaged upon receipt:

• EBL 2400W Portable Power Station (Acc2400)
• 2 x EBL 200W Foldable Solar Panels
• Cable tal-Iċċarġjar tal-AC
• Cable tal-Iċċarġjar tal-Karozza
• Solar Charging Cable (MC4 to DC/Anderson/XT60/Aviation connector)
• Manwal għall-Utent

4. Prodott Aktarview

4.1. EBL 2400W Portable Power Station

Stampa 4.1: Quddiem view of the power station highlighting various input and output ports.

The power station features a comprehensive array of ports and a clear LCD display for monitoring status.

• Output AC: 4 x 2400W AC ports for household appliances.
• Output USB-A: 2 x QC18W USB-A ports for fast charging compatible devices.
• Output USB-C: 2 x PD100W USB-C ports for high-speed charging laptops and other USB-C devices.
• Prodott DC: 2 x DC ports for various DC-powered devices.
• Port tal-Karozza: 1 x 12V car socket.
• Iċċarġjar bla fili: Integrated wireless charging pad on top for compatible smartphones.
• Display LCD: Juri l-livell tal-batterija, l-input/output wattage, u l-ħin ta' eżekuzzjoni li jifdal.
• Portijiet tal-Input: Dedicated ports for AC, solar, and car charging.

4.2. EBL 200W Foldable Solar Panel

Image 4.2: Key features of the EBL 200W Foldable Solar Panel.

• Monocrystalline Cells: High conversion efficiency up to 23.5%.
• Kickstands Aġġustabbli: Allows for optimal angle positioning towards the sun.
• Built-in Cable Bag: Convenient storage for charging cables and adapters.
• Strong Handle: Għal portabbiltà faċli.
• Kostruzzjoni Durabbli: ETFE film provides wear protection and IP65 waterproof rating.

5. Setup

5.1. Initial Charging of the Power Station

Before first use, fully charge the power station. This can be done via an AC wall outlet, solar panels, or a car charger.

• Iċċarġjar AC: Connect the AC charging cable to the power station's AC input port and then to a wall outlet. The LCD display will indicate charging status. The unit can be fully charged in approximately 1.6-2 hours.

Image 5.1: The power station connected to an AC wall outlet for fast charging.

5.2. Connecting Solar Panels

To charge the power station using solar energy:

1. Unfold the solar panels and position them in direct sunlight. Adjust the kickstands for optimal angle.
2. Connect the solar charging cable (MC4 connectors) from the solar panels to the solar input port on the power station.
3. For increased charging speed, two 200W solar panels can be connected in series or parallel. Refer to the diagram below for connection methods.

Image 5.2: Illustration of series and parallel connections for solar panels. Series connection adds voltage, parallel connection adds current.

The power station will automatically detect the solar input and begin charging. The LCD display will show the input wattage.

6. It-Tħaddim tal-Impjant tal-Enerġija

To turn on the power station, press and hold the main power button. The LCD display will illuminate.

6.1. L-Użu tal-Outputs tal-AC

Press the AC power button to activate the AC outlets. Plug your devices into the AC ports. Ensure the total wattage tal-apparati konnessi ma jaqbiżx it-2400W.

Image 6.1: The power station providing power to various household appliances.

6.2. Using DC, USB-A, and USB-C Outputs

Press the DC/USB power button to activate these outputs. Connect your devices to the appropriate ports. The power station can charge up to 12 devices simultaneously.

• USB-C PD100W: Ideal for fast charging laptops, tablets, and modern smartphones.
• USB-A QC18W: Suitable for quick charging compatible smartphones and other USB devices.
• DC Ports & Car Port: For 12V devices such as mini-fridges, car vacuums, or other compatible equipment.

6.3. Iċċarġjar bla fili

Place your Qi-compatible device on the wireless charging pad located on top of the power station. Ensure the device is centered for optimal charging. The wireless charging supports up to 10W output.

Image 6.2: A smartphone charging wirelessly on the power station's integrated pad.

7. Metodi ta 'ċċarġjar

The EBL 2400W Portable Power Station offers multiple recharging options:

• AC Wall Outlet: Jiċċarġja kompletament fi 1.6-2 sigħat.
• Pannelli Solari: Supports up to 800W max solar input. Can fully charge in approximately 3 hours on a sunny day with optimal panel setup.

Image 7.1: The power station being recharged by solar panels during outdoor use.

• AC + Solar Dual Charging: Combine AC and solar input for the fastest recharge, achieving full charge in about 1.8 hours (1200W Max input).
• Ċarġer tal-Karozza: Connect the car charging cable to your vehicle's 12V/24V cigarette lighter socket.

Image 7.2: Convenient car charging for the power station while on the road.

8. Manutenzjoni

• Ħażna: Store the power station and solar panels in a cool, dry place away from direct sunlight and moisture. For long-term storage, charge the power station to 50-80% every 3-6 months to prolong battery life.
• Tindif: Use a soft, dry cloth to clean the exterior of the power station. For solar panels, gently wipe the surface with a damp cloth to remove dust or debris. Do not use harsh chemicals or abrasive materials.
• Temperatura: Avoid exposing the unit to extreme temperatures. Optimal operating temperature is between 0°C to 40°C (32°F to 104°F).
• Spezzjoni: Regularly inspect cables and connectors for any signs of wear or damage. Replace if necessary.

9 Issolvi l-problemi

10. Speċifikazzjonijiet

11. Garanzija u Appoġġ

The EBL 2400W Portable Power Station and 2x200W Solar Panel come with a Garanzija tal-Manifattur ta' 2 Snin. For warranty claims, technical support, or any inquiries, please contact EBL customer service.

You can visit the official EBL store for more information and support: Ħanut Uffiċjali tal-EBL
