Kenmore Appliance Control Board Replacement Manual

1. Introduzzjoni

This manual provides essential information regarding the replacement control board for various Kenmore appliance models. This control board is designed to restore the proper electronic functions of your appliance. Please read all instructions carefully before proceeding with installation.

Nota Importanti: Appliance parts can appear similar across different models. Always verify the compatibility of this part with your specific appliance model number before installation.

2. Informazzjoni dwar is-Sigurtà

Your safety and the safety of others are very important. Always observe the following safety precautions when installing or servicing appliance parts:

• Skonnettja l-Enerġija: Always disconnect the appliance from its power source (unplug it or turn off the circuit breaker) before attempting any installation or repair. Failure to do so can result in electric shock, injury, or death.
• Ilbes Tagħmir Protettiv: Uża tagħmir protettiv personali xieraq, bħal ingwanti u nuċċalijiet tas-sigurtà, biex tevita l-korrimenti.
• Installazzjoni Professjonali Rakkomandata: If you are not comfortable with appliance repair procedures, it is highly recommended to seek assistance from a qualified service technician.
• Immaniġġja b'Kura: Electronic components are sensitive. Avoid touching circuit board components directly and handle the board by its edges to prevent electrostatic discharge (ESD) damage.

3. Kontenut tal-Pakkett

Malli tiftaħ il-pakkett, għandek issib l-oġġett li ġej:

• One (1) Replacement Control Board (Part Number: TDUO-HJJ-PL1-25112025-00787)

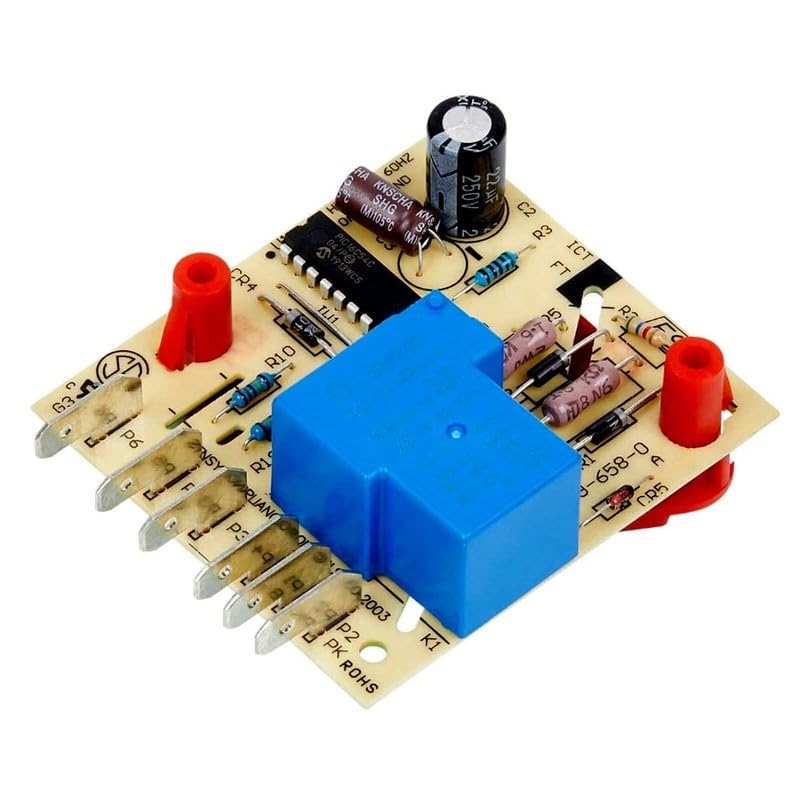

This image displays the replacement control board, typically an electronic circuit board with various connectors and components, designed for Kenmore appliances.

4. Setup u Installazzjoni

The following steps outline a general procedure for replacing an appliance control board. Specific steps may vary depending on your appliance model. Always refer to your appliance's original service manual for detailed instructions.

1. Skonnettja l-Enerġija: Ensure the appliance is completely disconnected from its power supply.
2. Aċċessa l-Bord tal-Kontroll: Carefully locate and access the existing control board within your appliance. This may involve removing panels or covers.
3. Konnessjonijiet tad-Dokumenti: Before disconnecting any wires, take clear photos or make detailed diagrams of all wire connections to the old control board. Note the color and position of each wire.
4. Skonnettja l-Wajers: Skonnettja bir-reqqa l-wajers u l-konnetturi kollha mill-bord tal-kontroll il-qadim.
5. Neħħi l-Bord il-Qadim: Unmount and remove the old control board from its housing.
6. Installa Bord Ġdid: Mount the new replacement control board in the same position as the old one.
7. Erġa' qabbad il-wajers: Using your photos or diagrams, carefully reconnect all wires and connectors to the new control board. Ensure all connections are secure and correctly positioned.
8. Pannelli Sikur: Replace any panels or covers that were removed to access the control board.
9. Irrestawra l-Enerġija: Erġa’ qabbad l-apparat mas-sors tal-enerġija tiegħu.
10. Funzjonalità tat-Test: Test the appliance to ensure it is functioning correctly.

5. Operazzjoni

Once the replacement control board is correctly installed, your Kenmore appliance should resume normal operation according to its original design specifications. The control board manages various functions of the appliance, and its proper installation is critical for correct performance.

No specific user operation steps are required for the control board itself, as it functions as an internal component of the appliance.

6. Manutenzjoni

The replacement control board is designed to be a maintenance-free component. No routine cleaning, lubrication, or adjustments are required for the board itself.

• Żomm Niexef: Ensure the area around the control board remains dry and free from moisture to prevent damage.
• Evita l-Impatt Fiżiku: Protect the appliance from impacts that could damage internal electronic components.

7 Issolvi l-problemi

Jekk l-apparat tiegħek ma jaħdimx sew wara li tinstalla l-bord tal-kontroll il-ġdid, ikkunsidra l-passi li ġejjin għas-soluzzjoni tal-problemi:

• Ivverifika l-Enerġija: Ensure the appliance is receiving power and that the circuit breaker has not tripped.
• Iċċekkja l-Konnessjonijiet: Double-check all wire connections to the control board. Ensure they are secure and correctly matched according to your documentation.
• Spezzjona għal Ħsara: Visually inspect the new control board and its connectors for any signs of damage or bent pins.
• Ikkonferma l-Kompatibbiltà: Re-verify that the installed control board is the correct part for your specific Kenmore appliance model.
• Ikkonsulta l-Manwal tal-Appliance: Refer to your appliance's original user manual or service manual for specific troubleshooting steps related to the appliance's symptoms.
• Fittex Għajnuna Professjonali: If issues persist, contact a qualified appliance repair technician.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and customer support regarding this replacement control board, please contact the seller directly. The seller for this product is tungduong shopp.

Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
